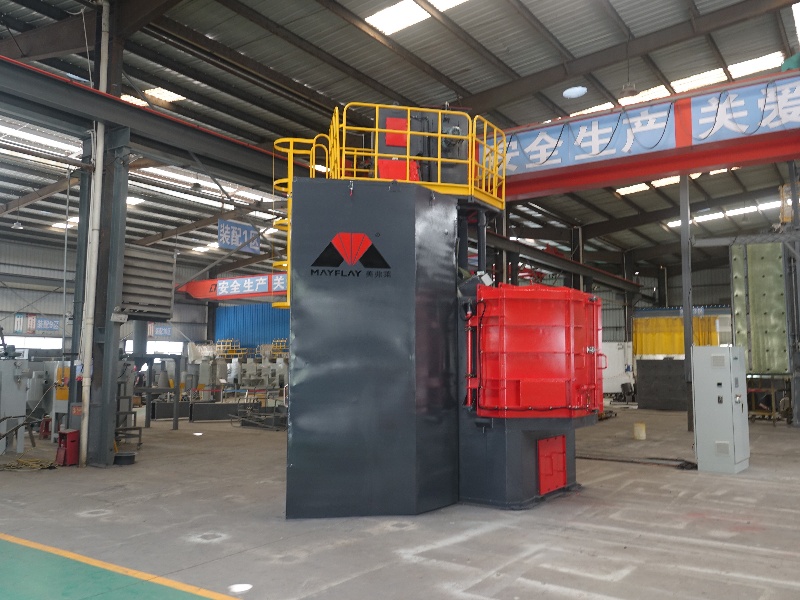

Rotary Table Shot Blasting Machines Overview

Rotary table shot blasting machines stand as a cornerstone of modern metal component processing, offering a versatile solution for batch-oriented surface treatment. These machines utilize a rotating platform (table) to expose workpieces to high-velocity abrasive media, enabling uniform cleaning, descaling, and surface enhancement. In industries ranging from automotive to aerospace, rotary table shot blasters have become indispensable for achieving consistent surface quality, improving mechanical properties, and preparing components for subsequent processes like painting, plating, or assembly.

The design of rotary table machines—characterized by their circular workflow and 360° workpiece exposure—distinguishes them from linear conveyor systems, making them ideal for complex geometries and varied part sizes. As global manufacturing demands increase for efficiency and precision, Chinese manufacturers have emerged as leaders in developing advanced rotary table shot blasting solutions, combining robust engineering with cutting-edge automation to meet international quality standards at competitive costs.

technical consultation

Video

Fundamental Working Principles: Kinetic Energy and Rotational Dynamics

(1) The Mechanics of Shot Blasting

At the core of rotary table machines lies the principle of kinetic energy transfer:

Abrasive Propulsion: Centrifugal impellers (wheel-type) or compressed air nozzles (nozzle-type) accelerate abrasive particles to velocities between 50–120 m/s. Wheel-type systems, more common for high productivity, use rotating disks with blades to fling abrasives, while nozzle systems rely on pneumatic pressure.

Surface Interaction: When abrasive particles strike the workpiece, they mechanically erode rust, scale, welding slag, or old coatings. The impact also creates a roughened surface profile (25–75 microns Ra), critical for enhancing paint adhesion or inducing compressive stresses that improve fatigue resistance.

Rotational Exposure: The table’s rotation (1–20 RPM) ensures each workpiece receives uniform blasting from all angles. This is particularly beneficial for complex parts like castings, gears, or engine components with intricate contours.

(2) Abrasive Media and Recycling Systems

Efficient media management is key to operational cost-effectiveness:

Media Types:

Steel Shots: Spherical particles for peening and stress relief (e.g., automotive suspension parts).

Steel Grits: Angular particles for aggressive cleaning (e.g., foundry castings).

Ceramic/Glass Beads: Gentle abrasives for delicate surfaces (e.g., aerospace components).

Recycling Process:

1. Used abrasive falls through table perforations into a collection hopper.

2. Screw conveyors or bucket elevators transport media to a cyclonic separator.

3. The separator removes dust and fines, with clean abrasive returning to the impeller hoppers.

4. Dust control systems (bag filters or wet scrubbers) capture particulates, ensuring emissions meet standards (e.g., <120 mg/m³ in China).

Machine Design: Key Components and Engineering Breakthroughs

(1) Rotary Table Assembly

The table is the machine’s operational hub, designed for stability and adaptability:

Construction: Heavy-duty steel with wear-resistant overlays (manganese steel or composite materials) supports loads from 500kg to 20,000kg. Table diameters range from 1.2m to (5)m, with custom designs for oversized parts.

Drive Systems: Gear motors with variable frequency drives (VFDs) enable precise speed control. Hydraulic drives are used for extreme loads, while servo motors ensure synchronized movement in advanced models.

Fixturing Solutions: Modular jigs, magnetic fixtures, and quick-release clamps accommodate diverse part shapes. Some machines feature automatic fixturing that adjusts via sensor feedback.

(2) Shot Blasting Chamber

Chambers are engineered for durability and safety:

Structure: Welded steel plates (8–15mm thick) with interlocking doors and emergency stops. High-impact zones use replaceable linings (manganese steel or polyurethane) with 3,000+ hour lifespans.

Sealing and Ventilation: Labyrinth seals prevent abrasive leakage, while positive pressure chambers minimize dust escape. Access panels and overhead cranes facilitate maintenance.

(3) Shot Blasting Units

Wheel-type systems dominate for productivity:

Impeller Design: Multi-blade centrifugal wheels (10–16 blades) driven by 15–75kW motors, rotating at 2,500–4,200 RPM. Backward-curved blades optimize velocity while reducing wear.

Abrasive Feeding: Hydraulic/pneumatic valves regulate media flow, with AI algorithms with advanced models adjusting rates based on workpiece parameters.

Nozzle Systems: Tungsten carbide nozzles (8–15mm diameter) with 6–10 bar air pressure for precision applications, often in robotic manifolds for complex contours.

Automation and Control Systems: From PLC to Industry 4.0

(1) Intelligent Process Control

Modern rotary table machines feature sophisticated controls:

PLC Core: Siemens, Mitsubishi, or domestic PLCs (e.g., Delta) manage parameters, interlocks, and diagnostics.

HMI Interfaces: Touchscreens display real-time data (abrasive flow, table speed, dust pressure) and store 100+ process recipes. Multi-language support is standard.

Recipe Management: Pre-set programs for different workpiece types ensure consistency, reducing operator error.

(2) Industry 4.0 Integration

Advanced models embrace smart manufacturing:

Remote Monitoring: Cloud platforms enable real-time tracking of machine status, OEE, and maintenance alerts via mobile devices.

Predictive Maintenance: Sensors on impellers, motors, and linings detect wear and temperature anomalies, enabling proactive servicing.

Data Analytics: Machine learning optimizes cycle times, energy use, and component lifespans by analyzing production data.

Industrial Applications Across Sectors

(1) Automotive Manufacturing

Rotary table machines are vital in automotive component production:

Engine Parts: Cylinder heads, crankshafts, and transmission cases are blasted to remove casting sand and scale, preparing surfaces for machining. A typical plant processes 600–1,000 engine blocks daily.

Suspension Components: Control arms and wheel hubs undergo shot peening to enhance fatigue life, with compressive stresses reducing failure rates by 40%.

Aluminum Parts: Lightweight components (hoods, brackets) are blasted with ceramic media for deburring without material loss.

(2) Aerospace and Defense

Precision is non-negotiable in aerospace applications:

Turbine Blades: Robotic nozzle systems blast blades with fine ceramic media, removing heat treatment scale without altering airfoil profiles.

Landing Gear Components: Heavy-duty tables (load capacity >10,000kg) process landing gear parts, combining cleaning with peening for high-strength requirements.

Composite Materials: Specialized machines use gentle abrasives (glass beads) to prepare composite surfaces for adhesive bonding in aircraft structures.

(3) Foundry and Forging Industries

In metal casting and forging:

Casting Deburring: Machines efficiently remove flash and sand from complex castings (valve bodies, pump housings), reducing manual labor by 70%.

Scale Removal: Hot-forged components (gears, shafts) are blasted to remove oxidation scale, improving machining efficiency.

Quality Inspection: Blasting reveals surface defects (cracks, porosity) early, improving first-pass yield.

(4) Heavy Machinery and Renewable Energy

Wind Turbine Components: Tables process hubs, nacelle frames, and tower flanges, ensuring corrosion resistance in coastal environments.

Mining Equipment: Heavy-duty tables ((5)m diameter) blast excavator parts, with recycling systems reducing costs in remote sites.

Marine Applications: Shipbuilding components are blasted to Sa (5) standards, preparing surfaces for anti-corrosion coatings.

The Chinese Manufacturing Landscape: Innovation and Competitiveness

(1) Industry Leadership

Chinese manufacturers dominate global rotary table machine production:

Key Players: Firms like Qingdao Dongxin, Jiangsu Jinzhu, and Wuxi Huading produce 60% of global units, with annual outputs exceeding 4,000 machines.

Technological Innovation: Over 1,000 patents cover impeller designs, automation systems, and energy-saving features, including dual-table configurations for continuous operation.

(2) Cost-Effectiveness and Customization

Price Advantage: Chinese machines cost 30–50% less than European/Japanese models. A standard 1.8m table costs ~USD 60,000–90,000, versus USD 120,000+ from Western suppliers.

Tailored Solutions: Customizations include explosion-proof designs, cold-resistant models (-30°C), and mobile units with integrated generators for on-site blasting.

(3) Global Market Impact

Exports reach 130+ countries, with major markets in:

Southeast Asia: Supporting automotive hubs in Thailand and Vietnam.

Middle East: Oil and gas equipment maintenance in the UAE.

Africa: Affordable solutions for emerging manufacturing.

Europe/North America: CE/OSHA-compliant models competing in mid-range markets.

Quality Standards and Regulatory Compliance

(1) International and Domestic Specifications

Surface Cleanliness: Aligned with ISO 8501-1 (Sa 2, Sa (5), Sa 3) and SSPC SP-6/SP-10.

Roughness Requirements: ISO 8503 (30–75 microns Ra) for coating adhesion.

Chinese Standards: GB/T 892(1) (cleanliness), GB/T 1328(1) (roughness), GB 16297 (dust emissions <120 mg/m³).

(2) Safety and Environmental Compliance

Noise Control: GB 12348-2008 mandates <85 dB(A) at operator positions, with soundproofing standard.

Safety Features: Emergency stops, interlocked doors, and overload protection comply with GB/T 5082.

Environmental Certifications: CE, ISO 14001, and RoHS compliance for export markets.

Future Trends: Smart, Efficient, Sustainable

(1) AI and Robotics Integration

AI-Driven Blasting: Machine learning optimizes parameters based on real-time 3D surface scans.

Cobot Collaboration: Collaborative robots load/unload workpieces and adjust fixtures for lights-out manufacturing.

Digital Twins: Virtual models simulate processes to predict wear and energy use.

(2) Energy and Resource Efficiency

High-Efficiency Impellers: New designs reduce power consumption by 25%, with permanent magnet motors.

Abrasive Recycling: Electrostatic separators extend media life by 40%, with closed-loop systems minimizing waste.

Energy Recovery: Heat from dust collectors preheats workpieces or facilities.

(3) Sustainable Technologies

Eco-Abrasives: Recycled steel grit, crushed glass, and biodegradable media replace traditional abrasives.

Waterless Blasting: Hybrid systems combine dry abrasive with minimal water to suppress dust.

Green Manufacturing: Solar-powered units and carbon-neutral production align with global sustainability goals.

Basic Parameter

Case Studies: Innovations in Practice

(1) Automotive Casting in Chongqing

A Chinese automaker uses a 2.8m rotary table machine from Qingdao Dongxin:

Features: Eight 45kW impellers, robotic loading, dual-stage dust collector.

Performance: Processes 1,000 engine blocks daily, achieving Sa (5) with 50 micron roughness. Labor costs reduced by 65%, energy use by 20%.

(2) Aerospace Turbine Blades in Shenyang

An aerospace facility employs a precision machine from Wuxi Huading:

Specialized Design: Class 1000 cleanroom chamber, ceramic media delivery, robotic nozzle arm.

Process: Blasting with 80-micron zirconia alumina, reducing rework by 85% and ensuring AS9100 compliance.

Driving Excellence in Surface Treatment

Rotary table shot blasting machines have evolved from simple cleaning tools to intelligent manufacturing assets, essential for industries demanding precision, productivity, and sustainability. As global manufacturing shifts toward smart factories and circular economies, these machines—driven by Chinese innovation—will continue to lead in integrating AI, robotics, and green technologies. For any industry reliant on metal component quality, rotary table shot blasters stand as the cornerstone of surface treatment excellence, shaping the future of manufacturing one workpiece at a time.
