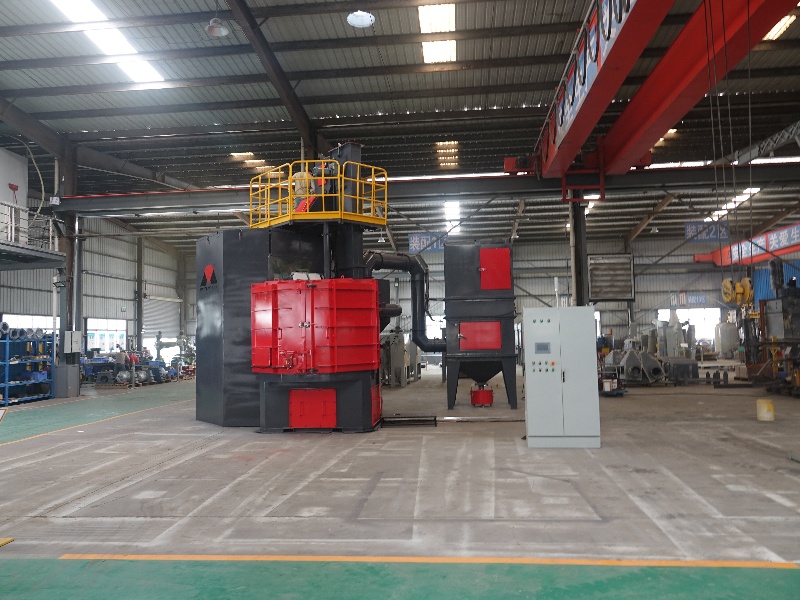

Key Components and Their Functions
(1) The Rotary Table
The rotary table is the central component of the machine, serving as the platform on which workpieces are placed. It is typically made of robust steel and designed to withstand the impact of abrasive media and the weight of heavy components. The table can be driven by an electric motor, often with a variable speed control system, allowing operators to adjust the rotation speed according to the specific requirements of the workpieces. Some advanced models feature a divided or segmented table, enabling the simultaneous processing of different types of parts with varying treatment needs.
The table's size and load bearing capacity vary widely depending on the machine's design. Smaller machines may have tables with diameters of a few hundred millimeters and a load capacity of several hundred kilograms, while larger industrial grade rotary table shot blasting machines can accommodate tables with diameters of over 3 meters and support loads exceeding several tons. This versatility makes them suitable for treating a wide range of components, from small automotive parts to large castings.
(2) Blast Chamber
The blast chamber encloses the entire blasting process, protecting operators and the surrounding environment from flying abrasive particles. It is constructed from heavy duty steel plates and lined with wear resistant materials such as manganese steel or rubber. These linings are replaceable, as they gradually wear out due to the continuous impact of the abrasive media.
The interior of the blast chamber is designed to optimize the flow of abrasive particles, ensuring that they are evenly distributed across the workpieces on the rotary table. The shape and size of the blast chamber are carefully engineered to accommodate the size of the rotary table and the maximum dimensions of the workpieces that the machine can handle. Additionally, the blast chamber is equipped with access doors for loading and unloading parts, as well as inspection ports for monitoring the blasting process.
(3) Shot Blasting Turbines/Impellers
Shot blasting turbines are the powerhouses of the machine, responsible for accelerating the abrasive media to high speeds. Modern rotary table shot blasting machines usually feature multiple turbines, strategically positioned around the blast chamber to ensure comprehensive coverage of the workpieces on the rotating table. Each turbine consists of a high speed electric motor, impeller blades, and a shot feeding mechanism.
The impeller blades are designed to capture the abrasive particles from the shot feeding system and accelerate them outward at high velocities, typically ranging from 60 to 100 meters per second. The speed of the impeller can be adjusted, which in turn controls the impact force of the abrasive media on the workpieces. Different turbine configurations can be used depending on the type of parts being treated and the desired surface finish. For example, more powerful turbines may be required for removing thick layers of rust or scale from large castings, while gentler settings are suitable for delicate components.
(4) Abrasive Media Handling System
The abrasive media handling system is crucial for the efficient operation of the rotary table shot blasting machine. It includes components for collecting, separating, cleaning, and recycling the abrasive media. After the abrasive particles impact the workpieces, they fall to the bottom of the blast chamber, where they are collected by a screw conveyor or a similar mechanism.
The collected abrasive media is then transported to a separator, which removes contaminants such as dust, rust, and scale from the used shots. Common types of separators include cyclone separators and air wash separators. Once the contaminants are removed, the clean abrasive media is stored in a hopper and ready to be fed back into the shot feeding system of the turbines. This recycling process not only reduces the cost of abrasive media but also minimizes environmental waste.
(5) Dust Collection System
To maintain a clean and safe working environment, rotary table shot blasting machines are equipped with dust collection systems. During the blasting process, fine dust particles are generated as the abrasive media impacts the workpieces and removes surface contaminants. These dust particles can be harmful to operators' health if inhaled and can also cause damage to the machine's components.
The dust collection system typically consists of a fan, filters, and a dust storage bin. The fan creates a negative pressure within the blast chamber, drawing in the dust laden air. The air then passes through filters, which trap the dust particles. The clean air is then discharged back into the environment, while the collected dust is stored in the bin for proper disposal. Modern dust collection systems often use high efficiency filters, such as cartridge filters or bag filters, to ensure effective dust removal and compliance with environmental and safety regulations.
Working Principles and Operation

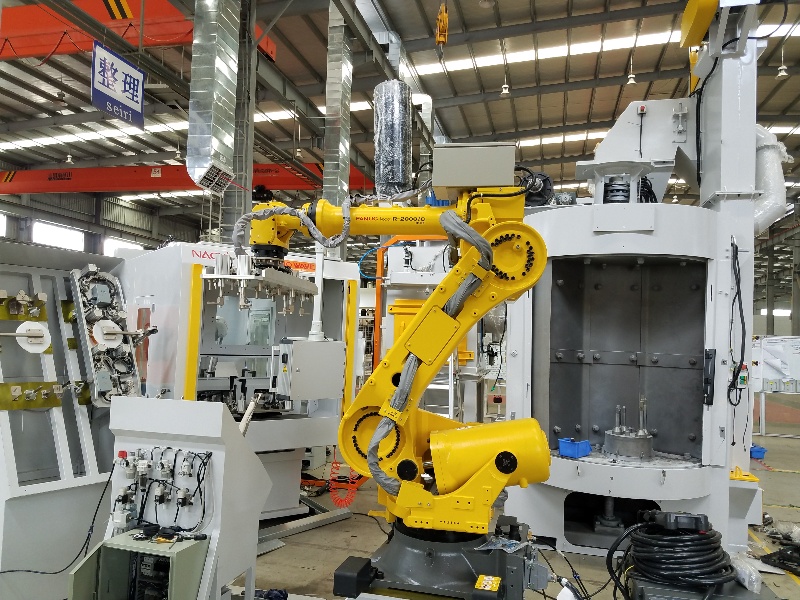

(1) Loading and Positioning of Workpieces
Before the blasting process begins, workpieces are carefully loaded onto the rotary table. The positioning of the parts is crucial to ensure uniform treatment. For small and simple components, they can be placed directly on the table, while larger or more complex parts may require the use of fixtures or jigs to hold them in place. These fixtures not only secure the workpieces during rotation but also help to expose all surfaces that need to be treated to the abrasive media.
Operators need to consider factors such as the weight distribution of the parts on the table to avoid any imbalance during rotation, which could lead to vibrations and affect the quality of the blasting process. Once the workpieces are properly positioned, the access doors of the blast chamber are closed, and the machine is ready to start.
(2) Initiating the Blasting Process
When the machine is started, the rotary table begins to rotate at the pre set speed. Simultaneously, the shot feeding system of the turbines starts supplying abrasive media, which is then accelerated by the impellers and directed towards the workpieces on the rotating table. The high velocity abrasive particles impact the surfaces of the parts, removing contaminants and creating the desired surface finish.
The duration of the blasting process depends on several factors, including the type and condition of the workpieces, the hardness of the material, and the desired surface cleanliness and roughness. Operators can monitor the progress of the blasting process through inspection ports on the blast chamber or by using internal cameras in more advanced models. Based on this monitoring, they can adjust parameters such as the rotation speed of the table, the flow rate of the abrasive media, and the speed of the turbines to achieve the best results.
(3) Monitoring and Adjusting the Process
During the blasting process, it is essential to continuously monitor various parameters to ensure the quality and efficiency of the treatment. Operators need to keep an eye on the pressure and flow rate of the abrasive media, as any fluctuations can affect the impact force and the uniformity of the surface treatment. The rotation speed of the table also needs to be monitored, as an incorrect speed may result in uneven exposure of the workpieces to the abrasive stream.
In addition, the performance of the dust collection system should be regularly checked to ensure that it is effectively removing dust particles from the blast chamber. If the dust collection efficiency drops, it can lead to a buildup of dust inside the chamber, which not only affects the visibility for monitoring but also poses a safety hazard. Based on these observations, operators can make real time adjustments to the machine's settings to optimize the blasting process.
(4) Unloading and Post processing
Once the blasting process is complete, the machine is stopped, and the access doors of the blast chamber are opened. The workpieces are then carefully unloaded from the rotary table. After unloading, the parts may require post processing steps, such as cleaning to remove any remaining abrasive particles, inspection to check the quality of the surface treatment, and subsequent coating or painting to protect the newly treated surface.
Some workpieces may also need to be heat treated or further machined depending on their intended use. The post processing steps are just as important as the blasting process itself, as they ensure that the workpieces meet the required quality standards and are ready for their final application.
Types of Rotary Table Shot Blasting Machines
(1) Standard Rotary Table Shot Blasting Machines
Standard rotary table shot blasting machines are the most common type, suitable for a wide range of general purpose applications. They typically feature a single rotary table with a fixed diameter and load bearing capacity. These machines are designed to handle a variety of workpieces, from small metal components to medium sized castings.
The number of shot blasting turbines in standard machines can vary, but they usually have between 4 and 8 turbines, strategically positioned around the blast chamber to provide comprehensive coverage of the workpieces on the rotating table. Standard machines are often used in small to medium sized manufacturing facilities where batch processing of parts is required, and the production volume is not extremely high.
(2) Double Table Rotary Table Shot Blasting Machines
Double table rotary table shot blasting machines are designed to increase productivity by allowing continuous operation. These machines feature two rotary tables, one inside the blast chamber for the blasting process and another outside for loading and unloading workpieces. While one table is inside the chamber undergoing blasting, the other table can be loaded with the next batch of parts.
Once the blasting process on the first table is complete, the tables are rotated, and the newly loaded table enters the blast chamber, while the treated parts on the other table are unloaded. This design significantly reduces the downtime associated with loading and unloading, thereby increasing the overall throughput of the machine. Double table machines are ideal for high volume production environments where minimizing idle time is crucial.

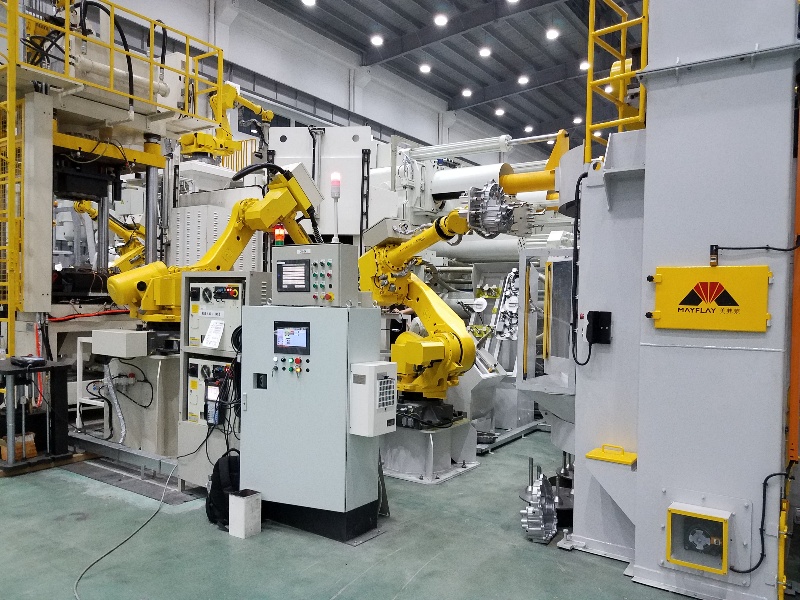

(3) Specialized Rotary Table Shot Blasting Machines
Specialized rotary table shot blasting machines are customized to meet specific application requirements. For example, in the aerospace industry, where parts often have complex geometries and require very precise surface treatment, specialized machines may be designed with additional features such as adjustable turbine angles and advanced control systems to ensure that all surfaces of the parts are treated evenly.
In the foundry industry, where large and heavy castings need to be cleaned, specialized machines may have larger rotary tables with higher load bearing capacities and more powerful turbines. Some specialized machines may also be designed for treating heat sensitive materials, with features such as temperature controlled blast chambers to prevent damage to the workpieces during the blasting process.
Applications in Various Industries
(1) Automotive Industry
In the automotive industry, rotary table shot blasting machines are used for a variety of applications. They are commonly employed to clean and prepare automotive components such as engine blocks, cylinder heads, suspension parts, and wheels before painting or coating. By removing rust, scale, and other contaminants, the blasting process improves the adhesion of the paint or coating, ensuring a longer lasting and more aesthetically pleasing finish.
Shot blasting also helps to enhance the surface roughness of the components, which is beneficial for applications where components need to be bonded or assembled. Additionally, in the production of automotive castings, rotary table shot blasting machines are used to clean the cast parts, removing any sand or other residues from the casting process and preparing them for further machining or assembly.
(2) Aerospace Industry
The aerospace industry has extremely high standards for the quality and integrity of its components. Rotary table shot blasting machines play a crucial role in preparing aerospace parts for assembly and coating. These machines are used to remove surface contaminants from components such as turbine blades, aircraft frames, and landing gear parts.
The blasting process not only cleans the surfaces but also helps to improve the fatigue resistance of the parts by creating a favorable surface residual stress pattern. Specialized rotary table shot blasting machines are often used in the aerospace industry, with precise control over the blasting parameters to ensure that the parts meet the strictest quality requirements. The use of high quality abrasive media and advanced dust collection systems is also essential to prevent any contamination of the parts during the blasting process.
(3) Foundry Industry
In foundries, rotary table shot blasting machines are indispensable for cleaning castings after the casting process. Castings often have a rough surface with sand residues, scale, and other impurities that need to be removed before further processing or shipment. The high velocity abrasive media of the shot blasting machine effectively removes these contaminants, revealing the true surface of the casting.
This not only improves the appearance of the casting but also makes it easier to inspect for any defects. Rotary table shot blasting machines in foundries are typically large and powerful, capable of handling heavy and large sized castings. The continuous rotation of the table allows for efficient processing of multiple castings in a single batch, increasing the productivity of the foundry.
(4) General Manufacturing
In the general manufacturing sector, rotary table shot blasting machines are used for a wide range of applications, from cleaning and preparing metal parts for painting and coating to enhancing the surface quality of components for better functionality. They are used in industries such as machinery manufacturing, construction equipment production, and agricultural machinery manufacturing.
For example, in the production of machinery parts, shot blasting helps to remove rust and scale, improving the corrosion resistance of the parts. In the construction equipment industry, components such as excavator buckets and crane hooks are often treated with shot blasting to increase their durability and wear resistance. The versatility of rotary table shot blasting machines makes them a valuable asset in any manufacturing facility that deals with metal components.
Technical Parameters and Performance Metrics
(1) Rotary Table Size and Load Bearing Capacity
The size of the rotary table, typically measured by its diameter, is an important parameter as it determines the maximum size of the workpieces that the machine can accommodate. A larger table diameter allows for the treatment of larger components, but it also requires a larger blast chamber and more powerful turbines to ensure effective coverage.
The load bearing capacity of the rotary table is another critical factor. It specifies the maximum weight of the workpieces that the table can support during rotation. Exceeding this capacity can lead to instability, vibrations, and potential damage to the machine. Manufacturers usually provide a range of table sizes and load bearing capacities to meet the diverse needs of different industries and applications.
(2) Blasting Capacity
The blasting capacity of a rotary table shot blasting machine refers to the amount of abrasive media that can be propelled onto the workpieces per unit of time. It is determined by factors such as the number and power of the shot blasting turbines, the speed of the impellers, and the flow rate of the abrasive media. A higher blasting capacity means that the machine can process parts more quickly, which is beneficial for high volume production.
However, the blasting capacity also needs to be balanced with the size and type of the workpieces. For delicate or small parts, a lower blasting capacity may be sufficient to avoid over blasting and potential damage to the components.
(3) Surface Treatment Quality
The quality of the surface treatment achieved by a rotary table shot blasting machine is evaluated based on several criteria, including surface cleanliness, surface roughness, and the removal of contaminants. Surface cleanliness is often measured according to international standards such as ISO 8501 1, which defines different levels of cleanliness, from Sa1 (lightly blasted) to Sa3 (white metal blast cleaning).
Surface roughness is measured in micrometers and is important for applications such as coating adhesion. A properly blasted surface should have an appropriate roughness profile to ensure that the coating adheres well. The machine's ability to remove rust, scale, paint, and other contaminants completely is also a key indicator of its performance.
(4) Energy Consumption
Energy consumption is an important consideration for any industrial machine. In rotary table shot blasting machines, energy is consumed mainly by the motors driving the rotary table, the shot blasting turbines, and the dust collection system. Modern machines are designed to be more energy efficient, with features such as variable frequency drives for the motors, which can adjust the power consumption based on the load.
Reducing energy consumption not only helps to lower the operating costs of the machine but also contributes to environmental sustainability. Manufacturers are constantly researching and developing new technologies to improve the energy efficiency of rotary table shot blasting machines without sacrificing performance.
Installation, Operation, and Maintenance
(1) Installation
Installing a rotary table shot blasting machine requires careful planning and execution. First, a suitable location needs to be selected, preferably in a well ventilated area with sufficient space for the machine, as well as for loading and unloading workpieces. The floor should be level and have the necessary load bearing capacity to support the weight of the machine and the workpieces.
The machine is then assembled according to the manufacturer's instructions, which may involve installing the blast chamber, the rotary table, the shot blasting turbines, the abrasive media handling system, and the dust collection system. Electrical and mechanical connections need to be made correctly, and all safety devices, such as emergency stop buttons and interlocked access doors, should be installed and tested.
After the installation is complete, the machine needs to be commissioned, which involves running it through a series of tests to ensure that all components are functioning properly, the blasting process is operating as expected, and the safety systems are effective.
(2) Operation
Operating a rotary table shot blasting machine requires trained personnel who are familiar with the machine's functions and safety procedures. Before starting the machine, operators should perform a pre operation inspection, checking for any signs of damage to the machine components, ensuring that the abrasive media hopper is filled, and verifying that the dust collection system is working correctly.
During operation, operators should follow the established operating procedures, including proper loading and positioning of workpieces, setting the appropriate blasting parameters, and monitoring the process for any abnormalities. They should also be aware of the safety protocols, such as wearing personal protective equipment (PPE) and avoiding any unauthorized access to the blast chamber while the machine is in operation.
After the blasting process is complete, operators should perform a post operation check, cleaning the machine if necessary, and recording any relevant data, such as the production quantity, the blasting parameters used, and any issues that were encountered during the operation.
(3) Maintenance
Regular maintenance is essential to keep a rotary table shot blasting machine in good working condition and ensure its long term reliability. Routine maintenance tasks include:
Daily Maintenance: Conduct a visual inspection of the machine to check for any visible signs of damage or wear, such as cracks in the blast chamber lining or loose components. Empty the dust collection bin to prevent over filling, which can reduce the efficiency of the dust collection system. Monitor the level of abrasive media in the hopper and replenish it as needed to maintain a consistent blasting process. Additionally, check the operation of the conveyor belts or chains that move the abrasive media, ensuring they are running smoothly without any slippage or abnormal noises.
Weekly Maintenance: Lubricate all the moving parts of the machine, including the bearings of the rotary table, the turbines, and the conveyor system. This helps to reduce friction and prevent premature wear. Inspect the impeller blades of the shot blasting turbines for any signs of erosion or damage. Even minor wear on the blades can affect the velocity and direction of the abrasive media, leading to uneven surface treatment. Clean the filters of the dust collection system thoroughly to restore their efficiency. Clogged filters can increase the pressure drop in the system, reducing the airflow and the effectiveness of dust removal.
Monthly Maintenance: Remove and inspect the wear resistant linings of the blast chamber. Depending on the intensity of use, these linings may need to be replaced periodically to prevent the blast chamber walls from being damaged by the abrasive media. Check the electrical connections and wiring of the machine to ensure they are secure and free from any signs of corrosion or fraying. Test the safety interlocks, such as the emergency stop buttons and the access door sensors, to confirm that they are functioning properly. Any malfunction in these safety features can pose a serious risk to operators.
Annual Maintenance: Conduct a comprehensive overhaul of the machine, which may involve disassembling major components for in depth inspection and repair. Replace any worn out parts, such as the turbine motors, the conveyor belts, or the shot feeding mechanisms. Calibrate the blasting parameters, including the rotation speed of the table, the speed of the turbines, and the flow rate of the abrasive media, to ensure consistent and accurate surface treatment. This calibration is crucial for maintaining the quality of the blasting process over time.
