Rotary Table Shot Blasting Machine from China

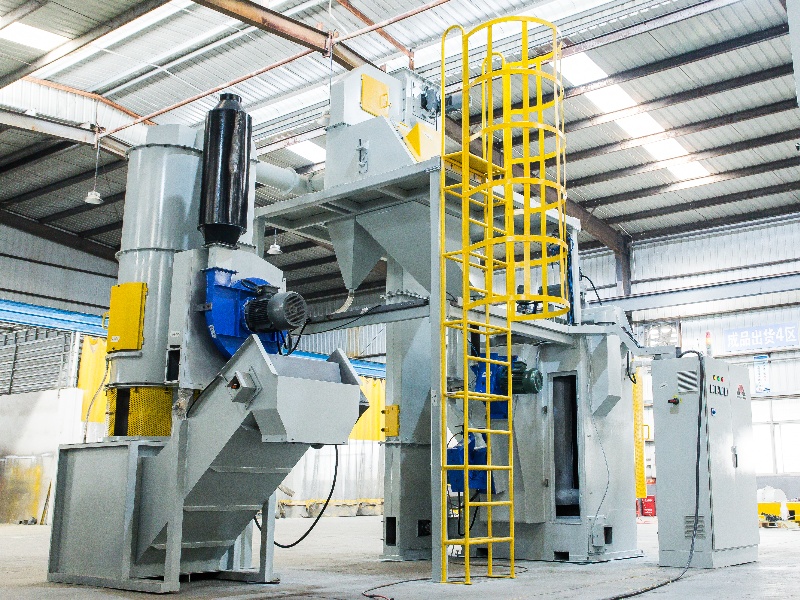

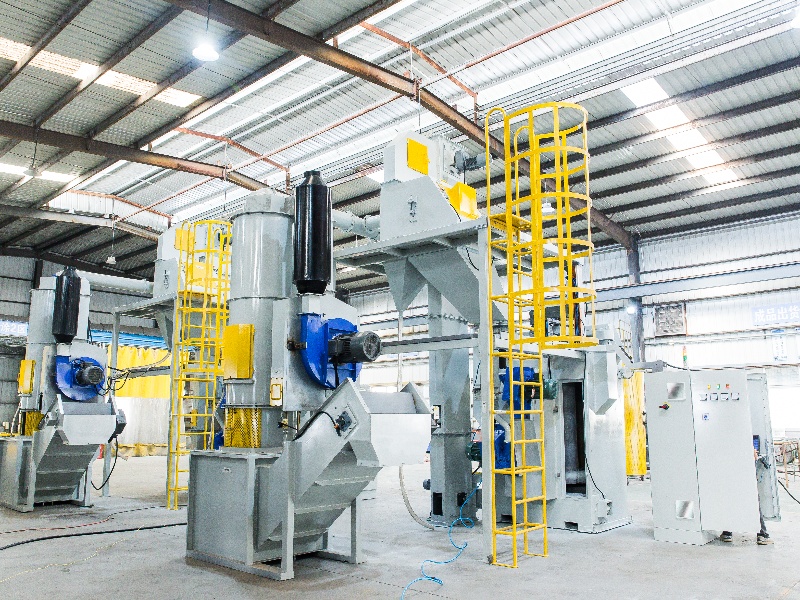

In the realm of surface treatment for metal components, the rotary table shot blasting machine has emerged as a pivotal solution for batch processing of small to medium-sized workpieces. China, as a global manufacturing hub, has developed a sophisticated ecosystem for producing rotary table shot blasters that combine high efficiency, precision, and cost-effectiveness. These machines are designed to clean, descale, and strengthen components by propelling abrasive media at high velocity, making them indispensable in industries such as automotive, aerospace, casting, and general manufacturing.

The rotary table configuration—where workpieces are placed on a rotating platform inside a blasting chamber—offers unique advantages for uniform treatment of complex geometries. Unlike linear conveyor systems, rotary tables enable 360° exposure to abrasive particles, ensuring consistent surface finish on all sides of the workpiece. Chinese manufacturers have refined this design over decades, integrating advanced automation, energy-saving technologies, and robust construction to meet the demanding needs of global industrial clients.

technical consultation

Video

Working Principles: Dynamics of Rotary Table Shot Blasting

(1) Mechanism of Abrasive Impact and Surface Treatment

Rotary table shot blasting machines operate on the principle of kinetic energy transfer, similar to other shot blasting systems, but with a distinct rotational workflow:

Rotary Motion: The table, driven by an electric motor or gearbox, rotates at 3–15 RPM, exposing each workpiece to multiple passes of abrasive particles. This rotational speed is critical for achieving uniform coverage; too slow may cause uneven blasting, while too fast reduces dwell time per surface.

Impeller Configuration: Centrifugal impellers (wheel-type) or compressed air nozzles (nozzle-type) accelerate abrasive media. Wheel-type systems are more common for productivity, with impellers rotating at 2,000–4,000 RPM to propel steel shots at 60–120 m/s. Nozzle systems, though less powerful, excel in precision applications or delicate components.

Surface Interaction: Abrasive particles strike the workpiece surface, removing rust, scale, welding slag, or old coatings through mechanical erosion. The impact also creates a roughened surface profile (25–75 microns Ra) to enhance paint adhesion or induce compressive stresses for fatigue resistance.

(2) Abrasive Media Management and Recycling

Efficient abrasive handling is central to rotary table machine operation:

Media Types: Common abrasives include steel shots (for peening), steel grits (for aggressive cleaning), and ceramic beads (for light deburring). Chinese manufacturers often recommend media sizes based on workpiece material and treatment goals—e.g., S330 steel shot for cast iron components.

Recycling System: A typical cycle involves:

1. Collection: Used abrasive falls through perforations in the table into a hopper.

2. Elevation: Screw conveyors or bucket elevators transport media to a cyclonic separator.

3. Separation: The separator removes dust and fines, with clean abrasive returning to the impeller hoppers.

4. Dust Control: Bag filters or wet scrubbers capture particulates, ensuring emissions meet Chinese standards (e.g., GB 16297-1996 for <120 mg/m³).

Machine Design: Key Components and Engineering Innovations

(1) Rotary Table and Workpiece Fixturing

The table assembly is the machine’s operational core:

Table Construction: Made from wear-resistant steel (e.g., Q345B) with optional manganese steel overlays in high-impact areas. Table diameters range from 1.2m to (5)m, supporting loads of 500kg to 10,000kg, depending on the model.

Fixturing Systems: Custom jigs and clamps secure workpieces to prevent movement during blasting. Chinese manufacturers offer:

Adjustable brackets for diverse part shapes.

Magnetic fixtures for ferrous materials.

Rotating or tilting fixtures to enhance 3D coverage.

Drive System: Gear motors with variable frequency drives (VFDs) allow precise speed control. Heavy-duty models may use hydraulic drives for stability under extreme loads.

(2) Shot Blasting Chamber and Linings

The chamber is designed for durability and safety:

Structure: Welded steel plates (6–12mm thickness) form the chamber, with interlocking doors and safety switches to prevent operation when open.

Wear Protection: Replaceable linings made of manganese steel (Mn13), high-chromium cast iron, or rubber sheets protect chamber walls. Linings in direct line of impellers may have a lifespan of 2,000–3,000 hours before replacement.

Accessibility: Service hatches and removable panels allow easy maintenance of impellers, conveyors, and linings.

(3) Shot Blasting Units: Impellers and Nozzles

Wheel-type systems dominate due to high efficiency:

Impeller Design: Multi-blade centrifugal wheels (8–16 blades) powered by 7.5–45kW motors. Advanced models use backward-curved blades to minimize abrasive wear and maximize velocity.

Abrasive Feeding: Hydraulic or pneumatic valves regulate media flow, with sensors ensuring consistent supply. Some Chinese machines feature automatic feed adjustment based on workpiece weight.

Nozzle Systems: Used for targeted blasting, with tungsten carbide nozzles (10–12mm diameter) and 6–8 bar air pressure. Nozzle manifolds may be robotically positioned for complex parts.

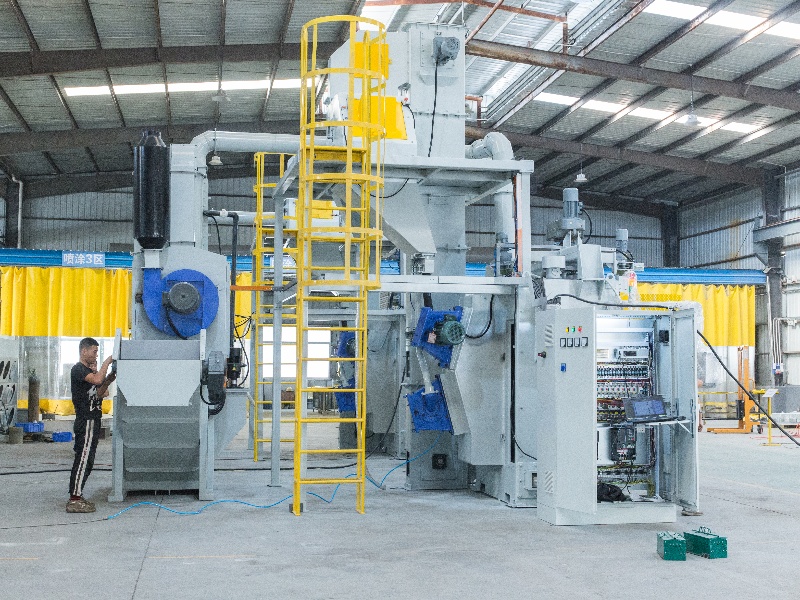

(4) Control and Automation Systems

Modern rotary table machines integrate smart technologies:

PLC Control: Siemens, Mitsubishi, or domestic PLCs (e.g., Delta) manage process parameters, including table speed, impeller power, and abrasive flow.

HMI Interface: Touchscreen displays allow operators to select pre-set recipes for different workpiece types, with real-time monitoring of machine status (e.g., dust collector pressure, media level).

IoT Integration: High-end models connect to factory networks, enabling remote diagnostics, OEE tracking, and predictive maintenance via vibration or temperature sensors on critical components.

Industrial Applications in China and Beyond

(1) Automotive Component Manufacturing

Rotary table shot blasters are essential in automotive production:

Engine Parts: Cylinder heads, crankshafts, and transmission cases are blasted to remove casting sand and scale, preparing surfaces for machining or coating. For example, a Chinese automotive supplier uses a 2m rotary table machine to process 500 cylinder heads daily, achieving Sa (5) cleanliness.

Suspension Components: Control arms, knuckles, and wheel hubs undergo shot peening to enhance fatigue life. The process induces compressive stresses, critical for parts subjected to cyclic loading.

Body Panels: Lightweight aluminum components are blasted with ceramic media for deburring and surface preparation, avoiding damage from harsher steel abrasives.

(2) Foundry and Forging Industries

In metal casting and forging:

Casting Deburring: Rotary tables efficiently remove flash, risers, and sand from castings (e.g., valve bodies, pump housings). A foundry in Zhejiang Province uses a 3m table machine to process 1,200 cast iron parts daily, reducing manual deburring labor by 70%.

Forging Scale Removal: Hot-forged components like gears and shafts are blasted to remove oxidation scale before heat treatment or machining. The uniform surface finish ensures consistent quenching results.

Quality Control: Shot blasting reveals surface defects (cracks, porosity) in castings that might be missed in untreated parts, improving first-pass yield.

(3) Aerospace and Defense Components

High-precision applications demand precision blasting:

Turbine Components: Aircraft engine blades and casings are blasted with fine ceramic or glass beads to remove heat treatment scale without altering critical dimensions. Chinese machines for aerospace use often feature Class 100 cleanroom-compatible dust control.

Military Parts: Armor components and weapon systems undergo shot peening to enhance ballistic resistance. Rotary tables allow uniform treatment of complex geometries like turret housings.

Composite Materials: Some machines are adapted to blast carbon fiber composites with gentle abrasives, improving adhesive bonding for aircraft structures.

(4) General Manufacturing and Artisan Applications

Hardware and Fasteners: Nuts, bolts, and hinges are batch-blasted for rust removal and surface roughening before plating. A rotary table can process thousands of small parts in a single cycle.

Artistic Metalwork: Sculptures, architectural elements, and decorative fixtures are blasted to achieve specific surface textures (e.g., matte finishes or controlled oxidation patterns). Chinese manufacturers offer compact rotary table machines for artisanal workshops.

Recycling and Refurbishment: Used components (e.g., engine blocks, machinery parts) are blasted to restore surface condition for reuse, supporting circular economy initiatives.

Chinese Manufacturing Ecosystem: Technology and Competitiveness

(1) Industry Leadership and Innovation

China’s rotary table shot blasting machine sector has evolved from imitation to original design:

Key Manufacturers: Companies like Qingdao Dongxin, Jiangsu Jinzhu, and Wuxi Huading lead the market, with annual production exceeding 3,000 units. Their machines are used in 80% of China’s automotive foundries and exported globally.

Patent Landscape: Chinese firms hold over 800 patents related to rotary table technology, including innovations in abrasive recycling, energy-efficient impellers, and automated fixturing.

(2) Cost-Effectiveness and Customization

Price Advantage: Chinese machines cost 40–60% less than European or Japanese equivalents. A standard 1.5m rotary table shot blaster costs ~USD 50,000–80,000, versus USD 100,000–150,000 from Western manufacturers.

Tailored Solutions: Domestic suppliers quickly adapt to client needs, such as:

Explosion-proof designs for hazardous environments.

Cold-resistant machines for northern China’s frigid climates.

Mobile units for on-site blasting of large components.

(3) Export Markets and Global Impact

Chinese rotary table shot blasters are exported to over 120 countries, with major markets in:

Southeast Asia: Supporting automotive and electronics manufacturing hubs.

Middle East: Oil and gas equipment maintenance and casting facilities.

Africa: Affordable solutions for emerging manufacturing sectors.

Europe and North America: Competing in mid-range markets with CEand OSHA-compliant models.

Quality Standards and Regulatory Compliance

(1) International and Domestic Specifications

Surface Cleanliness: Commonly referenced standards include:

ISO 8501-1: Sa 2 (thorough cleaning), Sa (5) (very thorough), or Sa 3 (white metal).

SSPC SP-6 (commercial blast cleaning) and SP-10 (near-white).

Roughness Requirements: Measured by ISO 8503 or ASTM D4417, with targets typically 30–60 microns for industrial coatings.

Chinese Standards: GB/T 892(1)-2011 (surface cleanliness) and GB/T 1328(1)-2011 (surface roughness) are widely adopted.

(2) Environmental and Safety Compliance

Dust Emission: Machines must meet GB 16297-1996, limiting particulate matter to <120 mg/m³. Advanced models achieve <50 mg/m³ with high-efficiency bag filters.

Noise Control: GB 12348-2008 mandates noise levels <85 dB(A) at operator positions. Soundproofing measures like insulated chambers and mufflers are standard.

Safety Features: Emergency stop systems, interlocked doors, and overload protection comply with GB/T 5082-1999 (safety of shot blasting machines).

Future Trends: Automation, Efficiency, and Sustainability

(1) Smart Manufacturing Integration

AI-Driven Process Optimization: Machine learning algorithms analyze surface inspection data (e.g., from 3D scanners) to adjust blasting parameters in real-time, ensuring consistent results across varying workpiece batches.

Digital Twins: Virtual models simulate the blasting process to predict wear on components, optimize cycle times, and reduce energy consumption by up to 15%.

(2) Energy and Resource Efficiency

High-Efficiency Impellers: New designs with improved aerodynamics reduce power consumption by 20%, while permanent magnet (PM) motors replace traditional induction motors for better torque control.

Abrasive Recycling Innovations: Electrostatic separators and magnetic filters enhance media purity, extending abrasive life by 30%. Some machines now use closed-loop systems with zero media loss.

Energy Recovery Systems: Heat from dust collector exhaust is repurposed for preheating workpieces or facility heating, improving overall energy efficiency.

(3) Sustainable Technologies

Eco-Friendly Abrasives: Chinese manufacturers are developing recycled steel grits and biodegradable media (e.g., walnut shells or corn cobs) for environmentally sensitive applications.

Waterless Blasting: Hybrid systems combine dry abrasive with minimal water to suppress dust, reducing reliance on large dust collectors and water treatment systems.

Green Manufacturing Practices: Solar-powered shot blasting units and low-VOC coatings support China’s carbon neutrality goals, with some manufacturers aiming for net-zero energy machines by 2030.

Case Studies: Innovations in Practice

(1) Automotive Casting Application in Guangdong

A major Chinese automaker uses a (5)m rotary table shot blaster from Qingdao Dongxin for engine block processing:

Machine Features: Six 30kW impellers, automatic part loading via robot arm, and a dual-stage dust collector.

Performance: Processes 800 engine blocks daily, achieving Sa (5) cleanliness with 45 micron surface roughness. Labor costs reduced by 60% compared to manual blasting.

Energy Efficiency: VFD-controlled impellers and table reduce power consumption by 18% versus older models.

(2) Aerospace Component Treatment in Xi’an

An aerospace manufacturer employs a precision rotary table machine from Wuxi Huading for turbine blade blasting:

Specialized Design: Class 1000 cleanroom chamber, ceramic media delivery system, and robotic nozzle positioning.

Process Requirements: Blasting with 100-micron alumina oxide to remove heat treatment scale without altering airfoil profiles.

Quality Control: Integrated vision system inspects each blade post-blasting, ensuring compliance with AS9100 aerospace standards.

Basic Parameter

The rotary table shot blasting machine from China represents a fusion of industrial pragmatism and technical innovation, catering to the diverse needs of global manufacturing. With its ability to deliver uniform surface treatment, high productivity, and cost-effective operation, this equipment has become indispensable in sectors ranging from automotive to aerospace. As China continues to lead in smart manufacturing and sustainable technologies, rotary table shot blasters will evolve to meet the demands of Industry 4.0, driving efficiency and quality in metal component production worldwide.

Rotary table shot blasting machines play a pivotal role in surface treatment across various industries. This comprehensive guide will explore every aspect, from their working principles to market trends, offering a detailed understanding of these essential industrial machines.
