Key Components and Working Mechanisms
(1) Blast Chamber and Conveyor System
The blast chamber is the central component of the machine, designed to enclose the blasting process and protect operators from abrasive particles. It is typically constructed from wear-resistant steel plates and lined with replaceable manganese steel or rubber sheets to minimize erosion. Inside the chamber, an H beam conveyor system—often a roller table or chain-driven mechanism—transports the beams through the blasting zone at a controlled speed, ensuring consistent exposure to the abrasive stream.
(2) Shot Blasting Turbines/Impellers

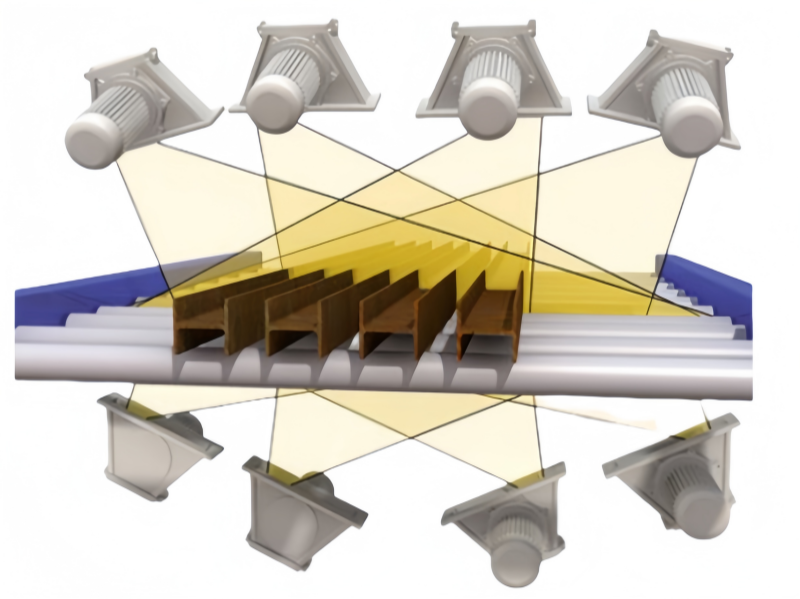

Shot blasting turbines are the heart of the machine, responsible for accelerating the abrasive media. Modern H beam shot blasting machines often feature multiple turbines (e.g., 4 to 8 units) positioned strategically around the H beam to target the web and flanges from various angles. Each turbine consists of a motor, impeller blades, and a control system that regulates the shot flow rate and velocity. The impellers can achieve rotational speeds of up to 3,000 RPM, propelling shots at speeds exceeding 80 meters per second.
(3) Abrasive Media Handling System
The abrasive media handling system includes a shot recycling mechanism, which collects used shots, separates contaminants (such as rust and scale), and reuses the clean media. This system typically comprises a screw conveyor, elevator, separator (e.g., cyclone or air wash separator), and storage hopper. Common abrasive materials for H beam blasting include steel shots, steel grits, and cast iron shots, selected based on the required surface finish and material hardness.
(4) Dust Collection and Safety Systems
To maintain a clean working environment, H beam shot blasting machines are equipped with dust collection systems. These systems use fans and filters to capture fine particles generated during the blasting process, preventing air pollution and ensuring compliance with occupational health standards. Safety features such as emergency stop buttons, interlocked chamber doors, and pressure sensors further enhance operational security.
Types and Models of H Beam Shot Blasting Machines
(1) Through-Type H Beam Shot Blasting Machines
Through-type machines are designed for continuous processing, where H beams are fed into one end of the blast chamber and exit the other, making them ideal for high-volume production lines. They often feature multiple turbines arranged to target all sides of the H beam simultaneously, with adjustable conveyor speeds to accommodate different beam sizes and surface treatment requirements.
(2) Fixed-Type/Hanger-Type Shot Blasting Machines
Fixed-type machines are suitable for smaller production batches or larger H beams that require manual positioning. In this configuration, the H beam is fixed in place within the blast chamber, and the turbines may be mounted on movable arms to adjust their position relative to the beam. Hanger-type models use overhead cranes to suspend the beams inside the chamber, allowing 360-degree blasting.
(3) Customized Models for Special Applications
For specialized projects—such as treating H beams with unique dimensions, coatings, or material compositions—customized shot blasting machines can be designed. These models may incorporate additional features like automated height adjustment for the turbines, integrated preheating systems for cold climates, or specialized controls for precise surface roughness regulation.
Applications and Industry Impact
(1) Construction and Structural Engineering
H beams are the backbone of modern construction, serving as primary load-bearing components in buildings, bridges, and industrial facilities. Shot blasting ensures that these beams are free from rust and surface defects, which is critical for maintaining structural integrity. By preparing the surface for paint or protective coatings, the machines extend the service life of steel structures, reducing maintenance costs and enhancing safety.
(2) Manufacturing and Fabrication
In steel fabrication plants, H beam shot blasting machines play a vital role in preprocessing beams before welding, drilling, or painting. A clean, smooth surface improves the quality of welds and the adhesion of coatings, ensuring that fabricated components meet industry standards (e.g., ASTM, ISO). This is particularly important in sectors like offshore engineering, where corrosion resistance is non-negotiable.
(3) Maintenance and Rehabilitation Projects
For infrastructure rehabilitation—such as renovating old bridges or retrofitting industrial buildings—shot blasting machines remove decades of rust and deteriorating coatings from H beams, allowing for effective repainting or structural repairs. The process is faster and more cost-effective than manual cleaning methods, minimizing downtime in critical projects.
Technical Parameters and Performance Metrics
(1) Processing Capacity
The processing capacity of an H beam shot blasting machine is determined by factors such as the maximum beam size (e.g., height, flange width, and thickness), conveyor speed, and the number of turbines. For example, a typical through-type machine may handle H beams up to 1,500 mm in height and 800 mm in flange width, with a processing speed of 1-3 meters per minute.
(2) Surface Treatment Standards
The machine’s performance is evaluated based on surface cleanliness and roughness standards, such as the Sa(5) or Sa3 levels defined in ISO 8501-1. Sa(5) refers to a "very thorough blast cleaning" with only slight traces of stains remaining, while Sa3 indicates a "white metal blast cleaning" with no visible defects. The surface roughness (measured in micrometers) is also critical for coating adhesion, typically ranging from 50-100 μm for most applications.
(3) Energy and Resource Efficiency
Modern H beam shot blasting machines are designed with energy efficiency in mind, featuring variable frequency drives (VFDs) for turbine motors to adjust power consumption based on load. The abrasive recycling system reduces media waste, with some models achieving a recycling rate of over 95%. Additionally, advanced dust collection systems minimize energy use while maintaining air quality.
Installation, Operation, and Maintenance
(1) Installation Considerations
Installing an H beam shot blasting machine requires a dedicated workshop space with proper foundation support, as the equipment can weigh several tons. The machine must be aligned with the production line to ensure smooth material flow, and utilities such as power, compressed air, and ventilation systems must be integrated correctly. Professional engineers often oversee the installation to ensure compliance with local regulations.
(2) Operational Best Practices
Operators must receive specialized training to use the machine safely and efficiently. Key operational steps include:
Adjusting the conveyor speed and turbine parameters based on the H beam’s material and surface condition.
Monitoring the abrasive media level and quality to maintain consistent blasting performance.
Regularly inspecting the blast chamber liners, turbine blades, and conveyor components for wear and tear.
(3) Routine Maintenance
Maintenance schedules for H beam shot blasting machines typically include:
Daily checks of the shot recycling system and dust collector filters.
Weekly inspection of turbine bearings and drive belts for signs of damage.
Monthly replacement of worn chamber liners or impeller blades.
Annual overhauls to refurbish major components and calibrate the blasting system.
Market Trends and Technological Innovations
(1) Automation and Intelligent Control
The industry is moving toward automated H beam shot blasting systems integrated with PLC (Programmable Logic Controller) or CNC (Computer Numerical Control) technology. These systems allow for pre-programmed blasting parameters based on beam specifications, reducing human error and enhancing process consistency. Some advanced models even feature AI-driven diagnostics to predict component failures before they occur.
(2) Eco-Friendly Design
Environmental considerations have led to the development of more sustainable shot blasting machines. Innovations include:
Low-noise turbine designs to comply with noise pollution regulations.
Closed-loop dust collection systems with higher filtration efficiency.
The use of recycled or biodegradable abrasive media in certain applications.
(3) Integration with Industry 4.0
H beam shot blasting machines are being connected to smart factory networks, enabling real-time data monitoring (e.g., production metrics, energy consumption, maintenance alerts) through IoT sensors. This integration allows for predictive maintenance, optimized production planning, and remote troubleshooting, reducing downtime and improving overall plant efficiency.
Supplier Selection and Cost Considerations
When selecting an H beam shot blasting machine, key factors include:
Production requirements (e.g., beam size, daily output, surface treatment standards).
Budget constraints, considering both the initial purchase cost and long-term maintenance expenses.
Supplier reputation for quality, after-sales service, and technical support.
Compliance with international standards (e.g., CE, OSHA) for safety and performance.
Prices for H beam shot blasting machines can vary widely, from $50,000 for smaller fixed-type models to over $500,000 for large, automated through-type systems with advanced features. While higher-priced models often offer greater efficiency and durability, smaller manufacturers may opt for cost-effective solutions that balance performance and investment.
