Steel Structure H Beam Shot Blasting Machine

In the landscape of modern construction and heavy industry, the steel structure H beam shot blasting machine stands as a critical asset for preparing H-shaped steel beams—a fundamental component in infrastructure, bridges, buildings, and industrial equipment. As steel structures demand higher durability and corrosion resistance, the shot blasting process has evolved from a mere surface cleaning technique to a comprehensive material enhancement method.

H beams, named for their cross-sectional resemblance to the letter "H," are prized for their high strength-to-weight ratio. However, during manufacturing, their surfaces accumulate rust, mill scale, welding slag, and contaminants that compromise both aesthetics and structural integrity. Shot blasting machines address this by propelling abrasive media at high velocity to remove impurities, create a uniform surface profile, and induce beneficial compressive stresses. In China, a global hub for steel structure production, these machines have become synonymous with precision, efficiency, and technological innovation, supporting projects from skyscrapers to offshore platforms.

technical consultation

Video

(1) Kinetic Energy Mechanism and Surface Interaction

The operation of an H beam shot blasting machine hinges on kinetic energy transfer. Abrasive particles—typically steel shots, grits, or cast iron media—are accelerated by rotating impellers (wheel-type systems) or compressed air (nozzle-type systems) to velocities ranging from 50 to 120 meters per second. When these particles impact the H beam surface, they act as micro-projectiles, shearing off rust and scale through mechanical erosion while creating a roughened texture.

Surface Profile Formation: The abrasive impact generates a "tooth-like" surface roughness, measured by parameters like Ra (arithmetic mean roughness). For steel structures, a target Ra of 25–50 microns is common, as it optimizes paint adhesion. Studies show that a properly shot-blasted surface can increase coating lifespan by 300% compared to untreated surfaces.

Residual Stress Induction: The high-energy impacts induce compressive stresses in the surface layer, counteracting tensile stresses that cause fatigue failure. This is particularly critical for H beams in dynamic load applications, such as bridge girders or crane rails.

(2) Abrasive Media Selection and Recycling

Abrasive choice dictates the shot blasting outcome:

Steel Shots: Spherical particles for peening and stress relief, ideal for fatigue-sensitive components.

Steel Grits: Angular particles for aggressive cleaning and surface roughening.

Specialized Media: Ceramic or glass beads for delicate surfaces, though less common in heavy steel structures.

Recycling systems are integral to efficiency. A typical process flow includes:

1. Collection: Used abrasive falls into a hopper via gravity.

2. Elevation: Screw conveyors or bucket elevators transport media to a separator.

3. Separation: Cyclonic or vibratory separators remove dust and broken particles, with clean abrasive returning to the impellers.

4. Dust Control: Bag filters or cyclones capture fine particles, ensuring emissions meet environmental standards (e.g., <50 mg/m³ in China’s industrial zones).

Machine Design: Key Components and Engineering Innovations

(1) Shot Blasting Chamber: Structural Robustness

The chamber is the core of the machine, designed to withstand continuous abrasive impact. Chinese manufacturers typically use:

Wear-Resistant Linings: Manganese steel (Mn13) or high-chromium cast iron plates, with replaceable sections in high-impact zones (e.g., walls facing impellers).

Sealing Systems: Brush or labyrinth seals prevent abrasive leakage, while interlocks ensure safety during operation.

Chamber Size: Customized to H beam dimensions, with standard machines handling sections up to 1.5m in height and 12m in length. Specialized models for super-sized beams (e.g., offshore platform components) can reach 3m×3m cross-sections.

(2) Impeller Systems: Power and Precision

Wheel-type shot blasters dominate steel structure applications due to their high productivity:

Impeller Design: Multi-blade centrifugal wheels (10–16 blades) driven by 15–75kW motors, achieving rotational speeds of 2,000–3,500 RPM.

Abrasive Feeding: Hydraulic or pneumatic systems regulate media flow to match workpiece thickness and surface condition. Variable frequency drives (VFDs) allow real-time adjustment of blasting intensity.

Nozzle-Type Systems: Used for complex geometries, with tungsten carbide nozzles (lifespan: 800–1,200 hours) and 6–10 bar compressed air supply.

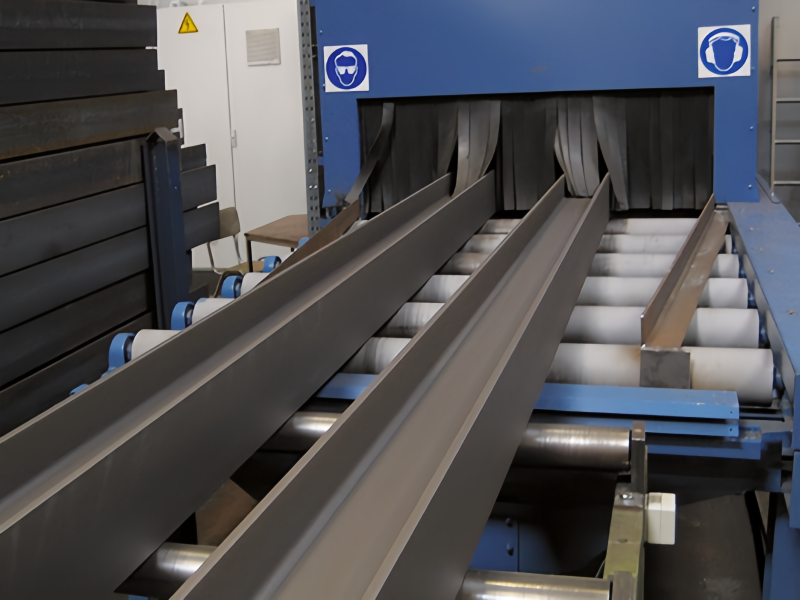

(3) Conveyor and Handling Systems

H beams are transported through the chamber via:

Roller Conveyors: Powered by gear motors, with roller spacing optimized for beam stability. Speeds range from 0.5 to 5 m/min, adjustable based on blasting requirements.

Turning Mechanisms: Hydraulic or mechanical flip devices rotate H beams to ensure all surfaces (flanges, web, corners) are treated uniformly.

Automated Loading/Unloading: Integration with overhead cranes or robotic arms in high-volume production lines, reducing manual labor.

(4) Control Systems: From PLC to Industry 4.0

Modern machines feature:

PLC-Based Automation: Siemens, Mitsubishi, or domestic PLCs (e.g., Delta) control process parameters, interlocks, and diagnostics.

HMI Interfaces: Touchscreens display real-time data (abrasive flow, conveyor speed, dust collector pressure) and store process recipes for different beam types.

IoT Integration: Advanced models connect to factory networks, enabling remote monitoring, predictive maintenance (via vibration sensors on impellers), and OEE (Overall Equipment Effectiveness) tracking.

Applications in Steel Structure Industries

(1) Construction: High-Rise Buildings and Bridges

In commercial construction:

Column and Beam Fabrication: H beams for building frames are shot blasted to remove mill scale before painting. For example, the Shanghai Tower’s steel structure used shot-blasted H beams with zinc-rich primer, ensuring 50+ years of corrosion resistance.

Bridge Girders: Components like box girders and trusses undergo blasting to prepare for anti-corrosion coatings. The Hong Kong-Zhuhai-Macao Bridge’s steel sections required blasting to Sa (5) (near-white metal) standards.

(2) Heavy Machinery and Industrial Equipment

Crane Structures: Overhead crane beams and gantry components are shot blasted to enhance fatigue life. A 200-ton crane beam in a steel mill may experience millions of load cycles, making surface stress relief critical.

Industrial Frames: H beams in power plant structures, chemical plant supports, and manufacturing facility mezzanines are treated to withstand harsh environments (e.g., high humidity or chemical exposure).

(3) Offshore and Marine Engineering

Offshore Platforms: H beams for jacket structures and deck supports are blasted to Sa (5) and coated with epoxy systems, resisting saltwater corrosion.

Shipbuilding: Hull frames and bulkhead supports undergo blasting to ensure weld quality and coating adhesion in marine environments.

(4) Renewable Energy Infrastructure

Wind Turbine Foundations: H beams in onshore and offshore wind farm foundations are shot blasted to meet strict ISO 8501-1 standards, ensuring durability in coastal or high-wind zones.

Solar Tracker Structures: Lightweight H beams for solar panel supports are treated to prevent rust in outdoor environments.

Chinese Manufacturing Landscape: Technology and Competitiveness

(1) Domestic Innovation and Market Leadership

China’s H beam shot blasting machine industry has evolved from technology adoption to original design:

Key Players: Companies like Qingdao Dongxin, Jiangsu Jinggong, and Wuxi Huading lead the market, with annual production exceeding 5,000 units. Their machines account for 70% of domestic demand and 30% of global exports.

Patent Growth: Chinese manufacturers hold over 1,200 patents related to shot blasting technology, including innovative impeller designs, dust control systems, and automation features.

(2) Cost-Effectiveness and Customization

Price Advantage: Chinese machines cost 30–50% less than European or Japanese equivalents, without compromising quality. For example, a standard 12m H beam shot blaster costs ~USD 80,000–120,000, versus USD 150,000–200,000 from Western manufacturers.

Tailored Solutions: Domestic suppliers quickly adapt to customer needs, such as:

Explosion-proof designs for petrochemical plants.

Cold-resistant machines for northern China’s harsh winters.

Mobile shot blasters for on-site construction projects.

(3) Export Markets and Global Impact

Chinese machines are exported to over 100 countries, with major markets in:

Southeast Asia: Support for infrastructure projects under the Belt and Road Initiative.

Middle East: Oil and gas facilities requiring corrosion-resistant steel structures.

Africa: Affordable solutions for emerging construction sectors.

Europe: Compliance with CE standards, competing in lower to mid-range markets.

Quality Standards and Regulatory Compliance

(1) International and Domestic Specifications

Surface Cleanliness: Commonly referenced standards include:

ISO 8501-1: Sa 2 (thorough cleaning), Sa (5) (very thorough), or Sa 3 (white metal).

SSPC SP-6 (commercial blast cleaning) and SP-10 (near-white).

Roughness Requirements: Measured by ISO 8503 or ASTM D4417, with typical targets with 50–75 microns for heavy coatings.

Chinese Standards: GB/T 892(1)-2011 (equivalent to ISO 8501-1) and GB/T 1328(1)-2011 (surface roughness measurement).

(2) Environmental and Safety Compliance

Dust Emission: Machines must meet GB 16297-1996 (atmospheric pollutant discharge standards), limiting particulate matter to <120 mg/m³.

Noise Control: GB 12348-2008 mandates noise levels <85 dB(A) at operator positions.

Safety Features: Emergency stop buttons, interlocked doors, and overload protection are standard per GB/T 5082-1999 (safety of shot blasting machines).

Future Trends: Automation, Efficiency, and Sustainability

(1) Smart Manufacturing Integration

AI-Powered Process Control: Machine learning algorithms optimize blasting parameters based on real-time surface inspection (e.g., camera systems detecting rust density).

Digital Twins: Virtual models simulate the shot blasting process to predict wear, energy consumption, and treatment outcomes.

(2) Energy and Resource Efficiency

High-Efficiency Impellers: New designs reduce energy consumption by 15–20%, with motors transitioning to permanent magnet (PM) technology.

Abrasive Recycling Innovations: Electrostatic separators improve media purity, extending abrasive life by 20–30%.

Waste Heat Recovery: Systems capture heat from dust collectors for preheating paint or office spaces.

(3) Sustainable Technologies

Eco-Friendly Abrasives: Development of recycled steel grits and biodegradable media (e.g., crushed glass) for environmentally sensitive projects.

Waterless Blasting: Hybrid systems combining dry abrasive with minimal water to suppress dust, reducing reliance on traditional dust collectors.

Green Manufacturing: Solar-powered shot blasting units for off-grid construction sites, aligning with China’s carbon neutrality goals.

(1) High-Speed Railway Bridge Application

In the construction of China’s Beijing–Zhangjiakou high-speed railway, H beams for bridge supports were processed by a custom shot blaster from Qingdao Dongxin. The machine featured:

Four 55kW impellers for dual-sided blasting.

Laser-guided height adjustment to handle variable beam sizes.

An automated dust system that reduced particulate emissions by 90%.

The process achieved Sa (5) cleanliness in 3 minutes per beam, enabling a production rate of 120 beams daily.

(2) Offshore Wind Farm Solution

For an offshore wind farm in the East China Sea, Wuxi Huading designed a corrosion-resistant shot blaster:

Stainless steel chamber linings to withstand saltwater exposure.

Explosion-proof electrical components for safety in marine environments.

A humidity control system maintaining <60% RH to prevent re-rusting.

The machine processed H beams for turbine foundations to Sa (5), with a surface roughness of 65 microns, ensuring 20+ years of service life.

Basic Parameter

The steel structure H beam shot blasting machine has transcended its role as a mere cleaning tool, becoming a cornerstone of quality and durability in modern construction. In China, the industry’s blend of technical innovation, cost-effectiveness, and customization has positioned it as a global leader, supporting infrastructure projects that define the 21st century. As sustainability and smart manufacturing drive future advancements, these machines will continue to shape the landscape—both literally and metaphorically—of steel structure engineering.
