H Beam Shot Blasting Machine in China

In the manufacturing and construction industries, surface treatment of metal components is of utmost importance. The H beam, a widely used structural steel profile, requires proper surface preparation before further processing or application. Shot blasting machines play a crucial role in achieving this. China has emerged as a leading manufacturer and exporter of H beam shot blasting machines, offering a wide range of models with advanced features and high quality performance.

Shot blasting is a process that uses high velocity abrasive particles (such as steel shots or grits) to clean, peen, or roughen the surface of a workpiece. For H beams, shot blasting is mainly used to remove rust, oxide layers, welding slag, and other contaminants from the surface. This not only improves the aesthetic appearance of the H beam but also significantly enhances its mechanical properties and corrosion resistance.

technical consultation

Video

Applications of H Beam Shot Blasting Machine

(1) Steel Structure Industry

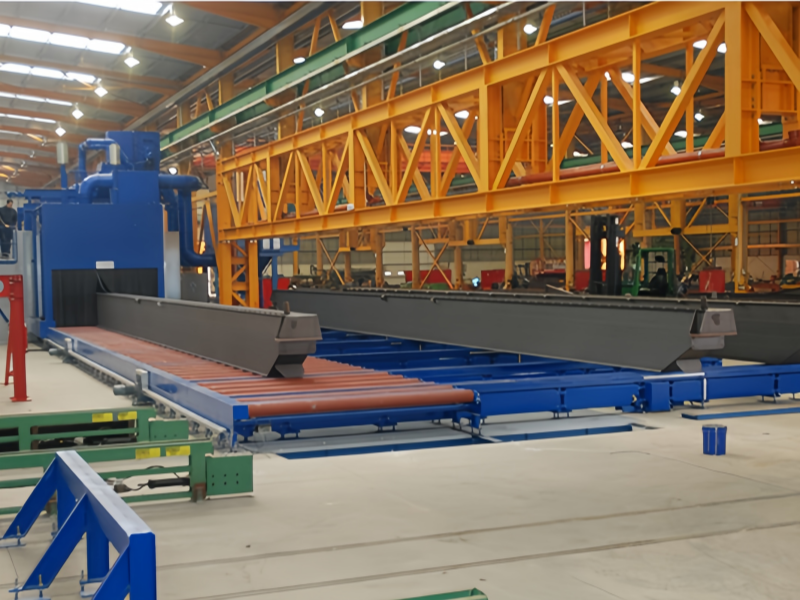

The steel structure industry is one of the major consumers of H beam shot blasting machines. H beams are the building blocks of various steel structures, including industrial buildings, commercial complexes, and residential high rises. Before the H beams are assembled and painted, shot blasting is carried out to ensure a clean and rough surface. A clean surface with a certain roughness (usually achieved up to a standard like SA(5)) improves the adhesion of the paint or coating. This, in turn, protects the steel from corrosion and extends the lifespan of the entire steel structure. For example, in large scale industrial plants, where the steel structures are exposed to harsh environmental conditions such as moisture, chemicals, and high temperatures, proper surface treatment by shot blasting is essential to maintain the integrity of the structure over time.

(2) Shipbuilding Industry

In shipbuilding, H beams are used in the construction of the ship's hull, decks, and internal structures. The marine environment is highly corrosive, with saltwater, humidity, and temperature variations. H beam shot blasting machines are used to remove the mill scale, rust, and other impurities from the H beams used in shipbuilding. By achieving a clean surface, the subsequent application of anti corrosion coatings becomes more effective. This helps in preventing the corrosion of the ship's structure, which can lead to serious safety issues and costly repairs if not addressed properly. The shot blasted H beams also contribute to the overall strength and durability of the ship, ensuring safe voyages in different sea conditions.

(3) Engineering Machinery Industry

Engineering machinery such as cranes, excavators, and loaders rely on strong and reliable steel structures. H beams are commonly used in the manufacturing of these machines. Shot blasting of H beams in the engineering machinery industry helps in removing any surface defects and improving the fatigue resistance of the steel. Since these machines are subjected to heavy loads, vibrations, and continuous stress during operation, the surface quality of the H beams is critical. The shot blasted H beams can better withstand the mechanical stresses, reducing the risk of structural failures and ensuring the long term performance and safety of the engineering machinery.

(4) Bridge Construction

Bridges are massive structures that need to be extremely durable and stable. H beams are an integral part of bridge construction, whether it's the main girders or the supporting structures. Shot blasting of H beams used in bridges helps in removing rust and oxide layers that may have formed during storage or transportation. The clean and rough surface obtained after shot blasting promotes better adhesion of protective coatings. This is crucial as bridges are exposed to various environmental factors such as rain, snow, sunlight, and traffic induced vibrations. The use of shot blasted H beams in bridge construction helps in enhancing the load bearing capacity and corrosion resistance of the bridge, ensuring its long term serviceability and safety for the public.

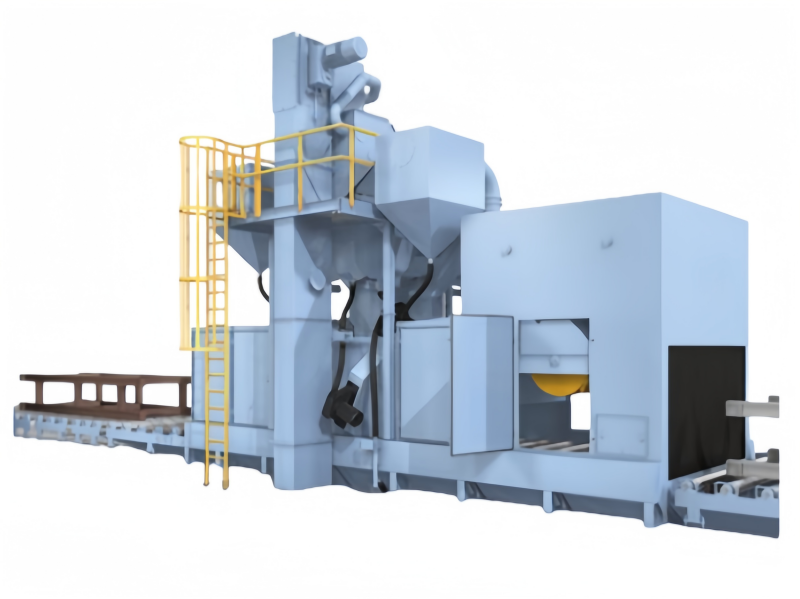

Components of H Beam Shot Blasting Machine

(1) In feeding Roller Conveyor

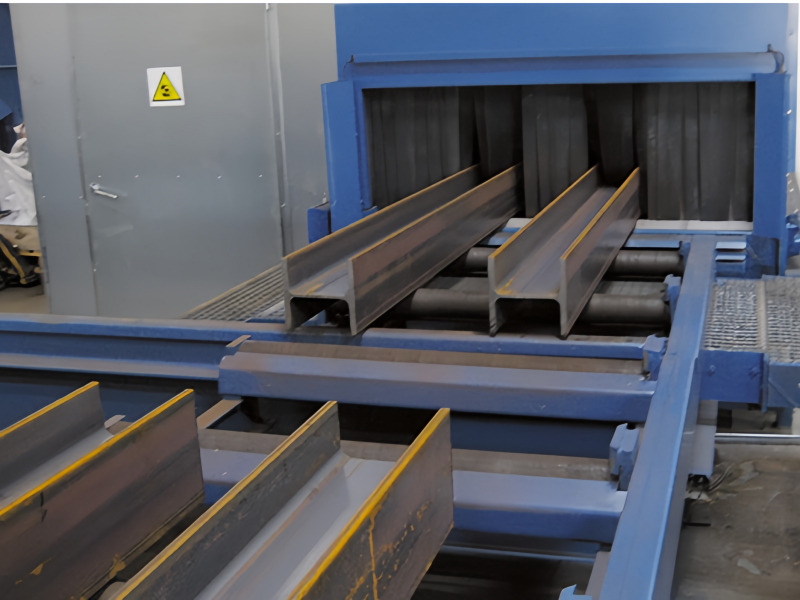

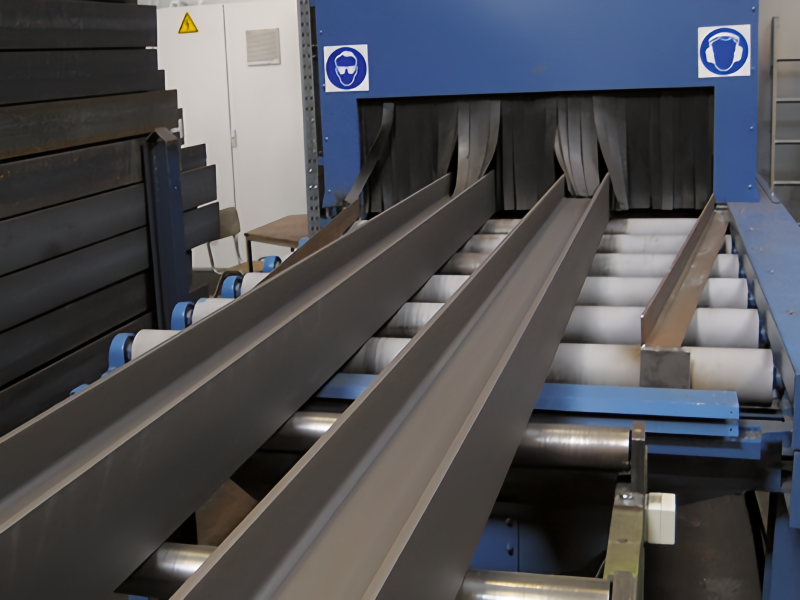

The in feeding roller conveyor is the first component of the H beam shot blasting machine. Its main function is to transport the H beam into the shot blasting chamber in a controlled and stable manner. The rollers are designed to support the weight of the H beam and allow it to move smoothly. The conveyor speed can often be adjusted, usually through frequency conversion speed regulation. This adjustability is important as it enables the machine to handle H beams of different lengths and weights. For example, if a shorter and lighter H beam is being processed, a higher conveyor speed can be set to increase the productivity. On the other hand, for a longer and heavier H beam, a slower speed may be required to ensure proper shot blasting coverage. The in feeding roller conveyor also has sensors and control systems to ensure that the H beam is correctly positioned before entering the shot blasting chamber.

(2) Shot Blasting Chamber

The shot blasting chamber is the core component of the machine. It is a sealed enclosure where the actual shot blasting process takes place. The chamber is designed to withstand the high velocity impact of the abrasive particles. Inside the chamber, there are multiple blasting turbines. These turbines are responsible for accelerating the abrasive particles (such as steel shots or grits) to high speeds and projecting them onto the surface of the H beam. The number and arrangement of the blasting turbines are carefully designed based on the size and shape of the H beam to ensure uniform shot blasting coverage. The chamber is also lined with wear resistant materials to protect it from the continuous impact of the abrasive particles. These wear resistant linings need to be periodically inspected and replaced to maintain the performance of the shot blasting chamber.

(3) Blasting Turbine

The blasting turbine is the key device that imparts high velocity to the abrasive particles. It consists of a rotor, blades, and a drive motor. The abrasive particles are fed into the center of the rotor, and as the rotor spins at high speeds (usually several thousand revolutions per minute), the particles are flung outwards by centrifugal force through the blades. The design of the blades is crucial as it determines the trajectory and velocity of the abrasive particles. Different types of blades are available, such as straight blades and curved blades, each with its own advantages in terms of shot blasting efficiency and particle distribution. The power of the drive motor of the blasting turbine varies depending on the model of the shot blasting machine and the required shot blasting intensity. Higher power turbines are used for larger H beams or when more aggressive shot blasting is needed to remove thick rust or heavy contaminants.

(4) Shots Recycle System

After the abrasive particles have hit the H beam surface and performed the cleaning operation, they need to be recycled for reuse. The shots recycle system is responsible for collecting, separating, and re supplying the abrasive particles. This system typically includes an elevator, a screw conveyor, and a separator. The elevator lifts the used abrasive particles from the bottom of the shot blasting chamber to a higher level. The screw conveyor then transports the particles to the separator. The separator uses a combination of gravity, air flow, and sieving mechanisms to separate the clean abrasive particles from the dust, rust, and other impurities. The clean abrasive particles are then sent back to the blasting turbines for reuse, while the impurities are removed from the system. The efficiency of the shots recycle system is important as it not only reduces the cost of abrasive consumption but also ensures a consistent supply of clean and effective abrasive particles for the shot blasting process.

(5) Dust Removing System

During the shot blasting process, a large amount of dust is generated. This dust contains rust particles, oxide fragments, and fine abrasive particles. The dust removing system is installed to capture and remove this dust from the working environment. Most modern H beam shot blasting machines are equipped with high efficiency dust collectors, such as cartridge type or cyclone type dust collectors. Cartridge type dust collectors use filter cartridges to trap the dust particles. The dust laden air is drawn through the cartridges, and the dust is collected on the surface of the cartridges. Periodically, the cartridges are cleaned, usually by reverse jetting compressed air, to remove the accumulated dust. Cyclone type dust collectors, on the other hand, use centrifugal force to separate the dust particles from the air. The dust laden air enters the cyclone at a high velocity and spins around the inner wall of the cyclone. The heavier dust particles are forced to the outer wall and then fall down into a collection hopper. The clean air is then discharged from the top of the cyclone. The dust removing system is not only important for environmental protection but also for the health and safety of the operators. A clean working environment reduces the risk of respiratory problems and other health hazards associated with inhaling dust particles.

(6) Out feeding Roller Conveyor

The out feeding roller conveyor is responsible for transporting the shot blasted H beam out of the shot blasting chamber. Similar to the in feeding roller conveyor, it has rollers that support and move the H beam. The out feeding conveyor also has sensors and control systems to ensure that the H beam is smoothly transferred out of the machine. After the H beam is shot blasted, it may need to be further processed, such as painted or assembled. The out feeding roller conveyor plays a crucial role in facilitating the seamless transfer of the H beam to the next stage of the production process. In some cases, the out feeding roller conveyor may also be integrated with additional inspection or quality control stations to check the surface quality of the shot blasted H beam before it moves on to the next operation.

(7) Electrical Control System

The electrical control system is the brain of the H beam shot blasting machine. It controls the operation of all the components of the machine, including the in feeding and out feeding roller conveyors, the blasting turbines, the shots recycle system, and the dust removing system. The control system is usually based on a programmable logic controller (PLC). The PLC allows for easy programming and adjustment of the machine's operating parameters. Operators can set the conveyor speed, the number of blasting turbines to be used, the intensity of the shot blasting, and the operation sequence of different components through the control panel connected to the PLC. The electrical control system also has safety interlock devices. For example, the blasting turbines will not start if the doors of the shot blasting chamber are not properly closed. This ensures the safety of the operators and prevents any accidents during the operation of the machine. In case of any malfunctions or errors, the control system can also provide error messages and diagnostic information, making it easier for maintenance personnel to troubleshoot and repair the machine.

Technical Parameters of H Beam Shot Blasting Machine

(1) Size of Processable Workpiece

The size of the processable H beam is an important parameter. Different models of H beam shot blasting machines can handle H beams of various sizes. The maximum size of the processable workpiece section is usually specified in terms of width (W) and height (H). For example, some machines can handle H beams with a section size of up to 1200 × 1800 mm. The processing length of the H beam also varies. Most machines can handle H beams with lengths ranging from 3000 to 15000 mm. This wide range of size capabilities allows manufacturers to choose a shot blasting machine that suits their specific production needs. If a company mainly produces small to medium sized H beams, a machine with a smaller size capacity may be sufficient. However, for large scale steel structure fabricators or bridge construction companies that deal with large sized H beams, a machine with a larger size handling capacity is required.

(2) Surface Cleanliness and Roughness

The surface cleanliness and roughness achieved after shot blasting are critical parameters. The surface cleanliness is usually measured according to international standards such as the Swedish Standard (SA). A common standard for H beam shot blasting is SA(5), which means that the surface is thoroughly cleaned, and only a slight shadow of stains, pits, or rust remains. This level of cleanliness is sufficient for most applications, especially when a high quality paint or coating is to be applied. The surface roughness is measured in micrometers (µm). A typical surface roughness range for shot blasted H beams is 15 50 µm. The proper surface roughness is important as it provides a better anchor pattern for the paint or coating, enhancing its adhesion. If the surface is too smooth, the coating may not adhere well and may peel off over time. On the other hand, if the surface is too rough, it may require more paint or coating material to achieve a smooth finish.

(3) Shot Blasting Device Quantity and Capacity

The number of shot blasting devices (usually blasting turbines) in the machine and their capacity also vary. For example, some machines may be equipped with 8 blasting turbines, while others may have 12 or more. The shot blasting capacity of each turbine is also specified. A typical capacity of a single turbine can range from 200 to 360 kg/min. The total shot blasting capacity of the machine is calculated by multiplying the number of turbines by the capacity of each turbine. A higher shot blasting capacity means that the machine can process H beams more quickly and efficiently. However, the choice of the number and capacity of the shot blasting devices also depends on the size and type of the H beams being processed. Larger H beams or those with thick rust layers may require more powerful and numerous shot blasting devices to achieve the desired surface quality.

(4) Conveyor Speed

The conveyor speed is an adjustable parameter that affects the productivity and the quality of the shot blasting process. The conveyor speed is usually specified in meters per minute (m/min). For example, the conveying speed of an H beam shot blasting machine may range from 0.5 to 5 m/min. A slower conveyor speed allows for more intense shot blasting as the H beam spends more time in the shot blasting chamber. This is useful for H beams with heavy rust or thick oxide layers. A faster conveyor speed, on the other hand, is suitable for H beams that require less intensive shot blasting or when high productivity is the main goal. The conveyor speed can be adjusted according to the specific requirements of each job, and it is often controlled through a frequency conversion drive system.

(5) Air Volume of Dust Collector

The air volume of the dust collector is an important parameter related to the efficiency of dust removal. The air volume is measured in cubic meters per hour (m³/h). For H beam shot blasting machines, the air volume of the dust collector can range from 12000 to 38000 m³/h. A higher air volume means that the dust collector can handle a larger amount of dust laden air, ensuring a cleaner working environment. The air volume of the dust collector needs to be properly matched with the size of the shot blasting chamber and the amount of dust generated during the shot blasting process. If the air volume is too low, the dust collector may not be able to effectively remove all the dust, leading to a dusty working environment and potential health hazards for the operators.

(6) Circulation Quantity of Grinding Shots

The circulation quantity of grinding shots refers to the amount of abrasive particles that are recycled and reused in the machine per hour. This parameter is usually measured in tons per hour (t/h). For example, the circulation quantity of grinding shots in an H beam shot blasting machine can be around 120 t/h. A higher circulation quantity indicates a more efficient shots recycle system. An efficient recycle system not only reduces the cost of abrasive consumption but also ensures a continuous supply of clean and effective abrasive particles for the shot blasting process. The circulation quantity of grinding shots is related to the size of the machine, the number of blasting turbines, and the intensity of the shot blasting operation.

(7) Total Power

The total power of the H beam shot blasting machine includes the power consumption of all its components, such as the blasting turbines, the conveyors, the dust collector, and the electrical control system. The total power is usually measured in kilowatts (kW). The power requirements of different models of shot blasting machines can vary significantly. For example, a small to medium sized H beam shot blasting machine may have a total power of around 135 140 kW, while a larger and more powerful machine can have a total power of 29(6) kW or even higher. The total power of the machine needs to be considered when planning the electrical infrastructure of the production facility. Sufficient electrical supply capacity is required to ensure the smooth operation of the shot blasting machine.

Types of H Beam Shot Blasting Machines

(1) Standard H Beam Shot Blasting Machines

Standard H beam shot blasting machines are designed to meet the common requirements of the market. These machines are available in a range of sizes and capacities to handle different sizes of H beams. They come with a set of standard components and features, such as a certain number of blasting turbines, a specific type of shots recycle system, and a standard sized shot blasting chamber. Standard machines are suitable for manufacturers who have a relatively stable production volume and a common range of H beam sizes. They are often more cost effective as they are mass produced and have a well established design. For example, a steel structure fabricator that mainly produces H beams within a certain size range for general construction projects may find a standard H beam shot blasting machine sufficient for their needs. These machines are also easier to maintain as there are readily available spare parts and a large pool of technicians who are familiar with their operation and repair.

(2) Custom made H Beam Shot Blasting Machines

Many Chinese manufacturers also offer custom made H beam shot blasting machines. These machines are designed and manufactured according to the specific requirements of the clients. The customization can be based on various factors, such as the size and shape of the H beams to be processed, the desired production capacity, and the specific surface treatment requirements. For example, if a company needs to process H beams with an unusual cross section or extremely long lengths, a custom made machine can be designed to accommodate these specific dimensions. Custom made machines may also include additional features or modifications to the standard components. This could involve using special designed blasting turbines for more precise shot blasting, or integrating advanced control systems for better process monitoring and adjustment. Although custom made machines are generally more expensive than standard ones, they offer a higher level of flexibility and can be tailored to meet the unique needs of individual businesses.

(3) Automatic H Beam Shot Blasting Machines

Automatic H beam shot blasting machines are equipped with advanced control systems that allow for fully automated operation. These machines can be programmed to handle the entire shot blasting process, from the in feeding of the H beam to the out feeding of the processed beam. The conveyor speed, the shot blasting intensity, and the operation of the dust removal and shots recycle systems can all be controlled automatically according to pre set parameters. Automatic machines are highly efficient and can significantly increase the productivity of the production line. They also reduce the need for manual

Maintenance and Servicing of H Beam Shot Blasting Machines

(1) Regular Inspection of Components

Regular inspection of all components is fundamental to ensure the smooth and efficient operation of H beam shot blasting machines. The in feeding and out feeding roller conveyors should be inspected for any signs of wear on the rollers, such as uneven surfaces or cracks. Loose bolts and connections on the conveyors can also lead to misalignment of the H beams during transportation, so these need to be tightened regularly. The bearings of the rollers should be lubricated according to the manufacturer's recommendations to reduce friction and extend their lifespan.

The shot blasting chamber, being the core of the machine, requires meticulous inspection. The wear resistant linings inside the chamber should be checked for signs of excessive wear. If the linings are worn down beyond a certain point, they can no longer effectively protect the chamber walls from the impact of abrasive particles, which may lead to damage to the chamber structure. The blasting turbines should also be inspected for any damage to the rotor, blades, or drive motor. Bent or broken blades can affect the trajectory and velocity of the abrasive particles, resulting in uneven shot blasting.

The shots recycle system components, including the elevator, screw conveyor, and separator, need to be inspected for blockages or jams. Accumulated rust, dust, or large debris can disrupt the normal operation of these components. For example, a blocked separator may fail to effectively separate the clean abrasive particles from the impurities, reducing the efficiency of the recycle system and increasing the consumption of abrasive materials.

(2) Replacement of Wear and Tear Parts

Over time, certain parts of the H beam shot blasting machine will experience wear and tear due to the continuous operation and the impact of abrasive particles. Wear resistant linings in the shot blasting chamber, blades of the blasting turbines, and filter cartridges in the dust collector are among the parts that need to be replaced regularly. The frequency of replacement depends on factors such as the intensity of use, the type of abrasive used, and the condition of the H beams being processed.

When replacing the wear resistant linings, it is important to ensure that the new linings are of the correct size and material as specified by the manufacturer. Incorrectly installed or low quality linings may not provide adequate protection to the chamber. Blasting turbine blades should be replaced as soon as they show signs of significant wear or damage. Using worn out blades can not only affect the shot blasting quality but also pose a safety risk, as damaged blades may break off during operation. Filter cartridges in the dust collector should be replaced according to the recommended maintenance schedule to maintain the efficiency of dust removal and ensure a clean working environment.

(3) Lubrication and Cleaning

Proper lubrication is essential for the moving parts of the H beam shot blasting machine. The bearings of the roller conveyors, the drive shafts of the blasting turbines, and the moving parts of the shots recycle system all require regular lubrication. Using the correct type and amount of lubricant as specified in the machine's operation manual is crucial. Insufficient lubrication can lead to increased friction, overheating, and premature wear of the components, while excessive lubrication can attract dust and debris, causing further problems.

In addition to lubrication, regular cleaning of the machine is necessary. The shot blasting chamber should be cleaned to remove any accumulated abrasive particles, rust, and dust. This not only helps in maintaining the performance of the machine but also prevents the buildup of contaminants that could potentially damage the components. The dust collector should also be cleaned regularly to ensure its efficient operation. Cleaning the filter cartridges and emptying the dust collection hopper will help in maintaining the air flow and dust removal efficiency of the system.

Basic Parameter

Troubleshooting Common Issues

(1) Uneven Shot Blasting

One of the most common issues with H beam shot blasting machines is uneven shot blasting. This can be caused by several factors. Misalignment of the blasting turbines can result in some areas of the H beam receiving more or less abrasive particle impact than others. To address this, the alignment of the turbines should be checked and adjusted according to the manufacturer's instructions.

Another possible cause is an uneven distribution of abrasive particles in the shots recycle system. If the separator is not functioning properly, it may not be able to evenly supply the clean abrasive particles to the blasting turbines. In this case, the separator should be inspected for blockages or malfunctions, and any issues should be resolved. Additionally, variations in the speed of the in feeding or out feeding roller conveyors can also lead to uneven shot blasting. Ensuring that the conveyor speeds are consistent and within the recommended range can help solve this problem.

(2) Low Shot Blasting Efficiency

Low shot blasting efficiency can be a significant concern as it affects the productivity of the production line. A common reason for this is a worn out or damaged blasting turbine. As the blades of the turbine wear down, the velocity and trajectory of the abrasive particles are affected, reducing the effectiveness of the shot blasting process. Replacing the worn out blades or the entire turbine if necessary can improve the efficiency.

Insufficient abrasive particle supply can also lead to low efficiency. If the shots recycle system is not functioning properly, there may not be enough clean abrasive particles available for the blasting turbines. Checking the elevator, screw conveyor, and separator for blockages or malfunctions and ensuring their proper operation can resolve this issue. Additionally, using the wrong type or size of abrasive particles for the specific H beam surface treatment requirements can also result in low efficiency. Selecting the appropriate abrasive material according to the application is essential.

(3) Dust Collector Malfunctions

Malfunctions in the dust collector can lead to a dusty working environment and potential health hazards for the operators. A common problem is clogged filter cartridges in cartridge type dust collectors. When the cartridges become too dirty, the air flow through the dust collector is restricted, reducing its dust removal efficiency. Cleaning or replacing the filter cartridges as per the maintenance schedule can solve this problem.

In cyclone type dust collectors, blockages in the collection hopper or the air discharge outlet can occur. Accumulated dust and debris can obstruct the normal flow of air and dust, causing the dust collector to malfunction. Regularly cleaning the collection hopper and checking for any blockages in the air discharge system can prevent this issue. If there are problems with the fan or the control system of the dust collector, these components should be inspected and repaired or replaced as needed.

Major H Beam Shot Blasting Machine Manufacturers in China

(1) Leading Manufacturers and Their Reputations

China has several leading manufacturers of H beam shot blasting machines that have gained a strong reputation both domestically and internationally. One such manufacturer is [Company A], which is known for its high quality products and advanced manufacturing technologies. The company has a long standing history in the industry and has continuously invested in research and development to improve the performance and efficiency of its shot blasting machines. [Company A]'s products are widely recognized for their reliability, durability, and innovative features, making them a popular choice among customers in various industries.

[Company B] is another prominent manufacturer that focuses on providing customized solutions. With a team of experienced engineers, the company can design and manufacture H beam shot blasting machines tailored to the specific requirements of different clients. Their machines are known for their high precision performance and excellent after sales service. [Company B] has established a good reputation for meeting the diverse needs of customers, whether it's for small scale workshops or large scale industrial production lines.

(2) Product Features and Advantages of Chinese Manufacturers

Chinese manufacturers offer a wide range of product features and advantages. Many of them incorporate advanced technologies such as intelligent control systems. These systems allow for real time monitoring and adjustment of the shot blasting process, ensuring consistent surface treatment quality. For example, some machines can automatically adjust the conveyor speed, shot blasting intensity, and abrasive particle supply based on the detected characteristics of the H beams, such as their size, shape, and surface condition.

Chinese manufacturers also emphasize energy efficiency in their product designs. By optimizing the design of components such as the blasting turbines and the shots recycle system, they can reduce the power consumption of the machines without sacrificing performance. This not only helps customers save on operating costs but also contributes to environmental sustainability. In addition, Chinese manufacturers often provide comprehensive after sales service, including installation, training, and maintenance support. This ensures that customers can operate the machines smoothly and get the most out of their investment.

Buying Guide for H Beam Shot Blasting Machines

(1) Assessing Your Production Needs

Before purchasing an H beam shot blasting machine, it is essential to accurately assess your production needs. Consider the size range of the H beams you will be processing. If you mainly deal with small to medium sized H beams, a machine with a smaller size handling capacity may be sufficient. However, if your production involves large sized H beams, you will need a machine that can accommodate their dimensions.

Evaluate your production volume as well. If you have a high volume production line, you will require a machine with a higher productivity rate. This may involve choosing a machine with more powerful blasting turbines, a faster conveyor speed, and a more efficient shots recycle system. Additionally, consider the specific surface treatment requirements of your H beams. If you need to achieve a very high level of surface cleanliness or a specific surface roughness, make sure the machine you choose can meet these standards.

(2) Comparing Different Models and Manufacturers

Once you have determined your production needs, start comparing different models and manufacturers. Look at the technical parameters of each model, such as the size of the processable workpiece, the number and capacity of the blasting turbines, the conveyor speed, and the air volume of the dust collector. Compare these parameters with your production requirements to ensure that the machine is suitable for your operations.

Research the reputation of different manufacturers. Read customer reviews and testimonials to get an idea of the quality of their products and the level of their after sales service. Consider factors such as the manufacturer's experience in the industry, their R & D capabilities, and their ability to provide customized solutions. Visiting trade shows or industry exhibitions can also be a great way to see different models in person, talk to representatives from various manufacturers, and get a hands on understanding of the machines.

(3) Cost Benefit Analysis

When purchasing an H beam shot blasting machine, it is important to conduct a cost benefit analysis. The initial purchase price of the machine is an obvious cost factor, but you also need to consider other costs such as installation, maintenance, and the cost of abrasive materials. Some machines may have a lower initial purchase price but higher operating costs due to their energy consumption or the frequency of component replacement.

On the other hand, more expensive machines may offer better performance, higher efficiency, and lower long term operating costs. Consider the potential benefits that the machine can bring to your production, such as increased productivity, improved surface treatment quality, and reduced labor costs. By weighing the costs and benefits carefully, you can make an informed decision and choose a machine that provides the best value for your investment.

Future Trends of H Beam Shot Blasting Machines in China

(1) Technological Innovations

The future of H beam shot blasting machines in China is likely to be driven by continuous technological innovations. One area of development is the integration of artificial intelligence (AI) and machine learning (ML) technologies. AI and ML enabled control systems can analyze the data collected from various sensors on the machine, such as the condition of the H beams, the wear of components, and the performance of the shot blasting process. Based on this analysis, the system can automatically optimize the operation parameters of the machine, improving the efficiency and quality of the shot blasting process.

Another technological trend is the development of more advanced and efficient abrasive materials. New types of abrasive particles with improved cleaning performance, longer lifespan, and better environmental compatibility are being researched and developed. These new abrasive materials can not only enhance the shot blasting quality but also reduce the cost of abrasive consumption and the environmental impact of the shot blasting process.

(2) Environmental Considerations

With increasing global awareness of environmental protection, future H beam shot blasting machines in China will place more emphasis on environmental friendliness. Manufacturers will focus on reducing the energy consumption of the machines through more efficient designs and the use of energy saving components. Additionally, efforts will be made to minimize the generation of dust and waste during the shot blasting process. This may involve the development of more advanced dust removal technologies and the improvement of the shots recycle system to reduce the amount of abrasive particles that need to be discarded.

There will also be a growing trend towards the use of more sustainable manufacturing practices. For example, manufacturers may use recycled materials in the production of machine components, and adopt more environmentally friendly manufacturing processes. This not only helps in reducing the environmental footprint of the manufacturing industry but also meets the increasing demand from customers for sustainable products.

(3) Industry 4.0 Integration

The integration of Industry 4.0 concepts into the production and operation of H beam shot blasting machines is another significant future trend. Industry 4.0 emphasizes the use of digital technologies, such as the Internet of Things (IoT), big data analytics, and cloud computing, to achieve intelligent manufacturing. In the context of H beam shot blasting machines, IoT enabled sensors can be installed on the machines to collect real time data on various parameters, such as machine performance, component status, and production output.

This data can be transmitted to a central server or cloud based platform for analysis. Manufacturers and operators can then use this data to monitor the performance of the machines remotely, predict potential failures, and optimize the production process. Industry 4.0 integration also enables better supply chain management, as it allows for seamless communication between different stages of the production process and with suppliers and customers.
