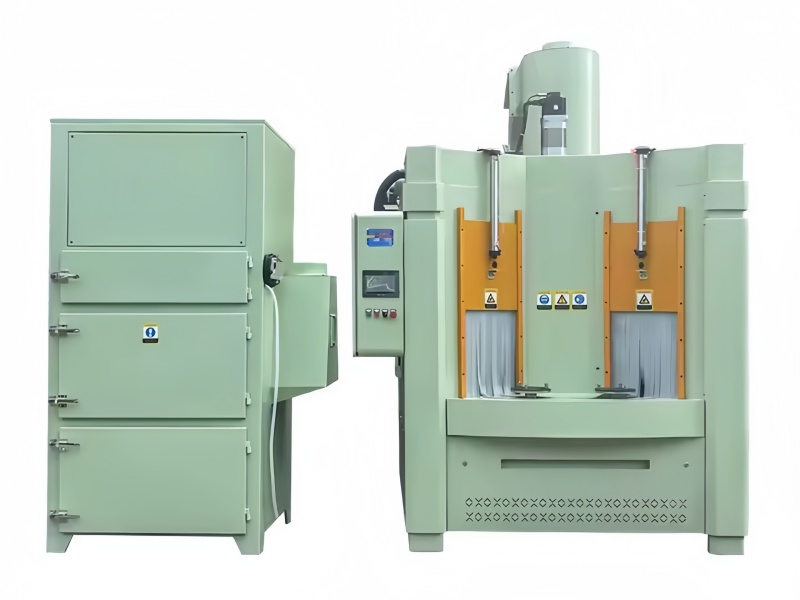

Manual Sand Blasting Cabinet

Manual sand blasting cabinets serve as the cornerstone of surface treatment for workshops, hobbyists, and small-scale industries, offering precision, affordability, and versatility. Unlike automated systems, these cabinets place control directly in the operator’s hands, enabling nuanced adjustments for delicate tasks or heavy-duty cleaning. From removing rust on vintage car parts to etching glass for artistic projects, manual cabinets bridge the gap between professional industrial equipment and basic DIY tools. This article delves into the design principles, operational mechanics, leading models, and practical considerations for manual sand blasting cabinets, exploring how they empower users to achieve meticulous surface finishes with minimal investment.

technical consultation

Video

Core Design and Functional Components

1 Structural Framework and Enclosure

Manual sand blasting cabinets are typically constructed from welded steel or aluminum, with dimensions ranging from 2 to 6 feet in height and width. Key design features include:

Sealed Chamber: Rubber gaskets and airtight doors prevent dust leakage, while negative pressure systems maintain inward airflow to contain particles.

Viewing Window: Polycarbonate or laminated glass panels, often replaceable, with anti-fog coatings to ensure clear visibility during operation.

Work Tray: A perforated or grated tray at the base allows used abrasive and dust to fall into a collection area, separating them for recycling or disposal.

2 Blasting System Mechanics

Siphon (Suction) Blasting Principle:

The most common system in manual cabinets, siphon blasting uses the Venturi effect: compressed air flowing through the nozzle creates a vacuum that draws abrasive media from a hopper. This results in a less aggressive but more controlled blast, ideal for precision work.

Pressure Regulation:

Manual pressure regulators allow operators to adjust air pressure between 20-60 PSI, balancing force for tasks like paint stripping (higher pressure) or deburring (lower pressure).

Nozzle Design:

Tungsten carbide or hardened steel nozzles, typically 3/16 to 1/2 inch in diameter, resist wear and enable consistent abrasive flow. Adjustable nozzle guards may be included to focus or widen the blast pattern.

3 Abrasive Handling and Recycling

Hopper Capacity:

Manual cabinets hold 5-25 pounds of abrasive media, with a manual feed valve controlling flow to the blasting gun. Some models feature agitators to prevent media clogging.

Basic Recycling Systems:

Gravity-fed or manually agitated sifters separate used abrasive from dust, allowing reusability for non-hazardous materials. Advanced models may include simple cyclonic separators for enhanced recycling efficiency.

Dust Control and Safety Features

1 Filtration Systems

Primary Filtration:

Cloth or cartridge filters at the exhaust port capture larger particles (5+ microns), while felt or foam pre-filters extend filter life by trapping coarse debris.

Optional HEPA Filtration:

Premium manual cabinets may include HEPA filters, removing 99.97% of particles ≥0.3 microns, essential for working with silica or hazardous abrasives.

Dust Collection Drawer:

A removable tray at the base collects settled dust, simplifying disposal and preventing buildup that could impair airflow.

2 Operator Safety Innovations

Glove Ports and Sleeves:

Abrasion-resistant neoprene or rubber gloves attached to the cabinet’s front panel allow hand access while maintaining a sealed environment. Replaceable cuffs prevent dust leakage.

Emergency Stop Mechanism:

A prominent red button halts air supply and abrasive flow immediately, prioritizing safety in case of malfunctions or accidents.

Anti-Static Interior Coatings:

Some cabinets feature anti-static paint or lining to reduce dust adhesion and static discharge risks, critical when working with flammable materials.

1 Blasting Technique Mastery

Nozzle-to-Workpiece Distance:

Optimal distance ranges from 4-8 inches: closer distances increase blast intensity for heavy cleaning, while longer distances provide wider, gentler coverage for finishing.

Angle of Incidence:

Holding the nozzle at 45-90 degrees to the surface affects material removal rate; lower angles are ideal for delicate surfaces, while 90 degrees maximizes aggression.

Movement Speed:

Consistent, overlapping passes at 2-4 inches per second ensure uniform treatment, preventing over-blasting (which causes surface damage) or under-blasting (incomplete cleaning).

2 Abrasive Media Selection

Metalworking:

applicationSteel Grit/Shot: For heavy rust removal on cast iron or steel.

applicationAluminum Oxide: For aggressive surface roughening on hard metals.

Finishing Tasks:

applicationGlass Beads: Create a smooth, satin finish on aluminum or stainless steel.

applicationCeramic Media: Ideal for peening to improve fatigue resistance in springs or gears.

Delicate Surfaces:

applicationWalnut Shells/Corn Cob: Gentle abrasives for cleaning plastic, wood, or vintage parts without scratching.

3 Performance Benchmarks

Surface Roughness:

Achievable profiles range from 15-100 microns (Ra), depending on abrasive type and pressure—critical for coating adhesion (e.g., ISO 8503 standards).

Abrasive Consumption:

Manual cabinets use 0.5-2 pounds of media per hour, with reusable abrasives like steel shot offering lower long-term costs.

Cycle Time:

A 12x12-inch part typically requires 5-10 minutes of blasting, excluding setup and cleaning, making manual cabinets suitable for low-to-medium volume tasks.

Types of Manual Sand Blasting Cabinets

1 Benchtop Manual Cabinets

Design:

Compact units (2-4 feet wide) suitable for tabletop use, ideal for small parts up to 18 inches in size.

Key Features:

applicationSiphon blasting system with 20-40 PSI pressure range.

applicationBasic dust filtration and manual abrasive feed.

Price Range:

$100-$500, popular among hobbyists and jewelry makers (e.g., Eastwood Benchtop Sandblaster).

2 Floor-Mounted Manual Cabinets

Applications:

Medium-sized parts like automotive wheels, machine components, or small structural steel pieces.

Technical Specifications:

applicationDirect pressure options (40-60 PSI) for heavier tasks.

applicationLarger interior space (3-5 feet) with built-in lighting and turntable options.

Price Range:

$500-$2,000, used in auto repair shops and metalworking studios (e.g., Clemco Apollo 3030).

3 Portable Manual Cabinets

Design:

Lightweight units with wheels or handles, some featuring built-in air compressors for on-site work.

Innovations:

applicationWet blasting capabilities to minimize dust in outdoor environments.

applicationFoldable frames for easy transport to construction sites or remote workshops.

Price Range:

$800-$3,000, favored by contractors and mobile maintenance teams (e.g., BlastOne Portable Blasting Cabinets).

4 Specialty Manual Cabinets

Vacuum Blasting Units:

Combine blasting with immediate dust suction, creating a closed-loop system for minimal airborne particles in sensitive environments.

High-Temperature Resistant Cabinets:

Designed for removing thermal coatings from engine parts or industrial components, with heat-resistant seals and materials.

Applications Across Industries and Crafts

1 Automotive Restoration

Rust Removal:

Blasting chassis components, engine blocks, or body panels to prepare for painting or plating, ensuring long-term corrosion resistance.

Custom Finishing:

Creating texture for powder coating on motorcycle parts or achieving a matte finish on trim pieces.

Deburring Castings:

Removing flash and rough edges from engine components like cylinder heads or intake manifolds.

2 Artisan and Craft Applications

Glass and Stone Etching:

Using fine abrasives like baking soda or aluminum oxide to create intricate designs on glassware, tiles, or stone sculptures.

Woodworking Decor:

Texturing hardwood surfaces for decorative effects or preparing wood for specialized finishes.

Jewelry and Metal Art:

Achieving uniform finishes on silver, gold, or bronze pieces, or creating unique textures for artistic jewelry designs.

3 Small-Scale Manufacturing

Electronics Component Cleaning:

Removing flux residues from circuit boards or preparing surfaces for adhesive bonding in small electronics production.

Medical Device Refurbishment:

Cleaning and retexturing stainless steel instruments to restore functionality and hygiene standards.

3D Print Post-Processing:

Smoothing rough surfaces on 3D-printed parts made from plastic or metal filaments.

4 Industrial Maintenance

Valve and Pump Restoration:

Removing scale and corrosion from industrial valves or pump housings in manufacturing plants.

Tool Reconditioning:

Refreshing worn tools like drill bits, dies, or molds to extend their service life.

Marine Hardware Cleaning:

Preparing boat fittings and hardware for anti-corrosion coating in maritime workshops.

Leading Manufacturers and Notable Models

1 Global Brands with Manual Cabinet Offerings

Clemco Industries (U.S.):

Apollo 2020: Benchtop cabinet with siphon blasting, 20x20-inch interior, and replaceable polycarbonate window ($499).

Apollo 3030: Floor-mounted model with direct pressure option, HEPA filtration, and turntable ($1,899).

Eastwood Company (U.S.):

Professional Sandblaster: Benchtop unit with 36x24-inch workspace, built-in lighting, and abrasive recycling ($599).

Rösler Group (Germany):

RB 200: Precision benchtop cabinet for medical and electronics applications, with HEPA filtration ($2,499).

2 Chinese Manufacturers for Cost-Effective Solutions

GKG Group (China):

GT-2020: Budget benchtop cabinet with siphon blasting, popular for export to Southeast Asia ($150-$300).

Wenzhou Jinbao Machinery (China):

JB-3030: Floor-mounted model with adjustable pressure and basic dust control, targeting small workshops ($600-$900).

3 Specialty and Regional Suppliers

Dalmec (Italy):

applicationManual cabinets with ergonomic glove ports, designed for prolonged use in European workshops ($1,200-$2,500).

Abrasive Blast Equipment (ABE, Australia):

applicationPortable manual cabinets for mining and construction, built to withstand harsh conditions ($1,800-$3,200).

Buying Guide: Key Considerations

1 Application-Specific Requirements

Part Size and Volume:

applicationBenchtop: Suited for parts <18 inches, ideal for low-volume hobby projects.

applicationFloor-mounted: Accommodates parts up to 36 inches, suitable for small-batch manufacturing.

Blasting Intensity Needs:

applicationSiphon blasting: Perfect for precision tasks (e.g., deburring, finishing).

applicationDirect pressure: Necessary for heavy rust or paint removal.

Abrasive Media Compatibility:

Ensure the cabinet’s hopper and feed system can handle your preferred abrasives, from fine glass beads to coarse steel shot.

2 Safety and Compliance

Dust Filtration Efficiency:

applicationBasic filters: Adequate for non-hazardous abrasives like walnut shells.

applicationHEPA filters: Essential when using silica or other toxic abrasives to meet OSHA or EU safety standards.

Viewing Window Durability:

Polycarbonate windows should be at least 1/4 inch thick to withstand prolonged abrasive exposure.

8.3 Total Cost of Ownership

Initial Investment:

applicationBenchtop: $100-$500

applicationFloor-mounted: $500-$2,000

applicationPortable: $800-$3,000

Operational Costs:

applicationAbrasive media: $0.50-$2 per pound, with reusable options like steel shot reducing long-term costs.

applicationEnergy: Compressor power consumption (1-3 kW/hour), factor in existing equipment or purchase costs.

applicationMaintenance: Replacing nozzles ($10-$30), gloves ($5-$15), and filters ($20-$50) annually.

4 After-Sales Support

Warranty Terms:

Minimum 1-year warranty for structural components; premium models may offer 2-year coverage.

Spare Parts Availability:

Ensure local distributors stock critical items like nozzles and filters, especially for imported models.

User Support Resources:

Look for manufacturers providing online tutorials, user manuals, or customer service for operational questions.

Basic Parameter

Maintenance and Operational Best Practices

1 Routine Maintenance Schedule

Daily:

applicationWipe down the viewing window with anti-static glass cleaner.

applicationEmpty the dust collection drawer to prevent overflow and maintain airflow.

Weekly:

applicationInspect gloves and cuffs for tears; replace immediately if damaged.

applicationCheck hoses and connections for air leaks or abrasion.

Monthly:

applicationReplace primary filters; inspect HEPA filters (if present) for clogging.

applicationLubricate feed valves and moving parts with silicone spray to prevent sticking.

2 Operator Safety Protocols

Personal Protective Equipment (PPE):

applicationRespirator: N95 or higher for non-toxic abrasives; supplied-air hood for silica or hazardous media.

applicationHearing Protection: Earmuffs or earplugs (blasting noise can exceed 90 dB).

applicationEye Protection: Safety glasses under the cabinet’s viewing window for added protection.

Lockout/Tagout:

Always disconnect air and power supplies before performing maintenance to prevent accidental activation.

3 Abrasive Media Management

Storage Best Practices:

Keep abrasives in sealed, moisture-proof containers to prevent clumping, which can clog feed systems.

Recycling Techniques:

applicationFor non-hazardous media, sort used abrasive to remove large contaminants (e.g., paint chips) before reusing.

applicationReplace media when performance declines, typically after 5-10 uses for steel grit.

Hazardous Waste Disposal:

Dispose of used abrasive containing lead, paint, or other toxins according to local environmental regulations, often through certified waste handlers.

Market Trends and Innovations

1 Smart Features in Manual Cabinets

IoT-Enabled Pressure Monitoring:

Some premium models now include digital pressure gauges with Bluetooth connectivity, allowing operators to track and record blasting parameters on mobile devices.

Remote Diagnostics:

Manufacturers like Clemco offer cabinets with built-in sensors that alert users to filter clogs or air leaks via smartphone apps, reducing downtime.

2 Sustainable Design Upgrades

Eco-Friendly Materials:

Growing adoption of recycled steel for cabinet construction and biodegradable abrasives like corn cob or walnut shell, appealing to environmentally conscious users.

Energy-Efficient Components:

LED interior lighting and low-power dust fans reduce electricity consumption by 15-20% compared to older models.

3 Ergonomic Innovations

Adjustable Work Trays:

Height-adjustable trays accommodate operators of different statures, reducing strain during prolonged use.

Anti-Vibration Glove Ports:

New designs minimize hand fatigue by dampening vibration from the blasting gun, ideal for tasks requiring high precision.

Regional Market Insights

1 North America: Compliance and Hobbyist Demand

Key Drivers:

Stringent OSHA regulations and a thriving DIY culture drive demand for HEPA-filtered benchtop cabinets.

Popular Models:

Eastwood and Clemco dominate, with a focus on safety certifications and ease of use for automotive enthusiasts.

2 Europe: Precision and Sustainability

Key Drivers:

EU environmental standards and demand for high-quality finishes in artisanal crafts and small manufacturing.

Market Leaders:

Rösler and Dalmec prioritize precision and ergonomics, with cabinets often featuring HEPA filtration and sustainable design.

11.3 Asia-Pacific: Affordability and Growth

Key Drivers:

Booming small-scale manufacturing in China, India, and Southeast Asia fuels demand for affordable floor-mounted cabinets.

Local Preferences:

Chinese brands like GKG offer cost-effective solutions, while Japanese and Korean users prioritize durability for industrial maintenance.

4 Middle East and Africa: Ruggedness and Mobility

Key Drivers:

On-site maintenance in oil & gas, mining, and construction requires portable, durable manual cabinets.
