Sand Blasting Machine Overview

Sand blasting machines, also known as abrasive blasting systems, are versatile tools designed to propel abrasive materials at high velocity onto surfaces for cleaning, finishing, or material removal. This process, rooted in 19th-century innovation, has evolved into a cornerstone of modern manufacturing, construction, and maintenance. At its core, sand blasting leverages kinetic energy from compressed air or mechanical rotation to dislodge contaminants, reshape surfaces, or create specific textures. From small-scale DIY projects to massive industrial operations, sand blasting machines have become indispensable across diverse sectors, driven by their efficiency, precision, and adaptability. This overview explores the fundamental principles, key components, operational types, and industry applications of sand blasting machines, shedding light on their technological advancements and future prospects.

technical consultation

Video

Fundamental Principles of Sand Blasting

Kinetic Energy in Abrasive Blasting

The primary principle of sand blasting revolves around converting potential energy into kinetic energy to propel abrasives. This energy transfer occurs through two main mechanisms:

Pneumatic Propulsion: Compressed air accelerates abrasives through a hose and nozzle, with pressure typically ranging from 40–150 PSI. The higher the air pressure, the greater the kinetic energy, enabling faster material removal.

Centrifugal Force: In wheel blasting machines, abrasives are fed into a高速旋转 (2,000–6,000 RPM) wheel, where centrifugal force ejects them at velocities up to 200 mph. This mechanical method is ideal for high-volume industrial applications.

Surface Interaction Mechanisms

When abrasives strike a surface, they induce three main effects:

1. Mechanical Erosion: Hard abrasives (e.g., aluminum oxide) chip away at contaminants or substrate material through impact and micro-cutting.

2. Peening: Rounded abrasives (e.g., glass beads) create a compressive surface layer, enhancing fatigue resistance in metals—a process called shot peening.

3. Texturing: Controlling abrasive type, size, and velocity allows for precise surface roughness, crucial for paint adhesion or aesthetic finishes.

Physics of Abrasive Blasting

Key physical factors influence blasting efficiency:

Abrasive Mass and Velocity: Kinetic energy (KE = ½mv²) is proportional to abrasive mass and velocity squared, meaning velocity has a more significant impact on material removal.

Impact Angle: Abrasives striking at 30–60° to the surface typically yield optimal cleaning, while perpendicular impacts are better for deep etching.

Surface Hardness: The abrasive must be harder than the contaminant but not necessarily the substrate (e.g., using walnut shells on wood to avoid damage).

Key Components of Sand Blasting Machines

Pneumatic Sand Blasting Systems

A standard pneumatic setup comprises:

Air Compressor: Generates compressed air, with reciprocating models suitable for portables and rotary screw types for industrial use.

Blast Pot/Hopper: Holds abrasives and regulates flow via pressure equalization valves or siphon mechanisms.

Blast Hose: Reinforced to withstand pressure and abrasion, often with anti-static properties for safety.

Nozzle: Made from tungsten carbide or ceramic, with orifice diameters of 3–12 mm; smaller nozzles increase velocity for precision work.

Control Panel: Regulates air pressure, media flow, and safety interlocks.

Dust Collection Subsystems

Essential for compliance and safety:

Cyclone Separators: Pre-filter large particles using centrifugal force.

HEPA Filters: Capture 99.97% of particles ≥0.3 microns, meeting air quality standards.

Exhaust Fans: Maintain negative pressure in blast rooms to contain dust.

Safety Features

Pressure Relief Valves: Activate at 110% of maximum working pressure to prevent explosions.

Emergency Shutdowns: Cut air and power within seconds of activation.

Interlock Systems: Prevent operation unless safety doors are sealed and PPE is detected.

Types of Sand Blasting Machines

Portable Systems

Designed for mobility and small-scale tasks:

Siphon-Feed Blasters: Use venturi effect to draw abrasives into the air stream, requiring low pressure (30–60 PSI). Ideal for DIY rust removal or wood etching.

Portable Pressure Blasters: Feature a small blast pot (1–5 gallon) and higher pressure (60–100 PSI), suitable for auto repair or on-site maintenance.

Cordless Battery Blasters: Emerging designs for light-duty tasks like jewelry cleaning, though limited by battery life and power.

Industrial-Grade Equipment

Engineered for high-volume operations:

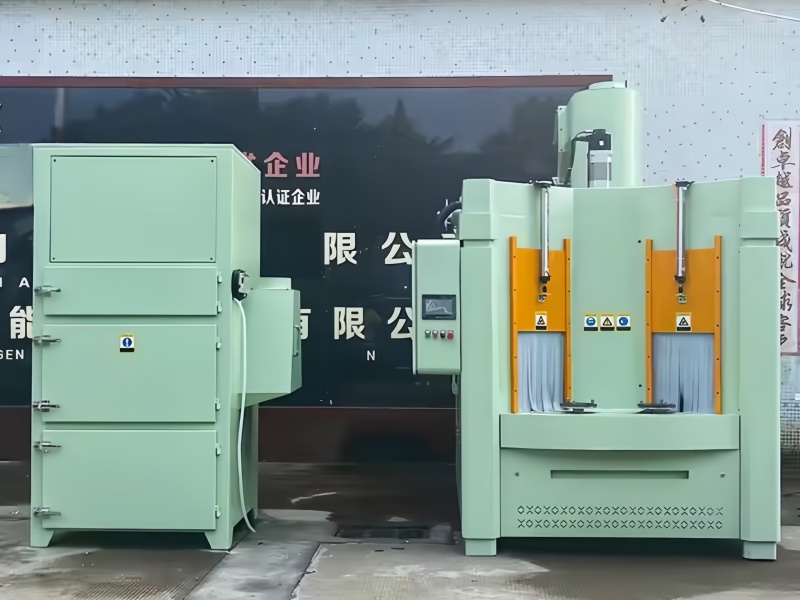

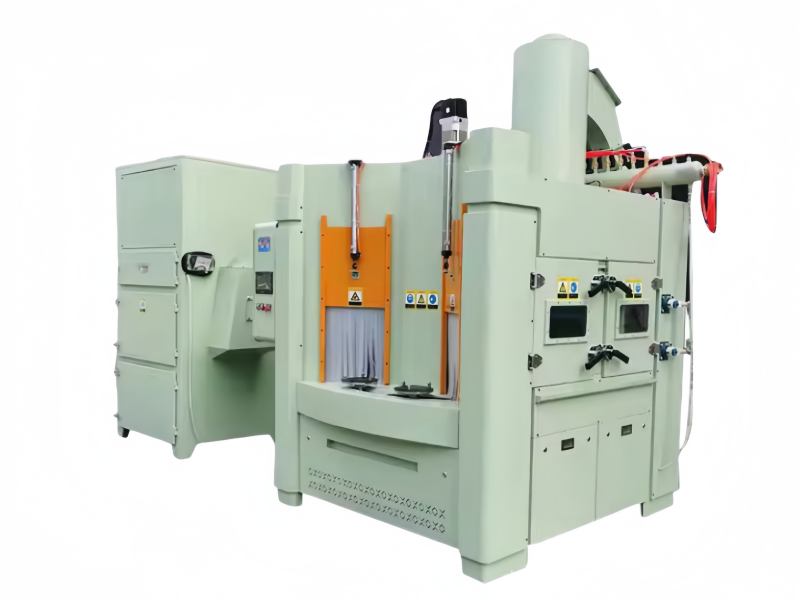

Blast Cabinets: Enclosed workstations with gloves and viewing windows, perfect for precision blasting of small parts. Often include automated media recycling.

Blast Rooms: Large enclosures (up to 10,000+ sq. ft.) for oversized components like aircraft fuselages, equipped with cranes and powerful dust extraction.

Wheel Blasting Machines: Use centrifugal wheels to throw abrasives, offering 10x higher productivity than pneumatic systems. Commonly used in foundries for deburring castings.

Specialized Systems

Wet Blasting Machines: Mix abrasives with water to reduce dust by 90%, ideal for delicate surfaces (e.g., aluminum) or environmental-sensitive areas.

Soda Blasters: Use sodium bicarbonate for gentle cleaning, popular in historical restoration or food industry equipment sanitization.

Dry Ice Blasters: Propel CO₂ pellets to remove coatings via thermal shock, leaving no residue—ideal for electrical equipment or composites.

Abrasive Materials and Their Selection

Natural Abrasives

Garnet: Hard, dense, and eco-friendly, suitable for general metal cleaning and surface preparation.

Walnut Shells: Soft, organic abrasives for delicate surfaces like wood or plastic, the non-marring.

Sand (Silica): Traditional but restricted due to silicosis risks; replaced by safer alternatives like olivine.

Synthetic Abrasives

Aluminum Oxide: Extremely hard, used for heavy-duty rust removal on steel or shot peening.

Silicon Carbide: Harder than aluminum oxide, ideal for aggressive blasting on ceramics or tungsten carbide.

Glass Beads: Rounded for peening and smooth finishes, improving fatigue strength in metals.

Specialty Abrasives

Baking Soda: For soda blasting, gentle enough for paint removal from historical artifacts.

Dry Ice Pellets: Non-abrasive, used for cold stripping without residue.

Plastic Media: Non-conductive, perfect for cleaning electronics or deflashing plastic molds.

Selection Criteria

Substrate Hardness: Match abrasive hardness to avoid damaging the base material.

Contaminant Type: Use aggressive abrasives for rust, gentle ones for paint.

Surface Finish Goal: Coarse abrasives for heavy removal, fine ones for polishing.

Environmental Regulations: Prefer recyclable or non-toxic abrasives in sensitive areas.

CNC-Controlled Tables: Move workpieces under fixed nozzles for repeatable patterns in mass manufacturing.

Smart Technology Integration

IoT Monitoring: Sensors in blast pots and hoses transmit real-time data on pressure, media flow, and wear to cloud platforms for predictive maintenance.

AI Process Optimization: Machine learning algorithms recommend optimal blasting parameters based on material type and desired finish.

Eco-Friendly Advancements

Closed-Loop Recycling: Systems reclaim up to 95% of abrasives using magnetic separators, cutting waste and costs.

Energy-Efficient Compressors: Variable speed drives reduce power consumption by 20–30% in industrial setups.

Waterless Dry Blasting: Innovations in dust filtration enable near-zero emission dry blasting, avoiding the need for wet systems.

Nanotechnology and Materials Science

Nano-Coated Abrasives: Enhanced durability and cutting efficiency through nanoscale surface treatments.

Micro-Blasting: Ultra-fine abrasives (sub-micron) for precision surface finishing in semiconductor or medical device manufacturing.

Industry Applications of Sand Blasting Machines

Manufacturing and Metalworking

Surface Preparation: Before painting or plating, blast steel components to remove scale and create a rough surface for adhesion.

Deburring Castings: Wheel blast iron or aluminum castings to remove flashing and smooth edges.

Shot Peening: Improve fatigue life of gears and springs using steel shot in automotive and aerospace parts.

Mold Cleaning: Remove resin buildup from plastic injection molds using gentle abrasives like corn cob.

Construction and Infrastructure

Bridge Restoration: High-pressure blast rooms remove decades of rust and paint from steel girders.

Concrete Texturing: Create non-slip surfaces on parking garages or etch decorative patterns.

Demolition Recycling: Blast rebar from concrete rubble for material separation.

Automotive and Aerospace

Car Restoration: Remove rust and old paint from vehicle frames using portable pressure blasters.

Turbine Blade Refurbishment: Precision blast cabinets remove thermal barrier coatings without damaging nickel alloys.

Composite Bonding: Blast carbon fiber parts to enhance adhesive bonding in aircraft assembly.

Art and Restoration

Glass Etching: Create decorative patterns on glass using sand blasting masks.

Stone Monument Cleaning: Use soda blasting to remove grime from historical statues without abrasion.

Wood Texturing: Achieve rustic finishes on furniture using walnut shell abrasives.

Safety, Regulations, and Best Practices

Health Hazards and Mitigation

Respiratory Risks: Inhalation of silica dust causes silicosis; use HEPA-filtered respirators or supplied-air systems.

Noise Exposure: Blasting can exceed 100 dB, requiring ear protection (≥25 dB rating).

Eye and Skin Protection: Wear ANSI Z87.1-compliant goggles and full-body coveralls to prevent abrasion injuries.

Regulatory Compliance

OSHA (US): 29 CFR 1910.242(b) for compressed air safety; 1910.1000 for dust exposure limits.

EU Machinery Directive: Requires CE marking, emergency stops, and safety interlocks.

ISO 11125: Standards for abrasive blast media testing and quality control.

Safe Operating Procedures

Lockout/Tagout: Isolate energy sources before maintenance.

Pressure Limitation: Never exceed 100 PSI unless using specialized equipment.

Nozzle Safety: Never point the nozzle at people; use safety chains to prevent accidental discharge.

Technological Innovations and Future Trends

Automation and Robotics

Robotic Blast Cells: 3D vision systems enable robots to blast complex parts with CAD precision, reducing labor costs in automotive production.

Case Studies in Sand Blasting Applications

Case Study 1: Offshore Wind Farm Maintenance

A major wind farm uses underwater wet blasting equipment to clean turbine foundations submerged in saltwater. The system employs a slurry of garnet and biodegradable corrosion inhibitors at 300 PSI, removing barnacles and marine growth while preventing steel corrosion. Robotic arms navigate the complex structures, reducing divers’ exposure to hazardous conditions and increasing maintenance speed by 50%.

Case Study 2: Historic Building Restoration

A heritage restoration project uses soda blasting to remove lead-based paint from a 19th-century courthouse facade. The gentle abrasive effectively strips paint without damaging the limestone substrate, meeting environmental regulations for lead dust containment. Specialized dust collection systems capture 99% of particles, ensuring compliance with OSHA’s lead exposure limits (50 µg/m³).

Basic Parameter

Sand blasting machines have evolved from rudimentary compressed air devices to sophisticated, technology-driven systems that underpin modern industry. Their versatility, from precision micro-blasting in semiconductors to massive blast rooms for ship hulls, stems from a deep understanding of material science, physics, and engineering. As industries prioritize sustainability and automation, the future of sand blasting lies in intelligent systems, eco-friendly abrasives, and seamless integration with digital manufacturing. By adhering to safety standards and embracing innovation, sand blasting will continue to play a pivotal role in surface treatment, enabling everything from critical infrastructure maintenance to artistic creation. For operators and enterprises, mastering the principles and applications of sand blasting machines is essential for unlocking efficiency, quality, and competitiveness in an ever-evolving industrial landscape.
