Core Components of Sand Blasting Machines
Air Compression System
The air compression system forms the backbone of pneumatic sand blasting equipment, converting electrical or mechanical energy into compressed air that propels abrasives. Key sub-components include:
Air Compressor: Available in reciprocating, rotary screw, or centrifugal designs, compressors generate air pressure typically between 40–150 PSI. Industrial systems often use oil-free compressors to prevent contamination, while portable units may rely on smaller, oil-lubricated models.
Air Receiver Tank: This pressure vessel stores compressed air, stabilizing flow and reducing pressure fluctuations. Tanks must comply with safety standards (e.g., ASME codes) and feature pressure relief valves and drain cocks to remove moisture.
Air Dryers and Filters: Refrigerant or desiccant dryers remove moisture from compressed air to prevent rust in hoses and corrosion on workpieces. Coalescing filters further eliminate oil, dust, and particulates, ensuring clean air for consistent blasting.
Blast Media Delivery System
The media delivery system controls the flow of abrasives, ensuring uniform distribution and precise material removal:
Blast Pot/Hopper: Constructed from wear-resistant steel, the blast pot holds abrasive media and regulates its flow into the air stream. It may feature a pressure-equalization valve to maintain consistent media feed.
Venturi or Pressure Feed Mechanisms:
applicationSiphon Feed: Uses a venturi effect to draw abrasives into the air stream; ideal for low-pressure, light-duty tasks.
applicationPressure Feed: Forces abrasives through the hose using compressed air, providing higher blasting power for heavy-duty applications.
Abrasive Flow Control Valve: Allows operators to adjust media flow rate, balancing between material removal speed and surface finish quality.
Blast Hose and Nozzle Assembly
These components direct the abrasive stream with precision:
Blast Hose: Made from reinforced rubber or synthetic materials, hoses must withstand high pressure and abrasion. Industrial hoses often have anti-static properties to prevent static buildup, while portable units use lighter, flexible designs.
Nozzle: Typically constructed from tungsten carbide, ceramic, or hardened steel, nozzles come in various shapes (round, flat, or specialty) and diameters (3–12 mm). The nozzle’s orifice size affects blasting pressure and coverage area; smaller nozzles generate higher velocity for detailed work, while larger ones suit broad surfaces.
Control System
Modern sand blasting equipment integrates sophisticated controls for operational safety and efficiency:
Pressure Regulator: Adjusts air pressure to match the task, preventing excessive force that could damage workpieces.
Trigger or Valve Mechanism: Activates/deactivates the blast stream, with industrial systems often featuring foot pedals or remote controls for hands-free operation.
Digital Monitoring Panels: Display real-time pressure, media level, and system diagnostics, enabling proactive maintenance and process optimization.
Dust Collection and Safety Systems
Dust Extraction Units
To comply with environmental and health regulations, sand blasting equipment incorporates:
Cyclone Separators: Pre-filter large particles by using centrifugal force, reducing load on downstream filters.
Baghouse Filters: HEPA or polyester filter bags capture fine dust, with pulse-jet cleaning systems to maintain airflow.
Exhaust Fans and Ductwork: Maintain negative pressure in blast rooms, directing dust toward the collection system.
Safety Components
Pressure Relief Valves: Prevent over-pressurization in blast pots and air tanks, with automatic activation at specified thresholds.
Interlock Systems: Ensure blast rooms or cabinets cannot operate unless doors are sealed, and PPE sensors detect operator presence.
Emergency Shutdown Switches: Located within easy reach, these cut power and air supply in case of malfunctions.
Types of Sand Blasting Machine Equipment
Portable Sand Blasting Systems
Designed for mobility and small-scale tasks, portable equipment includes:
Siphon-Feed Blasters: Ideal for DIY projects, these use a siphon tube to draw abrasives into the air stream, requiring minimal air pressure (30–60 PSI). They are lightweight but less powerful, suitable for rust removal on small parts or wood etching.
Portable Pressure Blasters: Feature a small blast pot (1–5 gallon capacity) and higher pressure (60–100 PSI), enabling faster material removal. They are commonly used in auto repair, small metal fabrication, or on-site maintenance.
Cordless Battery-Powered Blasters: Emerging designs use rechargeable batteries to power mini-compressors, eliminating the need for external air sources. These are limited to light-duty tasks like jewelry cleaning or hobbyist work.
Industrial-Grade Sand Blasting Equipment
Engineered for high-volume, heavy-duty operations, industrial systems include:

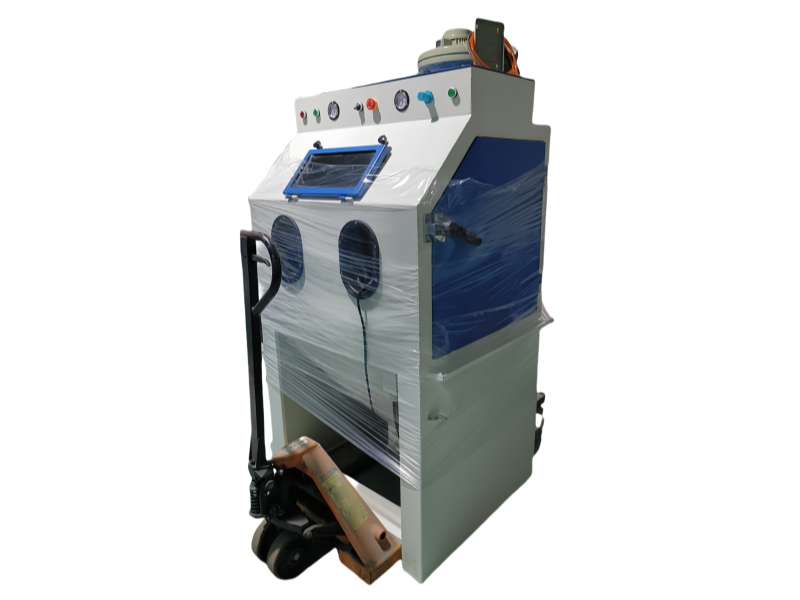

Blast Cabinets: Enclosed workstations with viewing windows and glove ports, ideal for precision blasting of small-to-medium parts. They often feature automated media recycling and integrated dust collection.
Blast Rooms: Large, enclosed spaces (up to hundreds of square meters) for blasting oversized components like aircraft fuselages or construction machinery. Equipped with overhead cranes, conveyor systems, and powerful dust extraction, they support continuous production.
Wheel Blasting Machines (Centrifugal Blasters): Use high-speed rotating wheels (2000–6000 RPM) to throw abrasives, offering up to 10 times higher productivity than pneumatic systems. Commonly used in foundries, they excel at deburring castings or cleaning steel sheets.
Wet Blasting Systems
Combining water and abrasives, wet blasting equipment offers:
Slurry Blasters: Mix abrasives with water in a tank, pumping the slurry through a nozzle using compressed air or a pump. This reduces dust by 90% and provides gentler blasting for delicate surfaces like aluminum or electronics.
Underwater Blasting Equipment: Specialized for marine applications, these systems use high-pressure water jets mixed with abrasives to clean ship hulls or offshore structures without dry-docking.
Specialized Sand Blasting Equipment for Niche Applications
Soda Blasting Systems
Using sodium bicarbonate as an abrasive, these systems are gentle enough for:
Historical Restoration: Removing paint from antique furniture or architectural elements without damaging the substrate.
Food Industry Cleaning: Sanitizing equipment without toxic residue, as baking soda is food-safe.
Dry Ice Blasting Machines
Propelling dry ice pellets (CO₂), these systems:
Non-Abrasive Cleaning: Remove paint or grease from electrical equipment without disassembling, as dry ice sublimates upon impact, leaving no residue.
Cold Stripping: Exploit thermal shock to detach coatings, ideal for sensitive materials like composites.
Ultrasonic Blasting Systems
Combining ultrasonic vibrations with abrasive particles, these niche systems:
Micro-Preparation: Etch surfaces at the microscale for medical device coating adhesion or semiconductor wafer cleaning.
Industrial Applications of Sand Blasting Equipment
Automotive Manufacturing and Restoration
Body Panel Preparation: Remove rust and old paint from car frames using portable pressure blasters, ensuring new coatings adhere properly.
Engine Component Cleaning: Blast cylinder heads or gears with glass beads to remove carbon deposits, improving performance.
Custom Finishing: Create textured surfaces on wheels or trim pieces using specialized nozzles for aesthetic appeal.
Aerospace and Defense
Turbine Blade Maintenance: Use fine aluminum oxide to remove thermal barrier coatings from jet engine blades without damaging the base metal.
Composite Surface Treatment: Blast carbon fiber parts to enhance adhesive bonding for aircraft assembly.
Corrosion Prevention: Wheel blast landing gear components with steel grit to prepare them for anti-corrosion coatings.
Construction and Infrastructure
Bridge and Steel Structure Restoration: High-pressure blast rooms remove decades of rust and paint from steel girders, extending service life.
Concrete Texturing: Use sand blasting to create non-slip surfaces on parking garages or etch designs into decorative concrete.
Demolition Debris Recycling: Blast rebar from concrete rubble to separate materials for recycling.
Metal Fabrication and Foundries
Casting Deburring: Wheel blast cast iron parts to remove flashing and smooth rough edges, reducing manual finishing labor.
Sheet Metal Pre-Treatment: Blast steel sheets before painting to create a roughened surface that improves paint adhesion.
Tool and Die Cleaning: Remove resin buildup from plastic injection molds using gentle walnut shell abrasives.
Maintenance and Troubleshooting of Sand Blasting Equipment
Routine Maintenance Protocols
Daily Checks: Inspect hoses for cracks, check air pressure gauges, and empty moisture from air receivers.
Weekly Maintenance: Clean or replace air and media filters, lubricate moving parts (e.g., pressure valves), and test emergency shutdowns.
Monthly Inspections: Measure nozzle wear (replace when orifice diameter increases by 15%), inspect blast pot linings for erosion, and calibrate pressure regulators.
Common Equipment Issues and Solutions
| Issue | Possible Cause | Remedy |
|---|
| Inconsistent blasting pressure | Clogged air filter or hose kink | Clean the filter and straighten the hose |
| Excessive dust emission | Worn filter bags or loose duct connections | Replace the filters and seal the ducts |
| Reduced media flow | Abrasive bridging in hopper or valve obstruction | Vibrate the hopper and clean the valve |
| Nozzle wear within weeks | Using hard abrasives (e.g., silicon carbide) with steel nozzles | Upgrade to tungsten carbide nozzles |
Long-Term Equipment Care
Abrasive Selection: Match abrasive hardness to the task to minimize nozzle and hose wear (e.g., use glass beads instead of steel grit for delicate surfaces).
Corrosion Prevention: Apply anti-rust coatings to exposed metal parts, especially in wet blasting environments.
Software Updates: For digital systems, install firmware updates to maintain optimal performance and safety features.
Technological Innovations in Sand Blasting Equipment
Automation and Robotics Integration
Robotic Blast Cells: Industrial robots equipped with 3D vision systems can automatically blast complex parts, following CAD models for precise coverage. This reduces labor costs and ensures consistency in aerospace or automotive production.
CNC-Controlled Blast Tables: Computer-numerical control systems move workpieces under fixed nozzles, enabling repeatable blasting patterns for mass-produced components.
Smart Sensor Technology
IoT-Enabled Monitoring: Pressure sensors in blast pots and flow meters in hoses transmit real-time data to cloud platforms, alerting maintenance teams to potential issues before downtime occurs.
Wear Detection Sensors: Embedded in nozzles or hoses, these sensors use RFID or ultrasonic technology to measure wear and trigger replacement alerts.
Eco-Friendly Design Upgrades
Closed-Loop Media Recycling: Advanced systems use magnetic separators and cyclones to reclaim up to 95% of abrasives, reducing waste and material costs.
Energy-Efficient Compressors: Variable speed drives adjust compressor output based on demand, cutting energy use by 20–30% in industrial settings.
Safety Standards and Regulatory Compliance
International Safety Codes
OSHA (US): 29 CFR 1910.242(b) mandates safe use of compressed air, while 1910.1000 regulates permissible exposure limits (PELs) for respirable dust.
ISO 11125 (Global): Specifies test methods for abrasive blast media, ensuring consistency and quality.
EU Machinery Directive (2006/42/EC): Requires sand blasting equipment to have emergency stops, interlocks, and clear safety labeling.
Personal Protective Equipment (PPE) Standards
Respirators: NIOSH-approved N95 or higher for non-silica abrasives; powered air-purifying respirators (PAPRs) for silica-based media.
Eye Protection: ANSI Z87.1-compliant goggles or face shields with impact resistance.
Hearing Protection: Earplugs or earmuffs rated for ≥25 dB noise reduction, as blasting can exceed 100 dB.
