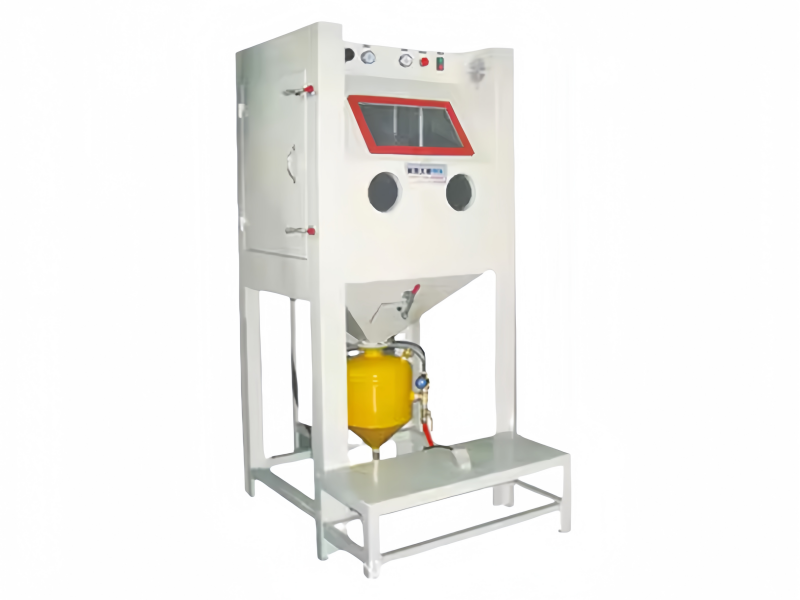

High Pressure Sand Blasting Machine for Rust Removal

High Pressure Sand Blasting Machine for Rust Removal

In the industrial landscape, rust is a persistent and costly problem that can compromise the integrity, functionality, and lifespan of metal structures and components. High pressure sand blasting machines have emerged as a highly effective solution for rust removal, offering a powerful and efficient method to restore metal surfaces to their original state. These machines utilize the force of high velocity sand particles propelled by compressed air to blast away rust, scale, paint, and other contaminants, leaving behind a clean and prepared surface for further treatment or application.

The demand for high pressure sand blasting machines for rust removal has grown significantly across various industries, including construction, manufacturing, shipbuilding, and maintenance. Their ability to handle large scale rust removal tasks quickly and effectively makes them an essential tool for ensuring the durability and reliability of metal assets. This article will provide a comprehensive overview of high pressure sand blasting machines for rust removal, exploring their working principles, key components, advantages, applications, and future trends.

technical consultation

Video

Working Principles

The fundamental working principle of a high pressure sand blasting machine for rust removal is based on the kinetic energy of abrasive particles. When the machine is in operation, compressed air is generated by an air compressor and directed into a blast pot or tank that contains sand or other abrasive media. The compressed air creates a pressure differential within the blast pot, forcing the sand to mix with the air stream.

This mixture of sand and air is then channeled through a hose and out of a nozzle at high velocity. The high speed stream of abrasive particles impacts the rust covered surface with great force. The kinetic energy of the sand particles breaks down the rust layers, chips away at scale, and removes old paint and other contaminants. As the abrasive particles strike the surface, they create a rough texture, which is beneficial for improving the adhesion of subsequent coatings, such as paints, epoxies, or anti corrosion primers.

The intensity of the sand blasting process can be adjusted by controlling several key parameters. The air pressure, which is typically measured in pounds per square inch (PSI), determines the velocity at which the sand is propelled. Higher air pressures result in greater impact force and more aggressive rust removal. The type and size of the abrasive media also play a crucial role. Coarser sand particles can remove thick layers of rust more quickly, while finer particles are better suited for delicate surfaces or for achieving a smoother finish after the initial rust removal. Additionally, the distance between the nozzle and the surface, as well as the angle of the nozzle, can be adjusted to optimize the blasting effect.

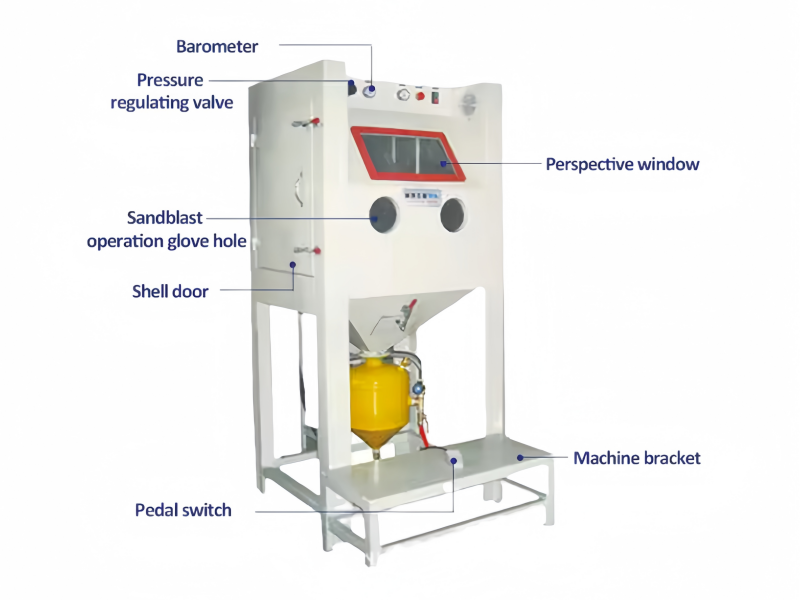

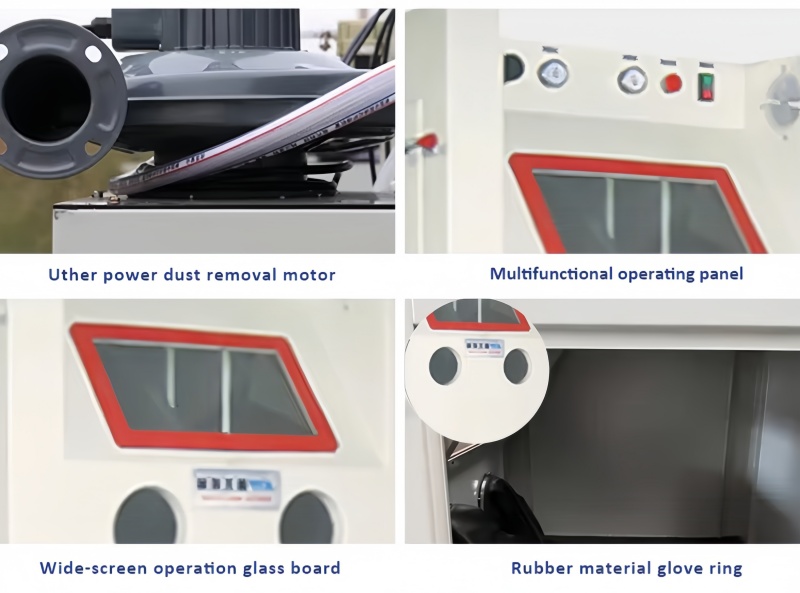

Key Components

1 Air Compressor

The air compressor is the heart of the high pressure sand blasting machine, as it provides the necessary compressed air to propel the abrasive media. There are different types of air compressors used in sand blasting applications, including reciprocating, rotary screw, and centrifugal compressors. Reciprocating compressors are commonly used for smaller scale sand blasting operations due to their relatively lower cost and simplicity. Rotary screw compressors, on the other hand, are more suitable for continuous and high volume sand blasting, as they can deliver a steady and consistent supply of compressed air with minimal fluctuations.

The size and capacity of the air compressor are determined by the requirements of the sand blasting machine. Larger machines with higher pressure and high volume needs will require more powerful air compressors. The compressor's performance is also influenced by factors such as the ambient temperature, altitude, and humidity, as these can affect the density and availability of air.

2 Blast Pot

The blast pot serves as the storage container for the abrasive media and is where the mixing of sand and air takes place. It is typically made of high strength steel to withstand the internal pressure generated by the compressed air. The blast pot is equipped with an inlet for the compressed air, an outlet for the sand air mixture, and a filling port for adding abrasive media.

Inside the blast pot, there are various components that help regulate the flow of the abrasive media. A pressure regulating valve controls the air pressure within the pot, ensuring a consistent and stable flow of the sand air mixture. A metering valve or a siphon feed mechanism is used to control the amount of sand that is mixed with the air, allowing operators to adjust the sand flow rate according to the specific rust removal requirements.

3 Hose and Nozzle

The hose is responsible for transporting the sand air mixture from the blast pot to the nozzle. It must be durable and able to withstand the high pressure and abrasion caused by the moving abrasive particles. Hoses are typically made of rubber or synthetic materials, often reinforced with wire or fabric to enhance their strength and flexibility. The length and diameter of the hose can impact the performance of the sand blasting machine. Longer hoses may result in a loss of pressure, while a larger diameter hose can allow for a higher flow rate of the sand air mixture.

The nozzle is the final component through which the abrasive particles are directed onto the surface. Nozzles come in different shapes, sizes, and materials, each designed for specific applications. Tungsten carbide nozzles are highly popular due to their excellent wear resistance, which allows them to maintain their shape and performance over extended periods of use. The shape of the nozzle, such as round, flat, or fan shaped, determines the pattern of the abrasive stream, affecting the coverage area and the intensity of the blast on the surface.

4 Dust Collection and Filtration System

During the sand blasting process, a significant amount of dust and debris is generated, which can pose health risks to operators and environmental concerns. To address this, high pressure sand blasting machines are often equipped with dust collection and filtration systems. These systems typically consist of a combination of cyclone separators, bag filters, and cartridge filters.

The cyclone separator uses centrifugal force to remove the larger dust particles from the air stream. The remaining finer particles are then captured by the bag or cartridge filters, which can achieve high levels of filtration efficiency. Some advanced dust collection systems may also incorporate high efficiency particulate air (HEPA) filters to ensure that the air released back into the environment meets strict air quality standards. The collected dust and debris are stored in a collection bin, which needs to be emptied regularly to maintain the effectiveness of the system.

Advantages

1 Rapid and Efficient Rust Removal

One of the primary advantages of high pressure sand blasting machines for rust removal is their speed and efficiency. They can quickly remove thick layers of rust from large surfaces, significantly reducing the time and labor required compared to manual rust removal methods. The high velocity impact of the abrasive particles allows for thorough cleaning, reaching into crevices and corners that may be difficult to access manually. This makes them ideal for large scale rust removal projects, such as the restoration of bridges, ships, and industrial equipment.

2 High quality Surface Preparation

Sand blasting not only removes rust but also prepares the metal surface for subsequent coating or treatment. The rough texture created by the abrasive particles provides a better surface for paint, primer, or other protective coatings to adhere to. This improves the durability and longevity of the coating, as it reduces the likelihood of peeling, flaking, or corrosion beneath the coating. A properly sand blasted surface also ensures a more uniform and professional looking finish.

3 Versatility

High pressure sand blasting machines are highly versatile and can be used on a wide range of metal surfaces, including steel, iron, aluminum, and stainless steel. They can also be applied to various types of structures and components, such as pipes, tanks, machinery parts, and architectural metalwork. Additionally, by changing the type and size of the abrasive media, operators can adapt the sand blasting process to different levels of rust severity and surface requirements.

4 Cost effectiveness

Although the initial investment in a high pressure sand blasting machine may be relatively high, it offers long term cost savings. The reduced labor costs associated with faster rust removal and the improved lifespan of coated surfaces due to proper surface preparation contribute to overall cost effectiveness. Additionally, the ability to reuse some types of abrasive media, such as steel grit or shot, further reduces operating costs over time.

Applications

1 Construction Industry

In the construction industry, high pressure sand blasting machines are widely used for rust removal on steel structures, such as bridges, buildings, and towers. Before painting or applying protective coatings to these structures, sand blasting is essential to ensure a clean and prepared surface. It also helps in the restoration of older structures, removing years of accumulated rust and corrosion, and extending their service life.

For example, when renovating a steel bridge, sand blasting can quickly remove rust from the beams, girders, and other components. This not only improves the appearance of the bridge but also enhances its structural integrity, ensuring the safety of users. Sand blasting is also used for cleaning and preparing metal pipes, tanks, and other equipment used in construction projects.

2 Shipbuilding and Marine Industry

Ships and marine structures are constantly exposed to harsh marine environments, which can cause severe rust and corrosion. High pressure sand blasting machines are indispensable in the shipbuilding industry for cleaning and preparing the hulls, decks, and other metal parts of ships. Before applying anti fouling paints or other protective coatings, sand blasting ensures that the surfaces are free from rust, barnacles, and other marine growth.

In ship repair and maintenance, sand blasting is used to remove rust and old paint from damaged areas, preparing them for welding, patching, or repainting. This helps to maintain the seaworthiness of the ships and extends their operational lifespan.

3 Manufacturing Industry

In manufacturing, metal components are often subject to rust during storage or due to exposure to moisture and environmental factors. High pressure sand blasting machines are used to clean and prepare these components before further processing, such as machining, assembly, or coating. By removing rust, sand blasting ensures that the components meet the required quality standards and perform optimally in their intended applications.

For example, in the production of automotive parts, sand blasting can be used to clean cast iron engine blocks, steel chassis components, and aluminum wheels, removing rust and preparing the surfaces for painting or other finishing processes.

4 Maintenance and Restoration

High pressure sand blasting machines are also commonly used in maintenance and restoration projects for a variety of metal objects, including historical artifacts, sculptures, and antique machinery. They can carefully remove rust and old paint without causing damage to the underlying metal, allowing for the restoration of these items to their former glory.

In facilities maintenance, sand blasting is used to clean and prepare metal surfaces for repainting or recoating, ensuring that the protective coatings adhere properly and provide long lasting protection against rust and corrosion.

Maintenance and Safety Considerations

1 Maintenance

Regular maintenance is crucial to ensure the optimal performance and longevity of high pressure sand blasting machines. The air compressor requires routine checks of oil levels, filter replacements, and belt tension adjustments. The blast pot should be inspected for leaks, and the pressure regulating and metering valves should be calibrated regularly to ensure accurate control of the sand air mixture.

The hose and nozzle need to be examined for signs of wear and tear, such as cracks, abrasions, or blockages. Worn out hoses and nozzles should be replaced promptly to prevent loss of pressure and performance. The dust collection and filtration system also require maintenance, including cleaning or replacing the filters, emptying the collection bin, and checking for air leaks in the system.

2 Safety

Safety is of utmost importance when operating high pressure sand blasting machines. Operators must wear appropriate personal protective equipment (PPE), including safety goggles, respiratory protection (such as a dust mask or a supplied air respirator), hearing protection, and protective clothing. The work area should be properly ventilated to minimize the inhalation of dust.

The machine should be equipped with safety interlocks and emergency stop buttons to prevent accidental operation. Before starting the sand blasting process, operators should ensure that all connections are secure, the air pressure is within the recommended range, and the abrasive media is properly loaded. Regular safety inspections should be carried out to identify and address any potential hazards, such as loose components, faulty electrical systems, or air leaks.

Future Trends

1 Integration of Advanced Technologies

The future of high pressure sand blasting machines for rust removal may see the integration of advanced technologies such as automation and robotics. Automated sand blasting systems can be programmed to perform rust removal tasks with greater precision and consistency, reducing the need for manual labor and improving productivity. Robotic arms can be used to control the movement of the nozzle, allowing for more complex and accurate sand blasting patterns on irregularly shaped surfaces.

In addition, the use of sensors and real time monitoring systems can provide operators with valuable data on the sand blasting process, such as air pressure, sand flow rate, and surface roughness. This data can be used to optimize the process parameters, ensuring the best possible rust removal results while minimizing waste and energy consumption.

2 Development of Environmentally Friendly Abrasive Media

As environmental concerns grow, there will be a greater focus on developing environmentally friendly abrasive media for sand blasting. Traditional sand, such as silica sand, can pose health risks when inhaled and may have negative environmental impacts. Alternative abrasive materials, such as recycled glass beads, aluminum oxide, or plastic abrasives, are being developed and used more widely. These materials are not only safer for operators but also more sustainable, as they can be recycled or are made from renewable resources.

Manufacturers are also exploring ways to reduce the amount of abrasive media waste generated during the sand blasting process, through better media recycling systems and more efficient blasting techniques.

3 Miniaturization and Portable Designs

There is a growing trend towards the miniaturization and development of portable high pressure sand blasting machines. These compact and lightweight machines are ideal for on site rust removal tasks, where access to large, stationary equipment may be limited. Portable sand blasting machines can be easily transported to different job sites, allowing for quick and convenient rust removal on a variety of metal structures and components.

They are often designed with user friendly features, such as easy to operate controls and integrated dust collection systems, making them suitable for both professional and DIY applications.

Basic Parameter

High pressure sand blasting machines for rust removal are powerful and effective tools that play a vital role in various industries. Their ability to rapidly and efficiently remove rust, prepare surfaces for coating, and offer versatility and cost effectiveness make them indispensable for maintaining the integrity and longevity of metal structures and components.

With the continuous development of technology, these machines are expected to become even more advanced, with the integration of automation, the use of environmentally friendly abrasive media, and the development of portable designs. By embracing these future trends, industries can further enhance the efficiency and effectiveness of their rust removal processes, ensuring the continued reliability and performance of their metal assets.
