Roller Conveyor Sand Blasting Machine Introduction

Roller Conveyor Sand Blasting Machine Introduction

In the fast-paced landscape of industrial manufacturing and maintenance, efficiency and consistency are paramount. Roller conveyor sand blasting machines have emerged as a revolutionary solution for high-volume surface preparation, offering automated, continuous processing that far surpasses traditional manual methods. These systems are designed to handle large workpieces, such as steel plates, pipes, beams, and automotive components, by integrating conveyor technology with abrasive blasting, ensuring uniform results while minimizing labor and downtime. This comprehensive introduction explores the design, operational mechanics, key applications, advantages, and technological advancements of roller conveyor sand blasting machines, highlighting their role in modern industrial workflows.

technical consultation

Video

Defining Roller Conveyor Sand Blasting Machines

A roller conveyor sand blasting machine is a specialized automated system that combines a roller conveyor belt with an enclosed blast chamber. Workpieces are placed on the conveyor rollers, which transport them through the chamber where high-velocity abrasive media (e.g., steel grit, aluminum oxide) is propelled at their surfaces to remove rust, paint, scale, or other contaminants. This setup is ideal for mass production environments or large-scale projects requiring consistent surface finishes, such as in steel fabrication, automotive manufacturing, and aerospace industries.

Core Objectives

Continuous Processing: Enable 24/7 operation for high-throughput production lines.

Uniform Surface Treatment: Ensure consistent abrasive coverage across complex or large workpieces.

Labor Reduction: Minimize manual handling and operator exposure to hazardous blasting environments.

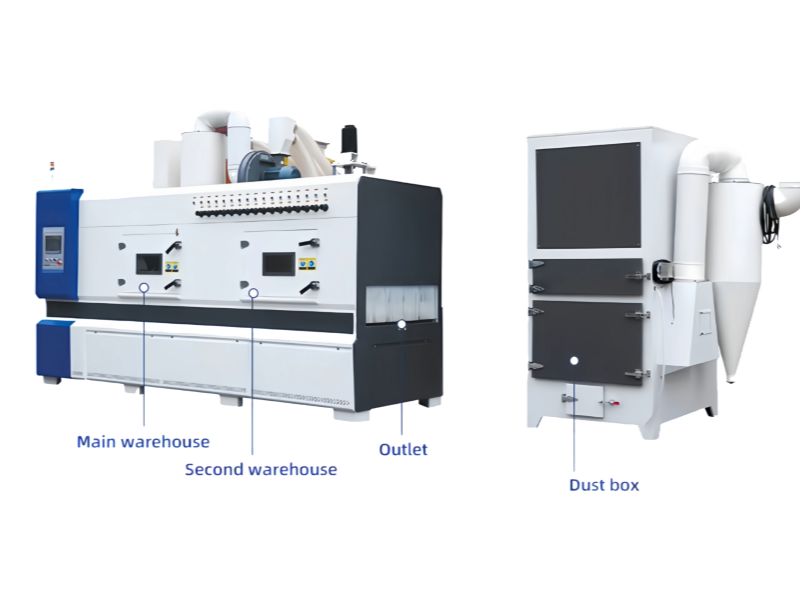

Technical Design and Key Components

Roller conveyor sand blasting machines are engineered for durability and precision, featuring interconnected components that optimize workflow:

1. Roller Conveyor System

Structure:

Rollers: Made of steel or rubber-coated steel, spaced evenly to support workpieces of varying sizes (e.g., 2–10 feet in width).

Drive Mechanism: Electric motors or gear reducers power the rollers, with variable speed controls (0.5–5 meters per minute) to adjust blasting intensity.

Workpiece Compatibility:

Handles flat sheets, pipes, structural steel (I-beams, channels), and irregularly shaped components.

Load capacity ranges from 500 kg to over 20 tons, depending on the model.

2. Blast Chamber

Enclosure:

Constructed from heavy-duty steel with abrasion-resistant liners (e.g., manganese steel or rubber) to withstand particle impact.

Sealed to contain dust and noise, with viewing windows for monitoring.

Blasting Nozzles:

Multiple nozzles (typically 4–20) are strategically positioned (top, bottom, sides) to ensure 360° coverage.

Nozzles are made of tungsten carbide or ceramic for longevity, with automatic cleaning systems to prevent clogging.

3. Abrasive Media Delivery System

Pressure Pot or Siphon System:

High Pressure models use pressurized pots (100–300 PSI) for aggressive blasting, while siphon systems are suitable for lighter tasks.

Media Recycling:

A built-in recycling system collects used abrasives, separates contaminants via sieves or air washers, and recirculates clean media for reuse, reducing waste by up to 90%.

4. Dust Collection and Filtration

HEPA Filtration:

Integrates high-efficiency particulate air (HEPA) filters to capture fine dust (≤0.3 microns), ensuring compliance with OSHA and EPA regulations for silica and other hazardous particles.

Exhaust System:

Maintains negative pressure in the chamber to prevent dust leakage, with ducting to direct air to external filtration units.

5. Control Panel and Automation

PLC (Programmable Logic Controller):

Controls conveyor speed, abrasive flow, and nozzle positioning via a centralized interface.

HMI (Human-Machine Interface):

Allows operators to set parameters (e.g., blast pressure, conveyor speed) and monitor real-time performance data.

Safety Interlocks:

Shuts down the system if access doors are opened or if pressure/flow anomalies are detected.

Operational Workflow

The roller conveyor sand blasting process is designed for seamless, automated operation:

1. Loading Workpieces

Workpieces are placed on the conveyor rollers at the inlet station. For heavy components, overhead cranes or forklifts are used to position them accurately.

2. Pre-Blasting Preparation

Optional pre-cleaning stations may use brushes or compressed air to remove loose debris, enhancing blasting efficiency.

Sensors detect workpiece dimensions and adjust nozzle positions automatically (in advanced models).

3. Blasting Process

As the conveyor moves the workpiece into the blast chamber, nozzles emit high-velocity abrasive streams.

Key Variables:

Conveyor Speed: Slower speeds allow for more aggressive blasting (e.g., removing thick rust), while faster speeds suit light cleaning.

Abrasive Type: Coarse media (e.g., steel shot) for heavy-duty stripping; fine media (e.g., glass beads) for polishing.

Multi-Zone Blasting: Some machines have separate zones for primary blasting (heavy removal) and secondary finishing (surface smoothing).

4. Post-Blasting Treatment

Dust Removal: An air knife or brush station at the outlet removes residual abrasives and dust from the workpiece.

Quality Inspection: Automated cameras or sensors check for uniform surface roughness (e.g., ISO 8501-1 standards) before the workpiece exits the system.

5. Media Recycling and Waste Disposal

Used abrasives and dust fall through grates into a recovery system:

Grit Recycling: Clean media is separated and returned to the pressure pot.

Waste Disposal: Contaminated dust and non-reusable abrasives are collected in sealed bins for proper disposal (e.g., hazardous waste if containing lead paint).

Applications of Roller Conveyor Sand Blasting Machines

These systems are indispensable in industries requiring high-volume, standardized surface treatment:

1. Steel Fabrication and Construction

Structural Steel: Cleans and prepares I-beams, channels, and plates for painting or galvanizing, ensuring compliance with ASTM and ISO corrosion standards.

Pipeline Manufacturing: Blasts the interior and exterior of pipes to remove mill scale and prepare for anti-corrosion coatings.

Bridge and Infrastructure Components: Processes large steel sections for bridges, railways, and industrial buildings.

2. Automotive and Aerospace Manufacturing

Vehicle Chassis and Frames: Removes rust and old coatings from automotive components before powder coating or electrophoresis.

Aircraft Parts: Gently blasts aluminum alloy panels or engine components to create a surface profile for adhesive bonding or paint adhesion.

OEM Production Lines: Integrates seamlessly into assembly lines for continuous processing of car bodies or aerospace structures.

3. Shipbuilding and Marine Industry

Hull and Deck Components: Cleans steel hull sections and deck plates, removing marine corrosion and preparing surfaces for anti-fouling paints.

Offshore Platforms: Processes large structural components for oil rigs, ensuring durability in harsh saltwater environments.

4. Metal Recycling and Refurbishment

Scrap Metal Processing: Removes paint, oil, and rust from recycled metal, preparing it for smelting or reuse.

Heavy Equipment Refurbishment: Restores excavators, bulldozers, and agricultural machinery by stripping worn coatings and exposing fresh metal.

5. Industrial Coatings and Surface Finishing

Powder Coating Pre-Treatment: Etches metal surfaces to enhance powder adhesion, reducing coating failures.

Anodizing Preparation: Creates a uniform texture on aluminum parts before anodizing, ensuring consistent color and durability.

Advantages of Roller Conveyor Sand Blasting Machines

1. Unmatched Efficiency and Throughput

Continuous Operation: Unlike manual blasting, which requires stop-start cycles, conveyor systems process workpieces non-stop, increasing output by 300–500% in high-volume settings.

Reduced Labor Costs: Minimizes the need for skilled operators, as the system handles blasting and material handling autonomously.

2. Consistent and Uniform Results

Precision Control: Automated nozzle positioning and conveyor speed ensure identical surface finishes across thousands of parts.

Surface Profile Consistency: Meets strict standards (e.g., SSPC-SP10 near-white blast) for critical applications like offshore coatings or aerospace bonding.

3. Enhanced Safety and Compliance

Operator Protection: Reduces direct human exposure to abrasive particles, noise, and dust by enclosing the blasting process.

Environmental Compliance: HEPA filtration and dust collection systems meet or exceed global air quality regulations, such as the EU’s REACH or OSHA’s silica standards.

4. Cost Savings Through Automation

Media Recycling: Reusing abrasives reduces material costs by up to 70% compared to single-use manual systems.

Energy Efficiency: Optimized air and media flow reduces compressor load and energy consumption.

5. Versatility in Workpiece Handling

Adjustable Design: Roller spacing and conveyor speed can be modified to accommodate diverse workpiece sizes, from small brackets to 50-foot steel beams.

Multi-Media Capability: Easily switches between abrasives (e.g., steel grit to glass beads) for different surface treatment needs.

Key Considerations When Investing in a Roller Conveyor Sand Blasting Machine

1. Workpiece Specifications

Size and Weight: Ensure the conveyor’s load capacity and roller spacing match your largest workpieces.

Surface Complexity: For irregular shapes, choose a machine with adjustable nozzles or 3D scanning to ensure all surfaces are reached.

2. Production Volume and Speed

Throughput Requirements: Calculate conveyor speed based on daily production targets (e.g., 100 parts/hour vs. 1,000 parts/hour).

Batch vs. Continuous Processing: Opt for modular systems if you need to switch between batch and continuous modes.

3. Abrasive Media and Recycling Needs

Media Type: Select a machine with a compatible media delivery system (pressure vs. siphon) for your preferred abrasives.

Recycling Efficiency: Look for advanced separation systems (e.g., cyclonic separators) to minimize media waste.

4. Safety and Environmental Features

Dust Control: Prioritize HEPA filtration and wet dust suppression for compliance in sensitive environments.

Noise Reduction: Enclosed chambers with sound-dampening materials are essential for indoor installations.

5. Maintenance and Serviceability

Accessibility: Choose machines with easy-to-reach nozzles, filters, and conveyor components for quick maintenance.

Manufacturer Support: Partner with suppliers offering 24/7 technical support and genuine replacement parts.

Technological Advancements in Roller Conveyor Systems

Modern roller conveyor sand blasting machines incorporate cutting-edge features to enhance performance and ntelligence:

1. Robotics and Automation

Robotic Nozzle Arms: Programmable robotic arms adjust nozzle angles in real time to adapt to complex workpiece geometries, ensuring no surface is missed.

AI-Powered Vision Systems: Cameras and machine learning algorithms detect surface imperfections and automatically adjust blasting parameters for targeted treatment.

2. IoT and Remote Monitoring

Smart Sensors: Monitor abrasive flow, air pressure, and conveyor speed, sending real-time data to a central IoT platform.

Predictive Maintenance: AI algorithms analyze sensor data to predict component wear (e.g., nozzles, rollers), scheduling maintenance before failures occur.

3. Eco-Friendly Innovations

Waterless Wet Blasting: Uses a patented dry media with dust-suppressing properties, eliminating the need for water while reducing dust by 80%.

Solar-Powered Systems: Off-grid conveyor machines powered by solar panels, suitable for remote construction sites.

4. Modular and Compact Designs

Collapsible Conveyor Sections: Allow easy transport and setup for on-site projects, such as bridge or pipeline maintenance.

Vertical Conveyor Systems: Save floor space in tight factories by processing workpieces vertically.

Basic Parameter

Maintenance Best Practices

To ensure longevity and optimal performance:

1. Daily Checks:

Inspect conveyor rollers for misalignment or wear.

Clean dust from the control panel and check filter pressure gauges.

2. Weekly Maintenance:

Replace worn nozzle tips (tungsten carbide nozzles typically last 500–1,000 hours).

Lubricate conveyor bearings and adjust belt tension.

3. Monthly Servicing:

Test safety interlocks and emergency stop functions.

Clean and inspect the media recycling system for clogs or damage.

4. Annual Overhaul:

Replace conveyor belts and abrasive-resistant liners in the blast chamber.

Calibrate sensors and verify compliance with safety standards.

Roller conveyor sand blasting machines represent a paradigm shift in industrial surface treatment, combining automation, precision, and scalability to meet the demands of modern manufacturing. By integrating conveyor technology with advanced blasting systems, these machines deliver consistent results, reduce labor costs, and enhance safety in environments ranging from steel mills to aerospace factories. As industries continue to prioritize efficiency and sustainability, roller conveyor sand blasters will remain a cornerstone of high-volume surface preparation, driving innovation through robotics, IoT, and eco-friendly design.

For businesses seeking to optimize their production lines or upgrade their surface treatment capabilities, a roller conveyor sand blasting machine is not just a tool—it’s a strategic investment in operational excellence. By leveraging their automated workflows and cutting-edge features, companies can achieve higher throughput, superior quality, and a competitive edge in today’s global market.
