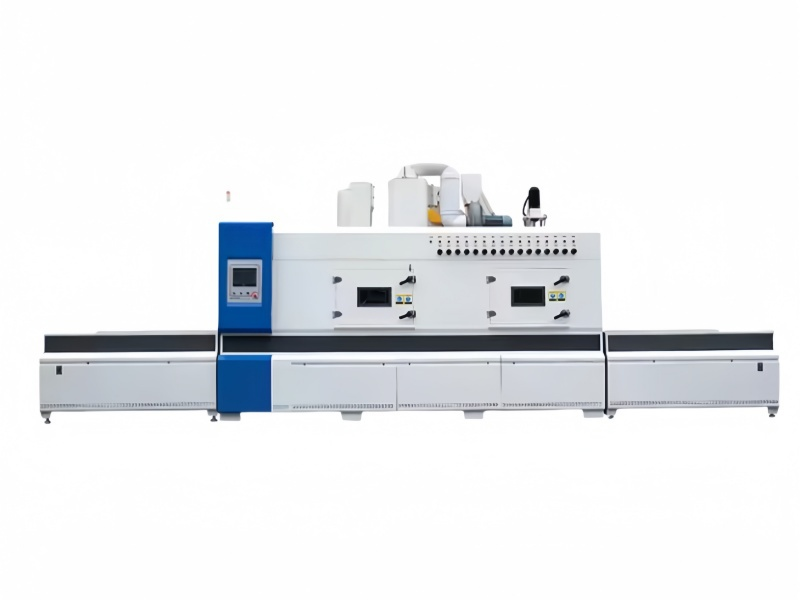

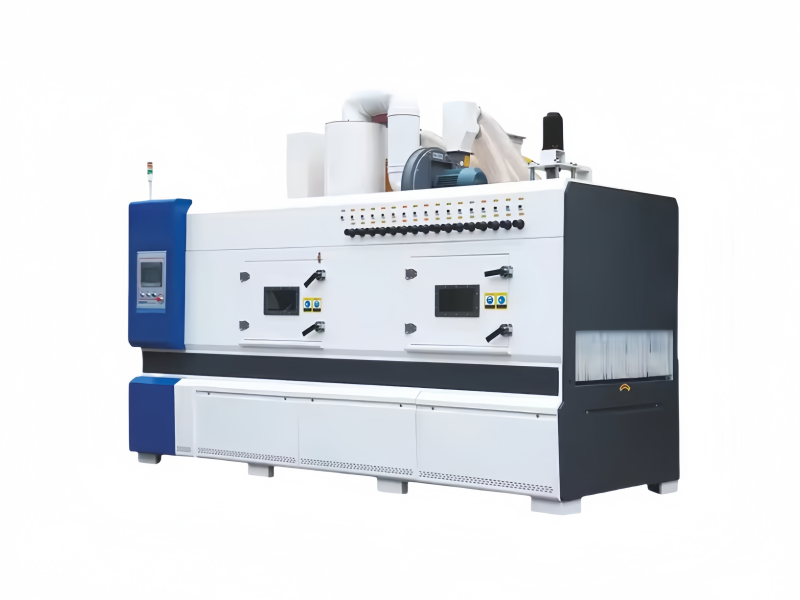

Roller Conveyor Sand Blasting Machine

In the realm of industrial surface preparation, the roller conveyor sand blasting machinestands as a pinnacle of efficiency and automation. Designed to handle large volumes of workpieces with minimal human intervention, this specialized equipment integrates a conveyor system with a blasting chamber, enabling continuous processing of materials such as steel plates, pipes, and structural components. This comprehensive guide explores the design, applications, benefits, and technical specifications of roller conveyor sand blasting machines, highlighting their role in modern manufacturing and fabrication workflows.

technical consultation

Video

Core Design and Mechanism of Roller Conveyor Sand Blasting Machines

A roller conveyor sand blasting machine is a semi-automated or fully automated system that combines the mobility of a roller conveyor with the abrasive power of a sand blasting chamber. Its primary goal is to streamline surface treatment for high-volume production environments, where speed, consistency, and labor reduction are critical.

Key Components

1. Roller Conveyor System:

Structure:

Composed of parallel rollers (steel or rubber-coated) arranged in a horizontal line, driven by an electric motor or gearbox. Rollers are spaced to accommodate various workpiece sizes, from small profiles to large steel plates.

Speed Control:

Variable frequency drives (VFDs) allow adjustable conveyor speed (0.5–5 meters per minute) to match blasting intensity and workpiece requirements.

2. Blasting Chamber:

Enclosure:

A sealed steel chamber lined with wear-resistant rubber or manganese steel to withstand abrasive impact. Dimensions range from 2–10 meters in length, depending on production scale.

Blasting Nozzles:

Multiple fixed nozzles (typically 4–12) positioned above and below the conveyor to ensure 360° coverage. Nozzles are made of tungsten carbide for longevity and are angled to target all surfaces of the workpiece.

3. Abrasive Media System:

Blast Pot:

High-capacity pressure vessels (500–2000 kg) supply abrasive media (e.g., steel grit, garnet) to the nozzles via compressed air (6–10 bar).

Recycling and Separation:

Gravity-Fed System: Spent media and debris fall through grates to a below-chamber conveyor.

Cyclonic Separator: Removes fine dust and contaminants, recycling up to 95% of the abrasive media.

4. Dust Collection and Filtration:

HEPA Filtration:

Captures 99.97% of particles ≥0.3 microns, ensuring compliance with OSHA and EU dust regulations.

Negative Pressure System:

Maintains a slight vacuum in the chamber to prevent dust leakage, enhancing operator safety.

5. Control Panel:

Automated Controls:

PLC (Programmable Logic Controller) systems allow pre-set blasting parameters (pressure, conveyor speed, media flow) for different workpiece types.

HMI (Human-Machine Interface):

Touchscreen displays for real-time monitoring of pressure, media levels, and conveyor status.

How It Works

1. Loading:

Workpieces (e.g., steel beams, pipe sections) are placed on the conveyor rollers, which transport them into the blasting chamber.

2. Blasting:

As the workpiece moves through the chamber, nozzles emit a high-velocity stream of abrasive media, removing rust, scale, paint, or other contaminants. The conveyor speed is calibrated to ensure optimal exposure time (e.g., 1–3 minutes per workpiece).

3. Media Recycling:

Spent media and debris fall into a collection hopper, where a screw conveyor transports them to a cyclonic separator. Clean media is recycled to the blast pot, while waste is discharged into a disposal bin.

4. Unloading:

Cleaned workpieces exit the chamber and are either manually unloaded or fed into a downstream process (e.g., painting, welding).

Applications of Roller Conveyor Sand Blasting Machines

These machines are indispensable in industries requiring high-throughput surface treatment with consistent results:

1. Steel Fabrication and Construction

Structural Steel Preparation:

Cleans and profiles beams, columns, and plates for welding or coating, ensuring compliance with standards like ISO 8501-1 (Sa2.5 or Sa3 cleanliness).

Example: A bridge manufacturer uses a 10-meter chamber to blast 500+ steel beams daily, preparing them for anti-corrosive paint.

Pipe and Tubing Cleaning:

Removes mill scale and rust from pipes used in oil and gas, water treatment, or HVAC systems.

2. Automotive and Heavy Equipment Manufacturing

Chassis and Frame Blasting:

Prepares vehicle frames for powder coating or electroplating, ensuring long-term corrosion resistance.

Example: A truck manufacturer processes 200 chassis per day, achieving uniform surface roughness for optimal paint adhesion.

Component Refurbishment:

Reconditions used engine blocks or transmission cases by removing grease, rust, and old coatings.

3. Shipbuilding and Offshore Industry

Hull and Panel Cleaning:

Removes salt corrosion, barnacles, and anti-fouling paint from ship hull sections before repainting.

Example: A shipyard uses a roller conveyor system with 12 nozzles to blast 300 m² of steel panels daily, meeting Lloyd’s Register cleanliness standards.

Offshore Platform Components:

Cleans and prepares steel modules for offshore installations, ensuring durability in harsh marine environments.

4. Metal Recycling and Demolition

Scrap Metal Processing:

Removes contaminants from recycled steel, making it suitable for re-melting or repurposing.

Example: A recycling plant processes 100 tons of scrap metal daily, using steel grit to remove paint and rust before smelting.

Demolition Waste Treatment:

Cleans reclaimed structural steel from demolished buildings, reducing waste and promoting circular economy practices.

5. Industrial Equipment and Machinery

Heavy Machinery Refurbishment:

Restores excavators, bulldozers, and agricultural equipment by blasting away years of dirt, rust, and wear.

Example: An equipment rental company uses a roller conveyor system to recondition 50+ machines monthly, extending their service life.

Pipeline and Tank Cleaning:

Prepares industrial tanks or pipelines for inspection, maintenance, or coating by removing scale and chemical residues.

Benefits of Roller Conveyor Sand Blasting Machines

1. Unmatched Efficiency

Continuous Production:

Unlike batch processing, roller conveyor systems enable 24/7 operation, increasing throughput by 300–500% compared to manual blasting.

Reduced Labor Costs:

Requires only 1–2 operators for loading/unloading, versus 5–10 for traditional blasting teams.

2. Consistent Quality

Uniform Blasting:

Fixed nozzles and controlled conveyor speed ensure identical surface roughness across all workpieces, critical for coating adhesion and corrosion resistance.

Repeatable Results:

PLC programming allows consistent parameters for different workpiece types, eliminating human error.

3. Safety and Compliance

Enclosed Blasting:

Reduces operator exposure to dust, noise, and abrasives, with HEPA filtration meeting strict safety standards (e.g., OSHA’s silica dust limit of 0.05 mg/m³).

Noise Reduction:

Sealed chambers reduce noise from 95 dB (open blasting) to 80 dB, minimizing hearing damage risks.

4. Cost Savings

Media Recycling:

Recovers 90–95% of abrasive media, reducing material costs by $10,000–$50,000 annually for high-volume users.

Energy Efficiency:

Optimized air consumption and conveyor design reduce electricity and compressed air costs by 20–30%.

5. Scalability

Modular Design:

Systems can be expanded with additional chambers, conveyors, or automation (e.g., robotic loaders) to meet growing production demands.

Multi-Media Compatibility:

Switches between abrasives (e.g., steel grit to soda) via quick-change hoppers, adapting to diverse material needs.

Technical Specifications and Customization

1. Conveyor System

Roller Type:

Steel Rollers: For heavy-duty applications (load capacity: 5–50 tons).

Rubber-Coated Rollers: Prevent scratches on sensitive surfaces (e.g., aluminum, painted steel).

Width and Length:

Standard Width: 1–3 meters (accommodates most steel plates and profiles).

Custom Length: Up to 20 meters for extra-large workpieces (e.g., ship hull sections).

2. Blasting Parameters

Pressure Range:

6–10 bar (87–145 PSI) for heavy-duty tasks; 4–6 bar (58–87 PSI) for delicate materials.

Nozzle Configuration:

Number: 4–24 nozzles, arranged in upper and lower banks.

Angle: 30°–60° to ensure full coverage of edges and corners.

3. Media Handling

Blast Pot Capacity:

500–2000 kg, with automatic refill options for continuous operation.

Recycling Efficiency:

90–95% media recovery via cyclonic separation, with optional magnetic separators for ferrous debris.

4. Dust Control

Filtration Capacity:

5000–20,000 m³/hour airflow, with HEPA filters replaceable every 1000–2000 hours.

Waste Disposal:

Dust and non-recyclable debris collected in sealed bins for safe disposal or recycling.

5. Automation Levels

Semi-Automatic:

Manual loading/unloading with automated blasting parameters.

Fully Automatic:

Robotic arms for loading, integrated quality control sensors, and automatic sorting of cleaned workpieces.

Operational Best Practices

1. Pre-Operation Setup

Workpiece Inspection:

Remove loose debris and secure unstable parts to prevent damage during transport.

Media Selection:

Steel Grit (S460): For heavy rust removal on structural steel.

Aluminum Oxide (80-grit): For cleaning and texturing aluminum components.

Conveyor Speed Calibration:

Test with a sample workpiece to determine the optimal speed for desired cleanliness (e.g., 2 m/min for Sa2.5, 1 m/min for Sa3).

2. During Blasting

Nozzle Maintenance:

Inspect nozzles every 50 hours for wear (replace when diameter increases by 20%).

Media Flow Monitoring:

Ensure consistent flow via the control panel; adjust pressure if media delivery is uneven.

3. Post-Operation Maintenance

Roller Alignment:

Check for misalignment weekly to prevent workpiece skewing or damage.

Filter Cleaning/Replacement:

Clean primary filters daily; replace HEPA filters according to usage (typically quarterly for heavy operations).

Lubrication:

Grease conveyor bearings and drive mechanisms monthly to ensure smooth operation.

4. Safety Protocols

Lockout/Tagout (LOTO):

Always shut off power and depressurize the system before maintenance.

Emergency Stop Testing:

Test emergency stop buttons weekly to ensure rapid system shutdown in case of faults.

Case Studies: Roller Conveyor Systems in Action

Case Study 1: Large-Scale Steel Fabrication

Challenge: A steel fabrication plant needed to process 1000+ tons of structural steel monthly for a high-rise project, requiring Sa2.5 cleanliness.

Solution: Installed a 12-meter roller conveyor machine with 16 nozzles and a 2000 kg blast pot, operating at 8 bar and 3 m/min conveyor speed.

Outcome: Achieved 99% compliance with cleanliness standards, reduced labor costs by 60%, and met project deadlines ahead of schedule.

Case Study 2: Automotive Component Refurbishment

Challenge: An automotive recycler needed to recondition 500 used car frames monthly for resale, removing rust and old paint efficiently.

Solution: Deployed a 6-meter semi-automatic system with rubber-coated rollers and soda blasting at 6 bar, using a 500 kg blast pot.

Outcome: Cut processing time from 4 hours per frame to 30 minutes, with zero damage to delicate frame components.

Case Study 3: Shipyard Hull Processing

Challenge: A shipyard required daily blasting of 200 m² of ship hull panels, adhering to IMO anti-fouling regulations.

Solution: Implemented a fully automatic 10-meter system with salt detection sensors and steel grit blasting at 10 bar.

Outcome: Achieved Sa3 cleanliness (white metal blast), reduced salt contamination by 99%, and improved coating lifespan by 30%.

Basic Parameter

Case Studies: Roller Conveyor Systems in Action

Case Study 1: Large-Scale Steel Fabrication

Challenge: A steel fabrication plant needed to process 1000+ tons of structural steel monthly for a high-rise project, requiring Sa2.5 cleanliness.

Solution: Installed a 12-meter roller conveyor machine with 16 nozzles and a 2000 kg blast pot, operating at 8 bar and 3 m/min conveyor speed.

Outcome: Achieved 99% compliance with cleanliness standards, reduced labor costs by 60%, and met project deadlines ahead of schedule.

Case Study 2: Automotive Component Refurbishment

Challenge: An automotive recycler needed to recondition 500 used car frames monthly for resale, removing rust and old paint efficiently.

Solution: Deployed a 6-meter semi-automatic system with rubber-coated rollers and soda blasting at 6 bar, using a 500 kg blast pot.

Outcome: Cut processing time from 4 hours per frame to 30 minutes, with zero damage to delicate frame components.

Case Study 3: Shipyard Hull Processing

Challenge: A shipyard required daily blasting of 200 m² of ship hull panels, adhering to IMO anti-fouling regulations.

Solution: Implemented a fully automatic 10-meter system with salt detection sensors and steel grit blasting at 10 bar.

Outcome: Achieved Sa3 cleanliness (white metal blast), reduced salt contamination by 99%, and improved coating lifespan by 30%.

Future Trends in Roller Conveyor Technology

1. AI and Machine Learning Integration:

Predictive maintenance algorithms will monitor nozzle wear, media flow, and conveyor performance, scheduling maintenance before failures occur.

AI vision systems will inspect workpieces in real time, adjusting blasting parameters for uneven surfaces.

2. Eco-Friendly Innovations:

Waterless blasting with supercritical CO₂ or dry ice will reduce water and abrasive waste in sensitive environments.

Solar-powered systems will enable off-grid operation in remote locations like offshore rigs or mining sites.

3. Robotic Automation:

Collaborative robots (cobots) will handle loading/unloading, while autonomous guided vehicles (AGVs) transport workpieces between blasting and coating stations.

4. Modular and Scalable Designs:

Plug-and-play modules (e.g., additional blasting chambers, advanced dust filters) will allow easy system upgrades as production needs evolve.

Roller conveyor sand blasting machines are a testament to industrial automation, combining power, precision, and productivity in a single system. By eliminating manual labor, reducing waste, and ensuring consistent quality, they have become indispensable in high-volume manufacturing and fabrication industries. As technology advances toward greater intelligence and sustainability, these machines will continue to set the standard for efficient, compliant, and future-proof surface treatment.

For businesses aiming to optimize their production lines, a roller conveyor sand blasting machine is more than a piece of equipment—it’s a strategic investment in operational excellence. By aligning system specifications with project needs and embracing emerging technologies, organizations can unlock unprecedented levels of efficiency, safety, and environmental responsibility, securing their position in the competitive landscape of modern industry.
