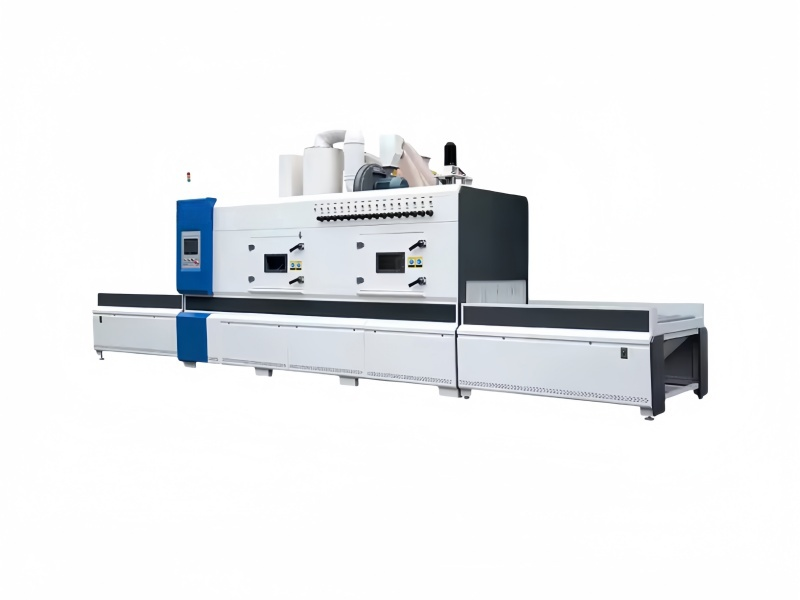

Roller Conveyor Sand Blasting Machine

In the fast-paced world of industrial manufacturing and metalworking, efficiency and precision in surface treatment are non-negotiable. The roller conveyor sand blasting machine has emerged as a game-changing solution, combining the power of abrasive blasting with automated material handling. Designed to process large volumes of workpieces continuously, this machine is ideal for industries such as automotive, aerospace, steel fabrication, and woodworking. By integrating a roller conveyor system with a high-performance blast cabinet, it streamlines the blasting process, reduces labor costs, and ensures uniform results. This comprehensive guide delves into the design, applications, advantages, and technical considerations of roller conveyor sand blasting machines, offering insights for professionals seeking to optimize their production lines.

technical consultation

Video

Core Design and Mechanism

Structure and Components

A roller conveyor sand blasting machine typically consists of three main sections: the loading zone, blast cabinet, and unloading zone, all integrated with a roller conveyor system. Here’s a detailed breakdown of its components:

1. Roller Conveyor System

Rollers: Made of steel or rubber-coated steel, the rollers are driven by a motor and gearbox, ensuring smooth and consistent movement of workpieces. Roller spacing is adjustable to accommodate different workpiece sizes, from small metal parts to large structural beams.

Speed Control: A variable frequency drive (VFD) allows operators to adjust the conveyor speed (0.5–5 meters per minute) based on the blasting requirements. Slower speeds are ideal for heavy-duty stripping, while faster speeds suit light cleaning.

2. Blast Cabinet

Enclosure: Constructed from heavy-duty steel with soundproofing and dust-resistant seals, the cabinet houses the blasting mechanism. It features multiple blast guns positioned strategically (top, bottom, and sides) to ensure 360° coverage.

Blast Guns and Nozzles: High-efficiency blast guns with tungsten carbide nozzles (5–10 mm diameter) are mounted on adjustable arms. The number of guns varies by model, with industrial machines often featuring 6–12 guns for maximum coverage.

Abrasive Delivery System: A pressure-fed or siphon-fed system delivers abrasives (e.g., steel shot, sand, or glass beads) to the blast guns. Industrial models often include a recycling system that separates spent abrasives from dust for reuse.

3. Dust Collection and Filtration

Cyclonic Separator: Removes large debris from the abrasive stream, directing clean media back to the hopper.

HEPA Filtration: A high-efficiency particulate air (HEPA) filter captures fine dust (down to 0.3 microns), ensuring compliance with air quality standards and protecting operator health.

Exhaust System: Ventilates the cabinet to maintain optimal visibility and reduce internal pressure.

4. Control Panel

Digital Interface: Modern machines feature PLC (programmable logic controller) systems with touchscreen interfaces, allowing operators to adjust parameters such as conveyor speed, blast pressure (40–150 PSI), and abrasive flow rate.

Safety Interlocks: Ensures the machine stops if the cabinet door is opened or if there’s a malfunction in the conveyor or blast system.

Working Principle

The roller conveyor sand blasting machine operates in a continuous loop:

1. Loading: Workpieces are placed on the conveyor at the loading zone. For heavy parts, forklifts or overhead cranes may be used.

2. Blasting: As the conveyor moves the workpieces into the blast cabinet, multiple blast guns emit a high-velocity stream of abrasives, removing rust, paint, scale, or other contaminants. The adjustable conveyor speed and gun positioning ensure uniform treatment.

3. Abrasive Recycling: Spent abrasives and debris fall through a grate into a reclaim system. A cyclonic separator removes dust and debris, while usable abrasives are returned to the hopper for reuse.

4. Unloading: Cleaned workpieces exit the cabinet at the unloading zone, ready for the next process (e.g., painting, welding, or assembly).

Applications Across Industries

1. Automotive and Aerospace

Vehicle Component Manufacturing:

Cleans and deburrs cast aluminum engine parts, such as cylinder heads and transmission cases, using 80-mesh glass beads at 90 PSI.

Prepares steel chassis components for powder coating by removing mill scale with steel shot at 120 PSI.

Aerospace Parts Cleaning:

Removes thermal barrier coatings from aircraft turbine blades using gentle abrasives like baking soda at low pressure (50 PSI), ensuring no damage to sensitive materials.

2. Steel Fabrication and Construction

Structural Steel Processing:

Blast cleans I-beams, channels, and pipes, removing rust and welding slag with 60-mesh garnet abrasives. A conveyor speed of 2 meters per minute ensures efficient processing of large structural components.

Bridge and Infrastructure Maintenance:

Restores weathered steel bridges by stripping rust and old paint, preparing surfaces for anti-corrosion coatings. The continuous conveyor allows for rapid processing of bridge sections.

3. Woodworking and Composite Materials

Wood Surface Texturing:

Creates rustic or weathered finishes on wooden panels using walnut shell abrasives at 60 PSI. The conveyor’s slow speed (0.5 m/min) allows for deep texture formation.

Composite Material Cleaning:

Removes mold release agents and surface imperfections from fiberglass components (e.g., boat hulls) using fine sand at 80 PSI, ensuring optimal adhesion of gel coats.

4. Industrial Maintenance and Recycling

Heavy Equipment Refurbishment:

Reconditions used machinery parts, such as excavator buckets and industrial gears, by removing decades of grime and corrosion with steel grit at 150 PSI.

Metal Recycling:

Cleans and decontaminates scrap metal before recycling, removing paint, oil, and other contaminants. The conveyor system handles varying sizes of scrap, from small brackets to large sheets.

5. Pipe and Tube Processing

Internal and External Cleaning:

For pipes up to 12 inches in diameter, specialized inline blast guns clean the internal surfaces, while external guns treat the outer walls. This is critical for pipelines in the oil and gas industry, ensuring corrosion-free surfaces for coating.

Advantages of Roller Conveyor Sand Blasting Machines

1. Unmatched Efficiency

Continuous Operation: Unlike batch processing, the conveyor system allows for 24/7 operation, significantly increasing throughput. For example, a medium-sized machine can process 500–1,000 parts per hour, depending on size.

Reduced Labor Costs: Eliminates the need for manual handling of workpieces during blasting, reducing labor by 50–70% compared to manual methods.

2. Precision and Consistency

Uniform Blasting: Multiple blast guns and adjustable conveyor speed ensure consistent surface profiles, critical for applications requiring uniform paint adhesion or material testing.

Repeatability: Digital controls allow operators to save and replicate settings for identical workpieces, ensuring batch-to-batch consistency.

3. Cost Savings

Abrasive Recycling: Reclaim systems recover 70–90% of abrasives, reducing media costs by up to 60%. For the automotive industry, this translates to savings of $10,000–$20,000 annually per machine.

Energy Efficiency: Modern machines feature low-power blast guns and efficient dust collection systems, reducing energy consumption by 20–30% compared to older models.

4. Safety and Compliance

Enclosed Blasting: All operations occur within a sealed cabinet, minimizing dust exposure and meeting OSHA standards for silica and noise (≤85 dB).

Automated Safety Features: Interlocks and emergency stop mechanisms prevent accidents, while remote monitoring systems allow operators to oversee the machine from a safe distance.

5. Versatility

Wide Range of Materials: Handles metal, wood, composites, and concrete with adjustable parameters.

Multiple Processes: Can perform cleaning, stripping, texturing, and deburring in a single pass, eliminating the need for multiple machines.

Key Considerations When Choosing a Roller Conveyor Sand Blasting Machine

1. Workpiece Size and Weight

Roller Capacity: Ensure the conveyor can handle the maximum weight and size of your workpieces. For example, heavy-duty machines may have rollers rated for 5,000 lbs per linear foot.

Conveyor Width: Choose a width that accommodates your largest parts. Standard widths range from 24–96 inches, with custom sizes available for specialized applications.

2. Abrasive Media and Pressure Requirements

Abrasive Compatibility: Ensure the machine’s hopper and reclaim system can handle your chosen abrasives (e.g., steel shot, sand, or biodegradable media like corn cob grit).

Pressure Range: Light-duty machines (40–80 PSI) suit delicate tasks, while heavy-duty models (80–150 PSI) are needed for aggressive stripping.

3. Production Volume and Speed

Throughput Calculation: Determine the required conveyor speed and number of blast guns based on your production goals. For high-volume lines, look for machines with 10+ blast guns and speeds up to 5 m/min.

Modularity: Some machines allow adding or removing blast guns as needed, offering flexibility for changing production demands.

4. Maintenance and Upkeep

Accessibility: Choose a machine with easy-to-reach components (e.g., removable blast gun panels and quick-change nozzles) to reduce maintenance downtime.

Wear Parts Inventory: Stock essential spare parts like nozzles, seals, and conveyor belts to minimize disruptions.

5. Budget and ROI

Initial Cost: Light-duty machines start at $50,000–$100,000, while industrial models with advanced features (e.g., robotic gun positioning) can cost $200,000–$500,000+.

ROI Timeline: For high-volume industries, the ROI can be as short as 1–2 years due to labor and material cost savings.

Setup and Operation Best Practices

1. Installation and Calibration

Level Surface: Install the machine on a flat, reinforced concrete floor to ensure stable conveyor movement.

Air and Power Supply: Connect to a High Pressure air compressor (10–20 CFM per gun) and a stable power source (3-phase electricity for industrial models).

Calibration: Test the conveyor speed, blast pressure, and gun angles using sample workpieces to achieve the desired surface profile.

2. Safety Protocols

PPE for Operators: Require respiratory protection (HEPA-filtered masks), earplugs, and safety glasses even when operating from the control panel.

Lockout/Tagout (LOTO): Follow strict procedures when performing maintenance to prevent accidental machine activation.

Emergency Drills: Train staff on shutdown procedures and first aid for abrasive-related injuries.

3. Operation Techniques

Loading Strategy: Arrange workpieces evenly on the conveyor to avoid imbalance and ensure uniform blasting.

Parameter Optimization: For rust removal on steel, use 80-mesh steel shot at 100 PSI with a conveyor speed of 1.5 m/min. Adjust based on real-time inspection of cleaned parts.

Quality Control: Regularly inspect workpieces for missed areas or over-blasting. Use surface roughness testers (e.g., profilometers) to ensure compliance with standards.

4. Maintenance Schedule

Daily:

Clean the dust collector and check for abrasive blockages in the hopper.

Inspect conveyor belts for wear and misalignment.

Weekly:

Replace worn blast nozzles (typically after 200–300 hours of use).

Lubricate conveyor rollers and adjust belt tension.

Monthly:

Service the air compressor and check for leaks in the blast system.

Calibrate the PLC and pressure gauges for accuracy.

Troubleshooting Common Issues

Issue 1: Uneven Blasting Results

Causes: Misaligned blast guns, inconsistent conveyor speed, or clogged nozzles.

Solutions:

Realign guns to ensure equal distance from the workpiece.

Calibrate the VFD for consistent speed.

Clean or replace clogged nozzles.

Issue 2: Excessive Abrasive Consumption

Causes: Worn reclaim system filters, incorrect abrasive flow rate, or leaks in the blast cabinet.

Solutions:

Replace damaged filters in the cyclonic separator.

Adjust the abrasive feed valve to reduce flow rate.

Seal any gaps in the cabinet with silicone or replacement gaskets.

Issue 3: Conveyor Belt Slippage

Causes: Insufficient tension, worn rollers, or debris on the conveyor surface.

Solutions:

Tighten the belt using the tension adjustment mechanism.

Clean rollers and apply anti-slip coatings if necessary.

Install a debris brush at the loading zone to remove contaminants.

Issue 4: Poor Dust Collection

Causes: Clogged HEPA filters, damaged exhaust fans, or inadequate ventilation.

Solutions:

Replace or clean the HEPA filters.

Inspect the exhaust fan for obstructions or motor damage.

Increase the ventilation rate by adjusting the fan speed.

Advanced Features and Innovations

1. Robotic Blast Gun Control

Industrial models now feature robotic arms that automatically adjust gun angles and pressure based on workpiece geometry, ensuring precise blasting without manual intervention. This is particularly useful for complex shapes like turbine blades or automotive chassis.

2. IoT and Predictive Maintenance

Smart machines integrate sensors that monitor parameters like abrasive flow, conveyor speed, and filter efficiency. Data is transmitted to a central system, enabling predictive maintenance alerts and reducing unplanned downtime by up to 40%.

3. Eco-Friendly Designs

Waterless Blasting: Some models use recycled abrasives and closed-loop dust collection systems, reducing water and energy consumption.

Biodegradable Abrasives: Machines are increasingly compatible with eco-friendly media like crushed nut shells and recycled glass, aligning with sustainability goals.

4. Modular Conveyor Systems

Modular designs allow easy reconfiguration of the conveyor layout (e.g., adding curves or elevations) to fit existing production lines. This flexibility is invaluable in dynamic manufacturing environments.

Safety and Environmental Compliance

Regulatory Standards

OSHA (USA): Requires exposure to respirable crystalline silica to be ≤50 µg/m³ over an 8-hour shift. Roller conveyor machines with HEPA filtration easily meet this standard.

ISO 14001: For environmental management, machines must minimize waste and energy use. Modern models with abrasive recycling and low-power components are ideal.

Noise Regulations: In most countries, workplace noise must be ≤85 dB. Soundproofed cabinets and low-noise compressors help achieve compliance.

Environmental Best Practices

Waste Reduction: Recycle spent abrasives and dispose of hazardous waste (e.g., media contaminated with lead paint) through certified channels.

Energy Efficiency: Opt for machines with energy-saving modes and variable speed drives to reduce power consumption during low-demand periods.

Market Trends

1. Automation and Industry 4.0

The integration of AI and machine learning is transforming roller conveyor machines into smart systems capable of self-optimization. For example, AI algorithms can analyze workpiece images to adjust blast parameters in real time.

2. Growth in Composite Material Processing

As composites gain popularity in aerospace and automotive industries, machines are being adapted to handle delicate materials with gentle abrasives and precise control.

3. Mobile Roller Conveyor Units

For on-site processing (e.g., shipyards or construction sites), mobile units mounted on trailers are becoming popular. These units feature self-contained air compressors and dust collection systems.

4. Focus on Operator Comfort

Ergonomic control panels and remote operation capabilities are being prioritized to reduce operator fatigue and improve safety in long-duration tasks.

Basic Parameter

The roller conveyor sand blasting machine is a cornerstone of modern industrial surface treatment, offering unmatched efficiency, precision, and scalability. By automating the blasting process and integrating advanced features, it addresses the evolving needs of industries ranging from automotive to aerospace. As technology continues to advance, these machines will only become more intelligent, sustainable, and versatile, driving productivity while adhering to strict safety and environmental standards. For businesses aiming to stay competitive in a fast-paced market, investing in a roller conveyor sand blasting machine is not just an option—it’s a necessity for achieving operational excellence.
