Core Technical Specifications
High pressure sand blasting machines are defined by their ability to generate and sustain elevated air pressure and abrasive flow, making them suitable for heavy-duty stripping, cleaning, and surface preparation. Below is a breakdown of their key technical parameters:
1. Pressure Range
Operating Pressure:
Low Pressure: 40–80 PSI (2.8–5.5 bar) – Suitable for light-duty tasks like paint removal on wood or delicate metals.
Medium Pressure: 80–150 PSI (5.5–10 bar) – Ideal for general industrial applications, such as rust removal on steel structures.
High Pressure: 150–300 PSI (10–20 bar) – Designed for heavy-duty tasks, including concrete decontamination, ship hull descaling, and foundry cleaning.
Peak Pressure:
Some industrial models can reach up to 400 PSI (27.6 bar) for specialized applications like pipeline decommissioning or aerospace component stripping.
2. Air Supply (CFM and PSI)
Compressor Requirement:
High pressure machines require compressors with high airflow (CFM – Cubic Feet per Minute) to maintain consistent performance:
Light/Medium Duty: 10–20 CFM at 80–120 PSI.
Heavy Duty: 20–40 CFM at 150–300 PSI.
Air Quality:
Must be oil-free and dry to prevent media clumping and ensure consistent blasting. Inline filters and moisture traps are essential components.
3. Abrasive Media Capacity
Blast Pot Volume:
Small-Scale: 10–50 lbs (4.5–22.7 kg) – Suitable for portable or benchtop models.
Industrial-Grade: 100–500 lbs (45–227 kg) – Designed for continuous operation in foundries or shipyards.
Media Type Compatibility:
Angular Abrasives: Steel grit, garnet, aluminum oxide (for heavy-duty cleaning).
Round Abrasives: Steel shot, glass beads (for peening or delicate surfaces).
Eco-Friendly Options: Soda, walnut shell, corn cob (for non-toxic applications).
4. Nozzle Specifications
Material:
Tungsten Carbide: Most common for high pressure, offering superior wear resistance (typically lasts 50–100 hours of use).
Ceramic or Boron Nitride: Used for ultra-high pressure (200+ PSI) or specialized media like dry ice.
Diameter:
4–8 mm: Standard for general industrial use.
8–12 mm: Used for large surface areas or coarse abrasives (e.g., steel grit).
Design:
Straight Nozzles: For direct blasting.
Angled Nozzles (15°–45°): For hard-to-reach areas or overhead work.
5. Hose and Tubing
Hose Type:
Rubber or Synthetic Polymer: Resistant to abrasion and pressure (rated for 300+ PSI).
Stainless Steel Braided: For ultra-high pressure systems (200+ PSI) to prevent爆裂.
Length:
50–100 ft (15–30 m): Standard for most industrial setups.
200+ ft (60+ m): Requires High Pressure pumps and reinforced connections for remote operations.
6. Dust Collection and Safety Features
Dust Control:
High Efficiency Filters: Captures 95%+ of particles ≥1 micron.
HEPA Filtration: Optional for hazardous environments (e.g., lead paint removal), achieving 99.97% particle capture.
Safety Systems:
Pressure Relief Valves: Prevent over-pressurization of the blast pot.
Emergency Shutdown: Rapid air release for operator safety.
Anti-Static Grounding: Reduces risk of sparks in flammable environments.
Key Components of High Pressure Sand Blasting Machines
Understanding the interplay of components is crucial for optimizing performance and longevity:

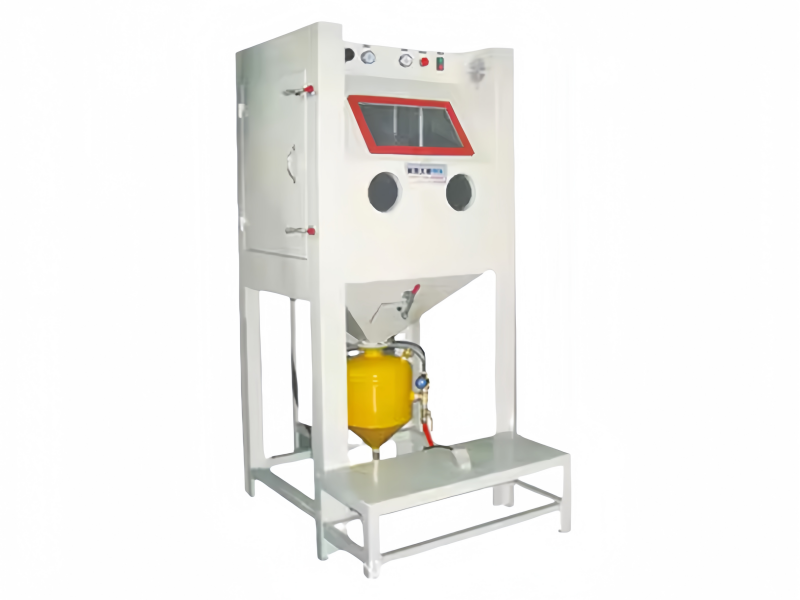

1. Blast Pot (Pressure Vessel)
Design:
Constructed from heavy-gauge steel with internal anti-corrosion coatings (e.g., epoxy or rubber lining).
Features a pressure gauge, safety valve, and media adjustment valve for precise flow control.
Operation Modes:
Direct Pressure (Pot Blasting): Abrasive is forced into the air stream by compressed air, ideal for High Pressure applications.
Siphon Feed: Media is drawn into the air stream via Venturi effect, suitable for lower pressure tasks.
2. Compressor System
Types:
Reciprocating Compressors: Affordable but noisy, suitable for small-scale operations.
Rotary Screw Compressors: Quiet, energy-efficient, and capable of continuous high CFM output (20–100 CFM), ideal for industrial use.
Power Source:
Electric (3-phase): For workshop use.
Diesel/Petrol: For mobile or off-grid projects.
3. Abrasive Feeding System
Automatic Agitation:
Vibrating trays or pneumatic agitators prevent media bridging and ensure consistent flow.
Quick-Change Hopper:
Allows rapid switching between abrasives, reducing downtime in multi-task environments.

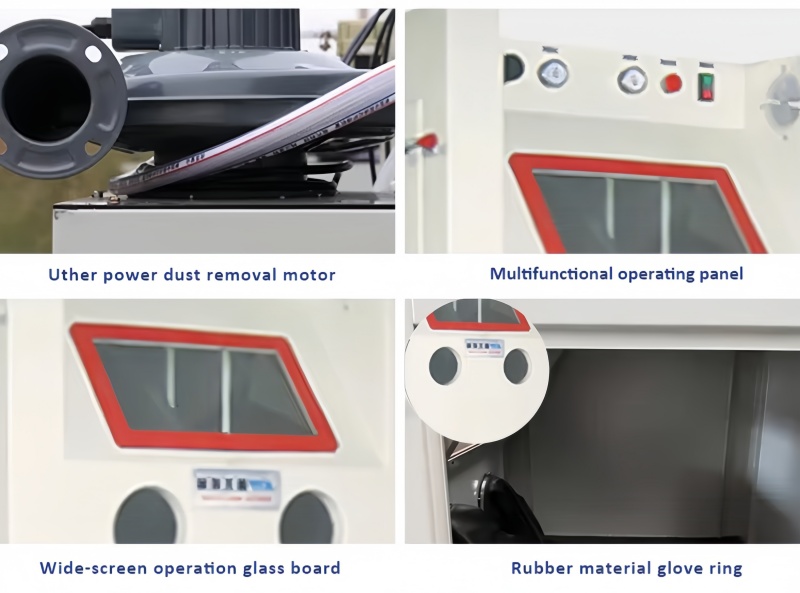

4. Control Panel
Manual Controls:
Pressure regulator, media flow valve, and air purge button.
Digital Controls (Advanced Models):
LCD screens for real-time pressure and media level monitoring.
Programmable presets for different materials (e.g., steel, concrete, aluminum).
5. Mobility Features (Industrial Models)
Trailer-Mounted:
Heavy-duty wheels and towing hitch for on-site transport.
Forklift Pockets:
Enables easy relocation within factories or shipyards.
Applications of High Pressure Sand Blasting Machines
These machines excel in industries requiring aggressive surface preparation or heavy-duty cleaning:
1. Shipbuilding and Marine Industry
Hull Cleaning:
Removes barnacles, salt corrosion, and anti-fouling paint using 150–200 PSI with steel grit.
Offshore Platform Maintenance:
Prepares steel structures for anti-corrosive coatings, meeting Lloyd’s Register standards.
2. Construction and Demolition
Concrete Surface Preparation:
Removes old coatings, graffiti, or damaged layers using 200–300 PSI with garnet abrasives.
Bridge and Highway Restoration:
Cleans steel beams and concrete pillars for repainting or structural repairs.
3. Metal Fabrication and Foundries
Rust and Scale Removal:
Prepares raw steel for welding or painting at 120–180 PSI with angular abrasives.
Cast Part Finishing:
Cleans sand cores and burrs from iron or aluminum castings in foundries.
4. Aerospace and Defense
Aircraft Component Refurbishment:
Blasts turbine blades with aluminum oxide at 100–150 PSI for surface texturing and corrosion removal.
Military Vehicle Maintenance:
Strips paint and rust from armored vehicles in field workshops.
5. Industrial Equipment Cleaning
Pipeline and Tank Decontamination:
Removes chemical residues or scale from pipelines using High Pressure soda blasting.
Heavy Machinery Restoration:
Cleans excavators, bulldozers, and industrial engines at mining or construction sites.
Operational Considerations and Best Practices
Operational Considerations and Best Practices
1. Abrasive Media Selection
Material Hardness:
Hard Surfaces (Steel, Concrete): Use steel grit (46–80 mesh) or garnet (80–120 mesh).
Soft Surfaces (Aluminum, Wood): Opt for glass beads (180–220 mesh) or soda.
Media Recycling:
Reclaim up to 90% of steel grit in closed-loop systems, reducing waste and costs.
2. Pressure and Nozzle Technique
Distance and Angle:
Maintain 6–12 inches (15–30 cm) between nozzle and surface at a 45° angle for optimal efficiency.
Over-Blasting Prevention:
Use test patches to determine the minimum pressure and exposure time required.
3. Safety and Compliance
PPE Requirements:
Full-face respirator (NIOSH-approved for silica), hearing protection, anti-static coveralls, and steel-toe boots.
Environmental Regulations:
Use dust collectors and wet blasting attachments to meet OSHA silica standards (<0.05 mg/m³) and EPA air quality rules.
4. Maintenance Schedule
Daily:
Empty dust collectors, check hose connections, and inspect nozzles for wear.
Weekly:
Clean blast pot internals, replace worn gloves on cabinets, and service air filters.
Monthly:
Test safety valves, inspect compressor oil levels, and calibrate pressure gauges.
| Feature | High Pressure (150–300 PSI) | Medium Pressure (80–150 PSI) | Low Pressure (40–80 PSI) |
|---|
| Ideal Applications | - Heavy rust removal
- Concrete stripping
- Industrial coating removal (e.g., epoxy, paint) | - General industrial cleaning
- Paint/rust removal on medium-thickness surfaces
- Surface preparation for welding/painting | - Delicate surfaces (e.g., aluminum, wood, electronics)
- Etching, deburring, or polishing
- Fire/smoke damage restoration |
| Abrasive Type | - Coarse, hard materials:
Steel grit, garnet, aluminum oxide (20–80 grit) | - Medium grit:
Aluminum oxide, glass beads, copper slag (60–120 grit) | - Fine, soft abrasives:
Baking soda, walnut shells, glass microbeads (100–220 grit) |
| Compressor Requirement | - High power: 20–40 CFM at 150+ PSI
- Requires heavy-duty compressors (e.g., 10+ HP) | - Moderate power: 10–20 CFM at 80–120 PSI
- Suitable for mid-sized compressors (5–8 HP) | - Low power: 5–10 CFM at 40–80 PSI
- Can use small portable compressors (2–5 HP) |
| Dust Generation | - High dust output due to aggressive abrasion
- Mandatory HEPA filtration or wet dust suppression | - Moderate dust; standard cartridge filters or basic dust collection systems suffice | - Low dust when using fine abrasives and proper technique
- Often compatible with built-in dust vacuums |
| Typical Industries | - Shipyards, foundries, mining
- Heavy equipment repair, concrete recycling | - Automotive repair, metal fabrication
- Aviation (component cleaning), marine maintenance | - Woodworking, jewelry making, electronics
- Historic restoration, food processing |
| Surface Finish | - Rough, etched surface (ideal for coating adhesion) | - Semi-smooth surface (balance between cleaning and finish) | - Smooth or matte finish (no deep etching) |
| Safety Risks | - High risk of material damage or injury
- Requires full PPE: respirator, face shield, heavy gloves | - Moderate risk; standard PPE (safety glasses, dust mask) sufficient for most tasks | - Low risk of over-abrasion
- Light PPE: safety glasses, basic respirator (for non-toxic abrasives) |
| Setup Complexity | - Complex: Requires large compressors, external dust collection, and robust ventilation | - Moderate: Plug-and-play with mid-sized compressors; minimal setup for outdoor use | - Simple: Portable units, often handheld or benchtop; ideal for indoor/DIY use |
- When to Choose:
- Heavy-Duty Tasks: Stripping decades-old paint from steel bridges, removing marine fouling from ship hulls, or demolishing concrete floors.
- Time Efficiency: Projects where rapid material removal is critical (e.g., emergency repairs in industrial settings).
- Pros:
- Unmatched speed for aggressive cleaning.
- Creates a rough surface ideal for bonding new coatings.
- Cons:
- High operational cost (energy, abrasives, maintenance).
- Limited use in sensitive environments due to noise (85–100 dB) and dust.
- When to Choose:
- General Industrial Cleaning: Degreasing factory equipment, prepping car frames for painting, or removing moderate rust from machinery.
- Balanced Performance: Projects that require more power than low-pressure but less aggression than high-pressure.
- Pros:
- Versatile for multiple applications.
- Lower energy/abrasive consumption than high-pressure systems.
- Cons:
- Not suitable for extremely tough coatings or delicate surfaces.
- When to Choose:
- Precision Work: Cleaning circuit boards, restoring antique furniture, or etching designs into glass/metal.
- Indoor/Residential Use: Projects in basements, garages, or noise-restricted areas (e.g., apartment complexes).
- Pros:
- Gentle on materials, reducing risk of damage.
- Portable and easy to use for DIY enthusiasts.
- Cons:
- Slow for heavy-duty tasks.
- Limited to soft abrasives, which may not tackle stubborn contaminants.
- High-Pressure Warning: Avoid on thin metals (e.g., aluminum sheets), fragile woods, or composite materials—risk of warping, pitting, or 穿透 (penetration).
- Low-Pressure Safety: Ideal for materials like:
- Electronics (e.g., cleaning PCBs without damaging components).
- Historic artifacts (e.g., stone carvings, vintage firearms).
- High-Pressure:
- Requires compliance with strict dust regulations (e.g., OSHA’s silica standard).
- Best used outdoors or in well-ventilated industrial settings.
- Low/Medium-Pressure:
- Easier to contain dust in enclosed spaces (e.g., blast cabinets).
- Biodegradable abrasives (walnut shells, baking soda) are ideal for eco-sensitive areas.
| Aspect | High Pressure | Medium Pressure | Low Pressure |
|---|
| Upfront Cost | $5,000–$20,000+ (industrial-grade) | $2,000–$8,000 | $500–$3,000 |
| Operational Cost | High (energy, abrasive waste) | Moderate (balanced efficiency) | Low (minimal energy/abrasive use) |
| Maintenance | Frequent (wear on nozzles, hoses) | Moderate (regular filter changes) | Low (simple designs, less wear) |
- High-Pressure Limitations: Small compressors (e.g., <5 HP) cannot sustain 150+ PSI, making high-pressure systems unsuitable for DIY users without industrial-grade equipment.
- Low-Pressure Accessibility: Most low-pressure units work with standard home compressors (e.g., 2–5 HP, 5–10 CFM), making them ideal for hobbyists.
Using High-Pressure on Delicate Surfaces
- Risk: Over-abrasion, surface deformation, or injury.
- Solution: Switch to medium/low pressure with fine abrasives (e.g., glass beads at 60 PSI for aluminum polishing).
Underestimating Dust Control in High-Pressure Jobs
- Risk: Non-compliance with health regulations, poor air quality.
- Solution: Use wet blasting attachments or invest in a HEPA-filtered dust collection system.
Using Low-Pressure for Heavy Rust
- Risk: Inefficient cleaning, excessive time spent on tasks.
- Solution: Upgrade to medium pressure with aluminum oxide abrasives (80–120 grit) for moderate rust removal.
- Best Choice: High-Pressure (200 PSI) with steel grit.
- Rationale: Aggressive removal of barnacles, rust, and anti-fouling paint; rough surface prepares hull for new coatings.
- Best Choice: Medium-Pressure (100 PSI) with glass beads.
- Rationale: Gentle enough to remove old paint without damaging thin metal panels; suitable for pre-paint surface prep.
- Best Choice: Low-Pressure (50 PSI) with walnut shells.
- Rationale: Non-abrasive cleaning removes dirt/mold without scratching or splintering the wood.
- Industrial Users: Prioritize high-pressure systems for heavy-duty tasks, but invest in dust control and operator training.
- Commercial/Automotive Shops: Medium-pressure machines offer the best balance of versatility and efficiency.
- DIY/Hobbyists: Start with low-pressure units for safety and ease of use; upgrade as projects grow in complexity.
By aligning pressure, abrasives, and equipment with the specific needs of your project, you can achieve optimal results while minimizing costs and risks. Let me know if you need help selecting a specific machine or troubleshooting a sandblasting challenge!
Case Studies: High Pressure Blasting in Action
Case Study 1: Ship Hull Restoration
Challenge: A maritime company needed to remove 20+ years of marine growth and anti-fouling paint from a cargo ship’s hull.
Solution: Deployed a high pressure machine at 180 PSI with steel grit, achieving a Sa2.5 cleanliness standard (ISO 8501-1).
Outcome: Completed in 5 days, 40% faster than manual scraping, with uniform surface preparation for new coatings.
Case Study 2: Industrial Pipeline Cleaning
Challenge: A chemical plant required decontamination of a pipeline carrying hazardous residues.
Solution: Used a 250 PSI soda blasting system with a closed-loop dust collection, ensuring zero residue and compliance with EPA hazardous waste regulations.
Outcome: Reduced downtime by 60% compared to traditional solvent cleaning, with no environmental incidents.
Case Study 3: Foundry Casting Finishing
Challenge: A metal foundry needed to clean sand cores and rough edges from aluminum castings without damaging intricate details.
Solution: Opted for a 120 PSI medium pressure machine with 180-grit aluminum oxide, balancing precision and efficiency.
Outcome: Improved casting quality by 90%, reducing rework and meeting tight production schedules.
Choosing the Right High Pressure Sand Blasting Machine
1. Project Scale and Frequency
Small Projects:
Portable models (50–100 lbs media capacity) with 10–15 CFM compressors.
Large Industrial Operations:
Fixed or trailer-mounted systems with 500 lbs+ media hoppers and 40 CFM compressors.
2. Budget and TCO
Initial Cost:
Portable High Pressure: $5,000–$15,000.
Industrial-Grade: $20,000–$100,000+.
Operational Costs:
Abrasives: $500–$2,000/month for heavy use.
Maintenance: 5–10% of initial cost annually for parts and labor.
3. Environmental and Safety Needs
Indoor Use:
Prioritize machines with built-in HEPA filtration or wet blasting capabilities.
Hazardous Materials:
Choose models compatible with non-toxic abrasives (e.g., baking soda) and sealed blast cabinets.
4. Supplier Support
Training:
Ensure the supplier offers on-site training for operators and maintenance teams.
Warranty:
Look for 2–3 years on mechanical components and lifetime support for structural parts.
