Technical Overview and Design Features
Capacity and Dimensions
Media Capacity: As the name suggests, a 20-gallon portable sandblaster tank can hold approximately 80–100 pounds of abrasive media, depending on the material’s density. For example:
Sand (100 mesh): ~100 lbs
Aluminum oxide (80 mesh): ~90 lbs
Walnut shells (120 mesh): ~70 lbs
Physical Dimensions: Typically measures 24–30 inches in height, 18–24 inches in diameter, and weighs 50–80 lbs when empty. This compact size allows easy transport in pickup trucks, trailers, or even the trunk of a large SUV.
Construction and Materials
Tank Body: Made from heavy-duty steel or high-density polyethylene (HDPE):
Steel Tanks: Offer superior durability for industrial use, resisting impacts and corrosion. Often coated with anti-rust paint for outdoor longevity.
HDPE Tanks: Lightweight and chemical-resistant, ideal for wet blasting or corrosive environments (e.g., marine applications).
Seals and Valves: High-quality rubber seals prevent air leaks, while brass or stainless steel valves ensure reliable pressure control.

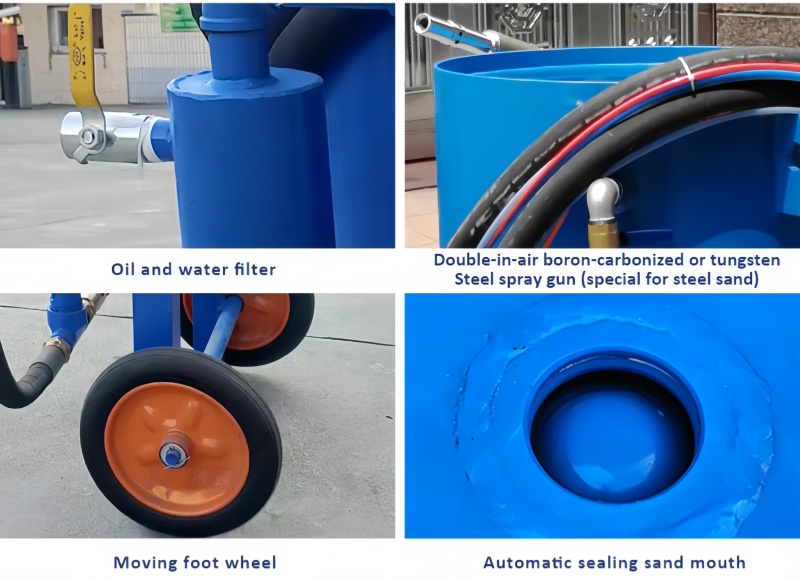

Key Components
1. Pressure Regulator:
Adjusts air pressure from 40–150 PSI, allowing precise control for delicate tasks (e.g., 60 PSI for wood stripping) or heavy-duty jobs (e.g., 120 PSI for rust removal).
2. Blast Valve:
Trigger-style or lever-operated, designed for ergonomic handling. Features a quick-disconnect nozzle attachment for easy media type changes.
3. Abrasive Hopper Lid:
Equipped with a secure latch and built-in screen to filter out contaminants (e.g., rocks, clumps) and prevent overfilling.
4. Hose Connections:
Includes a 1/4-inch air inlet and a 3/8-inch blast hose outlet, compatible with standard air compressors and hoses. Some models feature swivel connectors to reduce hose tangling.
5. Drain Plug:
Located at the bottom of the tank for easy removal of spent media and moisture buildup, critical for preventing clogs and corrosion.
Applications Across Industries
Industrial and Construction
Heavy-Duty Surface Preparation:
Removing mill scale from steel beams using 40-mesh steel grit at 100 PSI.
Stripping graffiti from concrete walls with 80-mesh aluminum oxide, achieving a clean surface in minutes.
Equipment Maintenance:
Cleaning excavator buckets or crane components on-site, reducing downtime by eliminating the need to transport parts to a fixed facility.
Automotive and Marine
Vehicle Restoration:
Stripping decades of paint from a vintage car body using 60-mesh garnet. The 20-gallon capacity allows continuous blasting for 2–3 hours without refilling.
Preparing motorcycle frames for powder coating by removing rust with 80-mesh glass beads at 90 PSI.
Marine Applications:
Cleaning boat hulls of barnacles and salt corrosion with 50-mesh walnut shells, a gentle yet effective abrasive for fiberglass surfaces.
Woodworking and Art
Delicate Surface Treatment:
Distressing reclaimed wood for furniture using 120-mesh baking soda at 50 PSI, highlighting the grain without splintering.
Etching designs into wooden signs with a stencil and 180-mesh glass beads, achieving precise, professional results.
Artistic Projects:
Creating texture on metal sculptures using a combination of steel shot and aluminum oxide, allowing artists to manipulate surface finishes with precision.
DIY and Home Projects
Deck and Patio Restoration:
Removing mold and weathering from wooden decks with 80-mesh corn cob grit, preparing them for staining or sealing.
Garden Equipment Cleaning:
Blasting rust from garden tools (e.g., shovels, lawn mower parts) with 100-mesh sand, extending their lifespan and functionality.
Advantages of a 20-Gallon Portable Sandblaster Tank
1. Optimal Balance of Portability and Capacity
Mobility: Light enough to be carried by two people or moved with a hand truck, yet large enough to handle medium-sized projects without frequent refilling.
Efficiency: The 20-gallon hopper reduces downtime compared to smaller tanks (e.g., 5-gallon models), which require hourly refills for heavy use.
2. Cost-Effective Media Usage
Reclaim System Compatibility: Many models feature a built-in sieve or connection for a reclaim hose, allowing 50–70% of abrasive media to be recycled. For example, using a reclaim system with steel shot can save $50–$100 per project in media costs.
Low Air Consumption: Requires 5–10 CFM (cubic feet per minute) at 80 PSI, compatible with most mid-sized air compressors (e.g., 2–3 HP units), avoiding the need for expensive high-CFM compressors.
3. Versatility in Abrasive Media
Works with a wide range of abrasives, from gentle (baking soda) to aggressive (steel grit). This versatility allows users to switch between tasks without investing in multiple tanks:
| Abrasive Type | Grit Size | Ideal Pressure (PSI) | Application Example |
|---|
| Baking Soda | 100–200 | 40–60 | Paint removal on delicate wood |
| Walnut Shells | 80–120 | 50–80 | Cleaning automotive interiors |
| Aluminum Oxide | 60–100 | 80–120 | Heavy rust removal on steel |
| Glass Beads | 120–200 | 60–90 | Polishing jewelry or metal art |
- Design Purpose: When used with a blast cabinet, tent, or enclosed workspace, portable sandblasters minimize airborne dust dispersion.
- Regulatory Compliance: Reduces exposure to hazardous particles (e.g., silica) to meet OSHA’s permissible exposure limit (PEL) of 50 µg/m³ for respirable crystalline silica.
- Key Advantage: Safely operates in indoor or sensitive environments by controlling debris and improving air quality.
- Environmental Impact: Unlike wet blasting, dry sandblasting eliminates water waste, making it:
- Suitable for remote locations without water access.
- More eco-friendly in water-scarce regions.
- Practical Use Cases: Industrial maintenance, outdoor projects, or sites with strict wastewater regulations.
- Safety First: Always use personal protective equipment (PPE), including respirators, gloves, and eye protection, especially with aggressive abrasives like aluminum oxide.
- Environmental Stewardship: Opt for biodegradable abrasives (e.g., walnut shells) or reusable media (e.g., steel shot) to reduce waste.
- System Optimization: Pair your abrasive choice with proper containment systems to balance performance, safety, and environmental responsibility.
Key Considerations Before Purchase
1. Air Compressor Requirements
CFM and PSI: Ensure your compressor can deliver the required airflow. For example, a 20-gallon tank operating at 100 PSI may need 8–10 CFM. A 5 HP compressor with a 60-gallon tank is ideal for continuous use, while a 2 HP compressor works for intermittent projects.
Hose Length: Long hoses (over 50 feet) can reduce pressure at the nozzle. Use reinforced hoses and keep lengths under 30 feet for optimal performance.
2. Media Type and Project Scale
Light-Duty Projects: For occasional use (e.g., small furniture restoration), a HDPE tank with a siphon-fed system is sufficient and budget-friendly.
Heavy-Duty Projects: Steel tanks with pressure-fed systems are better for daily use, such as in automotive workshops or construction sites.
3. Additional Features to Look For
Pressure Gauge: A built-in gauge helps monitor and maintain consistent pressure, critical for uniform results.
Quick-Release Lid: Facilitates fast media refilling, reducing downtime during large projects.
Anti-Static Design: Prevents static buildup when using non-conductive abrasives (e.g., plastic media), ensuring smooth flow and reducing clumping.
4. Budget and Brand Reputation
Price Range: $300–$800 for basic steel models; $500–$1,200 for HDPE or premium steel tanks with advanced features (e.g., built-in reclaim systems).
Top Brands: Popular options include Eastwood, Campbell Hausfeld, and VEVOR, known for durability and customer support. Read reviews to assess reliability and ease of maintenance.
Setup and Operation Best Practices
1. Preparation
Location: Choose a flat, stable surface away from wind (to prevent dust drift) and obstacles. For outdoor use, position the tank uphill from the workpiece for better drainage (if wet blasting).
Air Compressor Setup: Ensure the compressor is properly grounded and the air filter is clean to prevent contaminants from entering the tank.
Media Loading: Sift media to remove clumps or debris before loading. For example, the 20-gallon tank requires ~80 lbs of sand for a full load; leave 1–2 inches of space at the top for airflow.
2. Safety Protocols
PPE: Always wear a full-face respirator (NIOSH-certified), safety goggles, gloves, and hearing protection. For prolonged use, consider a supplied-air hood.
Pressure Checks: Before starting, test the tank’s pressure relief valve by increasing pressure beyond the rated maximum— it should activate to release excess pressure.
Hose Inspection: Check for cracks or leaks in hoses and fittings. Replace damaged parts immediately to avoid accidents.
3. Operation Technique
Pressure Adjustment: Start at 60 PSI and gradually increase based on the workpiece’s response. For example, use 80 PSI for removing light rust and 120 PSI for heavy coatings.
Nozzle Distance and Angle: Maintain 6–12 inches from the surface at a 45° angle. Closer distances increase intensity, while wider angles provide broader coverage.
Steady Movement: Move the blast gun in overlapping passes, similar to painting, to ensure even wear and avoid over-blasting in one area.
4. Maintenance
Daily:
Empty the tank and clean out media to prevent moisture buildup.
Wipe down the pressure gauge and valves to remove dust.
Weekly:
Inspect seals and gaskets for wear; replace if cracked or leaking.
Lubricate the blast valve trigger with silicone spray to ensure smooth operation.
Monthly:
Check the tank for rust or corrosion, especially in high-moisture environments.
Test the pressure regulator for accuracy using a calibrated gauge.
Troubleshooting Common Issues
Troubleshooting Common Issues
Issue 1: Inconsistent Media Flow
Causes: Clogged nozzle, compacted media, or low air pressure.
Solutions:
Disassemble the nozzle and clear debris with a small brush.
Shake the tank gently to loosen compacted media.
Increase air pressure by 10–20 PSI and check the compressor’s output.
Issue 2: Excessive Dust Generation
Causes: Worn seals, incorrect media type, or lack of dust control.
Solutions:
Replace tank lid seals or hose gaskets.
Switch to a finer abrasive (e.g., 120-mesh instead of 80-mesh) or use a dust collection system.
For outdoor use, work during low wind conditions or set up barriers to contain dust.
Issue 3: Tank Overheating
Causes: Prolonged High Pressure use or insufficient compressor cooling.
Solutions:
Take 10-minute breaks every hour to allow the compressor and tank to cool.
Ensure the compressor’s cooling fins are clean and unobstructed.
Issue 4: Media Sticking in the Hopper
Causes: Static electricity or high humidity causing clumping.
Solutions:
Ground the tank using a copper wire to dissipate static.
Store media in a dry place and use a desiccant (e.g., silica gel) in the hopper to absorb moisture.
Advanced Tips for Enhanced Performance
1. Media Recycling Techniques
Sieving: After use, pour spent media through a mesh sieve to separate large debris. Reuse clean media for less critical tasks (e.g., rough cleaning).
Magnetic Separation: For ferrous abrasives (e.g., steel shot), use a magnet to remove metal contaminants, extending media life.
2. Cold Weather Adjustments
Anti-Freeze Solutions: Add a small amount of windshield washer fluid to the air line (for wet blasting) to prevent freezing in sub-zero temperatures.
Pre-Warming Media: Store media indoors overnight to keep it dry and free-flowing in cold climates.
3. Custom Nozzle Modifications
Flared Nozzles: Create a wider blast pattern for large surfaces by slightly flaring the nozzle tip with a file.
Long-Reach Nozzles: Attach an extension to reach tight spaces (e.g., inside pipes or engine compartments).
4. Noise Reduction
Acoustic Blankets: Wrap the tank and compressor in sound-dampening blankets to reduce noise levels, ideal for residential areas or indoor use.
Silencers: Install a muffler on the compressor’s air outlet to lower operational noise by 10–15 dB.
