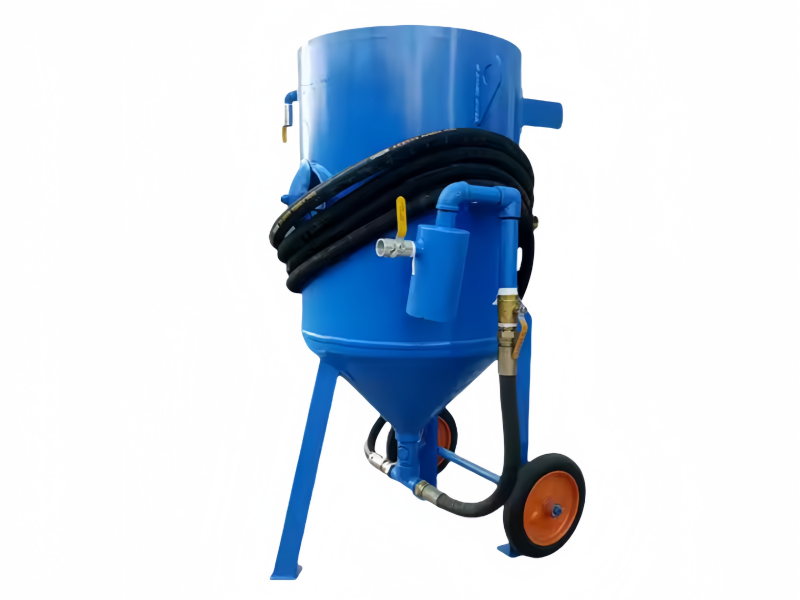

Portable Sandblaster Tank Introduction

Design and Functionality Basics

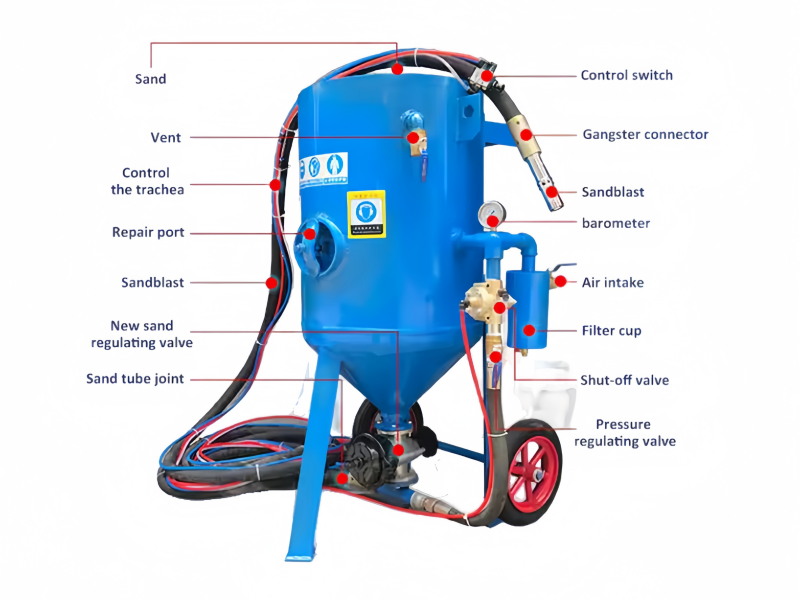

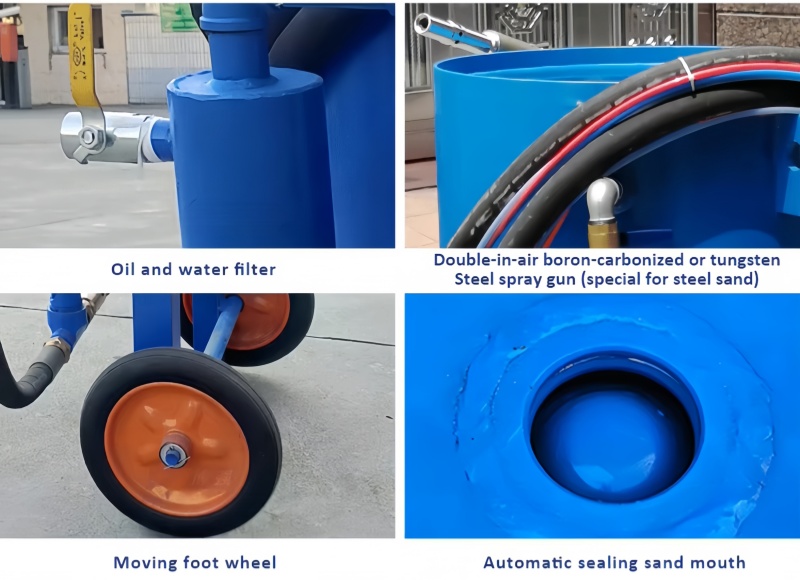

Structure and Components

A portable sandblaster tank is primarily composed of several key components that work in harmony to deliver effective abrasive blasting. The tank itself is typically constructed from durable materials such as steel or high density polyethylene (HDPE). Steel tanks offer exceptional strength and durability, making them suitable for heavy duty applications where they may be exposed to rough handling or harsh environments. HDPE tanks, on the other hand, are lightweight, corrosion resistant, and ideal for tasks where portability is a priority and the risk of chemical corrosion is present.

1. Pressure Vessel: The main body of the tank serves as a pressure vessel, designed to store the abrasive media and withstand the internal pressure generated by the compressed air system. It is engineered to meet strict safety standards to prevent leaks or ruptures during operation. The size of the pressure vessel can vary widely, ranging from small tanks with a capacity of a few pounds of abrasive media for light duty tasks to larger ones that can hold several hundred pounds for more extensive projects.

2. Abrasive Hopper: Located at the top or side of the tank, the abrasive hopper is where the blasting media, such as sand, garnet, steel shot, or glass beads, is loaded. It often features a lid or cover to prevent dust and debris from entering and to keep the abrasive media dry. Some hoppers are designed with a quick release mechanism for easy refilling, while others may have a sieve or screen to prevent oversized particles or contaminants from entering the blasting system.

3. Blast Valve and Nozzle: The blast valve controls the flow of abrasive media from the tank to the blast hose and ultimately to the nozzle. It is typically operated by a trigger or a lever mechanism on the blast gun. The nozzle, usually made of tungsten carbide for its wear resistance, determines the shape and size of the abrasive stream. Different nozzle sizes and shapes can be used to achieve varying levels of blasting intensity and coverage, depending on the specific requirements of the project.

4. Air Inlet and Pressure Regulator: The air inlet connects the tank to a compressed air source, such as an air compressor. A pressure regulator is used to control the amount of air pressure entering the tank, which in turn affects the velocity at which the abrasive media is propelled. By adjusting the pressure regulator, operators can fine tune the blasting process to suit different materials and surface conditions. For example, delicate surfaces may require lower air pressure, while tough, heavily coated surfaces may need higher pressure for effective cleaning.

5. Hoses and Fittings: High quality hoses are used to connect the various components of the sandblaster tank system. The blast hose carries the abrasive air mixture from the tank to the blast gun, while the air hose supplies compressed air to the tank. These hoses are designed to be flexible yet durable, able to withstand the high pressure and abrasive nature of the blasting process. Fittings are used to securely connect the hoses to the tank, blast gun, and air compressor, ensuring a leak free operation.

technical consultation

Video

How It Works

The operation of a portable sandblaster tank is based on the principle of using compressed air to propel abrasive media at high speeds onto the surface to be treated. When the blast gun trigger is pulled, compressed air enters the tank through the air inlet. This air pressure forces the abrasive media from the hopper into the blast hose, creating a mixture of air and abrasive particles. The mixture then travels through the blast hose to the nozzle, where it is accelerated and directed onto the target surface.

The velocity and force of the abrasive stream depend on several factors, including the air pressure set by the pressure regulator, the type and size of the abrasive media, and the design of the nozzle. As the abrasive particles impact the surface, they remove contaminants, rust, paint, or other coatings, leaving behind a clean, prepared surface. The used abrasive media and debris fall away from the surface, either collected in a recovery system or dispersed depending on the nature of the project and the environment.

Types of Portable Sandblaster Tanks

Siphon Fed Tanks

1. Operation Principle: Siphon fed portable sandblaster tanks rely on the Venturi effect to draw abrasive media into the air stream. When compressed air flows through the blast hose, it creates a low pressure area at the inlet of the abrasive pickup tube. This low pressure causes the abrasive media to be siphoned from the hopper and mixed with the air stream.

2. Advantages: These tanks are relatively inexpensive and easy to operate, making them a popular choice for hobbyists and small scale projects. They do not require a high pressure air source, as the siphon action can be achieved with moderate air pressure. Siphon fed tanks are also lightweight and portable, often suitable for tasks such as cleaning small metal parts, restoring furniture, or working on DIY projects in a home garage.

3. Disadvantages: However, siphon fed tanks have limitations in terms of power and performance. They typically produce a lower velocity abrasive stream compared to pressure fed tanks, which may make them less effective for heavy duty tasks such as removing thick rust or tough industrial coatings. Additionally, the siphon action can be affected by factors such as the height of the abrasive media in the hopper and the length of the blast hose, leading to inconsistent abrasive flow.

Pressure Fed Tanks

1. Operation Principle: Pressure fed portable sandblaster tanks store the abrasive media in a sealed pressure vessel. Compressed air is introduced directly into the tank, creating pressure that forces the abrasive media out through the blast hose and nozzle. This direct pressure application allows for a more consistent and powerful flow of abrasive particles.

2. Advantages: Pressure fed tanks offer higher blasting power and are capable of handling a wider range of abrasive media, including coarser and heavier materials. They are well suited for industrial applications, such as shipbuilding, construction, and large scale metal fabrication, where heavy duty surface preparation is required. The consistent pressure ensures uniform results, making them ideal for projects where precision and efficiency are crucial.

3. Disadvantages: On the downside, pressure fed tanks are generally more expensive than siphon fed models. They also require a more powerful air compressor to generate the necessary pressure, which can increase the overall cost and complexity of the setup. Additionally, due to their higher pressure operation, pressure fed tanks may pose a greater safety risk if not properly maintained and operated, requiring more stringent safety protocols.

Wet Sandblaster Tanks

1. Operation Principle: Wet sandblaster tanks are designed to mix abrasive media with water to create a slurry. This slurry is then propelled onto the surface using compressed air. The addition of water serves several purposes, including reducing dust generation, cooling the surface being blasted, and providing a more controlled and gentle blasting action.

2. Advantages: These tanks are highly beneficial in applications where dust control is a priority, such as indoor projects, in environments with strict environmental regulations, or when working with sensitive materials that could be damaged by the heat generated during dry blasting. Wet sandblasting is also effective for removing certain types of contaminants, such as grease and oil, as the water helps to emulsify and carry them away.

3. Disadvantages: However, wet sandblaster tanks require additional components, such as a water reservoir and a slurry pump, which can increase the complexity and cost of the equipment. The water abrasive slurry can also be messy to handle, and proper disposal of the used slurry is necessary to comply with environmental regulations. Additionally, the presence of water may cause corrosion in some metal components if not properly managed, requiring more frequent maintenance and potentially the use of corrosion resistant materials.

Applications of Portable Sandblaster Tanks

Construction Industry

1. Concrete Surface Preparation: Portable sandblaster tanks are widely used to prepare concrete surfaces for painting, coating, or the application of adhesives. By removing dirt, grime, old paint, and laitance, the sandblasting process creates a rough, textured surface that promotes better adhesion of the subsequent materials. This is particularly important in projects such as bridge deck resurfacing, parking garage floor coatings, and the restoration of historic concrete structures.

2. Stone and Masonry Cleaning: In the restoration of stone buildings, monuments, and masonry structures, sandblasting can effectively remove years of dirt, moss, and biological growth without causing significant damage to the underlying material. Different abrasive media can be used depending on the type and hardness of the stone, allowing for precise control over the cleaning process.

3. Metal Fabrication and Structural Cleaning: For metal components in construction, such as steel beams, columns, and railings, sandblasting is used to remove rust, mill scale, and other contaminants before painting or galvanizing. Portable sandblaster tanks enable on site cleaning, reducing the need to transport heavy metal parts to a centralized blasting facility, thus saving time and cost.

Applications

Automotive Industry

1. Vehicle Restoration: Enthusiasts and professionals alike use portable sandblaster tanks to restore classic and vintage cars. The tanks can be used to strip old paint, rust, and undercoating from the vehicle body, chassis, and engine components. This thorough cleaning is essential for achieving a high quality restoration, as it allows for proper inspection of the metal for any damage and ensures a smooth surface for the application of new paint and finishes.

2. Fleet Maintenance: In commercial vehicle fleets, such as trucks and buses, sandblasting is used to clean and prepare parts for repair or replacement. Portable sandblaster tanks can be easily transported to maintenance facilities or even to the vehicles themselves, enabling quick and efficient cleaning of components like brake drums, suspension parts, and engine blocks. This helps to extend the lifespan of the parts and maintain the overall performance of the vehicles.

3. Customization and Detailing: For automotive customization, sandblasting can be used to create unique textures or patterns on metal parts, such as wheels, grilles, and trim pieces. Portable sandblaster tanks offer the flexibility to perform these tasks in a workshop or even at car shows, allowing for on the spot customization and detailing.

Industrial Maintenance

1. Equipment Cleaning and Repair: In industrial settings, a wide range of equipment, from machinery and equipment in manufacturing plants to pipelines and storage tanks in the oil and gas industry, requires regular cleaning and maintenance. Portable sandblaster tanks can be used to remove dirt, rust, and corrosion from these surfaces, preparing them for inspection, repair, or the application of protective coatings. This helps to ensure the safe and efficient operation of the equipment, reducing downtime and maintenance costs.

2. Plant and Facility Restoration: Over time, industrial plants and facilities may accumulate dirt, grime, and chemical residues on their walls, floors, and structures. Sandblasting with portable tanks can be an effective method for restoring these surfaces to their original condition, improving the overall appearance and hygiene of the facility. It can also be used to remove old paint and coatings before repainting or applying new protective finishes.

Artistic and Craft Applications

1. Metal Art and Sculpture: Artists and sculptors use portable sandblaster tanks to create unique textures, etch designs, and shape metal sculptures. The ability to control the blasting process allows for precise manipulation of the metal surface, enabling the creation of intricate details and artistic effects. Sandblasting can also be used to remove oxidation or unwanted finishes from metal art pieces, preparing them for further treatment or display.

2. Woodworking and Furniture Restoration: In woodworking, portable sandblaster tanks can be used with gentle abrasive media, such as walnut shells or baking soda, to strip old paint, varnish, or stains from wooden furniture without damaging the wood grain. This is a more efficient alternative to traditional sanding methods, especially for complex or detailed pieces. Sandblasting can also be used to create decorative textures on wood, adding character and uniqueness to furniture and woodcraft projects.

Advantages of Portable Sandblaster Tanks

Mobility and Flexibility

The most significant advantage of portable sandblaster tanks is their ability to be moved to different locations. This mobility allows professionals to perform blasting tasks on site, eliminating the need to transport heavy or large workpieces to a fixed blasting facility. Whether it's a construction site in a remote area, a vehicle breakdown on the roadside, or an industrial plant with limited space, portable sandblaster tanks can be easily transported and set up to meet the project requirements. This flexibility not only saves time and transportation costs but also enables quick response to maintenance and repair needs.

Cost Effectiveness

For businesses and individuals with occasional or project based sandblasting needs, purchasing a portable sandblaster tank can be more cost effective than relying on external blasting services. While the initial investment in the equipment may seem significant, over time, it can result in substantial savings, especially for those who undertake multiple projects. Additionally, portable tanks can be used for a variety of tasks, reducing the need to invest in different types of specialized equipment for each application.

Versatility in Applications

As discussed in the previous section, portable sandblaster tanks can be used in a wide range of industries and applications. By simply changing the abrasive media, nozzle, and air pressure settings, the same tank can be used for tasks as diverse as delicate art restoration, heavy duty industrial cleaning, and automotive customization. This versatility makes portable sandblaster tanks a valuable asset for any workshop or business that requires surface preparation and finishing work.

Improved Efficiency

Compared to manual methods of surface preparation, such as sanding or scraping, using a portable sandblaster tank significantly improves the speed and efficiency of the process. The high velocity abrasive stream can quickly remove contaminants, rust, and coatings, reducing the time and labor required for a project. This increased efficiency not only allows for faster completion of tasks but also enables businesses to take on more projects, increasing productivity and profitability.

Considerations When Choosing a Portable Sandblaster Tank

Project Requirements

1. Type of Surface and Material: Consider the type of surface you will be blasting and the material it is made of. Delicate surfaces, such as wood or glass, may require a gentle blasting action and the use of fine, non abrasive media, which may be better suited to a siphon fed or wet sandblaster tank. On the other hand, tough, heavily coated metal surfaces may need the high power capabilities of a pressure fed tank and coarser abrasive media.

2. Size of the Project: The size of the project will also influence the choice of tank. For small scale projects, a compact, lightweight tank with a smaller abrasive capacity may be sufficient. However, for large scale industrial projects or continuous use, a larger tank with a higher capacity and more powerful performance will be required. Additionally, consider the accessibility of the work area. If the project is in a confined space or difficult to reach location, a more portable and maneuverable tank will be necessary.

Air Compressor Compatibility

Since portable sandblaster tanks rely on a compressed air source, it is crucial to ensure that your existing air compressor is compatible with the tank you choose. Check the tank's air pressure requirements and air consumption rate (measured in cubic feet per minute, CFM) and compare them with the specifications of your air compressor. If your compressor does not meet the requirements, you may need to upgrade it or consider a tank that is better suited to your compressor's capabilities. In some cases, it may be more cost effective to purchase a complete portable sandblasting system that includes both the tank and a compatible air compressor.

Budget

Set a budget for your portable sandblaster tank purchase. Prices can vary widely depending on the type, size, and features of the tank. Siphon fed tanks are generally the most affordable, followed by wet sandblaster tanks, with pressure fed tanks being the most expensive. However, keep in mind that a higher priced tank may offer better performance, durability, and features, which can be a worthwhile investment in the long run, especially for professional or heavy duty use. Also, consider additional costs such as the purchase of abrasive media, replacement parts, and maintenance expenses when evaluating your budget.

Safety Features

Safety should be a top priority when choosing a portable sandblaster tank. Look for tanks that have safety features such as pressure relief valves to prevent over pressurization, secure hose connections to prevent leaks, and proper guarding to protect operators from flying abrasive particles. Additionally, consider the ease of use and operation of the tank, as complex or difficult to operate equipment can increase the risk of accidents. Some tanks may also come with additional safety accessories, such as protective goggles, respirators, or earplugs, which can further enhance operator safety.

Basic Parameter

Brand Reputation and Customer Support

Choose a portable sandblaster tank from a reputable brand with a good track record of quality and reliability. Read customer reviews and testimonials to get an idea of the performance and durability of the tank. A well established brand is more likely to offer good customer support, including technical assistance, spare parts availability, and warranty coverage. In the event of a problem or malfunction, having access to prompt and effective customer support can minimize downtime and ensure the continued operation of your sandblasting equipment.

Conclusion

The portable sandblaster tank is a highly versatile and essential piece of equipment for a wide range of industries and applications. Its mobility, cost effectiveness, and versatility make it a valuable asset for professionals and enthusiasts alike. By understanding the different types, design features, applications, advantages, and considerations associated with portable sandblaster tanks, users can make an informed decision when choosing the right equipment for their specific needs. Whether it's for surface preparation, restoration, customization, or maintenance work, a portable sandblaster tank can significantly enhance the efficiency and quality of the blasting process, opening up new possibilities for projects of all sizes and scopes. As technology continues to evolve, we can expect to see further advancements in portable sandblaster tank design, making them even more powerful, user friendly, and environmentally friendly in the future.
