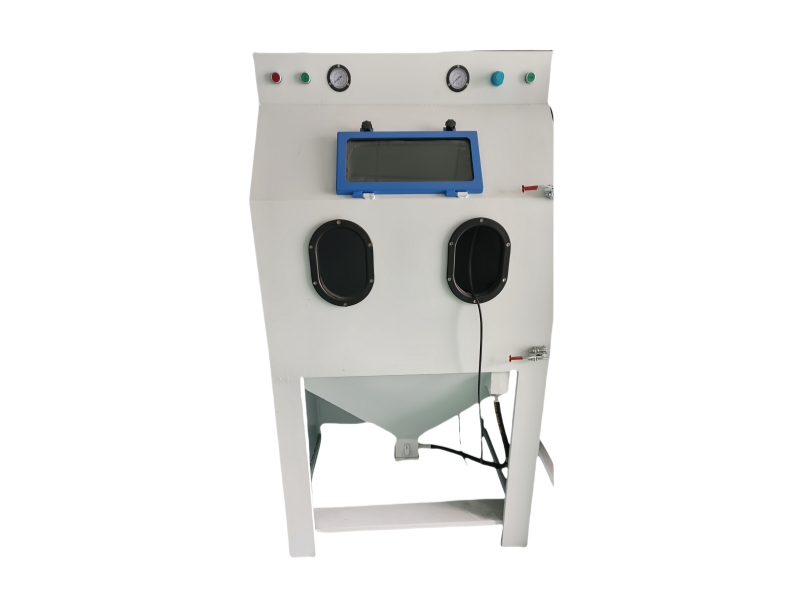

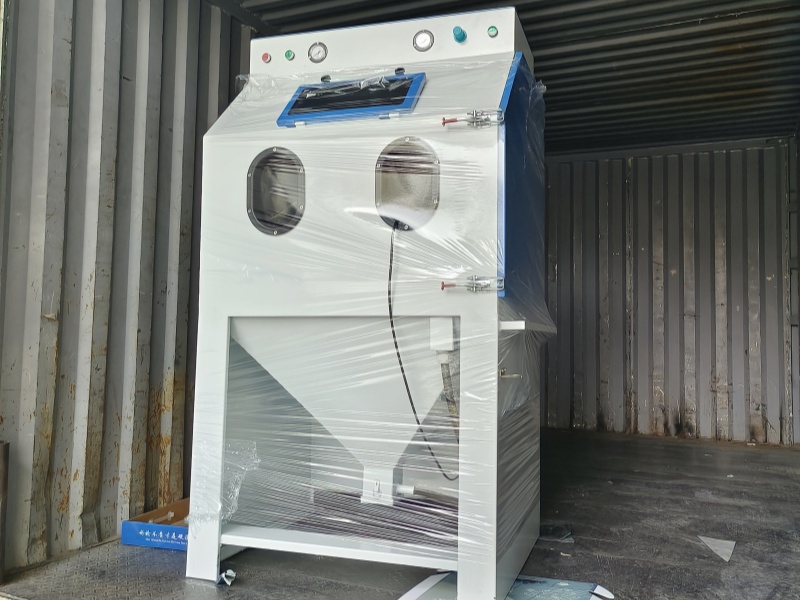

Wet Sand Blasting Machine

In the realm of industrial surface preparation, the wet sand blasting machinehas emerged as a groundbreaking innovation, addressing the limitations of traditional dry blasting while offering enhanced precision, safety, and environmental compliance. Unlike conventional dry sand blasting, which relies solely on high-velocity abrasive media, wet blasting combines water with abrasive particles to create a slurry, delivering superior results in a wide range of applications. This comprehensive guide explores the mechanics, benefits, applications, and technological advancements of wet sand blasting machines, highlighting their role in modern sustainable manufacturing.

technical consultation

Video

Understanding Wet Sand Blasting: Core Principles and Mechanics

Wet sand blasting, also known as wet abrasive blasting or slurry blasting, is a versatile surface treatment process that propels a mixture of water and abrasive media (e.g., garnet, steel shot, soda) at high pressure to clean, etch, or texture surfaces. The integration of water into the process addresses two major drawbacks of dry blasting: excessive dust generation and surface overheating.

Key Components of a Wet Sand Blasting Machine

1. Pressure Vessel/Suction Unit:

Stores and mixes water and abrasive media. In pressure-fed systems, a pump generates hydraulic pressure to propel the slurry; in suction-fed systems, a Venturi effect draws water and media into the air stream.

2. Nozzle and Lance:

Designed to atomize the slurry into a high-velocity stream. Nozzles are typically made of tungsten carbide or ceramic to withstand wear, with diameters ranging from 4–12 mm.

3. Water Supply System:

Provides a continuous flow of water, often with a filtration system to remove contaminants and recycle water in closed-loop systems.

4. Abrasive Media Hopper:

Holds 20–200 kg of abrasive, with agitators to prevent settling and ensure uniform slurry consistency.

5. Compressor/Air Supply:

Delivers compressed air to accelerate the slurry, with pressures ranging from 4–10 bar depending on the application.

6. Dust Collection and Filtration:

Optional but highly recommended for indoor use, as the water component already suppresses most dust. HEPA filters may be added for ultra-clean environments.

How It Works

1. Slurry Formation:

Water and abrasive are mixed in the pressure vessel to form a slurry, with the ratio of water to media adjustable based on the desired intensity (e.g., 70% water to 30% media for gentle cleaning, 50:50 for heavy-duty tasks).

2. Acceleration and Propulsion:

The slurry is forced through the nozzle by compressed air or hydraulic pressure, achieving velocities of 50–100 m/s. The water acts as a carrier for the abrasive and provides cooling and dust suppression.

3. Surface Interaction:

Abrasive particles impact the surface, removing contaminants (rust, paint, scale) or creating texture, while the water minimizes heat buildup and reduces airborne dust by up to 95%.

4. Waste Management:

Spent slurry and debris are collected for disposal or recycling. In closed-loop systems, water is filtered and reused, while abrasives are separated and recycled.

Key Benefits of Wet Sand Blasting Machines

Wet blasting offers distinct advantages over dry blasting and other surface treatment methods, making it ideal for sensitive, high-precision, or environmentally regulated projects:

1. Dust-Free Operation

Environmental and Safety Compliance:

The water in the slurry captures 90–95% of dust particles, significantly reducing airborne silica, lead, or other hazardous materials. This meets strict regulations (e.g., OSHA’s silica standard, EU’s REACH) and eliminates the need for expensive respiratory PPE in many cases.

Indoor Usability:

Unlike dry blasting, wet blasting can be used indoors without elaborate dust collection systems, making it suitable for workshops, warehouses, or enclosed spaces.

2. Precision and Surface Protection

Gentle Cleaning:

The water component cushions abrasive impact, reducing the risk of surface damage on delicate materials (e.g., aluminum, fiberglass, wood). For example, wet blasting can remove paint from vintage car bodies without etching the metal.

Controlled Etching:

Adjusting water-to-abrasive ratios and pressure allows precise control over surface roughness, from smooth finishes (20–50 microns) to aggressive texturing (100+ microns).

3. Enhanced Efficiency

Faster Processing:

The cooling effect of water prevents abrasive media from overheating and fracturing, maintaining consistent performance during prolonged use. This is especially beneficial for large-scale projects like ship hull cleaning.

Reduced Downtime:

No need to stop for dust cleanup or PPE adjustments, ensuring continuous operation.

4. Versatility Across Materials

Metal:

Removes rust, mill scale, and coatings from steel, aluminum, and copper without warping.

Concrete and Masonry:

Cleans graffiti, removes old sealants, or etches surfaces for better paint adhesion, with minimal risk of substrate damage.

Composites and Plastics:

Safely cleans carbon fiber, fiberglass, or PVC without delamination, ideal for aerospace or marine applications.

Wood and Glass:

Creates decorative textures on wood or etches glass without splintering or cracking.

5. Cost-Effective Sustainability

Media and Water Recycling:

Closed-loop systems can recycle up to 95% of water and 80% of abrasive media, reducing waste disposal costs and resource consumption.

Lower Energy Use:

Hydraulic-driven systems may consume less energy than High Pressure dry blasting compressors, especially for large-scale applications.

Applications of Wet Sand Blasting Machines

Wet sand blasting machines are indispensable across industries where precision, safety, and environmental responsibility are critical:

1. Automotive and Aerospace

Vehicle Restoration:

Wet blasting with soda or glass beads removes rust and paint from car bodies, engine components, and motorcycle frames without damaging panels.

Example: A classic car restoration shop uses a 50:50 water-abrasive mix to strip decades of paint from a 1960s convertible, achieving a uniform surface for repainting.

Aerospace Maintenance:

Cleans and peens aircraft components (e.g., turbine blades, landing gear) with aluminum oxide slurry, improving fatigue resistance while meeting FAA safety standards.

2. Marine and Offshore

Ship and Rig Maintenance:

Removes barnacles, salt corrosion, and anti-fouling paint from ship hulls using garnet slurry at 8 bar. The dust-free process is essential in enclosed ship holds.

Example: A marine contractor uses a mobile wet blasting unit to clean an offshore platform’s steel structure, preventing rust in harsh saltwater environments.

Underwater Blasting:

Specialized subsea wet blasting systems clean submerged pipelines or rig foundations, eliminating the need for dry docking.

3. Construction and Infrastructure

Concrete Restoration:

Removes graffiti, oil stains, or old epoxy coatings from concrete floors and walls using baking soda slurry, ideal for commercial buildings or highways.

Example: A construction company uses wet blasting to prepare a warehouse floor for new epoxy coating, completing the job in half the time of manual scraping.

Historic Building Preservation:

Gently cleans stone or brick facades with walnut shell slurry, preserving architectural details without abrasive damage.

4. Industrial Manufacturing

Metal Fabrication:

Cleans and deburrs welded joints, sheet metal, or castings with steel grit slurry, ensuring smooth surfaces for painting or plating.

Example: A steel fabrication plant uses wet blasting to prepare beams for galvanizing, improving coating adhesion and reducing corrosion risk.

Food and Pharmaceutical Facilities:

Cleans production equipment with non-toxic abrasives (e.g., baking soda), ensuring hygiene and compliance with FDA standards.

5. Art and Custom Fabrication

Decorative Texturing:

Artists use wet blasting to create unique finishes on metal sculptures or wooden furniture, using fine abrasives like corn cob or sand.

Example: A metal artist applies a rough texture to a steel sculpture with a 60-grit garnet slurry, enhancing its visual appeal.

Glass and Tile Etching:

Creates intricate designs on glass partitions or ceramic tiles for interior design projects, using precise nozzle control and low-pressure settings.

Technological Advancements in Wet Sand Blasting

Modern wet sand blasting machines incorporate innovative features to enhance performance, safety, and sustainability:

1. Hybrid Pressure Systems

Dual-Mode Operation:

Some machines switch between wet and dry blasting modes, offering flexibility for different tasks. For example, dry blasting for heavy rust removal and wet blasting for final cleaning.

Variable Pressure Controls:

Digital interfaces allow real-time adjustment of pressure, water flow, and abrasive ratio, ensuring optimal results for each material.

2. Closed-Loop Recycling Systems

Advanced Filtration:

Hydrocyclones separate fine debris (e.g., <50 microns) from slurry, while magnetic separators remove ferrous contaminants.

Reverse osmosis filters purify water for reuse, achieving zero-liquid-discharge (ZLD) in environmentally sensitive areas.

Automated Media Handling:

Robotics or conveyor belts transport spent slurry to recycling units, minimizing manual labor and contamination risks.

3. Portable and Mobile Solutions

Trailer-Mounted Units:

Self-contained systems with built-in water tanks, compressors, and recycling units, ideal for on-site projects in remote locations.

Backpack-Style Blasters:

Lightweight designs (20–30 kg) for aerial or confined-space work, such as cleaning HVAC ducts or ship pipelines.

4. Eco-Friendly Innovations

Bio-Based Abrasives:

Recycled glass, corn cob, or coconut shell abrasives reduce reliance on mineral-based media, with biodegradable options for sensitive ecosystems.

Energy-Efficient Pumps:

Electric or hybrid hydraulic pumps consume less energy than traditional air compressors, aligning with green manufacturing goals.

5. IoT and Smart Monitoring

Real-Time Data Tracking:

Sensors monitor water pressure, abrasive levels, and filter efficiency, sending alerts to operators via mobile apps.

Predictive Maintenance:

AI algorithms analyze performance data to schedule filter replacements or pump maintenance, reducing downtime.

Comparing Wet and Dry Sand Blasting

Understanding Wet vs. Dry Blasting: Key Differences for Method Selection

Feature Comparison Table

Feature	Wet Sand Blasting	Dry Sand Blasting
Dust Generation	Minimal (90–95% dust suppression)	High (requires extensive dust collection systems)
Surface Damage Risk	Low (water cushions abrasive impact)	High (especially on delicate or thin materials)
Heat Buildup	None (water cools the surface during blasting)	Possible (can cause warping in thin metals or plastics)
Media Recycling	High (80–95% efficiency in closed-loop systems)	Moderate (50–80% efficiency in dry systems)
Indoor Usability	Ideal (suitable for enclosed spaces with low dust)	Requires HEPA filtration or robust ventilation
Abrasive Types	All types (including water-soluble media like baking soda)	Limited (incompatible with water-soluble abrasives)
Water Consumption	Moderate (recyclable in closed-loop setups)	None

When to Choose Wet Blasting

Indoor/Urban Projects: Complies with strict dust regulations in workshops, garages, or residential areas.
Delicate Materials: Safe for heat-sensitive substrates like aluminum, composites, or historic artifacts (e.g., restoring antique wood or metal).
Low-Damage Applications: Preserves substrate integrity in tasks like paint stripping on fragile surfaces or cleaning electronics without static discharge risks.

When to Choose Dry Blasting

Heavy-Duty Tasks: Effective for aggressive rust/scale removal on robust materials (e.g., industrial steel, concrete).
Outdoor/Ventilated Areas: Suitable for projects in open environments where dust control is less critical.
Water-Intolerant Scenarios: Avoids corrosion risks on electronics, untreated wood, or materials sensitive to moisture (e.g., certain bearings or electrical components).

Key Trade-offs

Wet Blasting: Prioritizes safety, precision, and environmental friendliness but requires water management and may not be suitable for water-averse materials.
Dry Blasting: Offers higher efficiency for heavy-duty stripping but demands robust dust control and carries greater risk of surface damage or heat-related issues.

Key Considerations for Selecting a Wet Sand Blasting Machine

Choosing the right machine depends on your project scope, material needs, and operational environment:

1. Project Requirements

Material Type and Thickness:

Heavy Metal (e.g., structural steel): Opt for High Pressure systems (8–10 bar) with angular abrasives (garnet, steel grit).

Delicate Surfaces (e.g., wood, glass): Use low-pressure systems (4–6 bar) with soft abrasives (soda, walnut shell).

Surface Area:

Small Projects (e.g., car parts): Benchtop or portable units (5–10 L slurry capacity).

Large Projects (e.g., ship hulls): Industrial systems with continuous slurry supply (50+ L/min).

2. Operational Environment

Indoor vs. Outdoor:

Indoor: Prioritize machines with built-in water recycling and minimal noise (e.g., electric pumps).

Outdoor: Mobile units with diesel-powered pumps and large water tanks are ideal.

Environmental Regulations:

Check local laws for water discharge (e.g., pH, TSS limits) and abrasive disposal (e.g., hazardous waste for lead-contaminated slurry).

3. Budget and TCO

Initial Cost:

Portable wet blasters start at $2,000–$5,000, while industrial systems cost $20,000–$100,000+.

Operational Costs:

Water: $0.50–$2 per cubic meter in closed-loop systems.

Abrasive: $0.10–$0.50 per kilogram, depending on type and recycling rate.

Maintenance:

Replace nozzles every 50–100 hours, filters monthly, and check pump seals quarterly.

4. Safety and Compliance

PPE Requirements:

Always wear eye protection and waterproof gloves; respiratory protection may be optional due to low dust, but check local regulations.

Machine Certifications:

Ensure compliance with standards like OSHA 1910.1053 (silica), ANSI Z87 (eye safety), and CE marking for the EU.

5. Supplier Expertise

Industry Experience:

Choose suppliers with case studies in your sector (e.g., marine, aerospace) to ensure proper machine configuration.

After-Sales Support:

Look for 24/7 technical support, training programs, and readily available spare parts (e.g., nozzles, gaskets).

Basic Parameter

Best Practices for Wet Sand Blasting

Maximize efficiency and safety with these operational guidelines:

1. Pre-Operation Setup

Slurry Mixing:

Start with a 70:30 water-abrasive ratio for light cleaning and adjust upward for heavy-duty tasks. Use a agitator to prevent media settling.

Surface Preparation:

Remove loose debris and protect adjacent areas with waterproof tape or covers to prevent water ingress.

2. During Blasting

Nozzle Technique:

Hold the nozzle 10–30 cm from the surface at a 45° angle, moving it in steady, overlapping passes. Maintain consistent speed to avoid streaks.

Pressure Adjustment:

Begin at 5 bar and increase in 1 bar increments until the desired result is achieved. For example, 6 bar for paint removal on wood, 8 bar for rust on steel.

3. Post-Operation Maintenance

Slurry Disposal:

Separate solids from water using a filter press or centrifuge. Recyclable abrasives (e.g., steel shot) can be reused; hazardous waste (e.g., lead paint slurry) must be disposed of via licensed facilities.

Machine Cleaning:

Flush the pressure vessel and hoses with clean water to prevent abrasive buildup. Inspect seals and gaskets for wear.

4. Environmental Responsibility

Water Recycling:

Use a closed-loop system to minimize freshwater use. For every 100 liters of slurry, approximately 90 liters can be recycled.

Abrasive Selection:

Prioritize recyclable or biodegradable abrasives (e.g., crushed glass, corn cob) to reduce environmental impact.

Case Studies: Wet Sand Blasting in Action

Case Study 1: Historic Building Restoration

Challenge: A heritage society needed to remove decades of paint from a 19th-century brick facade without damaging the fragile mortar.

Solution: Used a low-pressure wet blasting system (4 bar) with baking soda slurry. The water suppressed dust, and the gentle abrasive preserved the brick texture.

Outcome: Restored the facade to its original state in 3 weeks, with zero damage to the historic structure and full compliance with local preservation laws.

Case Study 2: Automotive Composite Repair

Challenge: An aerospace company needed to repair a carbon fiber wing panel without delaminating the composite layers.

Solution: Employed a high-precision wet blasting machine with 120-grit aluminum oxide slurry at 5 bar. The water cooled the surface, preventing heat damage.

Outcome: Successfully removed the damaged coating and prepared the surface for bonding, with no visible damage to the carbon fiber weave.

Case Study 3: Offshore Pipeline Cleaning

Challenge: A petroleum company needed to clean a subsea pipeline for inspection, avoiding costly dry docking.

Solution: Deployed a remotely operated wet blasting robot with a 6-bar slurry system and garnet abrasives. The underwater unit recycled slurry via a submersible pump.

Outcome: Cleaned 500 meters of pipeline in 48 hours, reducing inspection costs by 60% compared to traditional dry methods.

Future Trends in Wet Sand Blasting

The wet blasting industry is evolving to meet demands for greater automation, sustainability, and precision:

Robotic and AI-Driven Systems:

Autonomous robots with computer vision will identify and target specific areas of a surface, adjusting pressure and slurry composition in real time. For example, an AI-powered robot could detect rust on a ship hull and switch from a gentle soda slurry to a more aggressive garnet mix without human intervention.

Machine learning algorithms will analyze historical blasting data to predict optimal parameters for new materials, reducing trial-and-error time in research and development.

Advanced Waterless Wet Blasting:

Innovations in supercritical water technology will allow blasting with High Pressure water alone (without abrasives) for delicate tasks, such as cleaning electronics or medical devices. Supercritical water (heated above 374°C under high pressure) can dissolve contaminants like oil and grease, eliminating the need for chemical solvents.

Dry ice blasting (a subset of wet blasting) will gain traction for its eco-friendly properties. Dry ice pellets sublimate upon impact, leaving no residue, making it ideal for food processing or sensitive electronics.

Nanotechnology in Abrasive Media:

Nano-abrasives (e.g., diamond nanoparticles, ceramic nanofibers) will enable ultra-precision blasting for microelectronics and optical components. For instance, nanoscale aluminum oxide could etch circuits on silicon wafers with sub-micron accuracy.

Self-recycling abrasives with embedded sensors will monitor particle wear and automatically separate damaged media, ensuring consistent blasting performance.

Decentralized Water Management:

Modular water treatment units will allow on-site recycling of slurry water, even in remote locations. Solar-powered reverse osmosis systems will purify water for reuse, reducing reliance on freshwater sources in arid regions.

Waterless slurry systems using air-driven misting will minimize water consumption, suitable for desert or water-scarce environments.

Enhanced Operator Safety via VR/AR:

Virtual reality (VR) training modules will immerse operators in realistic blasting scenarios, teaching them to handle complex machines or hazardous materials (e.g., lead-based paint) without physical risk.

Augmented reality (AR) overlays on blast helmets will provide real-time data on pressure, slurry levels, and safety alerts, enhancing situational awareness during operation.

Circular Economy Integration:

Fully recyclable machines with modular designs will allow easy disassembly and reuse of components, reducing e-waste. For example, tungsten carbide nozzles will be engineered for easy replacement and recycling.

Cradle-to-cradle certified abrasives (e.g., plant-based polymers) will become standard, with manufacturers offering take-back programs for spent media.

Hybrid Energy Systems:

Solar-wind powered mobile units will enable off-grid wet blasting in remote areas, such as pipeline maintenance in tundra regions or disaster relief operations.

Regenerative braking systems on mobile blasters will capture energy during transportation, powering onboard pumps and filtration systems.

Smart Dust Suppression Innovations:

Electrostatic dust precipitators integrated into blasting nozzles will charge and capture submicron particles, achieving near-zero emissions in sensitive environments like hospitals or museums.

Ultrasonic misting will enhance dust suppression by generating fine water droplets that bond with airborne particles, improving safety in urban blasting projects.

Challenges and Mitigation in Wet Sand Blasting

While the technology offers numerous advantages, addressing these challenges is critical for widespread adoption:

1. High Initial Investment

Challenge: Industrial wet blasting systems with advanced recycling can cost $100,000+, making them prohibitive for small businesses.

Mitigation:

Leasing models and government grants for green technology (e.g., EPA’s Energy Star program) can offset costs.

Modular upgrades (e.g., adding a recycling unit to an existing blaster) allow incremental investment.

2. Water and Slurry Management

Challenge: In regions with strict water regulations, discharging slurry can be costly and time-consuming.

Mitigation:

Closed-loop systems with zero-liquid-discharge (ZLD) capabilities, using evaporation or solidification technologies to dispose of slurry as solid waste.

On-site water treatment trailers for large projects, ensuring compliance with local discharge standards.

3. Abrasive Contamination Risks

Challenge: Mixed contaminants (e.g., oil, heavy metals) in slurry can render abrasives non-recyclable.

Mitigation:

Dedicated blasting lines for different materials (e.g., one line for metal, another for composites).

Rapid contaminant detection sensors that alert operators to media compromise, triggering automatic media replacement.

4. Training and Skill Gaps

Challenge: Complex systems require specialized training, limiting accessibility for small teams.

Mitigation:

Interactive online courses and certifications (e.g., from the American Blasting Association) to standardize operator knowledge.

Plug-and-play automation features that simplify setup for users with limited technical expertise.

The wet sand blasting machine represents a paradigm shift in industrial surface treatment, combining precision, safety, and sustainability in a single solution. From historic restoration to offshore oil rig maintenance, its ability to suppress dust, protect delicate surfaces, and recycle resources makes it indispensable in modern manufacturing and construction. As technology advances toward greater automation, eco-friendliness, and smart integration, wet blasting will continue to redefine industry standards, enabling businesses to meet rigorous environmental regulations while delivering superior results.

For industries ready to embrace the future, investing in a wet sand blasting machine is more than a operational upgrade—it’s a commitment to innovation, compliance, and long-term efficiency. By staying ahead of trends and addressing challenges proactively, stakeholders can unlock the full potential of this transformative technology, ensuring their operations remain competitive in a world where sustainability and performance are non-negotiable.

As the industry evolves, wet sand blasting will stand as a testament to human ingenuity, proving that even the most demanding surface treatment tasks can be executed with minimal environmental impact, maximum precision, and optimal safety. Whether you’re restoring a classic car or maintaining a fleet of industrial machinery, the wet sand blasting machine offers a cleaner, smarter, and more efficient way to achieve excellence.

Shot Blasting Machine

Home > Shot Blasting Machine

Wet Sand Blasting Machine

technical consultation

Video

Understanding Wet Sand Blasting: Core Principles and Mechanics

How It Works

Applications of Wet Sand Blasting Machines

Comparing Wet and Dry Sand Blasting

Understanding Wet vs. Dry Blasting: Key Differences for Method Selection

Feature Comparison Table

When to Choose Wet Blasting

When to Choose Dry Blasting

Key Trade-offs

Basic Parameter

Online Message

Hotline

+86-136 8495 9862

Coil Forming & Handling Equipment

Surface Treatment Equipment

Solutions

Application

About Us
