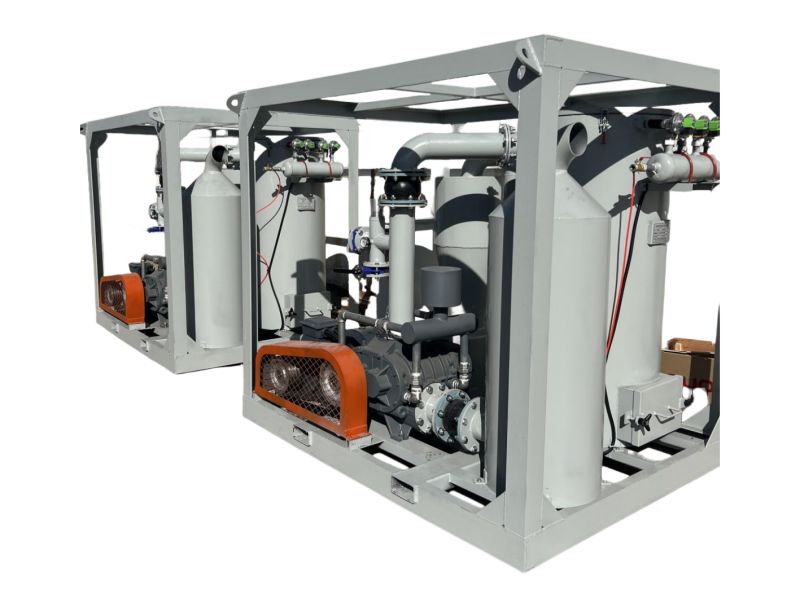

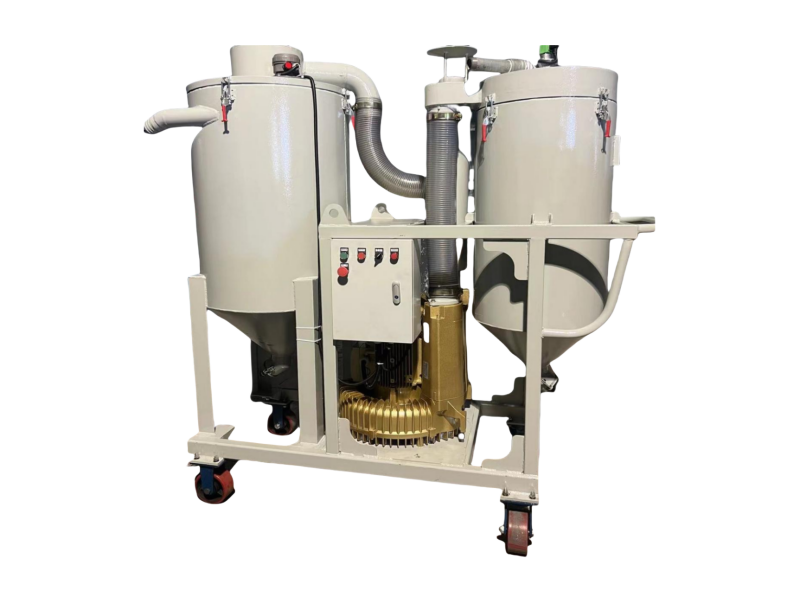

Industrial Abrasive Recovery and Recycling Machine

Industrial Abrasive Recovery and Recycling Machine

In the realm of industrial surface treatment, abrasive blasting is a cornerstone process for cleaning, finishing, and strengthening materials. However, the widespread use of abrasives—ranging from steel shot to glass beads—presents significant environmental and economic challenges. Industrial abrasive recovery and recycling machines have emerged as transformative solutions, addressing the dual goals of waste reduction and resource efficiency. These systems are designed to reclaim, clean, and reuse spent abrasives, minimizing landfill waste, lowering operational costs, and aligning with global sustainability mandates. This comprehensive guide explores the technology, applications, benefits, and future trends of abrasive recovery and recycling machines, highlighting their role in driving circular economy practices across industries.

technical consultation

Video

The Imperative for Abrasive Recycling

Environmental Impact of Abrasive Waste

Resource Depletion: Traditional blasting processes discard millions of tons of abrasives annually, including non-renewable materials like aluminum oxide and silica sand.

Landfill Strain: Non-recyclable abrasives (e.g., contaminated steel shot, composite media) contribute to landfill overcrowding and potential soil/water contamination.

Carbon Footprint: Producing virgin abrasives requires significant energy; recycling reduces this demand by 50–80% for metallic abrasives.

Economic Drivers

Cost Savings: Reusing abrasives can cut material costs by 30–70%, depending on the type and recycling efficiency.

Regulatory Compliance: Governments worldwide (e.g., EU’s Circular Economy Action Plan, U.S. EPA’s Resource Conservation Program) mandate stricter waste management, incentivizing recycling.

Core Components of Abrasive Recovery Systems

Abrasive recovery and recycling machines integrate multiple subsystems to achieve efficient media regeneration. Below is a breakdown of their key components:

1. Collection and Transportation

Floor Sweepers and Vacuums:

High-power vacuums or automated sweepers (e.g., magnetic sweepers for steel shot) collect spent abrasives from blasting chambers or work sites.

Conveyor Systems:

Belt, screw, or vibratory conveyors transport collected media to the recycling unit, often with incline elevators for vertical transport.

2. Separation and Cleaning

a. Mechanical Separation

Sieving and Screening:

Vibratory screens with multi-layer meshes separate abrasives by size (e.g., removing oversized debris or broken particles).

Common mesh sizes: 0.1–5 mm, depending on abrasive type (e.g., fine mesh for glass beads, coarse for steel grit).

Magnetic Separation:

Electromagnets or eddy current separators remove ferrous contaminants (e.g., metal chips, welding slag) from non-ferrous abrasives like aluminum oxide.

b. Air Classification (Air Wash)

Principle: A controlled air stream lifts lighter contaminants (dust, fines, organic matter) while heavier abrasives fall into collection bins.

Efficiency: Removes particles as small as 50 microns, achieving cleanliness levels suitable for most reblasting applications.

c. Wet Cleaning (Optional)

Water Washing:

Used for abrasives contaminated with oil, paint, or sticky residues. Jets of water and detergents break down contaminants, followed by centrifugal drying.

Filtration:

Water is recycled through sedimentation tanks and ultrafiltration systems, minimizing wastewater discharge.

3. Quality Control and Storage

Particle Analysis:

Laser diffraction or image analysis systems measure abrasive size distribution and sphericity, ensuring compliance with SAE or ISO standards.

Storage Hoppers:

Stainless steel hoppers with level sensors maintain a steady supply of recycled abrasives, often integrated with blast machines via automated feed systems.

4. Dust and Emission Control

HEPA Filtration:

Captures 99.97% of particles ≥0.3 microns, critical for silica dust control in applications using sand or quartz-based abrasives.

Noise Reduction:

Acoustic enclosures and vibration-dampening mounts reduce operational noise to <85 dB, meeting OSHA and EU Machinery Directive standards.

Types of Abrasives and Recycling Techniques

1. Metallic Abrasives (Steel Shot, Grit, Stainless Steel)

Recycling Process:

1. Magnetic separation removes non-ferrous contaminants.

2. Sieving restores size consistency; shot peening may re-round deformed particles.

3. Hardness testing ensures recycled shot maintains required HRC levels (e.g., 48–62 HRC for steel shot).

Lifespan: Can be recycled 10–20 times before metal fatigue reduces effectiveness.

Applications: Automotive, aerospace, and heavy machinery industries.

2. Non-Metallic Abrasives

a. Mineral Abrasives (Aluminum Oxide, Silicon Carbide)

Recycling Process:

Air classification removes dust and fines; sieving separates fractured particles.

Limited recycling (2–5 times) due to brittleness, but advanced systems using hydrocyclones can extend life.

Applications: Precision blasting on composites, electronics, and medical devices.

b. Organic Abrasives (Walnut Shell, Corn Cob)

Recycling Process:

Gentle air classification to remove contaminants; no mechanical cleaning to avoid further breakdown.

Limitations: Biodegradable and low-recyclable (1–2 times), ideal for single-use applications like food industry cleaning.

c. Synthetic Abrasives (Plastic Media, Glass Beads)

Recycling Process:

Electrostatic separation removes organic contaminants; sieving restores particle size.

Efficiency: Glass beads can be recycled 5–8 times, plastic media 3–5 times.

Applications: Delicate surfaces (e.g., aircraft panels, vintage cars) and non-marring finishes.

3. Specialized Abrasives (Dry Ice, Sodium Bicarbonate)

Dry Ice Pellets:

Non-recyclable, as they sublimate upon impact; focus on minimizing waste through precise blasting.

Baking Soda:

Can be recycled once if uncontaminated, but often disposed of as biodegradable waste.

Industrial Applications of Abrasive Recycling Machines

1. Automotive and Aerospace Manufacturing

Car Body Blasting:

Recycled steel shot (S330–S460) cleans and peens automotive components, with recycling systems achieving 95% media recovery.

Aerospace Component Refurbishment:

Closed-loop systems for aluminum oxide or glass beads remove paint from aircraft parts without metal contamination, meeting FAA standards.

2. Shipbuilding and Offshore Industries

Marine Coatings Removal:

High-volume recycling of steel grit (G40–G80) in shipyards, reducing abrasive costs by 60% and complying with IMO anti-fouling regulations.

Offshore Platform Maintenance:

Mobile recycling units deployed on rigs to reclaim shot contaminated with salt and marine debris.

3. Metal Fabrication and Foundries

Casting Cleaning:

Recycled steel shot removes sand and scale from iron castings, with automated systems processing 10–20 tons of media per hour.

Weld Surface Treatment:

Aluminum oxide recycling for deburring stainless steel welds in food processing equipment.

4. Construction and Infrastructure

Bridge and Highway Maintenance:

Recycling of steel grit for removing rust and old paint from structural steel, with machines integrated into mobile blasting units.

Concrete Surface Preparation:

Garnet abrasive recycling for shot blasting concrete floors before coating, reducing landfill waste by 80%.

5. Electronics and Precision Engineering

Micro-Blasting for PCBs:

Ultra-fine glass bead recycling (50–100 microns) in closed systems, ensuring particle purity for semiconductor component cleaning.

Benefits of Abrasive Recovery and Recycling Machines

1. Environmental Advantages

Reduced Waste: Converts 70–95% of spent abrasives into reusable media, diverting thousands of tons from landfills annually.

Energy Savings: For steel shot, recycling reduces energy use by 75% compared to producing virgin media.

Lower Emissions: Decreases CO2 footprint by minimizing raw material extraction and processing.

2. Economic Benefits

Cost Reduction:

Direct savings on abrasive purchases; indirect savings from reduced waste disposal fees.

ROI typically achieved within 1–3 years, depending on machine size and usage.

Increased Productivity:

Continuous media recycling eliminates downtime for abrasive refills in high-throughput operations.

3. Operational and Regulatory Compliance

Consistent Quality:

Automated separation ensures recycled abrasives meet original specifications, reducing rework rates.

Regulatory Adherence:

Meets strict environmental standards (e.g., EU REACH, U.S. RCRA) for hazardous waste management, avoiding fines and reputational risks.

Technological Innovations in Abrasive Recycling

1. Advanced Separation Technologies

Hydrocyclones:

Use centrifugal force to separate fine abrasives (e.g., <100 microns) from sludge, improving recovery rates for materials like aluminum oxide.

Electrostatic Separators:

Differentiate between conductive (metallic) and non-conductive (mineral) particles, enabling mixed-media recycling.

2. Smart Automation and IoT

Predictive Maintenance:

IoT sensors monitor conveyor belt wear, filter clogging, and media flow, triggering alerts for proactive repairs.

Real-Time Data Analytics:

Cloud-based platforms track recycling efficiency, abrasive lifespan, and waste metrics, enabling data-driven process optimization.

3. Mobile and Modular Solutions

Containerized Recycling Units:

Self-contained systems for on-site recycling at construction sites or remote industrial facilities, reducing transportation costs for waste and virgin media.

Plug-and-Play Upgrades:

Retrofittable modules for existing blasting machines, converting them into closed-loop recycling systems with minimal downtime.

4. Sustainable Media Development

Bio-Based Abrasives:

Innovations in recyclable plant-based abrasives (e.g., rice husk ash, coconut shell grit) that can be composted or incinerated after use.

Fully Recyclable Synthetic Media:

Polymeric abrasives designed for chemical recycling, breaking down into monomers for re-polymerization.

Challenges and Future Trends

Current Challenges

Mixed Media Contamination:

Recycling efficiency drops when abrasives are mixed with non-compatible materials (e.g., steel shot with plastic media).

High Initial Investment:

Small-to-medium enterprises (SMEs) may struggle with upfront costs for advanced recycling systems.

Regulatory Complexity:

Variations in waste classification (e.g., hazardous vs. non-hazardous abrasives) across regions complicate compliance.

Future Trends

1. Circular Economy Integration

Zero-Waste Systems:

Closed-loop recycling where even fines and dust are repurposed (e.g., steel dust as raw material for steel production, mineral fines as aggregate in concrete).

Product-as-a-Service (PaaS) Models:

Suppliers lease abrasives with recycling included, ensuring proper handling and maximizing reuse.

2. AI and Robotics

Autonomous Recycling Robots:

Mobile robots equipped with AI-driven vision systems to sort and recycle abrasives on the factory floor, adapting to changing material streams.

Digital Twins for Recycling Optimization:

Virtual models simulate abrasive flow and separation, predicting optimal maintenance schedules and media replacement cycles.

3. Green Energy Integration

Solar-Powered Recycling Plants:

Off-grid systems using solar panels and battery storage for remote operations, reducing reliance on fossil fuels.

Waste-to-Energy Solutions:

Incineration of non-recyclable organic abrasives to generate heat or electricity, with emissions controlled via scrubbers.

4. Nanotechnology and Advanced Materials

Self-Cleaning Abrasives:

Coatings that repel contaminants, extending abrasive lifespan and simplifying recycling.

Nano-Composite Abrasives:

Designed for easy separation using magnetic or electrostatic means, enhancing recycling efficiency.

Basic Parameter

Industrial abrasive recovery and recycling machines are pivotal to transforming traditional surface treatment from a linear "take-make-dispose" model into a circular economy powerhouse. By reclaiming and reusing abrasives, these systems not only slash environmental impact but also deliver tangible economic benefits, making sustainability a core driver of industrial efficiency.

As technology advances, the next generation of recycling solutions will be smarter, more adaptable, and deeply integrated with broader industrial ecosystems. From AI-driven sorting to fully automated zero-waste systems, the future holds endless possibilities for reducing resource dependency and creating a more sustainable manufacturing landscape. For industries worldwide, embracing abrasive recycling is no longer an option—it’s a strategic imperative to stay competitive, compliant, and committed to a greener planet.

In essence, these machines symbolize the marriage of innovation and responsibility, proving that even the smallest abrasives can drive monumental change in how we produce, consume, and protect our shared resources. As the global push for sustainability intensifies, abrasive recovery and recycling will remain at the forefront, shaping a future where industry and environment thrive in harmony.
