Stone Shot Blasting Machine Solutions

In the architectural and design world, stone has long been revered for its beauty, durability, and timeless appeal. From ancient monuments to modern skyscrapers, natural and engineered stones are used in applications ranging from flooring and cladding to sculptures and countertops. However, achieving the desired aesthetic and functional properties often requires advanced surface treatment, and shot blasting has emerged as a versatile solution. Stone shot blasting machines are specialized systems designed to refine, texture, and clean stone surfaces, unlocking new possibilities in design while enhancing practical performance. This comprehensive guide explores the principles, applications, technical considerations, and innovative solutions in stone shot blasting, highlighting how these machines transform raw stone into artistry and functionality.

technical consultation

Video

Understanding Stone Shot Blasting

What is Stone Shot Blasting?

Stone shot blasting is a mechanical process that propels abrasive media (e.g., steel shot, grit, glass beads, or mineral abrasives) at high velocity onto stone surfaces. Unlike metal shot blasting, which focuses on cleaning and strengthening, stone applications prioritize:

Surface Texturing: Creating tactile finishes (e.g., matte, rough, or antiqued) for aesthetic appeal.

Contamination Removal: Eliminating stains, efflorescence, or machining marks from quarrying or fabrication.

Uniformity Enhancement: Rectifying surface inconsistencies in natural stone slabs or engineered stone products.

The process is adaptable to various stone types, including granite, marble, sandstone, limestone, travertine, and composite stones like quartz or terrazzo.

Key Objectives

1. Aesthetic Enhancement:

Create unique textures for interior/exterior design (e.g., non-slip flooring, rustic cladding).

2. Functional Improvement:

Increase surface roughness for better adhesive bonding in installations.

Reduce porosity in absorbent stones to enhance stain resistance.

3. Technical Considerations for Stone Shot Blasting in Restoration

Abrasive Media Selection Matrix

Media Type	Hardness (Mohs)	Particle Shape	Impact Energy (J/mm²)	Surface Roughness (μm)	Key Applications in Heritage Restoration
Glass Beads	5–6	Rounded	0.1–0.3	10–30	- Marble statues - Limestone facades - Delicate sandstone carvings
Aluminum Oxide	9	Angular/Subangular	0.5–1.2	50–150	- Granite column bases - Quartz-rich masonry - Weathered concrete
Silicon Carbide	9.5	Sharp/angular	1.0–2.0	100–200	- Industrial stone floors - Marine-grade limestone piers
Walnut Shell Grit	2–3	Friable/organic	<0.1	<10	- Travertine fountain basins - Soft chalkstone monuments
Steel Shot	6–7 (heat-treated)	Spherical	0.3–0.8	30–80	- Large granite steps - Commercial stone cladding

Critical Process Parameters for Stone

Parameter	Range for Delicate Stones	Range for Hard Stones	Impact on Restoration Outcome
Blast Pressure	0.5–2 bar	2–5 bar	- Low pressure: Preserves fine details (e.g., 浮雕). - High pressure: Removes deep graffiti or moss.
Nozzle Distance	20–50 cm	10–30 cm	- Farther distance: Gentle cleaning (e.g., marble). - Closer distance: Aggressive texturing (e.g., granite).
Media Flow Rate	20–80 kg/h	80–200 kg/h	- Low flow: Precise stain removal (e.g., organic residues). - High flow: Rapid scale removal.
Passes per Area	1–2 passes	2–4 passes	- Single pass: Surface activation for coating. - Multiple passes: Deep weathering removal.

Case Study: Marble Facade Restoration

Project: 19th-century limestone cathedral with biological growth and soot staining.
Media Choice:

Pre-cleaning: Walnut shell grit (50 mesh) at 1.2 bar to remove moss and bird droppings without scratching.
Detailing: Glass beads (110 mesh) at 0.8 bar to restore matte finish on ornate carvings.
Results:
Surface roughness reduced from 80μm (soot-covered) to 25μm (original finish).
Biological contamination removed without damaging 0.5mm-thick relief carvings.

Damage Prevention Techniques

Test Patching:

Blast small, 隐蔽 areas (e.g., behind columns) to validate media/pressure compatibility.
Use digital microscopy to compare pre/post surface profiles (e.g., Keyence VHX series).

Masking Strategies:

Adhesive-Free Masking: Use low-tack paper or magnetic shields for intricate details.
Water-Resistant Barriers: For outdoor projects, apply biodegradable masking gel to protect adjacent surfaces.

Real-Time Monitoring:

Deploy acoustic sensors to detect unusual abrasion sounds (e.g., cracking).
Use thermal imaging to monitor stone temperature (<30°C to prevent thermal shock).

Environmental and Heritage Compliance

Regulatory Aspect	Standards	Mitigation Strategies
Dust Emission	EPA 40 CFR Part 51	- Wet blasting with 5–10% water admixture. - HEPA vacuums capturing 99.97% of particles >0.3μm.
Media Disposal	Local historic preservation codes	- Separate non-organic media (e.g., aluminum oxide) from organic waste (e.g., walnut shells). - Recycle 100% of steel shot and glass beads.
Noise Pollution	UNESCO Guidelines for Historic Sites	- Enclose blasting areas with acoustic curtains (reducing noise by 20 dB). - Schedule work outside visitor hours.
Stone Moisture Content	BS 8221:2015 (stone cleaning)	- Pre-blast moisture testing (e.g., Tramex moisture meters). - Avoid blasting on saturated stone to prevent delamination.

Advanced Techniques for Fragile Stones

Cryogenic Blasting: Use CO₂ snow particles (-78°C) to freeze and dislodge contaminants without physical abrasion. Ideal for:

Ancient sandstone with >20% porosity.
Painted or plastered stone surfaces.

Vibration Monitoring: Attach accelerometers (e.g., Brüel & Kjær) to monitor stone micro-movements (<50μm displacement) during blasting.

Post-Blasting Restoration Protocols

Neutralization:

For acidic media (e.g., silicon carbide), rinse with pH-neutral water (pH 6.5–7.5).
For alkaline residues, use mild acetic acid solutions (1–3%).

Sealing:

Apply breathable silane-based sealers (e.g., Prosoco R-Guard) within 24 hours to protect against water ingress.
For porous stones, use microcrystalline waxes for temporary protection during heritage exhibitions.

Documentation:

Create 3D scans (e.g., Faro Laser Tracker) for before/after comparisons.
Archive media type, pressure, and exposure time for future reference (ISO 19114:2017).

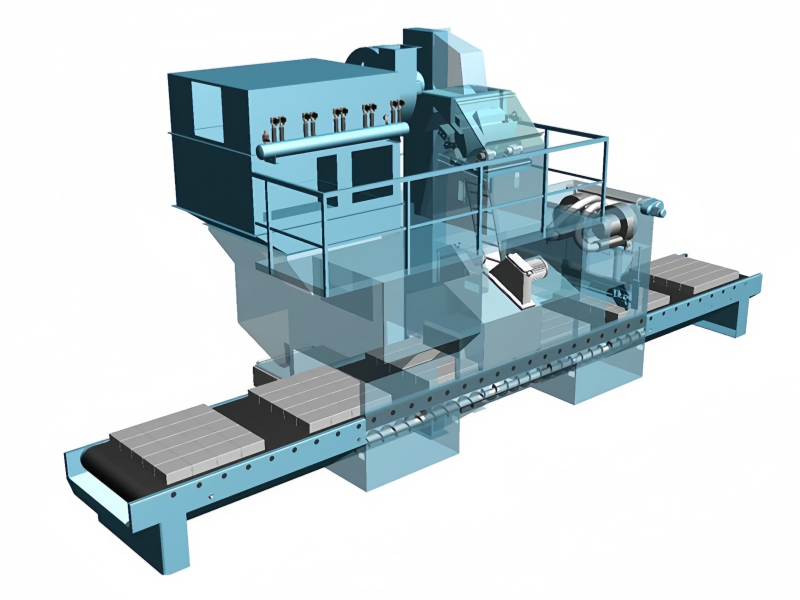

Machine Design Features for Stone

1. Low-Pressure Blast Systems

Air Pressure Range: 1–5 bar (compared to 5–10 bar for metals) to prevent micro-cracking in brittle stones like marble.

Nozzle Technology:

Adjustable nozzles (e.g., 6–12 mm diameter) for precise control over blast intensity.

Soft-tip nozzles or rubber guards to protect edges and corners from chipping.

2. Dust and Debris Management

Closed-Loop Recycling:

Integrates vacuum systems to collect spent media and stone dust, with separators to reuse abrasives (e.g., glass beads can be recycled 5–8 times).

HEPA Filtration: Essential for silica dust control, meeting OSHA standards (≤0.1 mg/m³ for respirable crystalline silica).

3. Workpiece Handling

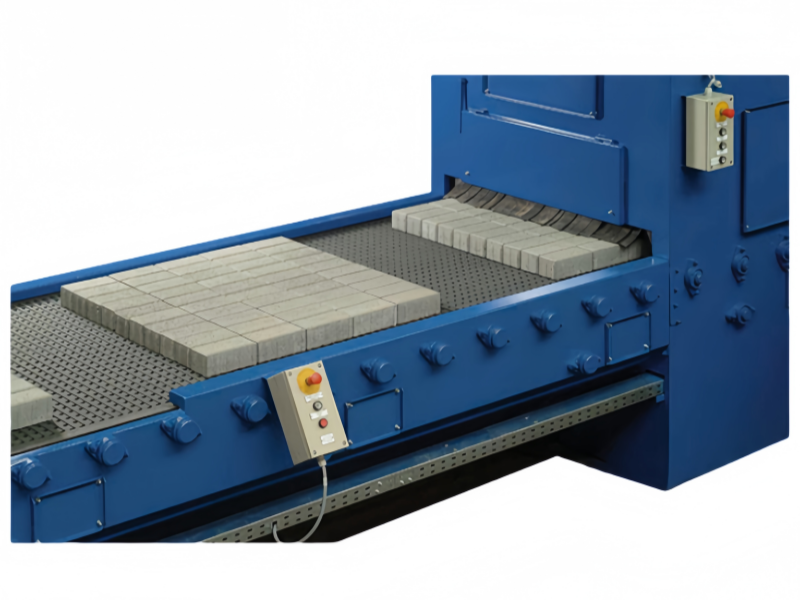

Rotary Tables or Conveyors:

Suitable for slabs up to 3 meters wide, with non-abrasive padding to prevent scratches during movement.

Manual Blast Cabinets:

For intricate pieces (e.g., sculptures, small tiles), allowing operator-controlled precision.

4. Water-Assisted Blasting

Wet Blasting: Mixes water with abrasives to suppress dust and cool the stone, ideal for heat-sensitive materials like certain limestones.

No Watermarks: Specialized systems use compressed air to dry surfaces immediately post-blasting.

Applications of Stone Shot Blasting Solutions

1. Architectural and Interior Design

a. Flooring and Wall Cladding

Non-Slip Surfaces:

Blasting with aluminum oxide or silicon carbide creates rough textures on granite or quartz tiles, meeting slip resistance standards (COF ≥0.6 for wet areas).

Antiqued Finishes:

Glass beads or walnut shell grit applied to marble or travertine to mimic aged, weathered stone for luxury interiors.

b. Countertops and Vanities

Leathered Finishes:

Gentle blasting with fine glass beads on granite or quartz creates a soft, matte texture with reduced shine, popular in modern kitchens.

Edge Detailing:

Precision blasting on curved or beveled edges to remove machining marks and create uniform finishes.

2. Exterior and Landscape Design

a. Façades and Cladding

Uniform Weathering:

Blast-treated sandstone or limestone panels achieve consistent color and texture, reducing natural variation in quarried stone.

Graffiti Removal:

Low-pressure blasting with sodium bicarbonate (baking soda) effectively removes paint from historic limestone or sandstone without damaging the substrate.

b. Paving and Outdoor Structures

Concrete Paver Texturing:

Shot blasting enhances the aesthetic of precast concrete pavers, mimicking natural stone textures at a lower cost.

Pool Decks:

Non-slip finishes on travertine or slate using aluminum oxide grit, ensuring safety around water features.

3. Stone Restoration and Conservation

Heritage Monuments:

Gentle abrasives (e.g., crushed glass, dry ice) remove centuries of grime, pollution, and biological growth from marble or sandstone statues without altering original details.

Efflorescence Removal:

Blasting with walnut shell grit eliminates salt deposits from limestone or terrazzo floors in historic buildings.

4. Industrial and Functional Applications

Stone Fabrication Waste Reduction:

Blasting reclaims flawed or miscut slabs by creating textured finishes that hide imperfections, reducing material waste by up to 30%.

Aerospace and Precision Components:

Specialized machines blast engineered stone composites for aircraft interiors, ensuring lightweight yet durable surfaces.

Innovative Stone Shot Blasting Solutions from Leading Providers

1. Eco-Friendly Abrasives

Biodegradable Media:

Corn cob grit or recycled glass for environmentally sensitive projects (e.g., national parks, green buildings), with zero risk of chemical contamination.

Waterless Systems:

Dry blasting with HEPA filtration reduces water usage by 100%, suitable for arid regions or indoor applications.

2. Automated and Robotic Systems

CNC-Powered Blast Machines:

Pre-programmed robotic arms follow CAD designs to create intricate patterns or logos on stone slabs, ideal for custom installations (e.g., hotel lobbies, corporate signage).

3D Vision Guidance:

Cameras detect stone surface variations in real time, adjusting blast pressure and media flow for uniform results on irregularly shaped stones.

3. Mobile and Portable Solutions

Trailer-Mounted Units:

Self-contained blast systems with onboard compressors and dust collectors, enabling on-site restoration of buildings, bridges, or outdoor sculptures.

Handheld Blast Tools:

Lightweight, ergonomic devices for detailed work (e.g., carving touch-ups, small-scale repairs), often used in conjunction with larger machines.

4. Hybrid Surface Treatment

Combined Blasting and Polishing:

Sequential processes where shot blasting creates texture, followed by diamond polishing for dual-finish effects (e.g., rough edges with smooth centers on granite tiles).

Coating Integration:

Machines equipped with spray systems to apply sealants or dyes immediately after blasting, enhancing efficiency in production lines.

Technical Challenges and Solutions

1. Stone Fragility

Challenge: Soft stones (e.g., gypsum, certain limestones) are prone to chipping or micro-damage during blasting.

Solution:

Use low-pressure systems (1–2 bar) with fine, rounded media (e.g., glass beads, sodium bicarbonate).

Pre-wet the stone to increase surface density and reduce abrasion impact.

2. Dust Control

Challenge: Silica dust from sandstone or quartz-based stones poses serious health risks.

Solution:

Enclosed blast chambers with negative air pressure and HEPA filtration.

Wet blasting or use of non-silica abrasives (e.g., garnet, aluminum oxide) to minimize silica exposure.

3. Color Variation

Challenge: Over-blasting can alter stone color, especially in iron-rich stones like sandstone.

Solution:

Conduct test patches with varying blast durations and media types.

Use infrared thermography to monitor heat buildup and prevent oxidation-induced color changes.

4. Edge and Detail Preservation

Challenge: Delicate carvings or intricate edges are vulnerable to damage during blasting.

Solution:

Masking with protective tapes or rubber sheets.

Using narrow-nozzle precision blasting or robotic arms with adaptive pressure control.

Future Trends in Stone Shot Blasting

1. Digitalization and AI Integration

AI-Driven Process Optimization:

Machine learning algorithms analyze stone composition (via spectral sensors) to recommend optimal blast parameters, reducing trial errors by 50%.

Virtual Design Tools:

Software allows designers to visualize blast textures in 3D models before physical treatment, enabling precise customization.

2. Sustainable Technologies

Carbon Neutral Machines:

Solar-powered blast units and energy-recovery systems for compressed air, reducing CO2 emissions by 40–60%.

Circular Economy Practices:

100% recycling of spent abrasives (e.g., steel shot re-melted, glass beads crushed for new media) and stone dust repurposed as aggregate in concrete.

3. Nano and Hybrid Materials

Nano-Coatings Post-Blasting:

Application of self-cleaning or UV-resistant nano-layers immediately after blasting, enhancing durability and reducing maintenance.

Composite Stone Blasting:

Specialized processes for hybrid materials (e.g., stone-polymer composites) used in high-design applications, requiring gentle yet precise surface treatment.

4. Robotics and Remote Operation

Autonomous Blast Robots:

Drones or crawler robots equipped with blast nozzles for hard-to-reach areas (e.g., tall building facades, bridge undersides), operated remotely via VR interfaces.

Basic Parameter

Stone shot blasting machines have transcended traditional surface treatment to become catalysts for creativity and functionality in the stone industry. By offering precise control over texture, cleanliness, and aesthetics, these solutions empower architects, designers, and fabricators to push the boundaries of what natural and engineered stone can achieve. From restoring ancient wonders to crafting cutting-edge architectural masterpieces, stone shot blasting combines technology and artistry to breathe new life into one of humanity’s oldest building materials.

As the industry evolves, the focus on sustainability, digital innovation, and precision will drive the development of even more advanced solutions—ones that respect the environment, enhance worker safety, and unlock endless design possibilities. For any business involved in stone fabrication, restoration, or design, embracing shot blasting technology is not just a choice; it’s a gateway to transforming raw stone into timeless works of enduring beauty and resilience.

In essence, stone shot blasting is more than a process; it’s a dialogue between nature’s raw elegance and human ingenuity, proving that with the right tools, even the hardest stones can be shaped into expressions of art, functionality, and sustainability.
