Defining the H Beam Shot Blasting Machine
What It Is and How It Works
An H beam shot blasting machine is a heavy-duty industrial system that utilizes high-velocity abrasives to clean, strengthen, and prepare H beams for downstream processes. The core principle involves propelling abrasive media—such as steel shot, grit, or ceramic beads—at speeds of 60 to 150 mph using centrifugal wheels or compressed air. This process:
Removes Contaminants: Effectively eliminates mill scale (a layer of iron oxides), rust, paint, grease, and welding residues.
Creates Surface Roughness: Forms a uniform "anchor pattern" that enhances the adhesion of coatings, paints, galvanization, or fire-resistant materials.
Strengthens Through Shot Peening: Rounded abrasives like steel shot induce compressive stresses on the beam’s surface, improving fatigue resistance and durability.
Key Components and Design
1. Blast Wheel Assembly:
Multi-Wheel Configuration: Typically features 4–8 centrifugal wheels rotating at 1,500–3,000 RPM. These wheels are strategically positioned to target all surfaces of the H beam: top and bottom flanges, the web, and the critical fillet corners where the web meets the flanges.
Adjustable Angles: Wheels are angled at 30°–60° to the beam’s axis to ensure abrasives penetrate shadowed areas and achieve 360° coverage.
2. Conveyor and Rotation System:

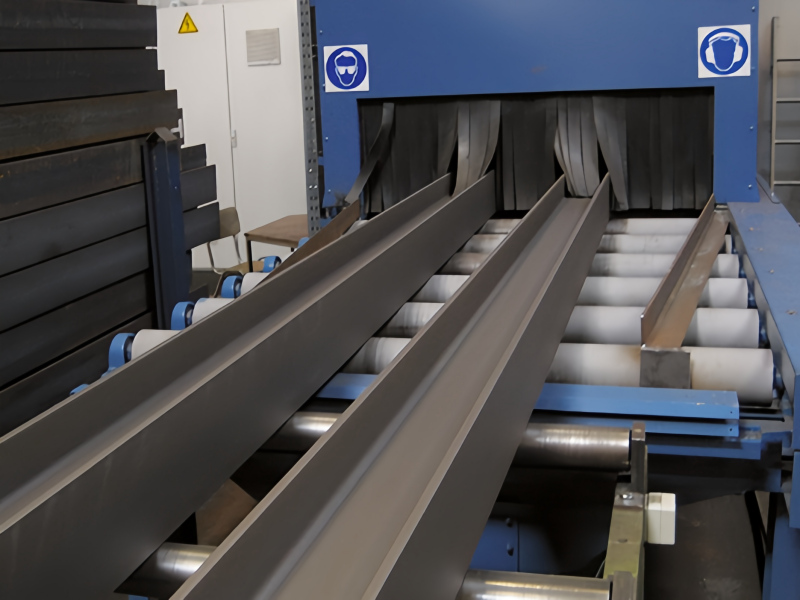

Heavy-Duty Rollers: Transports H beams through the blast chamber at a controlled speed (0.5–3 meters per minute).
Rotational Fixtures: Tilts or rotates beams (e.g., 90° increments) to expose all surfaces, overcoming the geometric challenge of their I-shaped cross-section.
3. Abrasive Media Management:
Media Types:
Steel Grit (G25–G80): For aggressive scale removal on raw steel.
Steel Shot (S230–S390): For peening and moderate cleaning to enhance structural strength.
Stainless Steel or Ceramic Media: For corrosion-sensitive or high-finish applications.
Closed-Loop Recycling: Magnetic separators and vibratory screens remove contaminants, recycling up to 95% of abrasives.
4. Dust and Emission Control:
HEPA Filtration: Captures 99.97% of particles ≥0.3 microns, ensuring compliance with strict air quality standards (e.g., OSHA ≤10 mg/m³, EU ≤5 mg/m³).
Soundproofing: Enclosed chambers lined with acoustic materials reduce noise levels to ≤85 dB.
5. PLC/CNC Control Panel:
Programmable Recipes: Stores pre-set parameters for different beam sizes (e.g., W8x18 to W44x335) and materials, enabling quick transitions between jobs.
Real-Time Monitoring: Displays metrics like wheel speed, conveyor velocity, and media flow, with alerts for maintenance or media replenishment.
Applications of H Beam Shot Blasting Machines
1. Structural Steel Fabrication
Commercial and Residential Construction:
Cleans H beams for building frames, ensuring proper weld preparation and paint adhesion. For example, a 30-story office tower may require 1,000+ H beams (W30x173 section) blasted to Sa2.5 standards for fireproofing.
Bridges and Infrastructure:
Prepares beams for highway overpasses, railway bridges, and pedestrian walkways. Meets AISC standards for surface roughness (≥75 microns) to ensure long-term resistance to traffic vibrations and environmental stress.
2. Offshore and Marine Engineering
Oil and Gas Platforms:
Blasts H beams with stainless steel grit to achieve Sa3 (near-white metal) finishes, critical for resisting saltwater corrosion in offshore rigs.
Example: An offshore production platform may use 2,000+ HEA 600 beams treated with epoxy coatings after shot blasting.
Shipbuilding:
Refurbishes recycled H beams for ship hulls by removing marine growth and rust, meeting IMO regulations for anti-fouling paint adhesion.
3. Industrial and Heavy Machinery
Factory Structures:
Processes H beams for crane runways, machinery supports, and industrial厂房 (factory buildings), using steel grit (G50) to remove welding spatter and heat-treatment scale.
Mining and Heavy Equipment:
Cleans beams for mining trucks and excavator frames, enhancing the durability of powder-coat finishes in abrasive environments.
4. Renewable Energy Projects
Wind Turbine Foundations:
Shot peens H beams with steel shot (S330) to improve fatigue resistance in onshore and offshore wind farm structures, where beams are subjected to constant wind-induced vibrations.
Solar and Hydroelectric Plants:
Prepares beams for solar panel支架 (mounting structures) and hydro turbine housings, ensuring corrosion resistance in diverse climates.
5. Metal Recycling and Refurbishment
Demolition and Reuse:
Revitalizes salvaged H beams by removing decades of paint, rust, and fire damage, making them suitable for secondary applications like storage racks or temporary structures.
Advantages Over Traditional Surface Treatment Methods
1. Unmatched Cleaning Precision
360° Coverage: Unlike manual grinding or chemical cleaning, shot blasting reaches all surfaces, including the hard-to-access fillet corners of H beams, ensuring no contaminants are left behind.
Uniform Surface Profile: Achieves consistent roughness (40–100 microns) across the entire beam, critical for even coating distribution and preventing premature failure.
2. Structural Strengthening
Shot Peening Benefits: Rounded abrasives create micro-indentations that compress the surface layer, reducing the risk of cracking under tensile loads. This is vital for H beams in bridges or machinery, where fatigue failure is a major concern.
Extended Lifespan: Studies show shot-peened beams can withstand 50% more cyclic loading than untreated counterparts.
3. Operational Efficiency
High Throughput: Automated systems process beams at 2–5 times the speed of manual methods. A 10-meter H beam can be cleaned in 10–15 minutes, compared to 3–4 hours manually.
Labor Reduction: Eliminates the need for scaffolding, harnesses, and skilled labor, cutting workforce requirements by 70–80%.
4. Cost-Effectiveness
Media Recycling: Reduces abrasive costs by 90%, as steel grit can be reused 50–100 times before replacement.
Energy Efficiency: Modern machines use regenerative drives and optimized wheel designs, cutting electricity consumption by 20–30%.
5. Compliance and Safety
Regulatory Adherence: Meets international standards like ISO 8501-1 (cleanliness), NACE SP-01-88 (corrosion control), and EN 1090 (structural steel fabrication).
Reduced Human Risk: Operators work remotely, minimizing exposure to abrasives, noise, and dust.
Technical Challenges and Innovations
1. Overcoming Geometric Complexity
Challenge: The H beam’s I-shape creates shadow zones where abrasives may not penetrate, such as the inner corners of the flanges and web.
Innovation:
Robotic Blast Arms: Articulated robots with 3D vision adjust nozzle angles in real time to target死角 (dead zones).
Dual-Rotation Conveyors: Tilt beams 45° during blasting to ensure all surfaces are exposed to the abrasive stream.
2. Handling Diverse Beam Sizes
Challenge: H beams range from lightweight sections (e.g., 10 kg/m) to heavy-duty industrial beams (e.g., 600 kg/m), requiring adaptable machines.
Innovation:
Modular Chambers: Adjustable wheel spacing and conveyor heights accommodate beams from 200 mm to 1,200 mm in height.
AI-Powered Recipe Selection: Sensors detect beam dimensions and automatically调取 (retrieve) the optimal blast parameters.
3. Sustainable Operations
Challenge: Traditional blasting generates significant waste and energy use.
Innovation:
Recycled Media: 100% post-industrial steel grit reduces reliance on virgin materials.
Solar-Powered Mobile Units: Trailer-mounted machines with integrated solar panels for on-site blasting, minimizing carbon footprint.
4. Smart Automation
Challenge: Manual parameter adjustment leads to inconsistencies in large-scale production.
Innovation:
Digital Twins: Virtual models simulate blast processes to predict surface outcomes and optimize wheel speed and conveyor velocity.
IoT-Enabled Maintenance: Sensors monitor wheel wear, filter clogging, and media levels, sending alerts to maintenance teams before downtime occurs.
Case Study: High-Rise Construction in a Corrosive Environment
Project: A 50-story condominium in a coastal city required 3,500 H beams (HEB 400 section, 15 m length) for its structural framework.
Challenge: The beams needed to withstand salt spray and humidity, requiring a Sa3 finish and 80-micron surface roughness for zinc-rich primer application.
Solution:
Used a 6-wheel H beam shot blasting machine with steel grit (G30) at 2,500 RPM, combined with a rotational conveyor that tilted beams 90° every 3 minutes.
Integrated post-blasting inspection via laser profilometry to ensure compliance.
Results:
Achieved Sa3 cleanliness and 82-micron roughness on all beams, exceeding project specifications.
Completed processing 4 weeks ahead of schedule, saving $350,000 in labor and material costs.
Independent testing after 3 years showed no signs of corrosion, validating the effectiveness of the shot blasting process.
