Chinese manufacturers have perfected the design of H beam shot blasting machines to handle the unique challenges of cleaning complex profiles. Below is a breakdown of their key components and innovations:
1. Customized Blast Chamber
Asymmetric Chamber Design:
Features adjustable blast wheel angles to target all surfaces of the H beam: top and bottom flanges, both sides of the web, and the inner corners where scale often accumulates.
Multi-wheel configurations (typically 6–12 wheels) are strategically positioned to ensure 360° coverage without shadowing, a common issue in standard shot blasting machines.
Wear-Resistant Materials:
Chamber linings made from manganese steel (Mn13) or high-chrome cast iron, with replaceable wear plates that extend machine lifespan to 10+ years even under heavy use.
2. High-Efficiency Blast Wheel System
Centrifugal Blast Wheels:
Cutting-edge wheels (e.g., Q326, Q378 models) with direct-drive motors (30–75 kW) achieve speeds of 2,200–3,000 RPM, projecting steel shot at velocities up to 90 m/s.
Adjustable impellers and control cages allow quick switching between shot sizes (S230–S660) for different cleaning intensities.
Energy-Saving Innovations:
Variable frequency drives (VFDs) optimize wheel speed based on beam size and contamination level, reducing energy consumption by 15–20%.

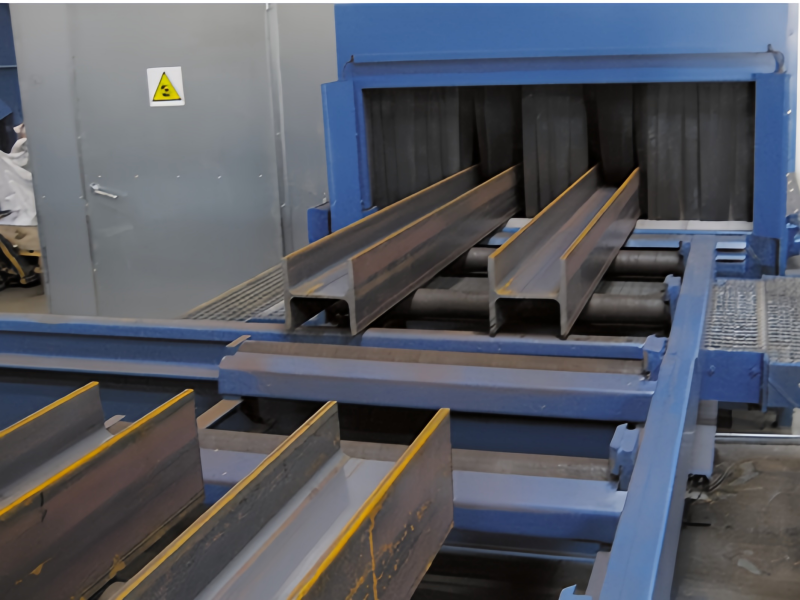

3. Intelligent Conveyor and Handling System
Heavy-Duty Roller Conveyor:
Capable of handling H beams up to 12 meters in length, 3 meters in height, and weighing 50+ tons.
Adjustable roller spacing and anti-slip surfaces ensure stable transportation through the blast chamber at speeds of 0.5–3 m/min.
Auto-Alignment Mechanism:
Laser sensors detect H beam position and adjust conveyor rollers to center the profile, preventing misalignment and ensuring uniform blasting.
4. Advanced Media Recycling and Separation
Integrated Recycling Loop:
1. Collection: Spent media and debris fall into a trough beneath the conveyor, fed by augers to a vertical elevator.
2. Air Wash Separator: Uses a controlled air stream to separate fine dust (≤50 microns) from reusable shot, while a vibratory screen removes oversized particles and contaminants.
3. Magnetic Separation: Optional eddy current separators remove non-magnetic impurities (e.g., aluminum, brass) in recycled media.
Low Media Consumption: Efficient separation allows steel shot to be recycled 15–20 times, reducing abrasive costs by up to 40%.
5. Environmental and Safety Features
High-Efficiency Dust Collection:
Baghouse filters with HEPA options achieve filtration efficiency of 99.9% for particles ≥0.3 microns, meeting EU EN 60335 and US OSHA standards.
Dust emissions are typically ≤10 mg/m³, far below regulatory limits.
Noise Reduction:
Sound-insulated chambers and anti-vibration mounts reduce operational noise to <85 dB, improving workplace safety.
Emergency Systems:
Full-body guarding, interlock switches, and rapid-stop mechanisms comply with CE and ISO 12100 safety standards.
Operational Parameters and Process Optimization
1. Abrasive Media Selection
Steel Grit (G25–G100): For aggressive removal of mill scale and heavy rust on new H beams.
Steel Shot (S330–S550): For gentler cleaning and peening of welded surfaces or pre-painted beams.
Stainless Steel Shot: Optional for non-ferrous applications or environments requiring zero iron contamination.
| Parameter | Typical Range | Impact on H Beam Treatment | Application Scenarios |
|---|
| Blast Wheel Speed | 2,200–3,000 RPM | - High Speed (2,800–3,000 RPM): Ideal for heavy mill scale on thick flanges (>25mm).
- Low Speed (2,200–2,500 RPM): Prevents surface micro-cracking on weathering steel (e.g., ASTM A588). | Structural steel fabrication vs. bridge components |
| Conveyor Speed | 0.5–3 m/min | - Slow Speed (0.5–1.5 m/min): Ensures 360° coverage for complex H beam profiles (e.g., castellated beams).
- Fast Speed (2–3 m/min): Suitable for pre-galvanized H beams requiring light surface activation. | High-tolerance vs. high-throughput production |
| Shot Flow Rate | 80–200 kg/min/wheel | - High Flow (150–200 kg/min): Overcomes shadowing effects on wide flanges (≥600mm).
- Low Flow (80–120 kg/min): Precise cleaning of fillet welds and narrow web-flange intersections. | Heavy machinery parts vs. architectural steel |
| Cleanliness Grade | Sa2–Sa3 | - Sa2.5: Standard for shop primers (e.g., zinc-rich epoxies).
- Sa3: Mandatory for offshore H beams exposed to salt spray (ISO 12944-5 C5-M). | Industrial buildings vs. marine structures |
| Media Type/Size | Steel Grit G25–G40 | - Coarse grit (G25) for heavy scale removal.
- Fine grit (G40) for achieving Sa3 without excessive roughness (Ry ≤100μm). | New construction vs. refurbishment projects |
| System Type | Technology | Key Metrics | Compliance Standards |
|---|
| Roughness Profilometry | Portable Eddy Current (e.g., Elcometer 224) | - Anchor pattern depth (Ry): 60–100μm
- Peak density: 80–120 peaks/cm² | ISO 8503-2, SSPC-SP10 |
| Visual Inspection | High-Resolution Cameras + AI Analytics | - Surface cleanliness (Sa2.5/Sa3 compliance)
- Blast pattern uniformity | ISO 8501-1, AWS D1.1 |
| Process Data Logging | PLC-Integrated Historians | - Wheel speed (RPM), conveyor rate (m/min), media flow (kg/h)
- Timestamped records for 5+ years | ISO 9001:2015, Traceability req’ts |
| Emission Monitoring | Dust Particle Counters | - Airborne particulates: <10 mg/m³
- Noise levels: <90 dB(A) | OSHA 1910.1000, EU OELs |
Pre-Blast Station:
- Magnetic particle inspection (MPI) for hidden cracks in welds.
- Oil and grease detection via ultraviolet (UV) lamps (0.1mg/cm² contamination limit).
Post-Blast Station:
- Multi-Axis Roughness Scan: Gantry-mounted profilometers traverse the H beam length, capturing 50+ data points/meter.
- Automated Cleanliness Audit: Image processing algorithms analyze 200× magnification photos for residual scale (≤2% allowed for Sa2.5).
Non-Conformance Handling:
- Automatic rejection of beams failing cleanliness/roughness specs.
- Real-time alerts to operators via HMI (e.g., "Media flow low on Wheel 3").
| Parameter | Target | Actual Mean | Std Dev (σ) | Cpk | Improvement Action |
|---|
| Blast Wheel Speed | 2,600 RPM | 2,620 RPM | 30 RPM | 1.33 | Install variable frequency drives (VFDs) |
| Surface Roughness Ry | 80μm | 85μm | 8μm | 1.17 | Calibrate media recycling screen size |
| Cleanliness Grade | Sa2.5 | 98% Sa2.5 | 2% Sa2 | 1.67 | Optimize nozzle angles for fillet coverage |
Goal: Achieve Cpk ≥1.67 for critical parameters (ISO 2859-1)
- AI-Driven Predictive Quality: Machine learning models trained on 50,000+ blast records predict cleanliness grades with 92% accuracy based on wheel speed, media type, and beam thickness.
- Augmented Reality (AR) Inspection: Operators use AR glasses to overlay required roughness specs onto the H beam surface in real time.
- Blockchain for Traceability: Immutable records of blast parameters, media batches, and QC results stored on a blockchain (e.g., IBM Food Trust adapted for steel).
By integrating automated measurement, real-time data analytics, and predictive maintenance, manufacturers can reduce H beam rework rates from 12% to <3%, while achieving 100% compliance with international corrosion protection standards. This level of QC integration not only enhances product reliability but also accelerates certification processes for projects like bridges, offshore platforms, and high-rise buildings.
