H Beam Shot Blasting Machine Uses

In the realm of structural steel manufacturing, H beams (also known as I beams) serve as the backbone of modern infrastructure—from towering skyscrapers to industrial warehouses, bridges, and offshore platforms. These robust components are prized for their high strength-to-weight ratio, but their performance hinges on meticulous surface preparation. Enter the H beam shot blasting machine—a specialized industrial tool designed to clean, strengthen, and refine H beams, ensuring they meet the rigorous demands of structural integrity, corrosion resistance, and aesthetic quality. This comprehensive guide explores the diverse applications, technical advantages, and innovative uses of H beam shot blasting machines across industries, highlighting their pivotal role in shaping the built environment.

technical consultation

Video

What is an H Beam Shot Blasting Machine?

Definition and Purpose

An H beam shot blasting machine is a heavy-duty industrial system that utilizes high-velocity abrasives (e.g., steel shot, grit, or ceramic media) to clean and surface-treat H beams. The process involves propelling abrasives at speeds of 60–150 mph to:

Remove mill scale, rust, welding slag, paint, and other contaminants.

Create a uniform surface profile that enhances adhesion for coatings, paints, or fire-resistant materials.

Strengthen the beam through shot peening, improving fatigue resistance and durability.

Key Components

1. Blast Wheel Assembly:

Multiple centrifugal wheels (typically 4–8 units) are positioned to target the H beam’s flanges, web, and corners, ensuring 360° coverage.

Wheels rotate at 1,500–3,000 RPM, delivering aggressive cleaning for thick structural steel or gentle treatment for refined finishes.

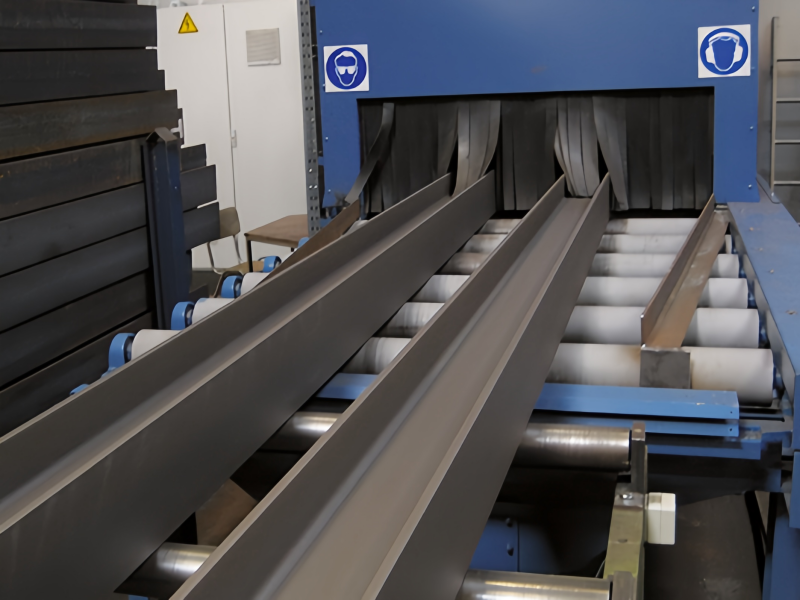

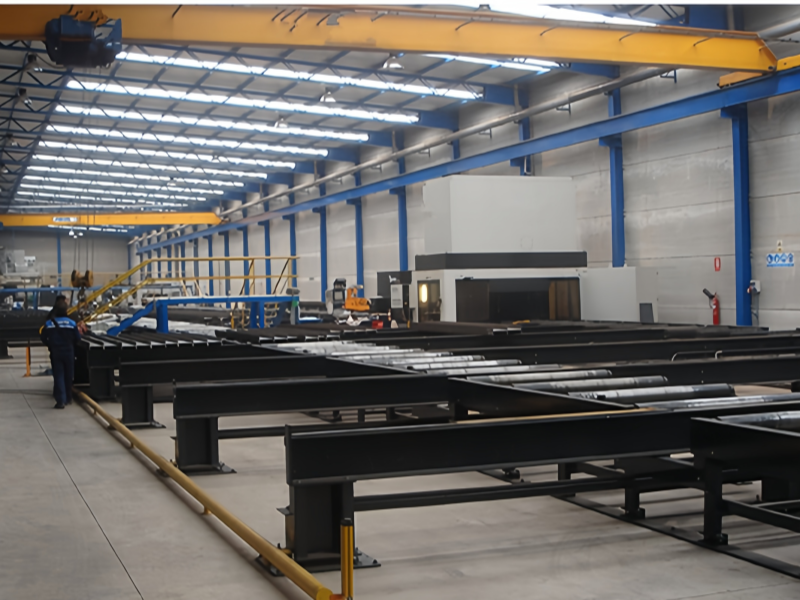

2. Conveyor and Rotation System:

A heavy-duty roller conveyor transports H beams through the blast chamber at a controlled speed (0.5–3 m/min).

Rotational fixtures tilt or rotate beams to expose all surfaces, overcoming the challenge of their complex cross-sectional shape.

3. Abrasive Media System:

Media Types:

Steel Grit (G25–G80): For aggressive scale removal on raw H beams.

Steel Shot (S230–S390): For peening and moderate cleaning to enhance structural strength.

Stainless Steel Media: For corrosion-sensitive applications (e.g., marine environments).

Recycling Loop: Magnetic separators and vibratory screens remove contaminants, recycling up to 95% of abrasives.

4. Dust Collection and Filtration:

HEPA filters and cyclonic separators capture fine dust, ensuring compliance with OSHA (≤10 mg/m³) and EU (≤5 mg/m³) safety standards.

5. PLC Control Panel:

Programmable settings for wheel speed, conveyor velocity, and media flow rate, with pre-defined recipes for different beam sizes and materials.

Primary Applications of H Beam Shot Blasting Machines

1. Construction and Structural Steel Fabrication

Skyscrapers and Commercial Buildings:

Cleans H beams for high-rise frameworks, removing mill scale and rust to prepare surfaces for fireproofing coatings or paint.

Example: A 30-story office building may require 500+ H beams (W36x230 section) blasted to Sa2.5 standards for superior paint adhesion.

Bridges and Overpasses:

Prepares beams for galvanization or zinc-rich primer, critical for resisting corrosion in humid or salt-laden environments.

Meets AISC (American Institute of Steel Construction) standards for surface roughness (≥75 microns) to ensure weld integrity.

2. Industrial and Manufacturing Facilities

Warehouses and Factory Structures:

Processes H beams for heavy machinery supports and crane runways, using steel grit (G50) to remove welding debris and scale.

Power Plant Infrastructure:

Cleans beams for boiler supports and turbine halls, ensuring resistance to high temperatures and mechanical stress.

3. Offshore and Marine Engineering

Oil and Gas Platforms:

Blasts H beams with stainless steel grit to prevent corrosion in offshore environments, often achieving Sa3 (near-white metal) finishes.

Example: An offshore rig may use 1,000+ H beams (HEA 600 section) treated with epoxy coatings after shot blasting.

Shipbuilding:

Prepares structural beams for ship hulls and decking, removing salt corrosion and marine growth from recycled steel.

4. Heavy Machinery and Transportation

Railway Bridges and Trestles:

Cleans H beams for railway infrastructure, ensuring compliance with AREMA (American Railway Engineering and Maintenance-of-Way Association) standards for fatigue resistance.

Industrial Equipment Frames:

Processes beams for heavy machinery (e.g., presses, conveyors) by removing grease and scale, enhancing the durability of powder-coat finishes.

5. Renewable Energy Projects

Wind Turbine Foundations:

Blasts H beams for onshore and offshore wind farm bases, using shot peening with steel shot (S330) to improve fatigue life in high-wind environments.

Solar Power Plants:

Prepares beams for solar panel mounting structures, ensuring corrosion resistance in desert or coastal climates.

6. Metal Recycling and Refurbishment

Demolition and Reuse:

Revitalizes salvaged H beams by removing paint, rust, and fire damage, enabling reuse in non-critical applications like temporary structures or storage facilities.

Advantages of H Beam Shot Blasting Over Traditional Methods

1. Comprehensive Surface Coverage

360° Cleaning: Specialized wheel configurations and rotational systems address the H beam’s flanges, web, and hard-to-reach corners, unlike manual methods that often miss recessed areas.

Uniform Anchor Pattern: Creates a consistent surface roughness (40–100 microns) across all beam surfaces, ensuring even coating adhesion and preventing premature corrosion.

2. Structural Strengthening via Shot Peening

Compressive Stress Induction: Rounded steel shot creates micro-indentations on the beam’s surface, inducing compressive stresses that counteract tensile forces, extending fatigue life by up to 50%.

Critical for Dynamic Loads: Essential for H beams in bridges or machinery supports subjected to repetitive stress.

3. Operational Efficiency

High Throughput: Automated conveyor systems process beams at 2–5 times the speed of manual blasting. For example, a 12-meter H beam can be cleaned in 8–15 minutes, vs. 2 hours manually.

Reduced Labor Costs: Eliminates the need for scaffolding, harnesses, and manual labor, cutting workforce requirements by 70–80%.

4. Cost-Effective and Sustainable

Media Recycling: Closed-loop systems reduce abrasive waste, with steel grit lasting 50–100 cycles before replacement.

Energy Efficiency: Modern machines use regenerative drives and low-power wheels, reducing electricity consumption by 20–30%.

5. Compliance with Industry Standards

Meets strict regulations for surface cleanliness (ISO 8501-1 Sa2.5/Sa3) and roughness (NACE SP-02-85), ensuring compliance with building codes and international safety standards.

Technical Challenges and Solutions in H Beam Blasting

1. Complex Geometry

Challenge: The H beam’s I-shaped cross-section creates shadow areas where abrasives may not reach, such as the junction between the web and flanges.

Solution:

Multi-Angle Wheel Placement: Wheels positioned at 30°–60° angles to the beam’s axis ensure abrasives penetrate deep into corners.

Rotational Conveyors: Tilt or rotate beams during blasting to expose all surfaces sequentially.

2. Varying Beam Sizes

Challenge: H beams range from small sections (e.g., W8x18) to large industrial sizes (e.g., W44x335), requiring adaptable machines.

Solution:

Modular Blast Chambers: Adjustable wheel spacing and conveyor heights accommodate beams from 200 mm to 1,200 mm in height.

Recipe-Based Programming: Pre-set parameters for different beam sizes ensure consistent results without manual reconfiguration.

3. Heavyweight Handling

Challenge: Large H beams can weigh over 50 tons, requiring robust material handling systems.

Solution:

Heavy-Duty Roller Conveyors: Rated for 100+ tons, with anti-slip surfaces to prevent slippage during transport.

Overhead Cranes with Magnetic Lifters: Safely load and unload beams without damaging surfaces.

4. Environmental Control

Challenge: Blast processes generate significant dust and noise.

Solution:

Enclosed Blast Chambers: Lined with sound-dampening materials to reduce noise below 85 dB.

Dual-Stage Dust Collection: Combines cyclonic separators and HEPA filters to capture 99.9% of particulate matter.

Innovations in H Beam Shot Blasting Technology

1. Robotic Blast Systems

AI-Powered Nozzle Adjustment: Robotic arms with 3D vision systems dynamically adapt to beam geometry, ensuring uniform blast coverage without over-treatment.

Autonomous Path Planning: Algorithms calculate the optimal nozzle trajectory to minimize dead zones and reduce cycle time by 15–20%.

2. Hybrid Blasting Solutions

Combined Shot Blasting and Painting: Integrated systems that blast, prime, and topcoat beams in a single pass, ideal for high-volume fabrication.

Cold Spray Technology Integration: Applies anti-corrosion coatings immediately after blasting, enhancing adhesion and reducing downtime.

3. Mobile H Beam Blasting Units

Trailer-Mounted Systems: Self-contained machines for on-site blasting at construction yards or shipyards, eliminating the need to transport heavy beams to fixed facilities.

Portable Dust Extraction: Equipped with self-powered HEPA filters for compliance with environmental regulations in remote locations.

4. IoT and Predictive Maintenance

Real-Time Performance Monitoring: Sensors track wheel vibration, media flow, and filter pressure, sending alerts via IoT platforms for proactive maintenance.

Digital Twins: Virtual models simulate blast processes to optimize parameters and predict beam surface outcomes before physical treatment.

5. Sustainable Media Solutions

Recycled Steel Grit: Made from 100% post-industrial waste, reducing reliance on virgin materials.

Bio-Based Abrasives: Corn cob or nut shell grit for eco-sensitive projects, suitable for light cleaning or deburring.

Case Study: Large-Scale Bridge Project in Coastal Environment

Challenge: A major coastal bridge required 2,500 H beams (HEB 500 section, 12 m length) for its truss structure, with strict requirements for corrosion resistance in a salt-laden environment.

Solution:

Used an 8-wheel H beam shot blasting machine with steel grit (G40) at 2,800 RPM, achieving a Sa3 finish with 85-micron surface roughness.

Beams were rotated 90° every 2 minutes during blasting to ensure full coverage of flanges and web.

Results:

Met NACE SP-01-88 standards for offshore structures, with coating adhesion tested at 5 MPa (well above the 3 MPa requirement).

Completed processing 3 weeks ahead of schedule, saving $200,000 in labor and transportation costs.

Project engineers reported zero corrosion after 5 years of service, exceeding industry expectations.

Choosing the Right H Beam Shot Blasting Machine

Key Factors to Consider

1. Beam Dimensions:

Height and Weight: Ensure the machine’s chamber height (e.g., 1.5–4 m) and conveyor load capacity (e.g., 20–100 tons) can accommodate your largest beams.

Section Type: Verify compatibility with standard sections (e.g., W, HE, IPN) and custom profiles.

2. Production Volume:

Continuous vs. Batch Processing: High-volume fabricators need machines with inline conveyors, while smaller shops may prefer batch-fed systems.

3. Surface Finish Requirements:

Cleanliness Standard: Sa2.5 for moderate corrosion protection, Sa3 for critical offshore applications.

Peening Needs: Specify steel shot size (e.g., S330 for heavy peening, S170 for light treatment).

4. Environmental Compliance:

Check dust emission limits, noise levels, and media disposal options to meet local regulations.

Basic Parameter

Leading Manufacturers and Models for H Beam Shot Blasting

1. Key Manufacturers and Their Flagship Models

Manufacturer	Model Example	Key Features	Ideal Applications
Wheelabrator	FBH Series (e.g., FBH-800)	- 8 high-efficiency blast wheels (2,500–3,200 RPM) - Robotic part rotation (0–360°) - Automatic media recycling system	Large industrial H beams (up to 12 m), heavy steel structures
Pangborn	H Beam Master	- Modular design (expandable for mixed beam sizes) - 360° blast coverage with adjustable nozzles - Dust control system (99% filtration efficiency)	High-mix, low-volume production of H beams, channels, and angles
DISA	DBH-1200	- 12-wheel configuration (3,000 RPM max speed) - IoT-enabled diagnostics (real-time performance tracking) - Automated loading/unloading	High-volume bridge fabrication, offshore steel structures
Goffert	Mobile H Beam Blaster	- Trailer-mounted, self-powered (diesel generator) - Compact design (fits through standard gates) - Quick setup (<1 hour)	On-site construction projects, temporary fabrication yards
PEMA	PEMAblast H Beam	- Hybrid blasting + painting system - 5-axis CNC control for precision profiling - Energy-efficient (30% lower power consumption)	Prefabricated building components, high-precision steelwork

2. Cost Estimates by Machine Class

Machine Type	Price Range	Key Specifications	ROI Timeline
Small-to-Medium Industrial	$300,000–$800,000	- Beam length: up to 6–8 m - Blast wheels: 4–6 units - Manual/ semi-automated operation	1.5–2.5 years
Industrial-Scale (Robotic)	$1M–$3M+	- Beam length: up to 15 m - Full robotic automation - Multi-media blasting capability	2–3 years
Mobile/On-Site Units	$150,000–$400,000	- Beam length: up to 10 m - Portable design (road-legal) - Diesel or electric power	1–1.5 years
High-Precision Hybrid Systems	$2M–$5M+	- Integrated blasting and coating - AI-driven process optimization - Zero-emission options (electric)	3–4 years (for high-volume, low-waste operations)

3. Critical Selection Criteria

Throughput Requirements:

For high-volume production (>500 tons/week), prioritize models with >8 blast wheels and automated material handling (e.g., DISA DBH-1200).
Small workshops (<100 tons/week) may opt for Pangborn’s modular systems to avoid overcapacity.

Portability vs. Fixed Installation:

Mobile units (Goffert) reduce transportation costs for on-site projects but have 20–30% lower blasting efficiency than fixed systems.
Fixed industrial systems require dedicated infrastructure but offer 50–70% higher productivity in continuous operations.

Surface Finish Requirements:

For marine-grade coatings (ISO Sa3), choose machines with high-speed wheels (3,000+ RPM) and stainless steel grit capability (e.g., Wheelabrator FBH Series).
For structural steel requiring only Sa2.5, lower-speed models (2,000–2,500 RPM) with steel shot are sufficient.

Sustainability Features:

Look for energy-efficient designs (e.g., PEMAblast’s regenerative drives, 30% less power) and closed-loop media recycling (95%+ reuse rate).
Models with dust collectors compliant with EPA/CEM standards (e.g., <10 mg/m³ emissions) are essential for environmentally regulated regions.

4. Operational Performance Comparison

Manufacturer	Model	Blast Rate (tons/hour)	Media Consumption (kg/ton)	Noise Level (dB)
Wheelabrator	FBH-800	15–20	8–12	85–90
Pangborn	H Beam Master	10–15	6–9	80–85
DISA	DBH-1200	25–30	10–15	90–95
Goffert	Mobile Blaster	5–8	5–7	75–80

Note: Blast rate varies by beam size, surface condition, and media type.

5. After-Sales Support and Innovation

Wheelabrator and DISA offer 24/7 remote monitoring via IoT platforms (e.g., Wheelabrator Connect), predicting component wear and reducing downtime by 40%.
Pangborn provides lifecycle management services, including media analysis and blast wheel rebuilds, extending machine lifespan by 5–7 years.
Emerging trends: AI-driven blast pattern optimization (e.g., PEMA’s machine learning algorithms) and collaborative robots (cobots) for unsafe blasting zones.

By aligning machine selection with production scale, surface quality needs, and sustainability goals, manufacturers can achieve up to 40% efficiency gains while meeting global standards like ISO 12944 (corrosion protection) and EN 1090 (structural steel fabrication).

Maintenance and Safety Best Practices

Daily Maintenance:

Clean dust collector filters and inspect conveyor belts for alignment.

Check media levels and ensure no blockages in the recycling system.

Weekly Checks:

Lubricate rotational bearings and inspect blast wheel blades for wear (replace when thickness reduces by 20%).

Test emergency stop mechanisms and safety interlocks.

Annual Overhaul:

Replace all wearable components (e.g., impellers, liners) and calibrate sensors.

Update PLC software to include the latest performance optimizations.

Safety Protocols:

Mandate PPE (respirators, ear protection, coveralls) for all personnel near the machine.

Ensure proper grounding to prevent static discharge in explosive environments.

Future Trends in H Beam Shot Blasting

Autonomous Navigation: AMRs (Autonomous Mobile Robots) that transport beams to and from the blast chamber without human intervention.

AI-Driven Quality Control: Real-time visual inspection systems using deep learning to detect surface defects with 99% accuracy.

Green Manufacturing Integration: Machines powered by renewable energy, with 100% recycled media and zero-waste dust management.

Nanocoating Application Post-Blasting: Immediate application of nano-scale corrosion inhibitors for enhanced protection.

Conclusion

The H beam shot blasting machine is an indispensable tool in modern construction and manufacturing, enabling the production of structural steel components that are stronger, cleaner, and more durable than ever before. By addressing the unique challenges of H beam geometry, these machines deliver unmatched precision, efficiency, and compliance with global standards. As automation, sustainability, and smart technology continue to advance, H beam shot blasting will remain at the core of infrastructure development—ensuring that every skyscraper, bridge, and industrial facility stands as a testament to the power of innovative surface treatment.

For fabricators and engineers, investing in a high-quality H beam shot blasting machine is not just a matter of productivity; it’s a commitment to building a safer, more resilient world. As the demand for sustainable, high-performance steel structures grows, these machines will continue to evolve, driving progress and setting new benchmarks for excellence in the structural steel industry.
