The Evolution of Automation in Shot Blasting
Gone are the days of manual labor and guesswork in steel plate processing. Automatic shot blasting machines represent the pinnacle of Industry 4.0 integration, combining mechanical engineering with digital innovation. These systems eliminate human error, optimize workflow, and scale effortlessly to meet the demands of high-volume production. Key advancements include:
Programmable Logic Controllers (PLCs)and Computer Numerical Control (CNC)systems that automate blast parameters.
Robotic arm integrationfor precision nozzle positioning.
Internet of Things (IoT)sensors for real-time performance monitoring.
Fully automated material handlingvia conveyor belts, magnetic lifters, and robotic loaders.
Core Components of an Automatic Steel Plate Shot Blasting Machine
1. Automated Blast Chamber
Multi-Wheel Configuration: Features 4–8 high-speed centrifugal wheels (rotating at 1,500–3,000 RPM) arranged to target both sides of the steel plate simultaneously. Wheels are strategically angled (e.g., 45°) to ensure 100% surface coverage.
Intelligent Nozzle Adjustment: In robotic models, articulating nozzles adapt to plate thickness (2–100 mm) and curvature, ensuring uniform abrasive impact.

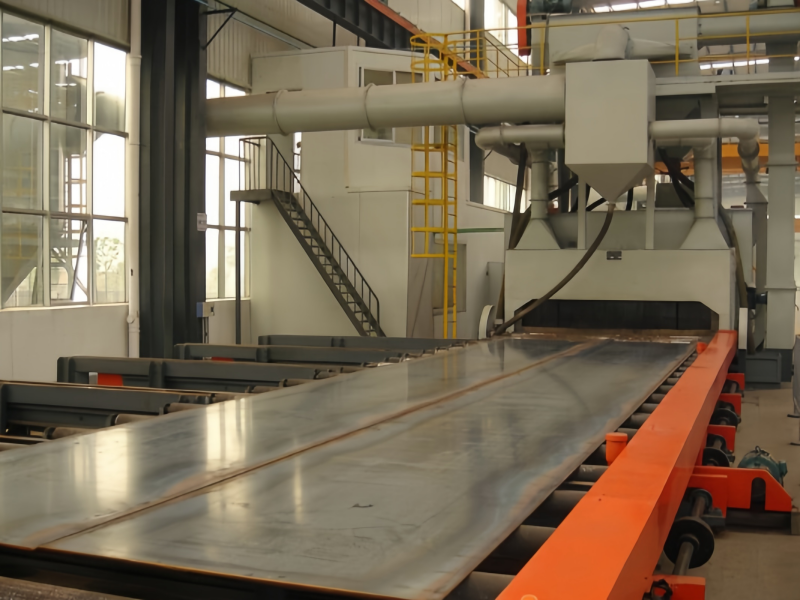

2. Automated Conveyor and Material Handling
Continuous Feed System: Steel plates are loaded onto a motorized conveyor that transports them through the blast chamber at a controlled speed (0.5–5 m/min).
Robotic Load/Unload Arms: Equipped with sensors to grip and position plates accurately, reducing manual labor and minimizing downtime between batches.
3. Smart Media Management
Automated Media Recycling: A closed-loop system uses magnetic separators, vibratory screens, and pneumatic conveyors to:
1. Collect used abrasives and debris.
2. Remove contaminants (e.g., rust, paint chips) via magnetic and gravitational separation.
3. Sort media by particle size and recycle it into the blast wheels.
Real-Time Media Level Sensors: Alert operators when media stock is low, ensuring uninterrupted operation.
4. Advanced Dust and Emission Control
HEPA Filtration with Automatic Cleaning: Filters capture 99.97% of particles ≥0.3 microns, with pulse-jet cleaning systems that automatically clear dust buildup.
Emission Monitoring Sensors: Continuously track airborne particulate levels, ensuring compliance with EPA, OSHA, and EU standards (e.g., ≤5 mg/m³ for steel shot dust).
5. Digital Control Panel
Human-Machine Interface (HMI): A touchscreen interface allows operators to:
Select pre-programmed recipes for different plate types (e.g., carbon steel, stainless steel, aluminum).
Adjust parameters like wheel speed, conveyor velocity, and media flow rate.
Monitor real-time data such as energy consumption, media usage, and machine diagnostics.
Remote Access via IoT: Managers can oversee operations and troubleshoot issues from anywhere using cloud-based software.
How It Works: The Automated Process Flow
1. Pre-Processing Automation
Plate Identification: Barcode or RFID scanners read plate specifications (size, material, required finish), automatically (retrieve) the corresponding blast recipe.
Robotic Loading: Arms equipped with electromagnetic grippers lift plates from storage racks and place them onto the conveyor, ensuring precise alignment.
2. Blast Chamber Operation
Dynamic Parameter Adjustment: As plates enter the chamber, laser sensors measure their thickness and curvature, prompting the system to adjust wheel speed and nozzle angles in real time.
Dual-Side Blasting: Upper and lower wheels work simultaneously, reducing cycle time by 50% compared to single-side systems. For example, a 10-mm-thick plate may require 2 minutes of blasting at 2,000 RPM, while a 50-mm plate needs 5 minutes at 2,800 RPM.
3. Post-Blasting Quality Assurance
Automated Inspection: High-resolution cameras and profilometers scan plates for:
Cleanliness (compliance with ISO 8501-1 Sa2.5/Sa3 standards).
Surface roughness (via non-contact laser measurement).
Defect Detection: AI algorithms identify residual contaminants or uneven blasting, flagging plates for reprocessing if needed.
4. Automated Unloading and Sorting
Robotic Unload Arms: Transfer cleaned plates to designated zones for painting, welding, or storage.
Intelligent Sorting: Plates are categorized based on inspection results, with合格 (qualified) units sent to the next production stage and rejects rerouted for reprocessing.
Applications Across Industries
1. Heavy Construction and Infrastructure
Skyscraper and Bridge Fabrication:
Automatically cleans 50-mm-thick steel plates for structural beams, ensuring Sa3-level cleanliness for marine-grade coatings in coastal projects.
Example: A major bridge project used an automatic machine to process 2,000 plates (15 m x 3 m) in 2 weeks, a task that would have taken 2 months manually.
Offshore Platforms: Prepares plates for corrosion-resistant coatings, with robots adapting to the curved surfaces of cylindrical components.
2. Shipbuilding and Marine Engineering
Hull and Bulkhead Production:
Processes 30-m-long plates for ship hulls, removing rust and salt deposits with steel grit (G25) at 2,500 RPM.
Meets IMO regulations for surface roughness (≥75 microns) to enhance anti-fouling paint adhesion.
3. Automotive and Heavy Machinery
Vehicle Chassis and Equipment Parts:
Cleans 2–5-mm-thick steel sheets for truck frames, using ceramic media to achieve a smooth surface finish (30–50 microns) for powder coating.
Agricultural Machinery: Processes plates for combine harvesters, removing soil and grease with steel shot (S230) to extend component lifespan.
4. Energy and Industrial Equipment
Wind Turbine Towers:
Automatically cleans and peens plates for tower sections, using steel shot to induce compressive stresses and improve fatigue resistance in offshore environments.
Power Plant Components: Prepares boiler plates for heat-resistant coatings, with robots navigating complex tube arrays.
5. Metal Recycling and Refurbishment
Scrap Metal Processing: Revitalizes used steel plates by removing paint, rust, and welding slag, enabling reuse in non-critical applications (e.g., storage containers).
Advantages of Automatic Over Manual Systems
1. Unmatched Consistency and Quality
Recipe-Based Processing: Pre-programmed settings ensure identical results across thousands of plates, eliminating variability from human operation.
AI-Driven Adjustments: Sensors and machine learning optimize blast parameters for each plate, ensuring uniform roughness and cleanliness.
2. Operational Efficiency
24/7 Continuous Operation: Automated systems require minimal human supervision, enabling round-the-clock production.
Reduced Cycle Time: A typical automatic machine processes plates 3–5 times faster than manual methods. For example, a 10 m² plate can be cleaned in 3 minutes vs. 20 minutes manually.
Labor Savings: Cuts labor costs by 80% by replacing skilled operators with robotic systems, while freeing staff for higher-value tasks.
3. Cost-Effectiveness
Media Efficiency: Closed-loop recycling reduces abrasive consumption by 95%, with some systems achieving 100+ reuse cycles for steel shot.
Energy Savings: Regenerative drives and intelligent power management cut electricity use by 20–30% compared to older models.
Long-Term ROI: While upfront costs are higher ($200,000–$2 million+), automated machines pay for themselves in 1–3 years through productivity gains and reduced waste.
4. Safety and Compliance
Reduced Human Exposure: Operators work remotely, minimizing risk from abrasive particles, noise (typically ≤85 dB), and dust.
Environmental Compliance: Advanced filtration systems ensure emissions are well below regulatory limits, avoiding fines and reputational damage.
5. Scalability and Flexibility
Multi-Material Capability: Easily switches between steel, aluminum, and stainless steel plates by changing media and adjusting parameters via the HMI.
Modular Design: Can be integrated with upstream/downstream systems (e.g., painting lines, CNC cutters) for fully automated production lines.
Technical Innovations Shaping the Future
1. AI and Machine Learning Integration
Predictive Maintenance: Algorithms analyze sensor data to predict wheel wear, filter clogs, or media depletion, scheduling maintenance before downtime occurs.
Autonomous Process Optimization: ML models learn from historical data to refine blast parameters, improving efficiency by 10–15% over time.
2. Collaborative Robotics (Cobots)
Human-Robot Collaboration: Semi-automated systems allow operators to oversee robotic arms during plate loading, enhancing flexibility in mixed-production environments.
3. Sustainable Design
Eco-Friendly Media: Development of recycled steel grit and biodegradable abrasives (e.g., walnut shell grit) for low-impact applications.
Energy-Regenerative Systems: Blast wheels use regenerative braking to convert kinetic energy into electricity, reducing carbon footprint.
4. Virtual Commissioning and Digital Twins
Pre-Deployment Simulation: Engineers use digital twins to test machine configurations and optimize workflows in a virtual environment, cutting installation time by 30%.
5. Mobile Automated Solutions
Trailer-Mounted Units: Self-contained automatic machines for on-site processing (e.g., at construction sites or shipyards), eliminating the need to transport heavy plates.
Case Study: Automotive Manufacturer Achieves 400% Throughput Increase
Challenge: A leading automotive supplier needed to clean 50,000 steel plates (3 m x 1.5 m x 3 mm) monthly for vehicle chassis, with a manual process causing delays and quality issues.
Solution: Installed a 4-wheel automatic shot blasting machine with steel shot (S110) and a conveyor speed of 4 m/min.
Results:
Cycle time reduced from 15 minutes to 3 minutes per plate.
Surface roughness consistency improved from ±20 microns to ±5 microns.
Labor costs dropped by $120,000 annually, with zero safety incidents related to blasting.
Achieved ISO 8501-1 Sa2.5 compliance for all plates, ensuring flawless powder coating adhesion.
Choosing the Right Automatic Steel Plate Shot Blasting Machine
Key Considerations
1. Plate Dimensions and Throughput:
Ensure the machine’s chamber width (e.g., 2–6 m) and conveyor load capacity (e.g., 5–50 tons) match your largest plates and production volume.
2. Surface Finish Requirements:
For high-corrosion environments (e.g., offshore), prioritize machines capable of Sa3 finishes with aggressive steel grit.
For delicate surfaces (e.g., stainless steel), look for models with adjustable wheel speed and ceramic media compatibility.
3. Integration Capability:
Check if the machine can connect with your existing ERP system, quality control software, or robotic painting lines.
4. Vendor Support and Training:
Choose suppliers (e.g., Wheelabrator, Pangborn, DISA) that offer 24/7 technical support, remote diagnostics, and operator training programs.
Maintenance Best Practices for Automated Systems
Daily Checks: Inspect conveyor belts for alignment, clean dust collector filters, and monitor media levels.
Weekly Maintenance: Lubricate robotic arm joints, test emergency stop mechanisms, and analyze sensor data for anomalies.
Annual Overhaul: Replace blast wheel components (e.g., blades, impellers) based on usage, typically every 2,000–3,000 hours.
Software Updates: Regularly update PLC and HMI firmware to benefit from new features and security patches.
Future Outlook: The Next Generation of Automation
Autonomous Mobile Robots (AMRs): Self-navigating machines that transport plates between storage, blasting, and painting without fixed conveyors.
3D Printing Integration: Automated systems that clean and finish 3D-printed steel components with complex geometries, using AI to adapt blast patterns.
Blockchain for Quality Tracking: Digital ledgers that record every plate’s processing history, ensuring traceability and compliance with industry standards.
| Machine Type | Initial Cost | Annual Operational Cost | Typical ROI Timeline | Key Cost Drivers |
|---|
| Small Automated (2 m chamber) | $200,000–$500,000 | $20,000–$40,000 | 1.5–2 years | - Equipment: Compact blast cabinets, basic automation.
- Operations: Low media usage (50–100 kg/day), minimal labor (1–2 operators). |
| Medium Industrial (4 m chamber) | $500,000–$1.2M | $40,000–$80,000 | 1–1.5 years | - Equipment: Larger chambers, conveyor systems, advanced dust filtration.
- Operations: Higher media flow (200–500 kg/day), moderate labor (2–3 operators). |
| Large Robotic (6 m chamber) | $1.2M–$2M+ | $80,000–$150,000 | 2–3 years (high-volume) | - Equipment: Robotic arms, integrated recycling systems, complex controls.
- Operations: Heavy media consumption (500–1,000+ kg/day), specialized technicians for programming/maintenance. |
- Equipment:
- Small systems: Include blast cabinets, basic compressors, and manual controls.
- Medium/Industrial systems: Add conveyors, automated media recycling, and advanced safety features (e.g., explosion-proof lighting).
- Robotic systems: Include robotic arms, sensors, and PLC (programmable logic controller) systems for automation.
- Infrastructure:
- Ventilation systems, concrete foundations, and electrical upgrades (critical for industrial/robotic setups).
- Compliance costs (e.g., EPA-approved dust collectors for large systems).
- Media Consumption:
- Steel grit/shot: $0.5–$1.5/kg, depending on recycling efficiency.
- Disposable media (e.g., ceramic beads): $2–$5/kg, higher for specialty applications.
- Labor:
- Small systems: $30,000–$60,000/year (1–2 operators).
- Robotic systems: $80,000–$120,000/year (includes engineers for programming and maintenance).
- Maintenance:
- Nozzles/wheels: $2,000–$5,000/year for replacements.
- Filters/dust collectors: $5,000–$10,000/year for cleaning/replacement.
- Energy:
- Compressors: $10,000–$30,000/year for electricity (higher for high-pressure systems).
- Throughput:
- Industrial systems process 5–10x more parts daily than small automated units, reducing cost per part.
- Robotic systems save labor costs by eliminating manual operation (e.g., 50% labor reduction for complex parts).
- Material Savings:
- Recycling systems in industrial/robotic setups reduce media waste by 80–95%, lowering annual costs by $20,000–$50,000.
- Value-Added Services:
- Robotic precision allows higher-paying contracts (e.g., aerospace, medical devices), increasing revenue by 20–30%.
