Understanding the Steel Plate Shot Blasting Process
What is Shot Blasting?
Shot blasting is a surface treatment method that propels high-velocity abrasives—such as steel shot, grit, or ceramic media—onto metal surfaces to clean, descale, or texture them. For steel plates, this process is essential for:
Removing mill scale (a thin layer of iron oxides formed during hot rolling).
Eliminating rust, oil, grease, or paint residues.
Creating a uniform surface profile that enhances adhesion for coatings, paints, or welds.

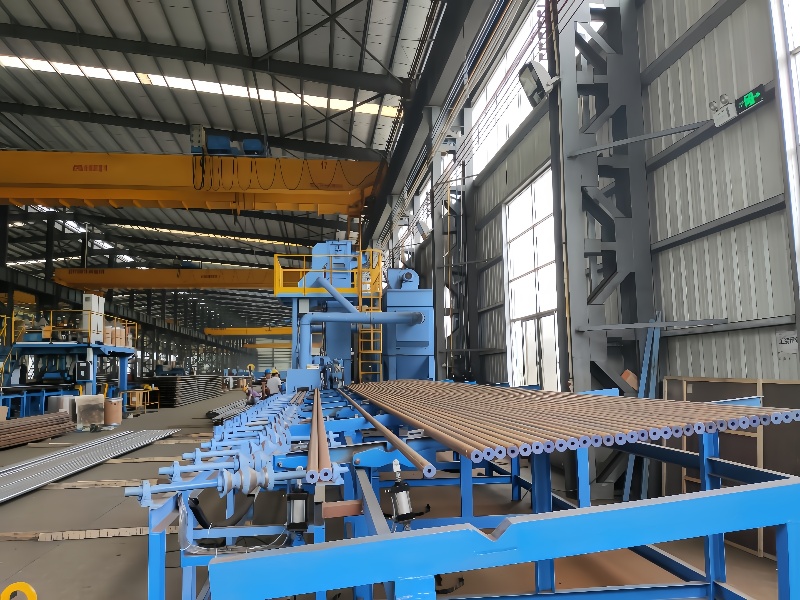

Core Components of a Steel Plate Shot Blasting Machine
A typical machine consists of:
1. Blast Wheel Assembly:
High-speed centrifugal wheels (rotating at 1,500–3,000 RPM) accelerate abrasives to speeds of 60–150 mph, delivering impact force to the steel plate’s surface.
Multiple wheels are often arranged at strategic angles (e.g., 45° or 90°) to ensure full coverage of the plate’s upper and lower surfaces.
2. Conveyor System:
Transports steel plates through the blasting chamber at a controlled speed (0.5–5 meters per minute), allowing consistent treatment across the entire surface.
3. Abrasive Media System:
Media Types:
Steel Shot: Rounded, ideal for peening (strengthening) and moderate cleaning.
Steel Grit: Angular, used for aggressive scale removal and creating rough surface profiles.
Stainless Steel Media: Corrosion-resistant, suitable for high-grade steel plates.
Recycling Loop: Used abrasives are collected, separated from contaminants via magnetic separators or vibratory screens, and reused, with a typical recycling efficiency of 95%.
4. Dust Collection System:
HEPA filters and cyclonic separators capture fine dust and particulates, ensuring compliance with EPA, OSHA, or EU emission standards (e.g., ≤10 mg/m³ airborne dust).
5. Control Panel:
Operators adjust parameters like wheel speed, conveyor velocity, media flow rate, and blast duration to tailor the process for different plate thicknesses (e.g., 2–100 mm) and surface requirements.
The Step-by-Step Shot Blasting Process
1. Pre-Processing Preparation
Plate Inspection: Identify defects like warping or severe corrosion that may require pre-treatment.
Loading: Plates are loaded onto the conveyor system, which feeds them into the blasting chamber. For heavy plates (e.g., >50 mm thick), overhead cranes or magnetic lifters are used.
2. Blasting Chamber Operation
Abrasive Impact: As plates pass through the chamber, blast wheels propel abrasives at their surfaces, striking contaminants and scale with kinetic energy. The angular grit chips away at stubborn deposits, while rounded shot peens the surface to improve fatigue resistance.
Dual-Side Cleaning: Many machines feature upper and lower blast wheels to clean both sides of the plate simultaneously, reducing cycle time.
Surface Profile Formation: The blasting action creates a roughness (measured in micrometers or mils) that enhances coating adhesion. For example, a Sa2.5 finish (ISO 8501-1) requires a surface roughness of 40–75 microns.
3. Media Recovery and Separation
Gravity-Fed Collection: Used abrasives and debris fall into a hopper at the bottom of the chamber.
Magnetic Separation: Ferromagnetic contaminants (e.g., rust particles) are removed, while non-magnetic debris (e.g., paint chips) are filtered out.
Size Classification: A vibratory screen or cyclone separates media by particle size, ensuring only uniform, undamaged abrasives are recycled.
4. Post-Blasting Treatment
Dust Removal: An air blow-off system or brush cleaner removes residual abrasive particles from the plate surface.
Quality Inspection: Plates are checked for cleanliness (e.g., using ISO visual standards) and surface roughness (via profilometers).
Downstream Processing: Cleaned plates may proceed to painting, galvanizing, welding, or further fabrication.
Applications Across Industries
The steel plate shot blasting process is indispensable in diverse sectors, each with unique surface treatment needs:
1. Construction and Infrastructure
Structural Steel:
Cleans I-beams, channels, and plates for bridges, buildings, and stadiums, removing mill scale to ensure proper weld penetration and paint adhesion.
Example: A 30-mm-thick steel plate for a bridge girder may require a Sa3 finish (white metal blast) to maximize corrosion resistance in coastal environments.
Offshore Platforms:
Prepares steel plates for marine-grade coatings, protecting against saltwater corrosion and harsh weather.
2. Shipbuilding and Marine Engineering
Hull Construction:
Removes rust and marine growth from recycled steel plates, enabling reuse in ship hulls or bulkheads.
Meets IMO (International Maritime Organization) standards for surface cleanliness to prevent biofouling and structural degradation.
3. Automotive and Heavy Machinery
Vehicle Frames and Components:
Cleans steel plates for truck chassis, agricultural equipment, and industrial machinery, enhancing the durability of powder-coat finishes.
Railway Equipment:
Refurbishes locomotive parts and railcar components, extending service life by removing wear debris and corrosion.
4. Energy and Power Generation
Wind Turbine Structures:
Prepares steel plates for tower sections, ensuring corrosion resistance in offshore wind farms.
Oil and Gas Storage Tanks:
Cleans interior and exterior surfaces of storage tanks to prevent rust and chemical corrosion, critical for safety and compliance with API standards.
5. Metal Fabrication and Machinery Manufacturing
Heavy Equipment Parts:
Cleans plates for industrial presses, cranes, and mining machinery, removing welding slag and heat-treatment scale.
Custom Fabrication:
Enables precise surface preparation for artistic or architectural steel projects, such as decorative panels or sculptural elements.
Advantages of the Steel Plate Shot Blasting Process
Compared to traditional methods like sandblasting, chemical cleaning, or manual grinding, shot blasting offers distinct advantages:
1. Superior Cleaning and Surface Preparation
Complete Contaminant Removal: Effectively eliminates mill scale, rust, and coatings that are challenging to remove by other means.
Uniform Surface Profile: Ensures consistent roughness across large plates, critical for achieving even coating coverage and preventing premature paint failure.
2. Enhanced Mechanical Properties
Shot Peening Benefits: Rounded steel shot induces compressive stresses in the surface layer, improving the plate’s fatigue strength and resistance to cracking. This is vital for components subjected to dynamic loads, such as crane beams or aerospace structures.
3. Operational Efficiency
High Throughput: Automated conveyor systems allow continuous processing of multiple plates, with cycle times as low as 5–10 minutes per plate for standard applications.
Reduced Labor Costs: Eliminates the need for manual scraping or grinding, reducing labor requirements by up to 70% in high-volume settings.
4. Cost-Effective and Sustainable
Media Recycling: Closed-loop systems reduce abrasive consumption, with some machines achieving a media lifespan of 100+ cycles.
Low Environmental Impact: Dry process generates minimal waste compared to wet blasting, and modern dust collection systems minimize airborne pollutants.
5. Versatility and Scalability
Adaptable to Plate Sizes: Machines can handle plates as small as 1 m² or as large as 30 m² (e.g., for ship hull sections).
Customizable Parameters: Adjustments to wheel speed, media type, and conveyor speed allow treatment of delicate alloys (e.g., stainless steel) or heavy-duty carbon steel.
The choice of blasting media directly impacts surface finish, cleaning efficiency, and material integrity. Below is a detailed breakdown of media types, particle sizes, and their ideal applications, along with the resulting surface roughness ranges:
| Media Type | Particle Size | Ideal Application | Surface Roughness (μm) |
|---|
| Steel Shot | S110–S390 | - Peening to enhance fatigue resistance
- Light rust removal
- Surface strengthening (e.g., automotive components) | 20–50 |
| Steel Grit | G10–G80 | - Aggressive removal of heavy scale, paint, or weld slag
- Preparing steel for coating (e.g., bridges, tanks) | 50–100 |
| Stainless Steel Grit | SG25–SG100 | - Cleaning corrosion-sensitive materials (e.g., 304/316 stainless steel)
- Avoiding iron contamination in high-purity environments | 30–80 |
| Ceramic Beads | 80–220 mesh | - Deburring delicate components (e.g., aerospace parts)
- Polishing non-ferrous metals (aluminum, copper)
- Gentle surface finishing without abrasion | 10–30 |
Material Compatibility:
- Use stainless steel grit for non-ferrous metals or corrosion-sensitive alloys to prevent cross-contamination.
- Avoid steel media on soft materials (e.g., aluminum) to prevent embedding or excessive roughness.
Surface Finish Requirements:
- For painted or coated surfaces, aim for 50–75 μm roughness (e.g., steel grit G25–G40).
- For peening applications (e.g., improving fatigue life), use steel shot with controlled particle sizes (e.g., S170–S230).
Abrasive Recycling:
- Dense media like steel shot/grit can be recycled multiple times (ideal for high-throughput systems).
- Fragile media like ceramic beads are often single-use and suitable for low-volume, precision tasks.
Environmental Impact:
- Reusable media (e.g., steel) reduce waste, while disposable media (e.g., baking soda for soda blasting) are better for eco-sensitive sites.
- Test on Substrates: Always conduct a small-scale trial to validate roughness and cleanliness before full-scale application.
- Monitor Media Wear: Regularly inspect media for fragmentation (e.g., steel grit breaking down into smaller particles), as worn media reduces efficiency.
- Segregate Media Types: Store different media in labeled containers to prevent cross-contamination (critical for stainless steel or food-grade applications).
2. Key Process Parameters
Blast Wheel Speed: Higher speeds (e.g., 3,000 RPM) increase abrasive velocity for tougher cleaning, while lower speeds (1,500 RPM) are gentler for thin plates.
Conveyor Speed: Slower speeds (e.g., 1 m/min) allow more abrasive impact for heavy scale, while faster speeds (5 m/min) suit light cleaning.
Media Flow Rate: Adjusted based on plate thickness; thicker plates may require 20–30% more media to ensure deep penetration.
3. Quality Control Standards
ISO 8501-1: Specifies surface cleanliness levels (e.g., Sa1 = low, Sa3 = near-white metal).
NACE SP-01-88: Defines standards for corrosion control in the oil and gas industry.
SSPC-SP 10: Requires “near-white” blast cleaning for high-performance coatings.
4. Safety and Maintenance
Operator Protection: Mandatory PPE includes respirators, earplugs, safety glasses, and anti-abrasive clothing.
Machine Maintenance:
Regularly inspect blast wheels for wear (replace every 500–1,000 hours of operation).
Clean dust collectors daily to prevent filter clogging and maintain airflow efficiency.
Innovations in Steel Plate Shot Blasting Technology
1. Automated and Robotic Systems
AI-Driven Controls: Machine learning algorithms analyze plate surface conditions in real time, adjusting blast parameters to optimize cleaning efficiency and reduce media waste.
Robotic Blast Cells: Articulated robots with 3D vision systems can navigate complex plate geometries (e.g., curved or profiled surfaces), ensuring uniform treatment without over-blasting.
2. Energy-Efficient Designs
Regenerative Drives: Blast wheels use regenerative braking to recover energy, reducing electricity consumption by up to 25%.
Hybrid Media Systems: Combine steel shot with recycled glass or plastic media for eco-friendly cleaning in sensitive environments.
3. Modular and Mobile Solutions
Portable Shot Blasting Units: Trailer-mounted machines allow on-site processing of large steel plates (e.g., in shipyards or construction sites), eliminating transportation costs and delays.
4. Smart Monitoring and Predictive Maintenance
IoT Sensors: Track wheel vibration, media flow, and filter pressure, sending alerts when maintenance is needed (e.g., worn wheel blades or clogged filters).
Digital Twins: Virtual models of the machine simulate process parameters to predict performance and optimize throughput.
5. Sustainable Practices
Waterless Cleaning: Eliminates wastewater treatment costs and environmental impact compared to wet blasting methods.
Circular Economy Integration: Uses 100% recycled steel media in some applications, reducing reliance on virgin materials.
Case Study: Shot Blasting in Offshore Wind Farm Construction
Challenge: A major offshore wind farm required 5,000 steel plates (12 m x 4 m x 50 mm) for tower foundations, exposed to harsh saltwater conditions. The plates had heavy mill scale and required a Sa2.5 finish for applying zinc-rich primer.
Solution: A dual-wheel shot blasting machine with steel grit (G25) was used, operating at 2,500 RPM with a conveyor speed of 1.5 m/min.
Results:
Plates achieved a surface roughness of 65 μm, exceeding the required Sa2.5 standard.
Processing time was reduced from 8 hours per plate (manual grinding) to 1.5 hours per plate, saving 32,500 labor hours.
Media recycling reduced abrasive costs by 60%, with a total project ROI achieved in under 6 months.
Choosing the Right Shot Blasting Machine
When selecting a machine, consider:
1. Plate Dimensions: Ensure the chamber width, height, and conveyor load capacity can accommodate your largest plates.
2. Production Volume: Continuous-feed machines are ideal for high-volume fabrication, while batch-processing units suit smaller shops.
3. Surface Finish Requirements: Match media type and wheel speed to the desired cleanliness and roughness standards.
4. Environmental Compliance: Opt for machines with advanced dust collection and low noise levels (e.g., <85 dB) for indoor use.
Leading manufacturers like Wheelabrator, Pangborn, and DISA offer customizable solutions, with prices ranging from $50,000 for compact units to $1 million+ for large-scale automated systems.
