Steel Pipe Shot Blasting Machine

In the dynamic landscape of modern industrial manufacturing, the demand for efficient, reliable, and high-performance surface treatment solutions has never been greater. Steel pipes, a cornerstone of industries ranging from oil and gas to construction and automotive, require meticulous surface preparation to ensure durability, corrosion resistance, and adherence to coating systems. At the forefront of this critical process stands the steel pipe shot blasting machine, a sophisticated piece of equipment designed to transform raw or used steel pipes into precision-engineered components through advanced abrasive blasting technology. This comprehensive guide explores the principles, applications, technological advancements, and operational benefits of steel pipe shot blasting machines, shedding light on their indispensable role in modern industrial workflows.

technical consultation

Video

Understanding Steel Pipe Shot Blasting Machines

A steel pipe shot blasting machine, also known as a steel pipe shot peening machine or surface cleaning machine, is a specialized industrial tool that utilizes high-velocity abrasive media—such as steel shots, grit, or beads—to clean, descale, and roughen the surface of steel pipes. The process, rooted in the concept of shot blasting(a form of abrasive blasting), involves propelling these media at high speeds using centrifugal wheels or air pressure, striking the pipe’s surface to remove contaminants, rust, mill scale, paint, and other imperfections.

Key Components and Working Mechanism

1. Feeding System:

Transports steel pipes into the blasting chamber, often via a conveyor belt, roller table, or automated loader.

Ensures precise alignment and steady movement for uniform treatment.

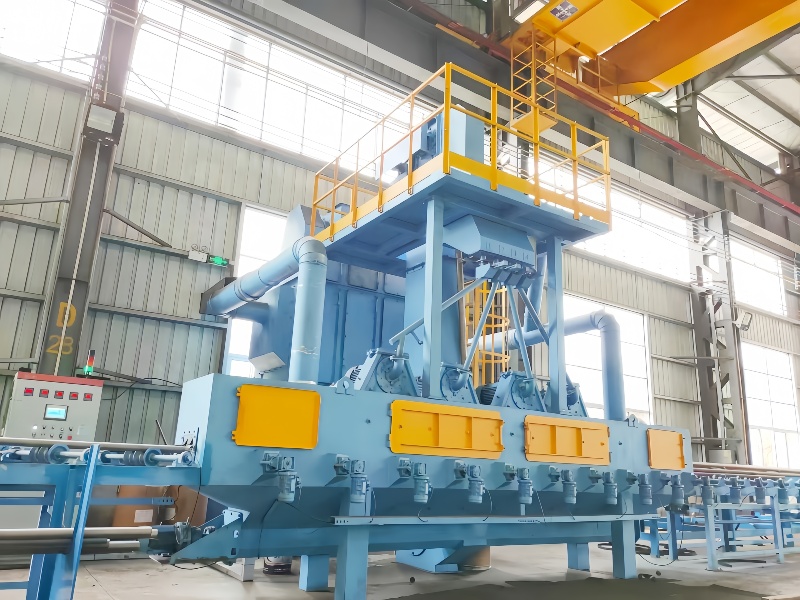

2. Blasting Chamber:

The enclosed core of the machine where the blasting process occurs.

Equipped with centrifugal turbines(rotating wheels) or air nozzles that accelerate abrasive media to speeds of 60–120 meters per second.

Lined with wear-resistant materials (e.g., manganese steel, rubber) to withstand prolonged abrasion.

3. Abrasive Media:

Steel Shots: Rounded particles for surface peening and stress relief (common in automotive and aerospace).

Steel Grit: Angular particles for aggressive cleaning and surface roughening (ideal for heavy-duty rust removal).

Ceramic Beads/Glass Beads: Used for delicate surfaces to avoid excessive erosion (e.g., aluminum pipes).

4. Separation and Recycling System:

After blasting, a combination of cyclones, screens, and air washers separates spent media from dust and debris.

Reusable media is recycled back into the blasting process, minimizing waste and operational costs.

5. Dust Collection System:

Integrates industrial vacuums or bag filters to capture fine dust and particulate matter, ensuring compliance with environmental and safety standards.

Types of Steel Pipe Shot Blasting Machines

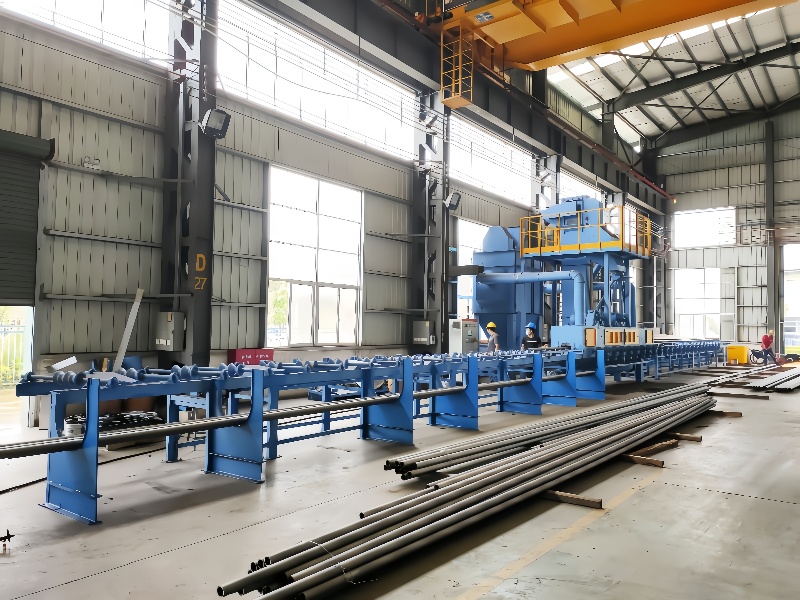

Through-Type Shot Blasting Machines:

Designed for continuous processing of long pipes (e.g., 6–12 meters), ideal for high-volume production lines. Pipes are fed through the chamber on a conveyor, with turbines positioned to blast all exterior surfaces.

Inline Rotary Shot Blasting Machines:

Features a rotating table or spindle that holds pipes vertically or horizontally, allowing 360° blasting. Suitable for shorter pipes or batch processing.

Internal Shot Blasting Machines:

Equipped with specialized nozzles or rods that extend into the pipe’s interior, cleaning the inner surface. Critical for pipes used in fluid transport or structural applications where internal corrosion is a risk.

Portable Shot Blasting Units:

Compact, mobile machines for on-site treatment of large pipes or structures, such as pipelines in oil fields or offshore platforms.

Applications Across Industries

Steel pipe shot blasting machines are integral to a wide range of sectors, each with unique surface treatment requirements:

1. Oil and Gas Industry

Pipe Reconditioning: Rejuvenates used drill pipes, casings, and tubing by removing rust, scale, and chemical residues, extending their service life.

Coating Preparation: Ensures rough, clean surfaces for applying anti-corrosive coatings (e.g., epoxy, fusion-bonded epoxy), critical for subsea and High Pressure environments.

Safety Compliance: Meets stringent industry standards (e.g., API specifications) for pipe integrity and corrosion resistance.

2. Construction and Infrastructure

Structural Steel Pipes: Cleans and prepares pipes for bridges, buildings, and industrial frameworks, enhancing paint adhesion and preventing weathering.

Pipeline Installation: Pre-treats steel pipes for water, gas, or sewage systems, reducing maintenance costs and improving longevity.

Demolition and Recycling: Restores salvaged pipes for reuse, aligning with sustainability goals.

3. Automotive and Aerospace

Exhaust Systems and Tubing: Shot blasting improves surface finish and stress resistance in automotive pipes, reducing noise and enhancing durability.

Aerospace Components: Delicate blasting with ceramic media ensures precise surface preparation for aircraft tubing without compromising material integrity.

4. Manufacturing and Fabrication

Metalworking Shops: Prepares pipes for welding, cutting, or bending by removing contaminants that could compromise structural integrity.

Heavy Machinery: Treats pipes used in excavators, cranes, and agricultural equipment, ensuring resistance to abrasion and harsh conditions.

5. Marine and Offshore

Shipbuilding: Cleans hull pipes and offshore platforms to combat saltwater corrosion, a leading cause of structural failure in marine environments.

Subsea Pipelines: Ensures thorough internal and external cleaning for pipelines laid on the ocean floor, where maintenance is challenging and costly.

Technological Advancements in Shot Blasting Technology

The evolution of steel pipe shot blasting machines has been driven by the need for higher efficiency, precision, and sustainability. Below are key innovations shaping the industry:

1. Automated and CNC Integration

Computer Numerical Control (CNC) Systems: Allow operators to program blasting parameters (e.g., media type, speed, exposure time) with precision, ensuring consistent results across batches.

Robotic Arm Technology: Deploy robotic arms with adjustable nozzles to target complex geometries or hard-to-reach areas, reducing manual labor and improving accuracy.

2. Eco-Friendly Design

Energy-Efficient Turbines: Modern machines use high-efficiency motors and aerodynamic turbine designs to reduce energy consumption by up to 30%.

Closed-Loop Recycling Systems: Advanced separation technology minimizes media waste, with some systems achieving up to 99% media recycling rates.

Dust Filtration Upgrades: High-efficiency particulate air (HEPA) filters and electrostatic precipitators ensure compliance with strict emission standards (e.g., OSHA, EPA), protecting workers and the environment.

3. Remote Monitoring and IoT Connectivity

Internet of Things (IoT) Sensors: Monitor real-time machine performance (e.g., turbine speed, media levels, temperature) via cloud-based platforms, enabling predictive maintenance and reducing downtime.

Remote Diagnostics: Allows technicians to troubleshoot issues and optimize settings from off-site, enhancing operational flexibility.

4. Multi-Media and Hybrid Blasting

Dual-Media Systems: Combine different abrasives (e.g., steel shot and glass beads) in a single machine, enabling sequential or simultaneous blasting for multi-stage surface treatment.

Wet Blasting Options: Integrate water with abrasive media to suppress dust and reduce heat generation, suitable for heat-sensitive materials or indoor environments.

5. Modular and Compact Designs

Modular Machines: Allow easy reconfiguration for different pipe sizes or processing requirements, making them suitable for versatile manufacturing setups.

Space-Saving Models: Compact designs cater to smaller workshops or on-site operations, without compromising on performance.

Benefits of Steel Pipe Shot Blasting Machines

Implementing a shot blasting machine in industrial workflows offers numerous advantages over traditional surface treatment methods (e.g., manual scraping, chemical cleaning):

1. Superior Surface Quality

Uniform Cleanliness: Removes all forms of surface contamination, achieving cleanliness standards such as Sa2.5 (near-white metal) or Sa3 (white metal), as per ISO 8501-1.

Optimal Surface Profile: Creates a rough texture that enhances the adhesion of paints, coatings, and adhesives, reducing the risk of peeling or corrosion undercoat.

2. Enhanced Efficiency and Productivity

High-Speed Processing: Blasting rates can reach thousands of square feet per hour, significantly faster than manual or chemical methods.

Continuous Operation: Through-type machines enable 24/7 production, ideal for high-volume industries.

Reduced Labor Costs: Minimizes reliance on manual labor, lowering operational expenses and improving workplace safety.

3. Cost-Effectiveness

Long-Term Savings: By extending the lifespan of steel pipes and reducing maintenance needs, shot blasting offers a high return on investment (ROI).

Media Reusability: Recyclable abrasives lower consumable costs compared to disposable blasting materials (e.g., sand).

4. Versatility and Precision

Adaptability to Pipe Sizes: Handles pipes from small diameters (e.g., 1 inch) to large industrial pipes (e.g., 120 inches), with adjustable settings for different materials (steel, aluminum, cast iron).

Controlled Surface Treatment: Technicians can fine-tune parameters to achieve specific surface finishes, from aggressive descaling to gentle peening.

5. Environmental and Safety Compliance

Reduced Chemical Use: Eliminates the need for harsh solvents or acids, aligning with green manufacturing practices.

Safer Work Environments: Enclosed blasting chambers and advanced dust collection systems protect workers from airborne particulates and noise pollution.

Challenges and Considerations in Shot Blasting Machine Operation

While steel pipe shot blasting machines offer significant benefits, their effective use requires addressing several challenges:

1. Initial Investment and Maintenance

High Upfront Costs: Industrial-grade machines can be expensive, though modular or used systems may offer more budget-friendly options.

Wear and Tear: Regular maintenance of turbines, belts, and chamber linings is essential to prevent performance degradation. Scheduled inspections and replacement of worn parts (e.g., impeller blades, blasting wheels) are critical.

2. Media Selection and Recycling

Incorrect Media Choice: Using the wrong abrasive (e.g., too coarse or too soft) can lead to under-treatment or excessive surface damage.

Media Contamination: Ensuring proper separation of dust and debris is vital to prevent recycled media from becoming less effective over time.

3. Operator Training and Safety

Skill Requirement: Operators must be trained to adjust parameters (e.g., blasting pressure, conveyor speed) to avoid over-processing or inconsistent results.

Safety Protocols: Workers must wear appropriate personal protective equipment (PPE), including respirators, ear protection, and eye shields, to mitigate risks from flying debris and noise.

4. Environmental Impact

Waste Management: Spent media and dust must be disposed of properly to comply with environmental regulations. Some abrasives, like copper slag or coal slag, may contain hazardous materials requiring special handling.

Noise Pollution: Shot blasting machines can generate high noise levels (often exceeding 90 dB), necessitating soundproofing or noise-reducing enclosures in populated areas.

Choosing the Right Steel Pipe Shot Blasting Machine

Selecting the appropriate machine depends on several factors:

1. Pipe Specifications

Size and Length: Ensure the machine’s chamber and conveyor can accommodate the largest pipes in your workflow.

Material and Thickness: Thicker steel may require more aggressive abrasives, while thin-walled pipes need gentler treatment to avoid damage.

2. Production Volume

Batch vs. Continuous Processing: Through-type machines are ideal for high-volume production, while inline or portable units suit smaller batches or on-site work.

3. Surface Treatment Goals

Cleanliness Standard: Determine the required ISO or industry-specific cleanliness level (e.g., Sa2.5 for coatings, Sa3 for critical applications).

Surface Profile: Specify the desired roughness (measured in micrometers or mils) to ensure compatibility with subsequent coatings or processes.

4. Budget and Operational Costs

Initial Cost vs. Long-Term Savings: Evaluate energy efficiency, media recycling rates, and maintenance needs to calculate total cost of ownership (TCO).

Vendor Support: Choose suppliers offering reliable after-sales service, training, and spare parts availability.

5. Environmental and Safety Compliance

Emission Standards: Ensure the machine meets local air quality and noise regulations.

Waste Management Features: Prioritize models with efficient dust collection and media recycling systems to minimize environmental impact.

Basic Parameter

Future Trends in Shot Blasting Technology

As industries strive for greater efficiency and sustainability, the following trends are shaping the future of steel pipe shot blasting:

1. AI and Machine Learning Integration:

Predictive analytics to optimize blasting parameters and schedule maintenance automatically.

Real-time quality control via computer vision systems that inspect pipe surfaces for uniformity.

2. Sustainability-Driven Innovations:

Development of biodegradable or recycled abrasives (e.g., crushed glass, olive pit shells) to reduce reliance on steel media.

Solar-powered or hybrid machines to lower energy consumption in off-grid locations.

3. Advanced Automation:

Fully automated systems with minimal human intervention, including robotic loading/unloading and self-diagnostic capabilities.

Integration with factory-wide automation systems (e.g., PLCs, SCADA) for seamless workflow management.

4. Niche Applications and Specialized Machines:

Custom-designed machines for cleaning exotic materials (e.g., stainless steel, Inconel) or pipes with intricate internal geometries.

Portable units with enhanced mobility for remote or offshore operations, such as in renewable energy projects (e.g., wind farm pipelines).

The steel pipe shot blasting machine is a testament to industrial innovation, bridging the gap between raw material and finished product with precision and efficiency. From rejuvenating oilfield pipes to preparing structural components for skyscrapers, these machines play a pivotal role in ensuring the durability and performance of steel infrastructure worldwide. As technology continues to advance—driven by automation, sustainability, and smart manufacturing—the shot blasting industry will undoubtedly evolve to meet the ever-growing demands of modern industry, solidifying its place as a cornerstone of surface treatment excellence.

For businesses seeking to enhance their pipe manufacturing or maintenance processes, investing in a high-quality shot blasting machine is not just a choice—it’s a strategic imperative to stay competitive in a global market where quality, efficiency, and environmental responsibility reign supreme. By embracing the latest advancements and prioritizing proper operation and maintenance, industries can unlock the full potential of this transformative technology, driving productivity and innovation for decades to come.
