Core Design Principles of Portable Sandblaster Tanks

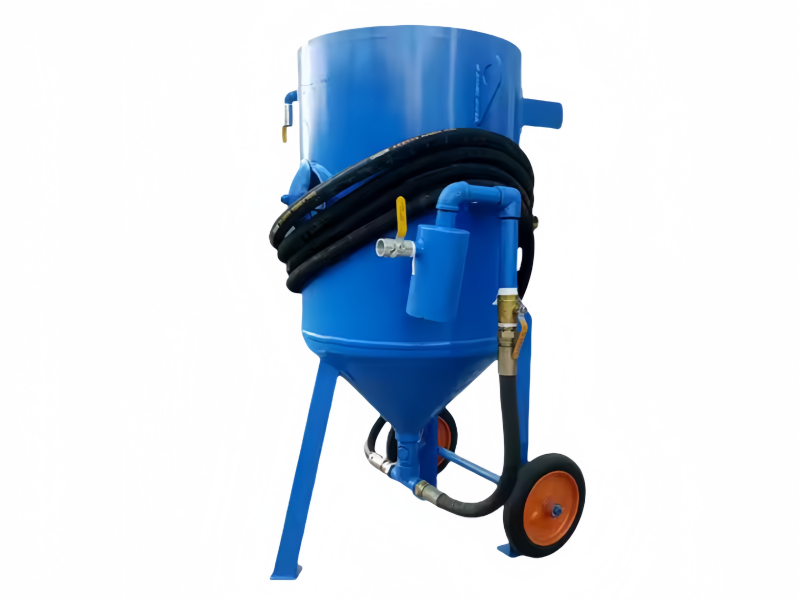

Compact and Lightweight Construction
The primary design goal of a portable sandblaster tank is mobility. Most units feature a streamlined shape with a capacity ranging from 5 to 50 liters, constructed from high strength yet lightweight materials such as aluminum, stainless steel, or impact resistant polymers. For example, aluminum tanks offer corrosion resistance and low weight (typically 5 10 kg when empty), while stainless steel models provide durability for heavy duty use. Ergonomic handles or wheels are often integrated for easy transportation, allowing users to carry or roll the tank across job sites.
Pressure System Optimization
Portable tanks utilize a compressed air system to accelerate abrasive particles. The design typically includes:
Pressure Vessel: A sealed chamber that holds the abrasive media and compressed air. Pressure ratings usually range from 60 to 150 PSI (pounds per square inch), with safety valves to prevent over pressurization.
Air Regulator: Adjusts the air pressure to control the blasting intensity. Lower pressures (40 80 PSI) are suitable for delicate surfaces like wood or glass, while higher pressures (100 150 PSI) tackle tough rust or paint on metal.
Venturi Effect Integration: In siphon fed designs, the air stream creates a vacuum that draws abrasive from the tank into the blast hose, eliminating the need for complex pumps or motors.
Abrasive Media Flexibility
Portable tanks are designed to accommodate various abrasive materials, each suited for specific tasks:
Sand: Traditional but increasingly replaced due to silica dust hazards.
Glass Beads: Produce a smooth, non damaging finish on delicate surfaces (e.g., automotive paint stripping).
Steel Shot/Grit: Ideal for heavy duty cleaning of metal, removing rust and scale.
Walnut Shells/Corn Cobs: Biodegradable options for eco friendly blasting on wood or plastic.
The tank’s hopper often includes a mesh screen to filter out oversized particles, ensuring a consistent flow of abrasive.

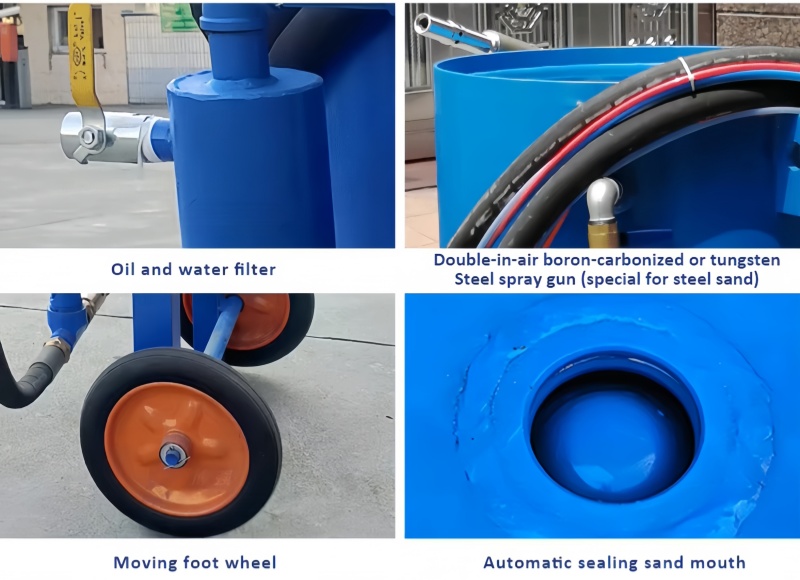

Key Components and Their Functions
Blast Gun and Nozzle
Blast Gun: Typically made of lightweight aluminum or composite materials, with a trigger mechanism to control air and abrasive flow. Siphon fed guns are common in portable units, while direct pressure models offer higher power.
Nozzle: Constructed from tungsten carbide or ceramic for wear resistance. Common sizes range from 3 to 8 mm in diameter. Narrow nozzles produce a concentrated blast for detailed work, while wider nozzles cover larger areas quickly.
Hose and Connection System
Blast Hose: Reinforced rubber or polyurethane hoses, 10 to 50 feet in length, resist abrasion and maintain flexibility in various temperatures.
Quick Connect Fittings: Allow rapid attachment of the hose, gun, and air compressor, minimizing setup time.
Dust Collection and Safety Features
Integrated Dust Bags/Filters: Many portable tanks include a basic dust collection system, such as a fabric bag or cartridge filter, to capture debris and reduce airborne particles.
Safety Valves: Automatic pressure relief valves prevent the tank from exceeding safe pressure limits, while anti static grounding straps reduce the risk of sparks.
Operational Mechanism
Setup and Preparation
1. Abrasive Loading: The tank is filled with the chosen abrasive media through a top loading lid or hopper.
2. Air Connection: The tank is linked to a portable air compressor (typically requiring 5 10 CFM [cubic feet per minute] at 90 PSI).
3. Pressure Adjustment: The air regulator is set based on the workpiece material and desired outcome.
Blasting Process
Compressed air enters the tank, creating pressure that forces abrasive into the blast hose.
At the blast gun, the air stream accelerates the abrasive particles, which exit the nozzle at high speed (up to 200 mph).
The abrasive impacts the surface, removing contaminants or altering the texture. Used abrasive and dust fall away, with some systems recycling reusable media.
Maintenance-Free vs. Reusable Systems
Disposable Systems: Simple designs where abrasive is used once and discarded (e.g., small scale DIY tanks).
Reusable Systems: Feature a recovery tray or vacuum to collect and sieve abrasive for reuse, reducing waste and cost.
Applications of Portable Sandblaster Tanks
Automotive and Marine Industries
Rust Removal: Ideal for restoring classic cars, removing rust from chassis, engine components, and body panels.
Paint Stripping: Gentle abrasives like glass beads or baking soda safely remove old paint without damaging metal.
Marine Equipment Cleaning: Cleans boat hulls, propellers, and metal fixtures, removing barnacles and corrosion.
Construction and Restoration
Concrete and Masonry: Etches concrete surfaces for coating adhesion or removes graffiti from brick walls.
Wood Refinishing: Uses soft abrasives (e.g., walnut shells) to strip old varnish from wooden decks or furniture without splintering.
Historic Restoration: Delicately cleans stone or metal artifacts in heritage sites, preserving their integrity.
Industrial and DIY Projects
Metal Fabrication: Prepares metal surfaces for welding, painting, or powder coating in small workshops.
Art and Craft: Enables intricate etching on glass, metal, or stone for decorative purposes.
Home Projects: Cleans outdoor furniture, removes rust from tools, or preps surfaces for painting.
Aerospace and Electronics (Specialized Use)
Aerospace Component Cleaning: Uses fine abrasives to clean aircraft parts without damaging sensitive materials.
Electronics Manufacturing: Gently cleans PCBs (printed circuit boards) or removes solder residues.
Advantages Over Traditional Sandblasting Systems
Mobility and Accessibility
Portable tanks can be easily transported to remote sites, eliminating the need for fixed infrastructure. This is crucial for on site repairs, outdoor projects, or locations without permanent workshops.
Cost Efficiency
Lower upfront cost compared to industrial systems.
Reduced material waste in reusable designs, as abrasive can be recycled multiple times.
User Friendly Operation
Minimal training required, with intuitive controls suitable for both professionals and DIY enthusiasts.
Quick setup and teardown, ideal for short term projects.
Versatility in Surface Treatment
Adjustability in pressure and abrasive type allows for gentle or aggressive blasting, adapting to diverse materials and tasks.
Challenges and Limitations
Limited Capacity
Smaller tanks require frequent reloading during large projects, reducing efficiency.
Heavy duty applications may demand larger units, compromising portability.
Dust and Environmental Concerns
Traditional sand blasting generates silica dust, a health hazard if inhaled. Modern tanks often require HEPA filters or respiratory protection.
Disposal of used abrasive and dust must comply with environmental regulations, especially for hazardous materials.
Pressure and Power Constraints
Portable air compressors may not deliver the same power as industrial systems, limiting performance on extremely tough surfaces.
. Maintenance and Safety Guidelines
Regular Maintenance
Abrasive Cleaning: Empty and clean the tank after each use to prevent abrasive buildup and corrosion.
Hose and Nozzle Inspection: Check for wear and tear, replacing damaged parts to avoid leaks or reduced performance.
Pressure System Testing: Verify that safety valves and regulators function correctly, following the manufacturer’s schedule.
Safety Protocols
Personal Protective Equipment (PPE): Always wear a full face respirator with HEPA filters, safety goggles, gloves, and ear protection.
Ventilation: Use the tank in well ventilated areas or with dust extraction systems to minimize dust inhalation.
Electrical Safety: Ensure all connections are grounded to prevent static discharge or electrical hazards.
