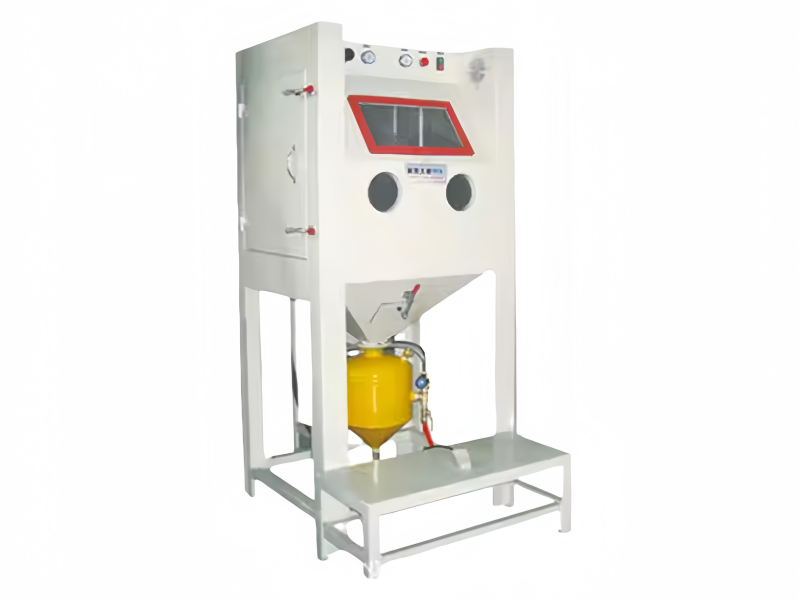

High Pressure Sand Blasting Machine

High Pressure sand blasting machines represent the pinnacle of abrasive blasting technology, designed to tackle the most demanding surface treatment tasks with unmatched efficiency. Unlike standard blasting systems, these machines operate at significantly higher air pressures (typically 100–300 PSI or more), propelling abrasive media at velocities exceeding 150 m/s. This extreme force enables them to remove stubborn contaminants, such as heavy rust, thick paint coatings, mill scale, and even concrete residues, from robust substrates like steel structures, ship hulls, and industrial equipment. This comprehensive guide explores the mechanics, components, applications, technological advancements, and safety considerations of High Pressure sand blasting machines, highlighting their role in modern heavy-duty industries.

technical consultation

Video

Working Principles

The defining feature of High Pressure sand blasting lies in its ability to generate and harness extreme kinetic energy. The process unfolds through three critical phases:

1. Abrasive Acceleration:

A High Pressure air compressor (capable of 150–300 PSI) delivers compressed air to a pressure vessel (blast pot), where it mixes with abrasive media (e.g., steel grit, garnet, or coal slag).

The abrasive-air mixture is forced through a reinforced rubber hose to a tungsten carbide nozzle, which narrows the flow to achieve supersonic velocities (Mach 0.5–0.8).

2. Impact Dynamics:

Upon impact, abrasives act like high-velocity projectiles, mechanically eroding the workpiece surface. The energy transfer is so intense that it can remove up to 1 mm of material per minute from steel.

The resultant surface profile (measured in micrometers) is far rougher than low-pressure blasting, ideal for enhancing the adhesion of heavy-duty coatings like epoxy or zinc-rich primers.

3. Abrasive Recovery and Containment:

In open-air applications, spent abrasives and debris are collected via vacuum systems or mobile recovery units. In enclosed settings (e.g., blast rooms), floor grids and conveyors channel abrasives to recycling systems.

Advanced units may incorporate cyclonic separation to remove dust and fines, with reusable abrasives returning to the blast pot for continuous operation.

Key Technical Parameters

Pressure Range:

Medium-High Pressure: 100–150 PSI (suitable for industrial cleaning, e.g., tank interiors).

Ultra-High Pressure: 200–300 PSI+ (reserved for heavy-duty tasks like ship hull descaling or concrete removal).

Abrasive Selection:

Hardness: Abrasives must match or exceed the workpiece hardness (e.g., steel grit for carbon steel, silicon carbide for stainless steel).

Grain Size: Coarse abrasives (1–3 mm) for rapid material removal; medium grit (0.5–1 mm) for surface profiling.

Nozzle Technology:

Tungsten carbide nozzles (hardness >90 HRC) resist wear at high pressures, with typical lifespans of 50–100 hours in heavy use.

Nozzle design (straight vs. venturi) affects airflow efficiency; venturi nozzles create a vacuum effect to draw additional abrasives, enhancing cutting power.

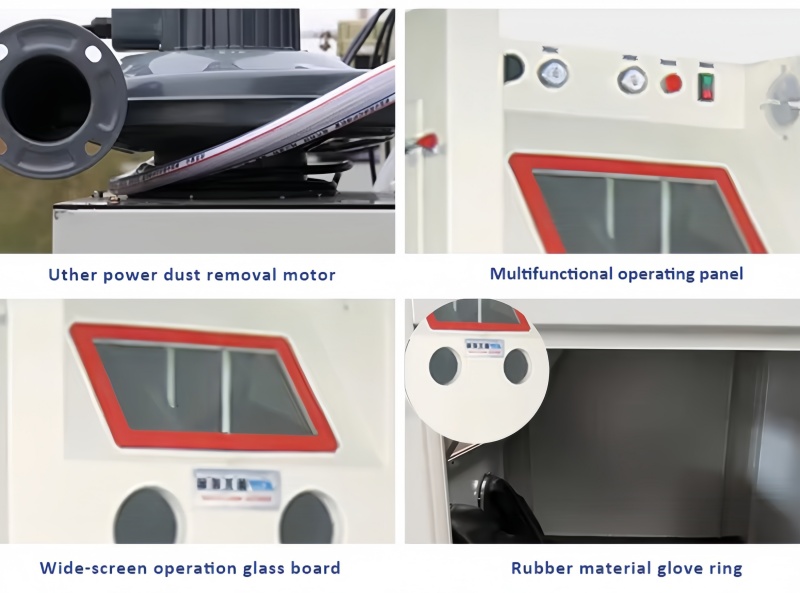

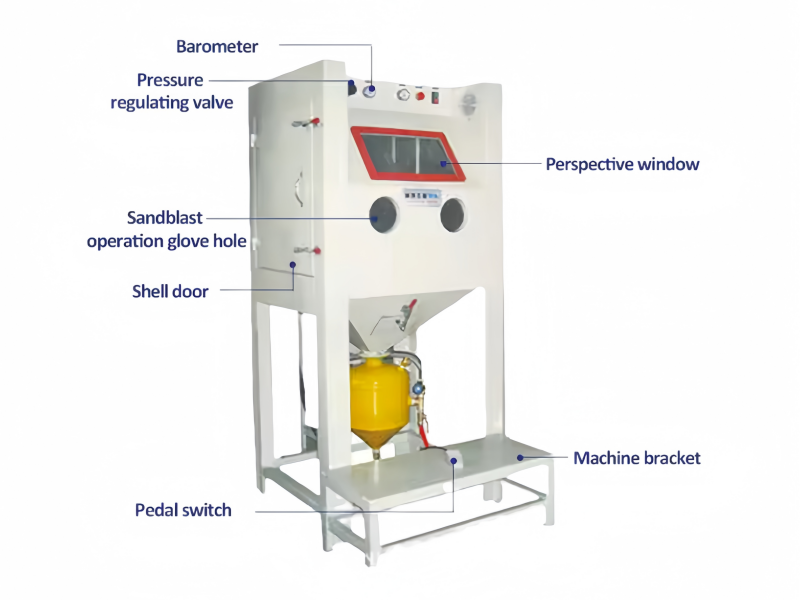

Machine Components and Engineering Design

1. High Pressure Air Supply System

Industrial Compressors:

Rotary screw compressors with outputs of 20–100 CFM (cubic feet per minute) at 150–300 PSI are standard.

Air dryers and filters remove moisture and oil, preventing abrasive clumping and ensuring consistent performance.

Blast Pot:

A pressure-rated vessel (up to 400 PSI) with a dual-valve system (charge and discharge) to maintain continuous abrasive flow.

Features include level sensors to monitor abrasive quantity and pressure gauges for real-time feedback.

2. Abrasive Delivery and Nozzle Assembly

Direct Pressure System:

Unlike siphon-fed systems, High Pressure machines use a direct pressure mechanism, where abrasives are pushed by compressed air from the blast pot to the nozzle.

Hose and Nozzle:

Reinforced rubber hoses (burst pressure 500 PSI+) with anti-static properties prevent sparking in flammable environments.

Adjustable nozzles with quick-change connectors allow rapid switching between tasks (e.g., from wide-area cleaning to pinpoint blasting).

3. Mobile and Stationary Configurations

Mobile Units:

Mounted on trailers or skids, these units include an integrated compressor, blast pot, and abrasive storage. Ideal for on-site applications like bridge maintenance or oil rig decommissioning.

Stationary Blast Rooms:

Enclosed facilities with ventilation systems, overhead cranes, and automated conveyors for high-volume processing (e.g., in shipyards or heavy machinery factories).

4. Dust and Emission Control

High-Efficiency Dust Collectors:

Industrial-grade units with HEPA filters capture 99.97% of particles ≥0.3 microns, critical for managing silica dust when using sand-based abrasives.

Water Injection Systems:

Optional misting nozzles suppress dust by up to 80% in open-air blasting, reducing environmental impact and improving operator safety.

Industrial Applications of High Pressure Sand Blasting

1. Shipbuilding and Marine Industry

Hull Maintenance: Removes marine growth (barnacles, algae), rust, and old anti-fouling paint from ship hulls, preparing surfaces for new coatings to enhance fuel efficiency.

Offshore Platforms: Cleans steel structures exposed to saltwater corrosion, ensuring compliance with Lloyd’s Register and API standards.

2. Heavy Equipment and Infrastructure

Bridge and Steel Structure Restoration:

Removes decades of weathering, lead-based paint, and corrosion from steel bridges, enabling reapplying protective coatings.

Mining Equipment: Cleans excavators, dump trucks, and conveyor systems caked in mud, ore residue, and grease, extending component lifespan.

3. Oil and Gas Sector

Pipeline Decommissioning: Blasts away internal scale and external coatings from retired pipelines, preparing them for recycling or repurposing.

Refinery Maintenance: Cleans reactor vessels, storage tanks, and heat exchangers, removing stubborn residues like coke deposits or chemical buildups.

4. Concrete and Demolition Industries

Concrete Surface Preparation: Etches concrete floors to improve adhesion of epoxy coatings or removes graffiti from masonry walls using garnet abrasives.

Structural Demolition: Selectively removes concrete from steel reinforcements during renovations, a safer alternative to jackhammering.

5. Foundry and Metal Fabrication

Castings Cleaning: Removes sand cores, scale, and burrs from large metal castings (e.g., engine blocks, industrial valves) post-casting.

Heavy-Duty Descaling: Prepares raw steel plates for welding by removing mill scale, ensuring strong, defect-free welds.

Technological Innovations Reshaping the Industry

1. Automation and Robotics

Robotic Blast Systems:

Articulated robots with 6+ axes of movement can follow CAD-generated paths, enabling precise blasting of complex geometries (e.g., turbine blades, aerospace components).

Equipped with 3D vision sensors, these systems adapt to workpiece variations in real time, optimizing pressure and nozzle distance.

Remote-Controlled Units:

Explosion-proof robots allow blasting in hazardous environments (e.g., radioactive sites, confined spaces) without putting operators at risk.

2. Eco-Friendly and Sustainable Solutions

Recyclable Abrasives:

Steel grit and garnet are fully recyclable, with some systems achieving 95%+ recovery rates. Bio-abrasives (e.g., crushed nut shells) offer biodegradability for sensitive environments.

Waterless High Pressure Blasting:

Dry blasting minimizes water usage, crucial in regions with water scarcity. Hybrid systems combine high pressure with minimal water mist to suppress dust without creating slurry waste.

Energy Recovery:

Regenerative compressors capture heat from the air compression process, using it to preheat abrasive media and improve efficiency by up to 15%.

3. Smart Monitoring and IoT Integration

Real-Time Data Logging:

IoT sensors track pressure, abrasive flow, and nozzle wear, sending alerts to operators via cloud-based platforms. For example, a drop in abrasive flow may indicate a clogged hose.

Predictive Maintenance:

Machine learning models analyze vibration and temperature data to predict component failure (e.g., compressor bearings), reducing unplanned downtime by 30–50%.

Augmented Reality (AR) Guides:

AR apps overlay maintenance instructions onto the machine, guiding technicians through nozzle replacement or filter servicing with step-by-step visuals.

4. Advanced Abrasive Technologies

Coated Abrasives:

Abrasives coated with ceramic or polymer layers enhance cutting efficiency while reducing wear on nozzles. For example, ceramic-coated steel grit lasts 20% longer in High Pressure applications.

Cryogenic Blasting:

Combining liquid nitrogen with abrasives embrittles coatings (e.g., rubber, plastic), allowing them to be removed with less pressure, ideal for delicate substrates.

Design Considerations for High Pressure Systems

1. Pressure-Tolerant Engineering

Explosion Safety:

Blast pots and hoses must comply with ASME BPVC (Boiler and Pressure Vessel Code) standards. Relief valves and pressure gauges are mandatory to prevent overpressurization.

Wear Resistance:

Critical components (nozzles, blast pot internals) are made from tungsten carbide,硬化 steel, or polyurethane to withstand millions of abrasive impacts.

2. Operational Flexibility

Multi-Media Capability:

Machines should accommodate various abrasives (metal, mineral, organic) without cross-contamination, requiring quick-change hopper liners and separator screens.

Adjustable Pressure Range:

Variable pressure regulators allow switching from ultra-high pressure (250 PSI) for heavy descaling to medium pressure (100 PSI) for delicate surface profiling on the same machine.

3. Operator Safety and Compliance

Personal Protective Equipment (PPE):

Full-face respirators with HEPA filters, hearing protection (NRR ≥25 dB), and anti-impact suits are mandatory. Powered air-purifying respirators (PAPRs) are recommended for prolonged use.

Remote Operation:

In hazardous settings, operators can control the machine from a safe distance using wireless controls or cabled pendant stations.

Safety Protocols and Regulatory Compliance

1. Hazard Mitigation

Silica Dust Management:

Replace traditional sand with silica-free abrasives (e.g., garnet, olivine) to eliminate silicosis risk. Where sand must be used, implement wet blasting or local exhaust ventilation.

Noise Control:

High Pressure blasting generates noise exceeding 110 dB(A). Enclose machines in sound-dampened booths or use remote operation to protect workers.

Hydrostatic Testing:

Pressure vessels must undergo periodic hydrostatic testing (every 5–10 years) to ensure structural integrity, as per OSHA and ASME guidelines.

2. International Standards

ISO 8501-1: Specifies surface cleanliness levels for blasted steel, ranging from Sa1 (lightly blasted) to Sa3 (white metal blast clean).

NFPA 307: Addresses safety standards for blasting in flammable environments, such as oil refineries.

EU ATEX Directive: Requires machines in explosive atmospheres to have anti-static components and grounding systems.

3. Emergency Procedures

Quick-Release Valves: Instantly depressurize the blast pot in case of hose rupture or nozzle blockage.

First Aid Kits: Stocked with eye wash stations and trauma supplies, as abrasive impacts can cause serious injuries.

Maintenance and Operational Best Practices

1. Preventive Maintenance Schedule

Daily Checks:

Inspect hoses for cracks, test pressure gauges, and ensure the dust collector is functioning.

Weekly Maintenance:

Replace worn nozzles (thickness reduction >20%), clean blast pot filters, and lubricate valve mechanisms.

Monthly Servicing:

Perform a full abrasive sieve analysis to check particle size distribution, calibrate pressure regulators, and inspect compressor oil levels.

2. Abrasive Management

Storage: Keep abrasives in dry, sealed containers to prevent moisture absorption, which can cause clumping in the blast pot.

Recycling Limits: Discard abrasives when they degrade to below 50% of their original size, as undersized particles reduce blasting efficiency.

Basic Parameter

3. Troubleshooting Common Issues

Issue	Root Cause	Step-by-Step Remedy
Reduced Blasting Power	1. Clogged nozzle (obstructed by abrasive residue) 2. Low compressor output (due to leaks, faulty valves, or insufficient maintenance)	- Nozzle: Disassemble the nozzle and clean it with a brush or compressed air. - Compressor: Check air pressure gauges; inspect for air leaks in hoses/fittings. Service the compressor (e.g., replace filters, lubricate moving parts) or upgrade to a higher-output model if needed.
Inconsistent Abrasive Flow	1. Blocked hopper (abrasive buildup or moisture clumping) 2. Faulty pressure regulator (unstable air pressure disrupts media flow)	- Hopper: Empty the hopper and remove clogs using a stick or brush. Ensure abrasives are dry and free of contaminants. - Pressure Regulator: Use a manometer to test regulator accuracy. Recalibrate it to the manufacturer’s recommended PSI or replace it if damaged.
Excessive Dust Emission	1. Failed dust collector filter (clogged or torn) 2. Torn hose in the dust extraction system	- Filter: Replace the dust collector filter (check manufacturer guidelines for replacement intervals). For reusable filters, clean and inspect for tears. - Hose: Inspect all hoses in the dust extraction path for cracks or loose connections. Repair small tears with duct tape or replace the hose entirely if damaged.
Nozzle Wear After 20 Hours	Using incompatible abrasives (e.g., hard materials like steel grit with soft nozzle materials like tungsten carbide, causing accelerated erosion)	- Identify Nozzle Material: Check the nozzle’s composition (e.g., tungsten carbide, ceramic, or plastic). - Switch Abrasives: Use softer abrasives (e.g., aluminum oxide, glass beads) with delicate nozzles. For heavy-duty tasks with hard abrasives, upgrade to a tungsten carbide or diamond-tipped nozzle designed for durability.

Additional Tips for Prevention

Regular Maintenance Schedule:

Clean nozzles and hoppers after each use to prevent abrasive buildup.
Service compressors and dust collectors quarterly (or as recommended by the manufacturer).

Abrasive Compatibility:

Match abrasive hardness to the nozzle material (e.g., use soft abrasives for plastic nozzles, hard abrasives for tungsten carbide).
Store abrasives in airtight containers to prevent moisture absorption and clumping.

Operator Training:

Ensure operators understand pressure settings and how to recognize early signs of nozzle wear or clogs.
Use proper PPE (respirators, eye protection) to minimize health risks during troubleshooting.

Environmental Checks:

Monitor air humidity levels, as high moisture can cause abrasives to stick in hoppers or nozzles.
Inspect hoses and seals for wear regularly to prevent leaks that reduce performance or cause dust issues.

Industry Impact and Future Outlook

Market Trends

Growth in Offshore Wind Energy: High Pressure blasting is critical for maintaining wind turbine foundations exposed to harsh marine environments, driving demand for mobile, corrosion-resistant units.

Shift Toward Automation: Labor shortages in heavy industries are accelerating the adoption of robotic blasting systems, with market reports predicting a 7% CAGR in automated units by 2030.

Environmental Regulations: The EU’s Machinery Directive 2006/42/EC and U.S. EPA standards are pushing manufacturers to develop low-emission, energy-efficient machines.

Future Technological Frontiers

AI-Driven Autonomous Blasting: Self-navigating robots with machine vision that can identify and blast only contaminated areas, minimizing abrasive waste and treatment time.

Nano-Coated Abrasives: Abrasives with super-hard nano-layers (e.g., diamond-like carbon) that reduce wear on both the workpiece and machine components by 50%.

Hybrid Energy Systems: Combine diesel-powered compressors with battery storage for silent operation in urban areas, switching to diesel for high-demand tasks.

Case Study: High Pressure Blasting in Ship Recycling

Challenge: A decommissioned oil tanker needed its hull stripped of decades of paint and corrosion before recycling. Traditional methods (chipping, chemical stripping) were slow and hazardous.

Solution: A mobile High Pressure blasting unit (250 PSI) using garnet abrasive was deployed. The machine’s robotic arm followed a pre-programmed path, removing 3 mm of paint and rust in one pass.

Outcome: Completed the task in 10 days, 60% faster than manual methods, with zero chemical runoff and a surface cleanliness rating of Sa (near-white metal).

Conclusion

High Pressure sand blasting machines are the backbone of industrial surface treatment, delivering unmatched power and precision in the most demanding environments. From reviving aging infrastructure to maintaining the integrity of offshore assets, their ability to tackle heavy-duty tasks efficiently and safely is indispensable. As technology advances, the integration of AI, robotics, and sustainable design will further elevate their capabilities, ensuring they remain vital tools in the transition to cleaner, more automated manufacturing. By prioritizing safety, innovation, and regulatory compliance, industries can harness the full potential of these machines, driving productivity while minimizing environmental impact.
