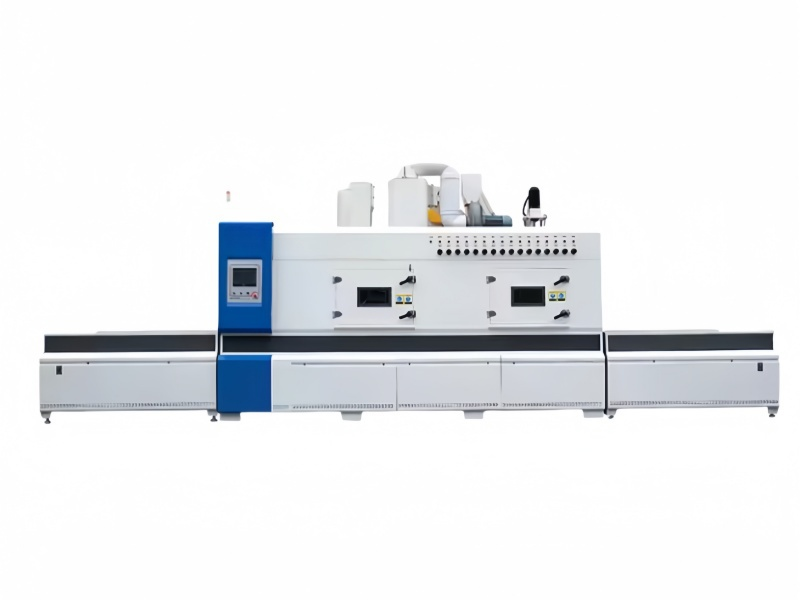

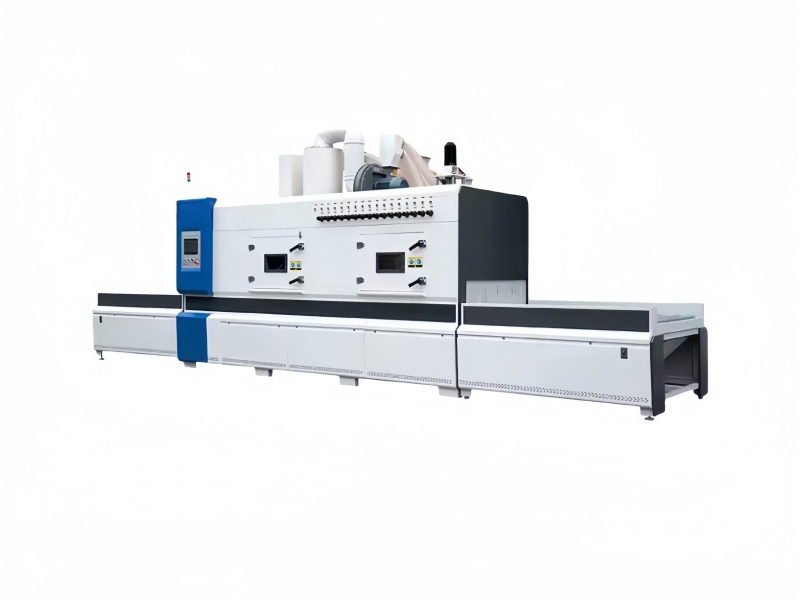

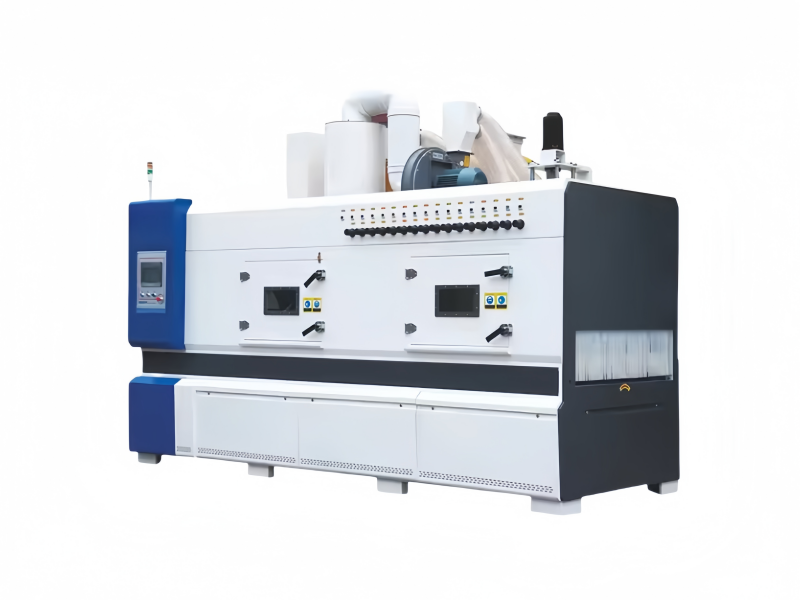

Roller Conveyor Sand Blasting Machine

In modern industrial manufacturing, surface treatment of steel plates, pipes, and structural components is critical for ensuring durability, corrosion resistance, and coating adhesion. Roller conveyor sand blasting machines have emerged as a cornerstone of automated surface preparation, combining the efficiency of roller conveyors with the power of sandblasting to clean and profile large-scale workpieces. This article provides an in-depth analysis of roller conveyor sand blasting machines, covering their design, working principles, key components, applications, advantages, and future technological trends, highlighting their role in enhancing productivity and quality across industries.

technical consultation

Video

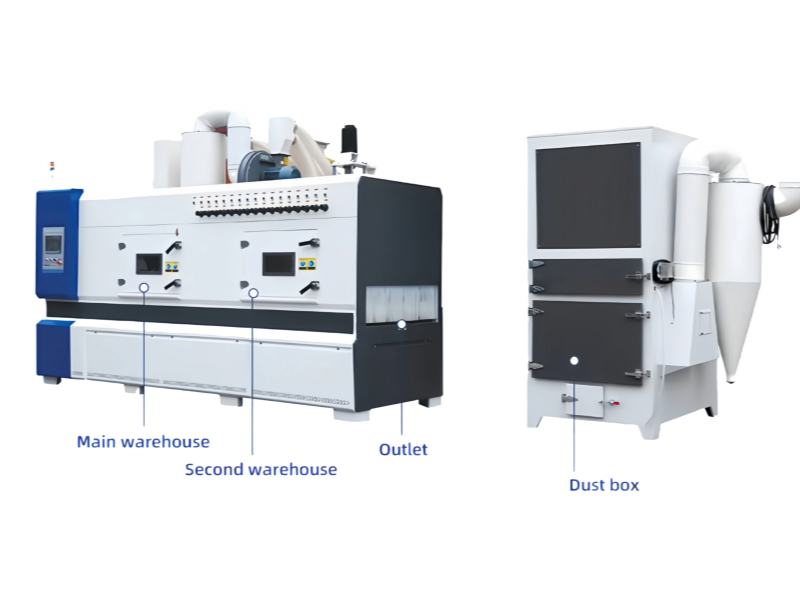

Basic Design and Core Components

Structural Overview

A roller conveyor sand blasting machine is a modular system designed to process long, flat, or cylindrical workpieces (e.g., steel plates, beams, pipes) through a continuous blasting process. Key components include:

Roller Conveyor System:

Consists of powered rollers (steel or rubber-coated) that transport workpieces through the blasting chamber.

Roller spacing and speed are adjustable to accommodate different workpiece sizes and processing requirements.

Blasting Chamber:

Enclosed structure lined with wear-resistant materials (e.g., manganese steel, rubber) to withstand abrasive impact.

Equipped with multiple blasting nozzles or turbines (for shot blasting variants) positioned to target all surfaces of the workpiece.

Abrasive Delivery System:

Includes a hopper, feed control valves, and conveying mechanisms (e.g., screw conveyors, air pressure systems) to supply abrasives to the blasting nozzles.

Abrasive Recovery and Recycling System:

Integrates air washers, vibrating screens, and magnetic separators to collect, clean, and reuse abrasives, minimizing waste.

Dust Collection and Filtration:

High-efficiency dust collectors (e.g., cartridge filters, cyclones) to capture airborne particles, ensuring compliance with environmental and safety standards.

Control Panel:

PLC (Programmable Logic Controller) or HMI (Human-Machine Interface) to manage conveyor speed, blasting pressure, abrasive flow, and system diagnostics.

Types of Abrasives Used

Steel Shot/Grit: For heavy-duty rust removal and surface roughening in shipbuilding and construction.

Aluminum Oxide: Versatile for medium-intensity blasting on metals and composites.

Garnet/Sand: Eco-friendly options for lighter cleaning tasks, though sand is less common due to silica dust concerns.

Glass Beads: Used for peening and finishing to achieve smooth surfaces without excessive abrasion.

Working Principles

Conveyor-Driven Workflow

1. Loading: Workpieces (e.g., steel plates, pipes) are placed on the inlet rollers, which transport them into the blasting chamber.

2. Blasting Process:

As the workpiece moves through the chamber, high-velocity abrasives are propelled from fixed or oscillating nozzles/turbines, impacting the surface to remove rust, scale, paint, or contaminants.

For cylindrical objects (e.g., pipes), additional roller rotation may be incorporated to ensure 360° coverage.

3. Abrasive Recovery:

Used abrasives and debris fall through grates into a recovery system, where they are separated from dust and contaminants.

Cleaned abrasives are recycled back to the hopper, while dust is collected for safe disposal.

4. Unloading: Processed workpieces exit the chamber onto outlet rollers, ready for subsequent coating, welding, or inspection.

Key Operational Parameters

Conveyor Speed: Adjusts based on workpiece thickness and desired surface profile (e.g., faster speeds for light cleaning, slower for heavy rust removal).

Abrasive Pressure/Flow Rate: Higher pressure increases blasting intensity but may require more abrasive consumption.

Nozzle Angle and Spacing: Optimized to ensure uniform coverage and prevent over-blasting or missed areas.

Applications Across Industries

Shipbuilding and Offshore

Hull Plate Preparation: Cleans and profiles steel hull plates before applying anti-corrosive coatings, ensuring long-term durability in marine environments.

Pipeline and Structure Maintenance: Processes offshore platform components and pipelines to remove salt-induced corrosion.

Construction and Heavy Machinery

Steel Beam and Column Treatment: Prepares structural steel for painting or galvanizing, extending the lifespan of bridges, buildings, and infrastructure.

Heavy Equipment Refurbishment: Removes rust and old paint from excavators, cranes, and other machinery, enabling cost-effective refurbishment.

Automotive and Aerospace

Sheet Metal Processing: Cleans and textures automotive body panels for improved paint adhesion.

Aircraft Component Maintenance: Blasts aircraft parts (e.g., landing gear, engine casings) to remove oxidation and prepare for non-destructive testing (NDT).

Oil and Gas

Pipeline Coating Pre-Treatment: Ensures pipeline surfaces meet ISO 8501-1 standards for cleanliness and roughness before applying fusion-bonded epoxy (FBE) or 3LPE coatings.

Storage Tank Restoration: Removes rust and chemical residues from tank interiors, supporting safe maintenance.

Metal Fabrication and Recycling

Raw Material Cleaning: Processes newly fabricated steel plates or recycled metals to remove mill scale and contaminants.

Demolition Waste Treatment: Cleans reclaimed steel beams for reuse, aligning with circular economy principles.

Advantages of Roller Conveyor Sand Blasting Machines

High Throughput and Automation

Continuous Processing: Unlike batch systems, roller conveyors enable 24/7 operation, ideal for high-volume production lines.

Reduced Labor Costs: Minimizes manual handling of heavy workpieces, lowering labor requirements and improving safety.

Consistent Surface Quality

Uniform Blasting: Precise control over conveyor speed and nozzle positioning ensures consistent surface roughness (e.g., Sa or Sa3 per ISO 8501-1).

Repeatability: Automated systems deliver identical results for multiple workpieces, critical for industries with strict quality standards.

Cost Efficiency

Abrasive Recycling: Most systems recover 80–95% of abrasives, significantly reducing material costs compared to single-use dry blasting.

Energy Savings: Optimized abrasive flow and efficient dust collection reduce overall energy consumption.

Environmental and Safety Benefits

Dust Suppression: Enclosed chambers with advanced filtration systems minimize airborne particulates, complying with OSHA and EPA regulations.

Reduced Noise: Enclosed design dampens noise levels compared to open-air blasting.

Versatility

Multi-Material Compatibility: Processes steel, aluminum, concrete, and composite materials with adjustable parameters.

Customizable Configurations: Modular designs allow easy adaptation for different workpiece sizes, from small sheets to oversized structures.

Challenges and Limitations

Initial Investment and Space Requirements

High Capital Cost: Large-scale systems with advanced recycling features can cost hundreds of thousands of dollars, making them suitable primarily for high-volume users.

Footprint: Requires dedicated floor space for the conveyor, blasting chamber, and recovery systems, which may be prohibitive for small workshops.

Maintenance and Wear

Abrasive System Wear: Nozzles, rollers, and chamber linings degrade over time due to abrasive impact, requiring regular inspection and replacement.

Dust Filter Maintenance: Dust collectors must be cleaned or replaced periodically to maintain efficiency, adding to operational costs.

Limitations on Workpiece Geometry

Flat/Cylindrical Bias: Optimal for flat plates or cylindrical pipes; irregularly shaped objects may require manual reworking or additional fixtures.

Weight Restrictions: Heavy workpieces may strain roller bearings, necessitating reinforced conveyor designs.

Water and Energy Usage (for Wet Variants)

Wet Blasting Add-Ons: If equipped for wet blasting, additional water treatment systems are needed, increasing complexity and cost.

Technical Innovations and Future Trends

Integration of IoT and AI

Predictive Maintenance: IoT sensors monitor roller vibration, abrasive flow, and filter pressure to predict component failures (e.g., worn nozzles, clogged filters) before downtime occurs.

AI-Driven Process Optimization: Machine learning algorithms analyze real-time data (e.g., surface roughness readings from in-chamber cameras) to auto-adjust conveyor speed and blasting parameters.

Hybrid Blasting and Conveyor Systems

Dual-Media Blasting: Combines dry and wet blasting in a single chamber, using water injection for dust suppression during dry blasting to enhance environmental performance.

Multi-Lane Conveyors: Parallel roller lines to process multiple workpieces simultaneously, doubling throughput in high-demand industries.

Sustainable Design Improvements

Energy-Efficient Components: Low-power motors for conveyors and high-efficiency dust collectors reduce energy consumption.

Recycled Abrasives: Increased use of post-consumer waste (e.g., crushed glass, recycled steel shot) to minimize reliance on virgin materials.

Mobile and Modular Solutions

Portable Units: Trailer-mounted roller conveyor systems for on-site blasting at construction sites or remote fabrication yards.

Modular Chambers: Reconfigurable blasting chambers that can be expanded or modified to accommodate changing workpiece sizes or abrasive types.

Advanced Safety Features

Automated Emergency Stop Systems: Triggered by sensor-detected anomalies (e.g., workpiece jams, overheating) to prevent accidents.

Remote Monitoring: Allows operators to manage the system from a safe distance, reducing exposure to blasting hazards.

Basic Parameter

Comparison: Roller Conveyor vs. Manual/Portable vs. Robotic Blasting Systems

Feature	Roller Conveyor Sand Blasting	Manual/Portable Blasting	Robotic Blasting Cells
Throughput	High (continuous, automated flow for mass production)	Low (slow, batch-by-batch manual operation)	Medium (programmable, consistent cycles for precision tasks)
Surface Consistency	Excellent (uniform results via automated pressure and media control)	Variable (depends on operator skill and fatigue)	High (robotically controlled for repeatable, flawless finishes)
Labor Requirements	Low (only requires operators for oversight and maintenance)	High (full manual operation; labor-intensive)	Low (requires engineers for programming and periodic monitoring)
Ideal Workpiece Size	Large-scale (e.g., steel plates, pipes, structural beams in shipbuilding or construction)	Small to medium (e.g., auto parts, small machinery, DIY projects)	Medium to large (accommodates complex shapes via robotic arm flexibility)
Initial Cost	High ($50k–$500k+; requires custom conveyor systems and infrastructure)	Low ($200–$20k; portable units or basic setups)	Very high ($100k–$1M+; includes robotics, sensors, and enclosed cells)
Abrasive Recycling	Advanced (80–95% media recovery via integrated recycling systems, reduces waste costs)	Limited (often single-use; recycling kits optional but less efficient)	Moderate (dependent on cell design; some systems offer partial recycling, others require manual cleanup)
Environmental Compliance	Easy (enclosed systems with built-in dust filtration, meets strict EPA/OSHA standards)	Challenging (open-air operation leads to dust pollution; requires add-on dust collectors)	Good (enclosed cells minimize dust, but ventilation systems must handle robotic machinery byproducts)
Flexibility	Low (optimized for specific workpiece sizes/shapes on fixed conveyors)	High (adaptable to diverse on-site or small-scale tasks)	Very high (reprogrammable for different parts, surfaces, and blasting patterns)
Safety Risks	Low (operators work outside the enclosed system, reducing exposure to dust and abrasives)	High (direct operator exposure to airborne particles; requires extensive PPE)	Low (robots handle hazardous environments, minimizing human risk)
Maintenance Complexity	Moderate to High (complex conveyor systems and recycling mechanisms require specialized technicians)	Low (simple designs with few moving parts; easy to service)	High (robotics, sensors, and automation require advanced technical expertise)

Key Use Cases and Recommendations

Roller Conveyor Sand Blasting:

Best For: High-volume production of large, standardized parts (e.g., automotive frame pre-treatment, steel fabrication).
Pros: Unmatched efficiency for bulk processing, minimal labor, and superior environmental control.
Cons: Inflexible for small batches or irregular shapes; heavy upfront investment.

Manual/Portable Blasting:

Best For: Small-scale projects, on-site repairs, or businesses with limited budgets (e.g., mobile restoration services, hobbyists).
Pros: Low cost, mobility, and adaptability to varied tasks.
Cons: High labor costs, inconsistent results, and safety challenges due to dust exposure.

Robotic Blasting Cells:

Best For: Precision-driven industries (e.g., aerospace, medical device manufacturing) or complex geometries requiring repeatable results.
Pros: High accuracy, reduced labor, and capability to handle intricate surfaces (e.g., turbine blades, castings).
Cons: Extremely high costs, requires advanced programming, and limited scalability for very large parts.

Strategic Considerations

Cost vs. Volume:

Choose roller conveyor systems for high-volume, standardized production to amortize upfront costs over large outputs.
Opt for manual/portable setups for low-volume, flexible work or short-term projects.
Invest in robotic cells only when precision and repeatability are non-negotiable (e.g., in regulated industries).

Environmental and Safety Standards:

Enclosed systems (roller conveyor or robotic) are mandatory for industries facing strict emissions regulations (e.g., EU’s REACH or U.S. EPA rules).
Manual blasting in open environments may require expensive dust control add-ons to comply with safety laws.

Future Scalability:

Robotic cells offer long-term flexibility for adapting to new product lines, while roller conveyors are better suited for stable, high-demand workflows.

Case Studies

Shipbuilding Industry: Large-Scale Plate Processing

A major shipbuilder installed a roller conveyor sand blasting line capable of processing 1000 m² of steel plates daily. The system’s automated abrasive recycling reduced annual abrasive costs by $1.2 million, while enclosed blasting chambers cut dust emissions by 98%, meeting strict maritime environmental regulations.

Construction Sector: Bridge Steel Treatment

A highway construction company used a mobile roller conveyor system to blast 5000 tons of steel beams on-site. The system’s adjustable roller speed allowed precise surface profiling (Sa), ensuring optimal adhesion for zinc-rich primer coatings, while reducing project timelines by 30% compared to traditional manual blasting.

Metal Recycling Plant: Rust Removal on Reclaimed Steel

A recycling facility integrated a roller conveyor machine to process salvaged steel plates. By removing rust and mill scale, the plant increased the resale value of materials by 25%, while recycling 90% of steel grit, reducing waste disposal costs by $80,000 annually.

Operational Best Practices

Pre-Processing Inspection

Verify workpiece dimensions and weight to ensure compatibility with roller load limits.

Remove loose debris or heavy coatings manually to prevent conveyor jams.

Abrasive Selection and Maintenance

Regularly test abrasive quality (e.g., particle size, hardness) to ensure consistent blasting performance.

Replace worn nozzles and chamber linings promptly to avoid uneven blasting or equipment damage.

Safety Protocols

Ensure all personnel wear appropriate PPE (hearing protection, safety glasses, respiratory masks) when near the system.

Conduct routine lockout/tagout (LOTO) procedures during maintenance to prevent accidental activation.

Environmental Management

Dispose of collected dust and sludge in compliance with local regulations (e.g., hazardous waste if containing lead or other toxins).

For wet blasting variants, implement water treatment systems to remove contaminants before discharge or reuse.

Roller conveyor sand blasting machines are indispensable assets in industries requiring high-volume, high-precision surface preparation. Their ability to automate the blasting process, recycle abrasives, and maintain strict environmental and safety standards makes them a cornerstone of modern manufacturing and infrastructure development. While challenges like initial cost and maintenance exist, ongoing innovations in IoT, sustainability, and modular design are addressing these limitations, driving adoption across sectors.

As global demands for efficiency and sustainability grow, roller conveyor systems will continue to evolve, integrating smarter controls, eco-friendly materials, and enhanced versatility. For industries reliant on steel and metal components, these machines are not just tools for surface treatment but catalysts for operational excellence and environmental stewardship, ensuring that every workpiece meets the highest standards of durability and quality.
