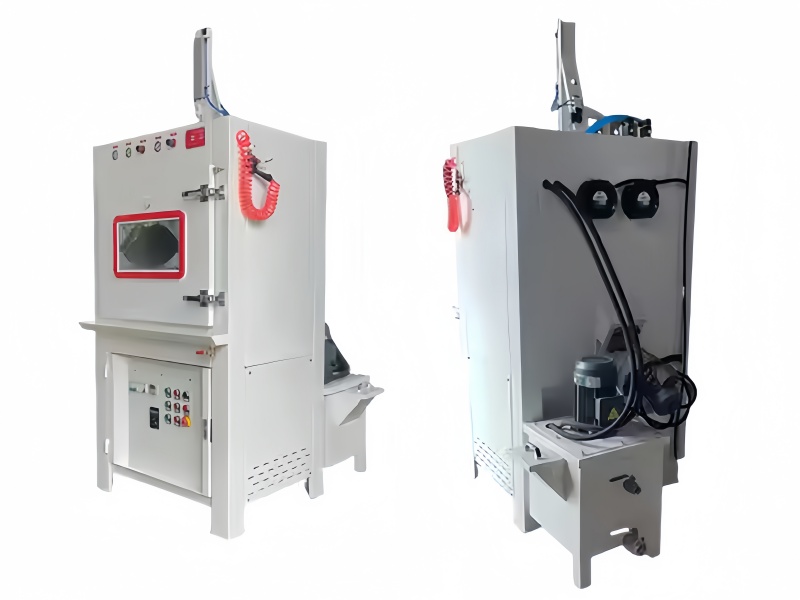

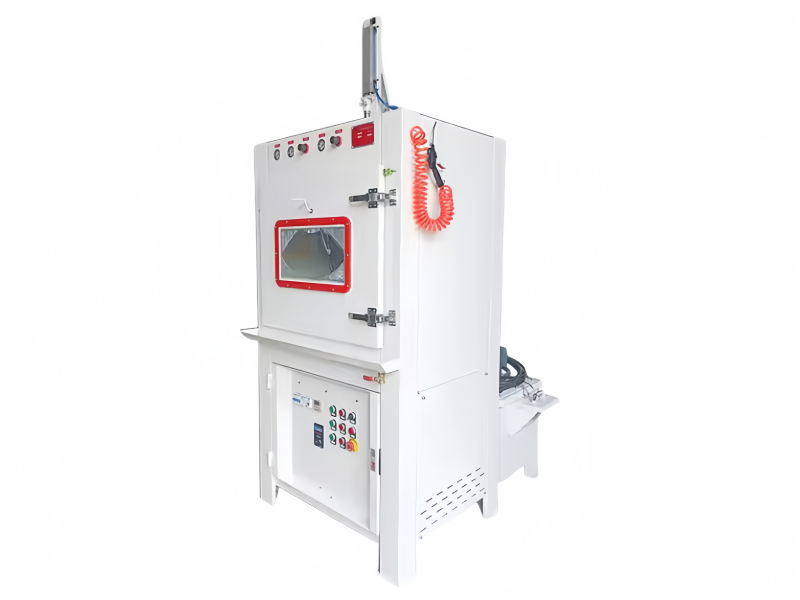

Wet Sand Blasting Machine

Sandblasting is a widely used surface treatment process in industries such as manufacturing, construction, automotive, and aerospace. Traditional dry sandblasting, while effective, generates significant dust, leading to health hazards, environmental pollution, and reduced visibility during operations. Wet sand blasting machines address these issues by introducing water into the blasting process, suppressing dust, minimizing abrasive consumption, and enhancing surface treatment quality. This article explores the technology, components, working principles, applications, and environmental benefits of wet sand blasting machines, highlighting their growing importance in modern industrial processes.

technical consultation

Video

Core Technology of Wet Sand Blasting Machines

Basic Principle

Wet sand blasting combines abrasive materials (e.g., sand, grit, glass beads) with water and compressed air to create a high-velocity stream for surface cleaning, stripping, or finishing. The water serves multiple purposes:

Dust Suppression: By encapsulating abrasive particles and debris, water prevents dust from becoming airborne.

Cooling Effect: Reduces heat generated during blasting, which is beneficial for heat-sensitive materials like plastics or thin metals.

Enhanced Cleaning: The water-abrasive mixture can penetrate crevices more effectively than dry blasting in some cases.

Key Components

Blasting Pot: A pressure vessel that stores the abrasive material and mixes it with water.

Water Tank: Supplies water to the system, often equipped with a pump to maintain consistent pressure.

Compressed Air Source: Provides the energy to propel the water-abrasive mixture through the nozzle.

Nozzle: Accelerates the mixture to high speeds, determining the blasting pattern and intensity.

Hose and Tubing: Transports the mixture from the blasting pot to the nozzle.

Control System: Regulates water flow, air pressure, and abrasive feed rate for precise operation.

Types of Wet Sand Blasting Machines

Pressure-fed Wet Blasting

Working Principle: Abrasive and water are mixed in a pressurized pot. Compressed air forces the mixture through the nozzle.

Advantages: Higher blasting efficiency due to consistent pressure, suitable for heavy-duty applications like rust removal or paint stripping.

Disadvantages: Requires a larger compressor and more maintenance due to moving parts.

Suction-fed Wet Blasting

Working Principle: Utilizes the Venturi effect, where high-velocity air creates a vacuum that draws abrasive and water into the nozzle.

Advantages: Simpler design, lower cost, and easier portability, ideal for small-scale or precision work.

Disadvantages: Lower blasting pressure compared to pressure-fed systems, limiting effectiveness on tough surfaces.

Wet Abrasive Blasting (WAB) vs. Vapor Blasting

Wet Abrasive Blasting: Combines water, abrasive, and air in a single stream before exiting the nozzle.

Vapor Blasting: Introduces water into the air-abrasive stream at the nozzle, creating a finer mist. Vapor blasting is often used for delicate surfaces like engine components or jewelry.

Working Process of Wet Sand Blasting Machines

Preparation

Material Selection: Choose the appropriate abrasive (e.g., aluminum oxide for metal surfaces, glass beads for finishing) based on the substrate and desired outcome.

Mixing Ratio: Adjust the water-to-abrasive ratio. Higher water content reduces dust but may decrease blasting intensity.

Surface Preparation: Mask areas not to be blasted and ensure proper ventilation (though wet blasting produces less dust, some ventilation is still recommended).

Operation

1. Loading: Fill the blasting pot with abrasive and connect the water supply.

2. Pressurization: Activate the compressor to pressurize the system.

3. Blasting: Direct the nozzle at the target surface, adjusting pressure and distance to control the blasting effect.

4. Recovery: Collect wastewater and debris for filtration and recycling (if applicable).

Post-processing

Drying: After blasting, dry the surface to prevent rust or corrosion, especially for metal substrates.

Waste Management: Separate solids from wastewater for proper disposal or recycling.

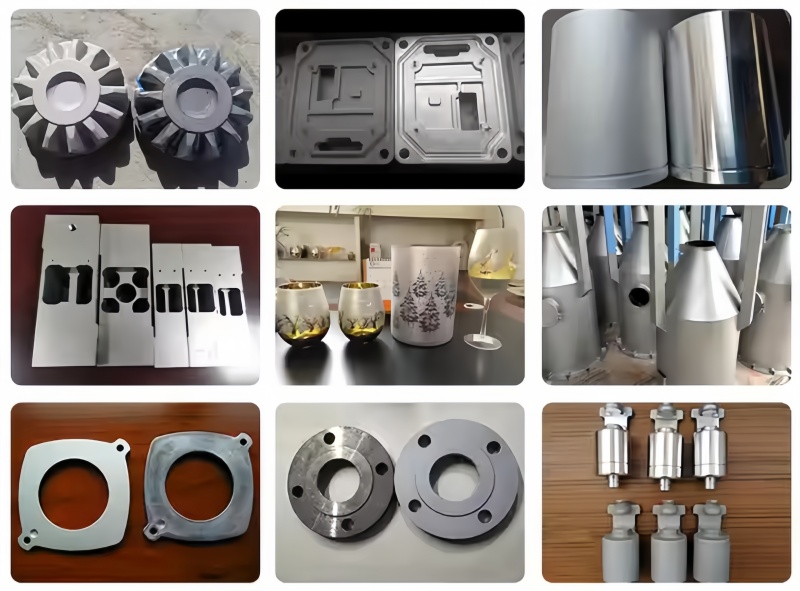

Applications of Wet Sand Blasting Machines

Industrial Cleaning and Surface Preparation

Rust and Paint Removal: Effectively strips rust, old paint, and coatings from metal surfaces without generating dust.

Deburring: Removes sharp edges from machined parts, improving safety and functionality.

Surface Roughening: Prepares surfaces for painting, coating, or bonding by creating a textured profile.

Automotive and Aerospace Industries

Engine Component Cleaning: Vapor blasting is used to clean delicate engine parts, such as cylinder heads, without damaging them.

Aircraft Maintenance: Removes corrosion and old paint from aircraft surfaces while minimizing dust in enclosed hangars.

Construction and Restoration

Concrete Surface Preparation: Cleans and profiles concrete floors for coatings or overlays.

Historical Building Restoration: Gently removes contaminants from delicate stone or brick surfaces without causing damage.

Electronics and Precision Manufacturing

PCB Cleaning: Removes residues from printed circuit boards (PCBs) without static buildup, which can damage components.

Mold Cleaning: Cleans injection molds and die-casting tools, extending their lifespan and improving product quality.

Environmental Remediation

Hazardous Material Removal: Safely removes lead-based paint, asbestos, or radioactive contaminants by containing dust within the water stream.

Advantages of Wet Sand Blasting Machines

Dust Suppression

Health Benefits: Reduces respiratory hazards for operators, minimizing the risk of silicosis, lung cancer, and other dust-related illnesses.

Environmental Compliance: Meets strict air quality regulations by eliminating airborne particulate matter (PM).

Surface Protection

Reduced Heat Damage: The cooling effect of water prevents heat-induced warping or distortion of sensitive materials.

Gentler Abrasion: Wet blasting is less aggressive than dry blasting in some cases, making it suitable for fragile substrates.

Cost Efficiency

Abrasive Recycling: Many wet blasting systems incorporate recycling mechanisms, reducing abrasive consumption by up to 80%.

Lower Maintenance: Water reduces wear on nozzles and hoses compared to dry blasting, extending equipment lifespan.

Versatility

Wide Range of Materials: Compatible with various abrasives (metallic, non-metallic) and substrates (metal, concrete, wood, glass).

Precision Control: Adjustable water and air pressure allow for fine-tuning of blasting intensity.

Challenges and Limitations

Wastewater Management

Contaminant Disposal: Wastewater may contain heavy metals, paint particles, or other contaminants, requiring treatment before disposal.

Filtration Systems: Additional equipment is needed to separate solids from water for recycling, increasing initial costs.

Corrosion Risk

Rust Formation: Wet blasting leaves surfaces wet, necessitating immediate drying or application of corrosion inhibitors, especially for ferrous metals.

Lower Blasting Speed

Compared to Dry Blasting: The presence of water can reduce the velocity of abrasive particles, requiring longer processing times for heavy-duty tasks.

Equipment Complexity

Maintenance Requirements: Wet systems require regular checks for water leaks, pump functionality, and corrosion prevention.

Comparison: Wet Sand Blasting vs. Dry Sand Blasting

Aspect	Wet Sand Blasting	Dry Sand Blasting
Dust Generation	Minimal (water suppresses dust)	High (significant airborne dust)
Surface Damage	Less likely (cooling effect from water)	Higher risk of heat damage (friction generates heat)
Abrasive Consumption	Lower (abrasives can often be recycled)	Higher (frequent replacement due to wear/dust contamination)
Application Speed	Slower for heavy-duty tasks (water adds resistance)	Faster for bulk material removal (no water interference)
Substrate Compatibility	Suitable for a wide range, including delicate materials (e.g., aluminum, wood)	Limited to robust materials (e.g., steel, concrete) due to higher impact
Environmental Impact	Lower (reduced dust, wastewater can be treated and recycled)	Higher (airborne dust pollution, non-recyclable abrasive waste)
Cost	Higher initial investment (requires water system) Lower operational cost (less abrasive waste, minimal dust cleanup)	Lower initial cost (simpler equipment) Higher long-term cost (abrasive replacement, dust control systems)

Basic Parameter

Technological Advancements in Wet Sand Blasting

Automated Control Systems

PLC Integration: Programmable logic controllers (PLCs) regulate water flow, air pressure, and abrasive feed, ensuring consistent results.

Sensor Technology: Real-time monitoring of pressure, flow rates, and abrasive levels for predictive maintenance.

Closed-loop Recycling Systems

Advanced Filtration: Multi-stage filtration systems separate solids from wastewater, allowing water reuse and reducing disposal costs.

Centrifugal Separators: Efficiently separate abrasives from sludge, enabling high-quality abrasive recycling.

Eco-friendly Abrasives

Biodegradable Media: Development of plant-based abrasives (e.g., walnut shells, corn cobs) that reduce environmental impact.

Recycled Glass: Utilizes crushed glass as an abrasive, turning waste into a valuable resource.

Portable and Compact Designs

Mobile Units: Trailer-mounted wet blasting systems for on-site applications in construction or remote locations.

Compact Machines: Smaller, lightweight units for workshops with limited space.

Portable and Compact Designs

Mobile Units: Trailer-mounted wet blasting systems for on-site applications in construction or remote locations.

Compact Machines: Smaller, lightweight units for workshops with limited space.

Environmental and Safety Considerations

Environmental Benefits

Reduced Air Pollution: Minimizes PM emissions, contributing to cleaner air quality.

Resource Conservation: Water recycling and abrasive reuse reduce consumption of natural resources.

Safety Measures

Personal Protective Equipment (PPE): Operators should wear waterproof suits, gloves, and respiratory protection (even with reduced dust).

Ventilation: Adequate ventilation is still required to remove any remaining mist or fumes.

Electrical Safety: Ensure equipment is properly grounded and protected from water ingress to prevent electrocution hazards.

Regulatory Compliance

OSHA Standards: Adhere to Occupational Safety and Health Administration (OSHA) regulations regarding respirable crystalline silica exposure (e.g., 29 CFR 192153).

EPA Guidelines: Comply with Environmental Protection Agency (EPA) regulations for wastewater disposal and hazardous material handling.

Case Studies

Shipyard Application

A large shipyard replaced dry blasting with wet sand blasting for hull maintenance. This reduced dust emissions by 95%, eliminated worker silicosis concerns, and cut abrasive costs by 60% through recycling.

Automotive Refinishing

An auto body shop switched to wet blasting for paint stripping. The system reduced processing time by 30% due to faster cleanup and eliminated the need for costly dust collection systems.

Historical Building Restoration

Restorers used wet blasting to clean a 19th-century marble facade. The gentle process removed pollution without damaging the delicate stone, preserving its historical integrity.

Future Trends

1Integration with IoT and AI

Smart Monitoring: IoT sensors will track equipment performance and environmental metrics, enabling data-driven optimization.

AI Process Control: Machine learning algorithms will adjust blasting parameters in real-time based on surface conditions.

Hybrid Blasting Technologies

Combination Systems: Integration of wet and dry blasting capabilities in a single machine, allowing operators to switch methods based on application needs.

Sustainable Water Management

Zero-discharge Systems: Closed-loop systems that recycle 100% of water, minimizing waste and freshwater consumption.

Development of Specialized Nozzles

High-efficiency Nozzles: Designed to maximize water-abrasive mixing and energy transfer, improving blasting performance.

Wet sand blasting machines offer a versatile, efficient, and environmentally friendly alternative to traditional dry blasting methods. By suppressing dust, reducing abrasive consumption, and protecting surfaces, they address critical challenges in industrial surface treatment. While wastewater management and initial costs remain considerations, technological advancements in automation, recycling, and eco-friendly abrasives are making wet blasting increasingly accessible and sustainable.

As industries prioritize worker safety, environmental compliance, and cost efficiency, wet sand blasting machines are poised to become the standard in surface preparation and cleaning. Their adaptability across various sectors—from automotive to aerospace, construction to electronics—demonstrates their versatility and enduring relevance in modern manufacturing and maintenance processes.
