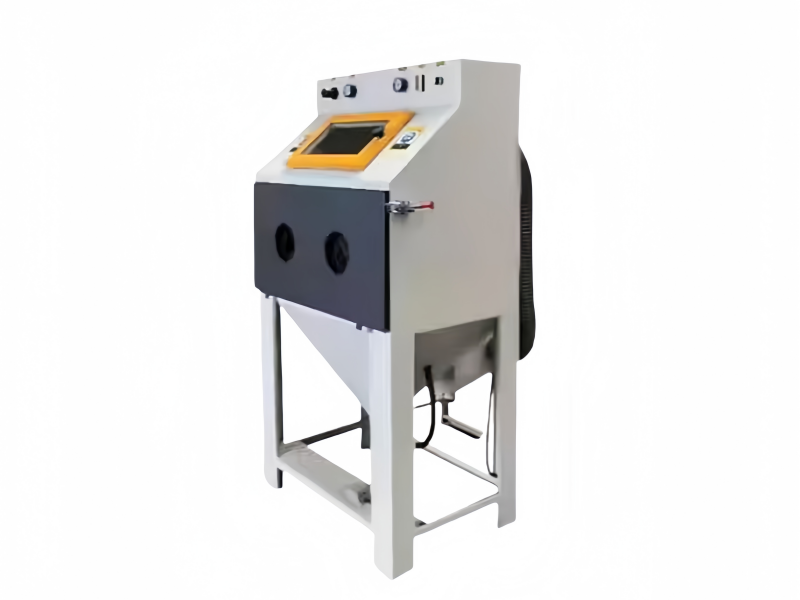

Sand Blasting Cabinet

A sand blasting cabinet, also known as a blast cabinet or abrasive blasting cabinet, is a specialized enclosed workstation designed to clean, etch, or texture small to medium-sized workpieces using high-velocity abrasive media. Unlike open-air blasting systems, cabinets contain the blasting process within a sealed chamber, minimizing dust dispersion and improving operator safety. These machines are widely used in industries such as automotive repair, metalworking, woodworking, and electronics for tasks ranging from rust removal to surface preparation for painting or coating. This article provides an in-depth analysis of sand blasting cabinets, covering their working principles, key components, applications, design considerations, safety protocols, and the latest technological innovations shaping their evolution.

technical consultation

Video

Working Principles of Sand Blasting Cabinets

Core Mechanism

The fundamental operation of a sand blasting cabinet relies on propelling abrasive particles at high speed to mechanically interact with the workpiece surface. The process involves three interconnected stages:

1. Abrasive Acceleration:

Air-Pressure System: Compressed air (typically 40–120 PSI) drives a mixture of abrasive media and air through a nozzle, creating a high-velocity stream.

Gravity-Fed or Siphon Systems: Abrasives are either pulled into the air stream via a siphon effect (common in low-pressure cabinets) or fed by gravity from a hopper above the nozzle (for higher-pressure applications).

2. Surface Treatment:

The abrasive particles impact the workpiece, removing contaminants (rust, paint, grease), smoothing rough edges, or creating a textured surface to enhance coating adhesion.

The intensity of the treatment depends on factors like air pressure, abrasive type, nozzle size, and distance from the workpiece.

3. Abrasive Recovery and Filtration:

Spent abrasives and debris fall to the cabinet’s bottom, where they are collected by a conveyor or auger system.

A sieve or cyclone separator removes large debris, while a dust collector filters fine particles (e.g., silica dust) from the air, ensuring a clean, reusable abrasive supply and safe working environment.

Key Operational Parameters

Air Pressure: Higher pressure (80–120 PSI) is suitable for heavy-duty tasks (e.g., removing thick rust), while lower pressure (40–60 PSI) is ideal for delicate work (e.g., etching glass).

Abrasive Type:

Hard Abrasives: Aluminum oxide, steel grit (for metal descaling).

Soft Abrasives: Sodium bicarbonate, walnut shells (for sensitive surfaces like wood or electronics).

Nozzle Diameter: Larger nozzles (6–8 mm) increase material removal rate but require higher air volume; smaller nozzles (2–4 mm) offer precision but lower throughput.

Workpiece Distance: Closer proximity (10–15 cm) enhances cutting power, while greater distance (20–30 cm) provides more uniform but gentler treatment.

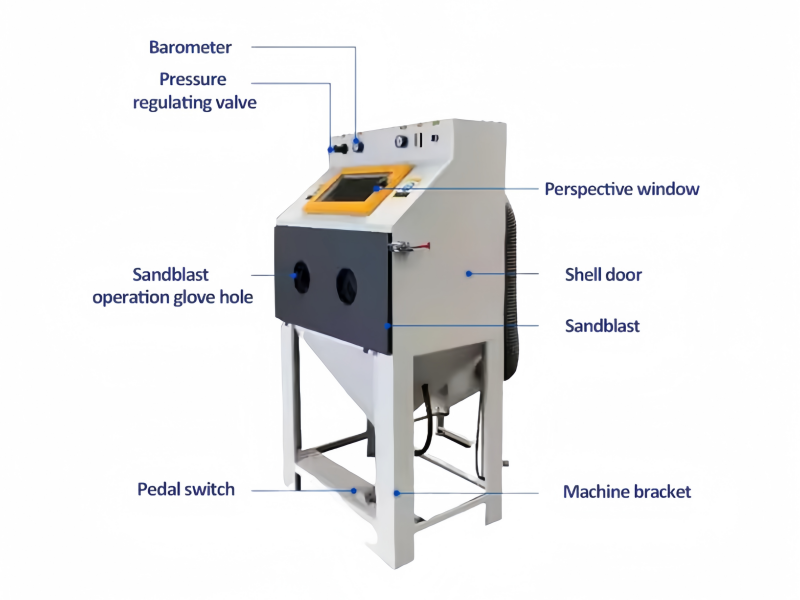

Components of a Sand Blasting Cabinet

1. Chamber

Structure: A rugged, enclosed box (typically steel or polycarbonate) with transparent viewing panels (e.g., safety glass or acrylic) for visibility. Sizes range from benchtop models (0.5 m³) to industrial cabinets (5 m³ or larger).

Interior Linings: Wear-resistant materials like rubber or polyurethane protect the chamber from abrasive erosion, with replaceable liners for easy maintenance.

2. Abrasive Delivery System

Pressure Pot vs. Siphon Fed:

Pressure Pot: Uses a sealed hopper with compressed air to force abrasives into the nozzle, enabling higher pressure and faster material removal.

Siphon Fed: Relies on the Venturi effect created by the air stream to draw abrasives from a hopper, suitable for low-pressure applications and smaller cabinets.

Nozzles: Made of tungsten carbide or ceramic for durability, with interchangeable tips for different blast patterns (round, fan-shaped).

3. Dust Collection and Filtration

Primary Filtration: A cyclone separator removes large debris from spent abrasives, directing clean media back to the hopper.

Secondary Filtration: A high-efficiency dust collector (e.g.,布袋除尘器) captures fine particles, including silica dust, ensuring air quality meets OSHA standards (<0.05 mg/m³ for crystalline silica).

Exhaust System: Maintains negative pressure inside the chamber to prevent dust leakage, with exhaust ports fitted with HEPA filters in industrial settings.

4. Workholding and Accessibility

Gloves and Ports: Rubber gloves attached to the chamber walls allow operators to manipulate workpieces without exposing hands to abrasives.

Turntables and Racks: Rotating platforms or adjustable shelves secure workpieces for uniform blasting, while quick-release clamps enable easy loading/unloading.

Door Design: Sealed hinged or sliding doors with gaskets prevent dust escape during operation.

5. Control Panel

Pressure Regulator: Adjusts air pressure to match the task, with gauges for real-time monitoring.

Abrasive Flow Control: Knobs or valves regulate the volume of abrasives mixed with air, optimizing material usage and treatment intensity.

Applications of Sand Blasting Cabinets

1. Automotive and Metalworking

Restoration: Removes rust, paint, and undercoating from car frames, engine components, and body panels before repainting or powder coating.

Surface Preparation: Textures metal surfaces to improve adhesion of primers or adhesives in welding or bonding applications.

Deburring: Smooths rough edges on cast or machined parts, such as gears or engine blocks.

2. Woodworking and Furniture Refinishing

Stripping Paint/Varnish: Gentle abrasives like walnut shells or corn cob grit remove old finishes from wooden furniture without damaging the grain.

Texture Creation: Blasting creates rustic or weathered effects on wood for decorative purposes, such as reclaimed wood furniture or architectural panels.

Cleaning Tools: Cleans and restores woodworking tools (e.g., chisels, plane soles) by removing sap, rust, or grime.

3. Glass and Ceramic Processing

Etching and Frosting: Fine abrasives (e.g., sodium bicarbonate, aluminum oxide) etch designs onto glass for decorative mirrors, windows, or ceramic tiles.

Deburring Ceramics: Removes rough edges from pottery or ceramic components post-firing, ensuring smooth surfaces.

4. Electronics and Precision Components

Micro-Blasting: Low-pressure cabinets with fine abrasives (e.g., glass beads, baking soda) clean delicate electronics (PCBs, connectors) without causing damage.

Deflashing: Removes excess material from 3D-printed parts (e.g., resin or metal prototypes) in additive manufacturing.

5. Art and Sculpture

Metal Artwork: Artists use blasting to create textured finishes on sculptures or metal art, combining precision and creativity.

Stone Carving: Small cabinets with soft abrasives clean and refine stone carvings, enhancing details without heavy machinery.

Design Considerations for Sand Blasting Cabinets

1. Size and Capacity

Benchtop vs. Industrial Models:

Benchtop: Ideal for small parts (e.g., jewelry, screws) in workshops or hobbyist settings, with limited abrasive volume and air pressure.

Industrial: Handles large components (e.g., motorcycle frames, machinery parts) with high-capacity hoppers and powerful dust collection systems.

Throughput Needs: Continuous-feed cabinets with conveyor belts are suited for high-volume production, while batch-processing cabinets are better for customized tasks.

2. Abrasive Compatibility

Material Safety: Non-metallic abrasives (e.g., plastic media) are essential for non-ferrous metals (aluminum, brass) to avoid contamination.

Recyclability: Choose abrasives that are easily recyclable (e.g., steel shot) or biodegradable (e.g., corn cob grit) to align with environmental goals.

3. Safety and Ergonomics

Dust Control: Prioritize cabinets with dual-stage filtration (cyclone + HEPA) to minimize silica exposure, especially when using sand-based abrasives.

Ergonomic Design: Adjustable work heights, large viewing windows, and comfortable glove ports reduce operator fatigue during long sessions.

Explosion Safety: For flammable environments, opt for static-dissipative chambers and grounding straps to prevent sparks.

4. Energy Efficiency

Air Consumption: High-efficiency nozzles and pressure regulators reduce compressed air waste, with some models featuring energy-saving modes for low-demand tasks.

Abrasive Recycling: Closed-loop systems with efficient separation can recycle abrasives up to 99%, minimizing material waste and costs.

Technological Advancements in Sand Blasting Cabinets

1. Automation and Robotics

CNC Integration: Computer-controlled cabinets allow programming of blast patterns, pressure, and movement for repetitive tasks, ensuring consistency in mass production.

Robotic Arms: Industrial cabinets may feature robotic arms with articulated nozzles to blast complex geometries (e.g., turbine blades, engine parts) without manual intervention.

Vision Systems: Cameras inside the chamber provide real-time feedback on blasting progress, enabling automatic adjustments to pressure or abrasive flow.

2. Eco-Friendly Innovations

Waterless Blasting: Hybrid systems mix abrasives with a fine water mist to suppress dust, reducing airborne particles by 90% while using minimal water (ideal for indoor use).

Bio-Based Abrasives: Abrasives made from agricultural waste (e.g., rice husks, olive pits) offer biodegradability and low environmental impact, suitable for sensitive applications.

Solar-Powered Models: Portable cabinets with integrated solar panels and battery storage enable off-grid operation in remote locations, reducing carbon footprints.

3. Smart Monitoring and IoT

IoT Sensors: Track air pressure, abrasive level, and filter clogging in real time, sending alerts to operators via mobile apps or cloud platforms.

Predictive Maintenance: Machine learning algorithms analyze sensor data to predict component wear (e.g., nozzle erosion, filter lifespan), scheduling maintenance before failures occur.

Remote Diagnostics: Technicians can troubleshoot issues (e.g., airflow blockages) remotely, minimizing downtime and service costs.

4. Precision Blasting Technologies

Micro-Blasting Systems: Ultra-fine abrasives (sub-100 micron) and low-pressure nozzles (10–30 PSI) enable intricate work, such as deflashing microelectronics or medical devices.

Cryogenic Blasting: Combines cold temperatures with abrasive media to embrittle coatings (e.g., paint, rubber), making them easier to remove from sensitive materials.

Safety Protocols and Compliance

1. Occupational Hazards

Silica Dust Exposure: Crystalline silica, present in traditional sand abrasives, can cause silicosis. Use silica-free abrasives (e.g., aluminum oxide, garnet) and ensure proper ventilation.

Noise Pollution: Prolonged exposure to blasting noise (85+ dB) can damage hearing. Install sound-dampening panels and require hearing protection for operators.

Eye and Skin Protection: Impact-resistant goggles and gloves with reinforced cuffs shield operators from flying abrasives.

2. Regulatory Compliance

OSHA (USA): Requires exposure limits for silica dust (8-hour TWA: 0.05 mg/m³) and noise (85 dB(A) with a 5 dB exchange rate).

EU Machinery Directive: Mandates CE certification for cabinets, including safety guards, emergency stop mechanisms, and dust extraction efficiency.

ISO Standards: ISO 11126 (Abrasive blasting materials) and ISO 8501-1 (Surface cleanliness) guide abrasive selection and surface preparation quality.

3. Best Practices

Lockout/Tagout (LOTO): Always shut off air supply and release pressure before servicing the cabinet to prevent accidental activation.

Abrasive Storage: Store abrasives in dry, sealed containers to prevent clumping, especially for water-soluble media like sodium bicarbonate.

Regular Inspections: Check filter integrity, glove seals, and nozzle wear weekly to maintain optimal performance and safety.

Maintenance and Troubleshooting

1. Routine Maintenance

Daily: Empty dust collector bins, inspect gloves for tears, and check abrasive level in the hopper.

Weekly: Clean viewing panels with anti-static solution, lubricate moving parts (e.g., conveyor belts), and sieve abrasives to remove debris.

Monthly: Replace worn nozzles (if erosion exceeds 10% of diameter), inspect chamber linings for damage, and test dust collector efficiency with a particle counter.

2. Common Issues and Solutions

Problem	Possible Cause	Solution
Reduced blasting power	Low air pressure, clogged nozzle	Check compressor, clean or replace nozzle
Poor visibility	Dirty viewing panel, insufficient lighting	Clean panel, install LED lights
Excessive dust leakage	Worn door gaskets, faulty dust collector	Replace gaskets, service filter
Abrasive flow inconsistency	Clogged hopper, damaged siphon tube	Clear blockages, replace tube

3. Abrasive Recycling Tips

Sorting: Use magnetic separators to remove metal contaminants from reusable abrasives (e.g., steel shot).

Disposal: Non-recyclable abrasives (e.g., spent baking soda) should be disposed of as industrial waste, following local regulations.

Basic Parameter

Industry Impact and Future Trends

Current Market Dynamics

Growing Demand in Automotive Restoration: The classic car restoration industry drives demand for compact, high-precision cabinets capable of delicate paint stripping.

Adoption in Additive Manufacturing: Post-processing of 3D-printed parts (e.g., metal sintering support removal) fuels innovation in micro-blasting technologies.

Environmental Regulations: Strict dust control laws in regions like the EU and California (e.g., Proposition 65) push manufacturers toward low-dust, eco-friendly designs.

Future Trends

AI-Driven Process Optimization: Self-learning systems that analyze workpiece images to automatically adjust blasting parameters, reducing trial-and-error setups.

Nanotechnology in Abrasives: Coated abrasives with nanomaterials to enhance cutting efficiency while reducing wear on both the workpiece and machine components.

Collaborative Robots (Cobots): Semi-automated cabinets where operators guide cobots through complex blasting tasks, combining human precision with robotic consistency.

Modular Design for Versatility: Cabinets with interchangeable modules (e.g., pressure pot vs. siphon fed, wet vs. dry blasting) to adapt to diverse materials and tasks quickly.

Case Studies: Practical Applications of Sand Blasting Cabinets

Case Study 1: Motorcycle Frame Restoration

Challenge: A vintage motorcycle frame with layers of rust and peeling paint required thorough cleaning without damaging the cast aluminum components.

Solution: A benchtop cabinet with a siphon-fed system using 120-grit aluminum oxide abrasive at 50 PSI. The gentle but effective blasting removed contaminants, revealing the frame’s original texture.

Outcome: Reduced restoration time by 50% compared to manual stripping, with no damage to the delicate aluminum surface.

Case Study 2: Electronics Component Cleaning

Company: A semiconductor manufacturer needed to remove flux residue from PCBs without damaging sensitive components.

Solution: A high-precision micro-blasting cabinet using 50-micron sodium bicarbonate at 30 PSI. The non-conductive, water-soluble abrasive cleaned the PCBs without leaving residue.

Outcome: Improved yield rates by 25% in post-soldering cleaning, with zero component damage from traditional solvent-based methods.

Sand blasting cabinets are indispensable tools in modern manufacturing and restoration, offering precision, efficiency, and safety across diverse industries. From automotive workshops to high-tech electronics facilities, their ability to tailor surface treatments to specific materials and goals makes them versatile assets. As technology evolves, the integration of automation, eco-friendly materials, and smart monitoring will further enhance their performance, addressing both operational efficiency and environmental responsibility. By adhering to strict safety protocols and embracing innovative designs, users can unlock the full potential of these machines, ensuring they remain at the forefront of surface treatment technology for years to come.
