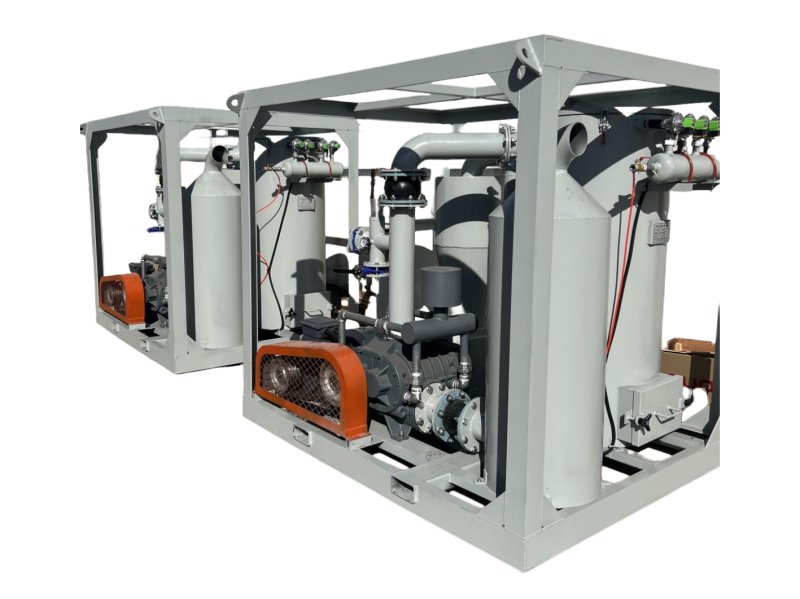

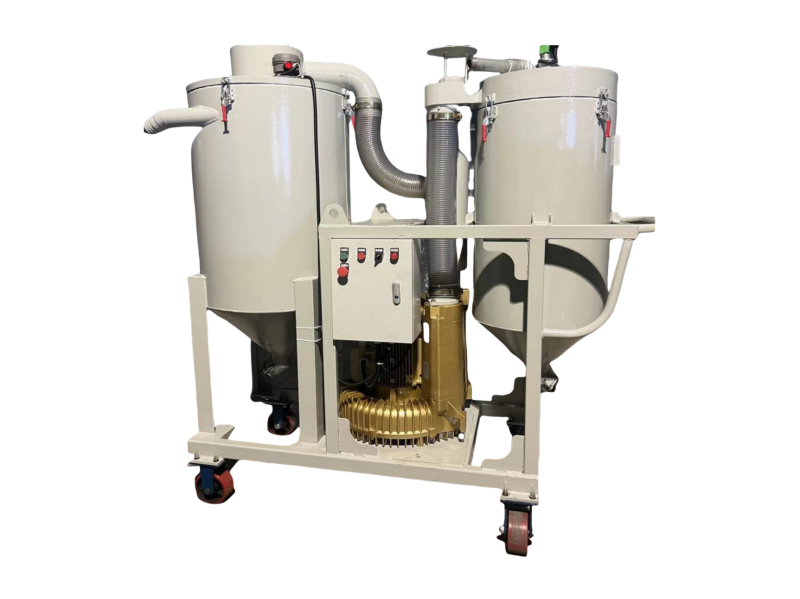

Abrasive Recycle Machine

Abrasive materials play a pivotal role in various industrial processes, including surface cleaning, finishing, and material removal. However, the continuous use of abrasives generates significant waste, increases operational costs, and poses environmental challenges. Abrasive recycle machines have emerged as a critical solution to address these issues, enabling the reuse of abrasives while maintaining process efficiency and quality. This article delves into the technology, components, working principles, applications, and future trends of abrasive recycle machines, highlighting their importance in modern manufacturing and sustainability efforts.

technical consultation

Video

Types of Abrasives and Their Recycling Potential

Common Abrasive Materials

Steel Grit/Shot: Used in shot blasting for heavy rust removal and surface preparation. Steel abrasives are durable and recyclable but require proper cleaning to remove contaminants.

Aluminum Oxide: A versatile abrasive for sandblasting, suitable for various metals and non-metals. It is less dense than steel but can be recycled multiple times with proper separation.

Silicon Carbide: Hard and sharp, ideal for cutting and grinding hard materials like ceramics. Recycling silicon carbide is challenging due to its brittleness, but advancements in separation technology are improving recovery rates.

Glass Beads: Used for peening and finishing, glass beads are recyclable but prone to breakage, requiring careful handling during recycling.

Mineral Abrasives (Garnet, Olivine): Derived from natural minerals, these abrasives are eco-friendly alternatives to synthetic materials. They can be recycled if properly cleaned and sized.

Factors Affecting Abrasive Recycling

Wear and Breakage: Abrasives degrade over time due to impact and friction, reducing their effectiveness. Recycling systems must separate worn particles from usable ones.

Contaminant Levels: Dust, rust, paint, and other contaminants can compromise recycled abrasive quality. Effective cleaning and separation are essential.

Particle Size Distribution: Recycling processes must maintain the optimal size range for each application. Overly fine particles may be less effective or cause dust issues.

Components of Abrasive Recycle Machines

Separation Systems

Air Washers/Classifiers: Use air currents to separate light contaminants (dust, fines) from heavier abrasives. Cyclones or centrifugal forces are often employed to enhance separation efficiency.

Magnetic Separators: Remove ferrous contaminants (e.g., steel shot fragments) from non-ferrous abrasives like aluminum oxide or garnet.

Screening Systems: Vibrating screens or mesh filters separate abrasives by size, ensuring only particles within the desired range are reused. Multi-deck screens can sort abrasives into multiple size fractions.

Cleaning Units

Shot Blasting Chambers: Some recycle machines include secondary shot blasting to clean recycled abrasives, removing residual contaminants and oxide layers.

Washing Systems: Water-based or solvent cleaning may be used for certain abrasives, followed by drying to remove moisture.

Heat Treatment: Thermal processes can eliminate organic contaminants from abrasives like sand or glass beads.

Conveying and Storage Systems

Bucket Elevators and Screw Conveyors: Transport abrasives between different stages of the recycling process.

Silos and Hoppers: Store recycled abrasives, often equipped with level sensors to monitor inventory and ensure a continuous supply.

Control Systems

PLC (Programmable Logic Controller): Manages the entire recycling process, regulating conveyor speeds, separator settings, and cleaning parameters.

Sensors: Monitor abrasive flow rates, contamination levels, and particle size distribution, providing feedback for real-time adjustments.

Working Principles of Abrasive Recycle Machines

Collection and Initial Separation

Used abrasives are collected from blasting chambers or processing areas and transported to the recycle machine.

Initial separation removes large debris (e.g., bolts, metal chunks) via screens or magnetic separators.

Contaminant Removal

Air Classification: Abrasives are fed into an air washer, where upward air currents carry dust and fines away, while heavier particles fall into a collection hopper.

Magnetic Separation: Ferrous particles are attracted to magnets, separating them from non-ferrous abrasives.

Screening: Vibrating screens filter out oversized or undersized particles, ensuring the recycled abrasive meets specifications.

Cleaning and Reconditioning

Abrasives may undergo additional cleaning (e.g., shot blasting, washing) to remove stubborn contaminants.

Reconditioning processes, such as heat treatment or mechanical agitation, restore abrasive properties like hardness and shape.

Quality Control

Final inspection ensures the recycled abrasive meets quality standards. Particle size analysis, hardness testing, and contamination checks are common quality control measures.

abrasives are transported to storage silos for reuse, while waste materials are disposed of properly.

Applications of Abrasive Recycle Machines

Manufacturing and Metalworking

Automotive Industry: Recycles steel shot and grit used in blast cleaning engine components, chassis parts, and body panels, reducing material costs and waste.

Aerospace: Reuses aluminum oxide and glass beads for surface finishing of aircraft parts, ensuring precision and compliance with strict quality standards.

Shipbuilding: Recycles abrasives used in hull cleaning and preparation, minimizing waste in large-scale operations.

Construction and Infrastructure

Bridge Maintenance: Recycling garnet or steel grit used in blast cleaning bridges reduces environmental impact and operational costs.

Concrete Surface Preparation: Recycles abrasives used to clean and profile concrete floors, improving sustainability in construction projects.

Foundries and Forging

Casting Cleaning: Reuses steel shot to remove sand and scale from metal castings, optimizing production efficiency and reducing abrasive consumption.

Oil and Gas Industry

Pipeline Coating: Recycles abrasives used in surface preparation for pipeline coatings, ensuring corrosion resistance and extending pipeline lifespan.

Environmental Remediation

Hazardous Waste Removal: Recycles abrasives used in decontaminating surfaces contaminated with lead, asbestos, or radioactive materials, minimizing secondary waste.

Advantages of Abrasive Recycling

Cost Savings

Reduced Abrasive Purchases: Recycling can cut abrasive consumption by 50-90%, lowering material costs significantly.

Lower Disposal Fees: Less waste sent to landfills reduces disposal expenses, especially for hazardous materials.

Environmental Benefits

Resource Conservation: Extends the lifespan of abrasive materials, reducing the need for virgin resources.

Emission Reduction: Less mining and processing of raw materials lowers energy consumption and greenhouse gas emissions.

Waste Minimization: Decreases landfill burden, aligning with circular economy principles.

Operational Efficiency

Continuous Supply: On-site recycling ensures a steady abrasive supply, reducing downtime associated with material replenishment.

Consistent Quality: Modern recycle machines maintain tight control over abrasive properties, ensuring consistent processing results.

Regulatory Compliance

Helps meet environmental regulations regarding waste management and emissions, avoiding fines and reputational risks.

Challenges and Limitations

Technical Challenges

Abrasive Degradation: Over time, abrasives break down into finer particles, reducing their effectiveness. Balancing recycling with occasional fresh abrasive addition is critical.

Complex Contaminants: Some applications (e.g., paint stripping) generate mixed contaminants (e.g., paint, metal, dust), requiring sophisticated separation techniques.

Material Compatibility: Recycling systems must be tailored to specific abrasive types, as different materials require unique cleaning and separation methods.

Economic Considerations

High Initial Investment: Advanced recycle machines can be costly, requiring businesses to evaluate ROI based on abrasive usage volume and cost savings.

Maintenance Costs: Regular maintenance (e.g., screen replacement, separator calibration) adds to operational expenses.

Environmental Trade-offs

Energy Consumption: Recycling processes (e.g., air classification, drying) consume energy, which must be balanced against the environmental benefits of reduced waste.

Future Trends in Abrasive Recycle Technology

Advanced Separation Technologies

AI-Driven Sorting: Machine learning algorithms will optimize separation parameters based on real-time particle analysis, improving recycling efficiency.

Electrostatic Separation: Emerging technology that uses electrostatic charges to separate abrasives from contaminants, particularly effective for fine particles.

Integration with IoT and Automation

Predictive Maintenance: Sensors will monitor machine performance, predicting component failures and scheduling maintenance proactively.

Smart Recycling Systems: IoT-connected recycle machines will communicate with blasting equipment to adjust recycling parameters dynamically, ensuring optimal abrasive quality.

Sustainable Abrasive Development

Bio-Based Abrasives: Research into biodegradable or renewable abrasives (e.g., walnut shells, coconut husks) that can be recycled or composted.

Hybrid Abrasives: Composite materials designed for enhanced recyclability and performance, combining the strengths of different abrasive types.

Modular and Mobile Solutions

Compact Recycling Units: Smaller, portable machines for on-site recycling in remote locations or small-scale operations.

Modular Systems: Scalable recycle machines that can be easily expanded or reconfigured to handle different abrasive types or volumes.

Energy Efficiency Improvements

Regenerative Systems: Technologies that recover and reuse energy from separation processes (e.g., using waste heat from drying for preheating).

Basic Parameter

Case Studies

Automotive Manufacturer

A major car manufacturer implemented an abrasive recycling system for shot blasting car frames. By recycling 85% of their steel shot, they reduced annual abrasive costs by $500,000 and cut waste disposal by 700 tons.

Shipyard Application

A large shipyard integrated a recycle machine for hull blasting, recycling garnet abrasive. This reduced their monthly abrasive purchases by 60%, saving $120,000 annually while meeting strict environmental regulations.

Foundry Optimization

A steel foundry installed a state-of-the-art abrasive recycling system, improving shot quality and extending its lifespan by 300%. This led to a 40% reduction in abrasive consumption and significant energy savings.

Abrasive recycle machines are integral to modern industrial sustainability, offering a cost-effective and environmentally responsible solution to abrasive waste management. By recovering and reusing abrasives, businesses can reduce operational costs, conserve natural resources, and meet regulatory requirements. As technology advances, abrasive recycling systems will become more efficient, intelligent, and adaptable, further driving the transition toward a circular economy.

Despite challenges such as initial investment costs and technical complexities, the long-term benefits of abrasive recycling—including cost savings, environmental protection, and process optimization—make it a compelling choice for industries reliant on abrasive materials. Continued innovation in separation technology, automation, and sustainable abrasives will ensure that abrasive recycle machines remain at the forefront of industrial efficiency and sustainability efforts.

In an era where resource conservation and environmental stewardship are paramount, abrasive recycling represents a critical step toward reducing industrial waste and creating a more sustainable future for manufacturing and infrastructure development.
