Core Technology and Components of Steel Plate Preservation Machines
1. Surface Cleaning Technology
The first critical step in steel plate preservation is surface preparation. Steel plate preservation machines employ various cleaning methods to remove rust, scale, paint, and contaminants:
Shot Blasting: This is one of the most common methods, using high-velocity steel shots or grit propelled by turbines or air compressors. Shot blasting effectively removes rust and prepares the surface for coating by creating a rough profile that enhances paint adhesion. Machines equipped with shot blasting systems often include recovery and recycling mechanisms to reuse abrasive materials, reducing waste and operational costs.
Sandblasting: Similar to shot blasting but using sand or other abrasives, sandblasting is suitable for heavy-duty cleaning. However, it has become less popular due to environmental concerns regarding silica dust and the rise of alternative abrasives like garnet or steel grit.
High Pressure Water Jetting: Utilizing water jets at pressures ranging from 10,000 to 40,000 PSI, this method is ideal for removing loose rust and contaminants without generating dust. It is often used in environmentally sensitive areas or when dealing with delicate surfaces.
Ultrasonic Cleaning: Though less common for large steel plates, ultrasonic cleaners use high-frequency sound waves to dislodge particles from intricate or hard-to-reach areas, making them suitable for specialized applications.
2. Coating Application Systems
After cleaning, applying protective coatings is essential to prevent future corrosion. Steel plate preservation machines integrate advanced coating systems, including:
Spray Coating: Automated spray guns or robots apply paints, primers, or preservatives evenly across the steel surface. Modern systems may use airless spraying, which delivers higher paint transfer efficiency and reduces overspray, or electrostatic spraying, which improves adhesion by charging paint particles.
Roller Coating: This method involves using rollers to apply coatings, ensuring uniform thickness and minimal waste. It is widely used in industrial settings for large, flat steel plates, such as those produced in steel mills.
Brush Coating: While more manual, some machines incorporate robotic brushes for precise coating in corners or uneven surfaces, complementing spray or roller systems.
3. Automation and Control Systems
Modern preservation machines rely on sophisticated automation to ensure consistency and efficiency:
PLC (Programmable Logic Controller): PLCs manage the sequence of operations, such as conveying steel plates through cleaning and coating stations, controlling pressure and flow rates, and monitoring system parameters.
Sensors and Vision Systems: Infrared sensors detect temperature and humidity to optimize coating curing conditions. Laser scanners or cameras may inspect surface cleanliness and coating thickness in real time, providing feedback for automatic adjustments.
Human-Machine Interface (HMI): Operators interact with the machine via touchscreens or control panels, setting parameters, monitoring performance, and troubleshooting issues.
4. Conveyor and Handling Systems
To process large steel plates efficiently, machines include robust conveyor systems:
Roller Conveyors: These transport plates through each stage of the preservation process, from loading to cleaning, coating, and curing. Adjustable roller speeds ensure optimal dwell time in each station.
Overhead Cranes or Robotics: For heavy or oversized plates, overhead cranes or robotic arms may lift and position the steel, enabling 360-degree access for cleaning and coating.
Working Principles of Steel Plate Preservation Machines
1. Pre-Processing Inspection
Before cleaning, some machines use visual or ultrasonic inspection to assess the steel plate’s condition, identifying areas of severe rust or damage that may require special treatment. This data helps customize the cleaning and coating process.
2. Surface Cleaning Stage

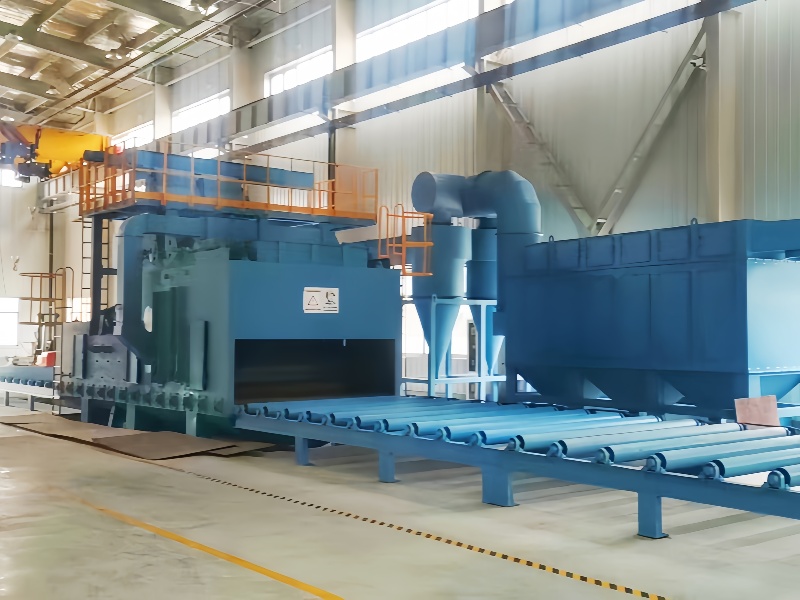

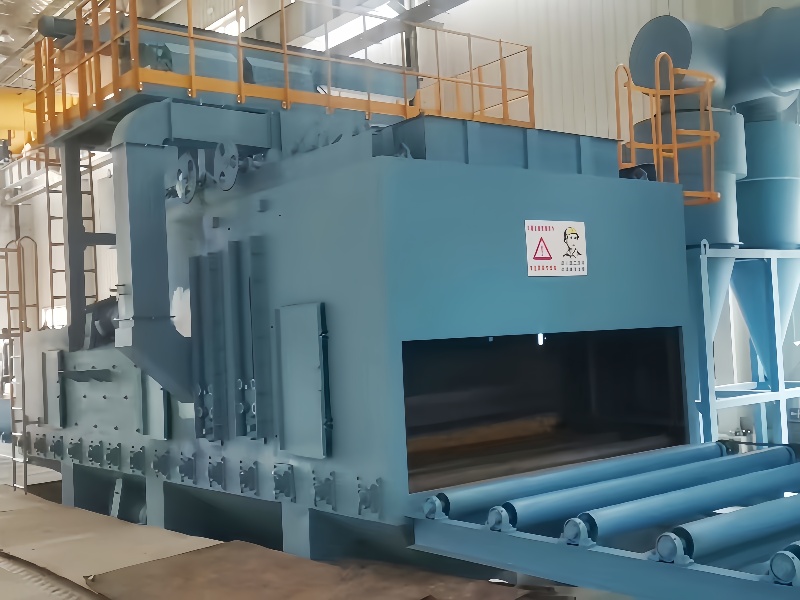

The steel plate is fed into the cleaning chamber, where shot blasting, water jetting, or other methods remove contaminants. For example, in a shot blasting machine:
Abrasive media is propelled at high speed by turbines, impacting the steel surface to strip away rust and scale.
A recycling system collects used abrasives, separates dust and debris via filters or cyclones, and recirculates clean media for reuse.
3. Surface Preparation and Quality Control
After cleaning, the plate may undergo de-dusting (using air blowers or vacuum systems) and surface roughness measurement (e.g., using a profilometer) to ensure it meets standards for coating adhesion (e.g., ISO 8503 for surface cleanliness and roughness).
4. Coating Application Stage
The cleaned plate moves to the coating station, where automated systems apply primers, intermediate coats, and topcoats according to specified thicknesses and drying times. For example:
A two-coat system might involve a zinc-rich primer for corrosion resistance and a polyurethane topcoat for UV and chemical resistance.
Curing ovens or drying tunnels may be integrated to speed up paint drying, using hot air or infrared heating.
5. Post-Processing and Quality Assurance
After coating, the plate is inspected for defects such as runs, bubbles, or uneven coverage. Non-destructive testing (NDT) methods like magnetic particle inspection or eddy current testing may be used to detect hidden flaws, ensuring the preserved steel meets industry standards (e.g., ASTM, ISO).
Applications of Steel Plate Preservation Machines
1. Shipbuilding and Marine Industries
Steel plates in ships are constantly exposed to saltwater, humidity, and harsh marine environments, making corrosion prevention critical. Preservation machines are used to:
Clean and coat hull plates, decks, and structural components with anti-fouling paints to prevent biofouling and rust.
Maintain offshore platforms and pipelines, where failure due to corrosion could lead to environmental disasters or operational downtime.
2. Construction and Infrastructure
In construction, steel plates are used in bridges, buildings, and steel frameworks. Preservation machines ensure:
Structural steel beams and columns are protected against atmospheric corrosion, extending the lifespan of buildings.
Highway bridges and overpasses, exposed to rain, snow, and de-icing salts, receive durable coatings to resist degradation.
3. Automotive and Heavy Machinery
Automotive manufacturers use preservation machines to treat steel body panels, preventing rust in vehicles exposed to road salt and moisture.
Heavy machinery components (e.g., excavator arms, truck frames) are coated to withstand abrasion and corrosion in industrial or outdoor settings.
4. Oil and Gas Industry
Steel pipelines and storage tanks in oil and gas facilities face severe corrosion from chemicals and underground water. Preservation machines apply specialized coatings like fusion-bonded epoxy (FBE) or three-layer polyethylene (3LPE) to ensure pipeline integrity and prevent leaks.
5. Steel Manufacturing and Fabrication Plants
Rolling mills and fabrication shops use preservation machines to treat raw steel plates before they are sold or used in downstream applications, adding value by providing pre-protected materials.
Advantages of Steel Plate Preservation Machines
1. Enhanced Efficiency and Productivity
Automated systems process steel plates faster than manual methods, reducing labor costs and increasing throughput. For example, a large-scale shot blasting and coating line can treat hundreds of square meters of steel per hour, far exceeding manual cleaning and painting.
2. Consistent Quality
Automation ensures uniform cleaning and coating thickness, minimizing human error. Sensors and feedback systems maintain precise control over parameters like abrasive flow, spray pressure, and curing temperature, resulting in reliable, repeatable results.
3. Cost Savings
Reduced Material Waste: Recycling systems for abrasives and coatings minimize waste, lowering operational costs.
Extended Asset Lifespan: Properly preserved steel requires less frequent maintenance or replacement, saving long-term costs for industries like shipbuilding and infrastructure.
4. Environmental Benefits
Modern machines often incorporate dust collection systems and use low-VOC (volatile organic compound) coatings, aligning with environmental regulations. Water-based paints and recyclable abrasives further reduce the ecological footprint.
5. Safety Improvements
By automating hazardous tasks like shot blasting or High Pressure water jetting, preservation machines reduce worker exposure to noise, dust, and chemicals, enhancing workplace safety.
Challenges and Limitations
1. High Initial Investment
Purchasing and installing a steel plate preservation machine, especially a large-scale automated system, requires significant capital. Smaller enterprises may struggle to justify the cost, though rental or shared facility models are emerging solutions.
2. Maintenance and Calibration
Complex machinery requires regular maintenance to ensure optimal performance. For example, shot blasting turbines need periodic inspection for wear, and coating pumps must be calibrated to maintain consistent flow rates. Neglecting maintenance can lead to downtime and reduced efficiency.
3. Technical Expertise
Operating advanced preservation machines demands trained personnel who understand system parameters, coating chemistry, and troubleshooting. Training programs or partnerships with equipment suppliers are often necessary to build in-house expertise.
4. Size and Mobility Constraints
Large, fixed-installation machines are ideal for industrial settings but cannot easily process on-site or oversized structures (e.g., large bridges). Mobile preservation units, though less powerful, are being developed to address this gap, using trailer-mounted systems for on-location treatment.
Future Trends in Steel Plate Preservation Machines
1. Integration of AI and IoT
Predictive Maintenance: Sensors and IoT (Internet of Things) devices will monitor machine performance in real time, predicting component failures before they occur. For example, vibration sensors on shot blasting turbines can detect unusual wear patterns, triggering maintenance alerts.
AI-Driven Process Optimization: Machine learning algorithms will analyze data from thousands of processing cycles to optimize parameters like abrasive type, coating thickness, and curing time, leading to even more efficient operations.
2. Robotics and Automation Advancements
Collaborative Robots (Cobots): Cobots will work alongside human operators to perform intricate tasks like coating hard-to-reach areas, improving precision and safety.
Autonomous Mobile Robots (AMRs): AMRs equipped with cleaning and coating tools will navigate factory floors or construction sites, treating steel plates in dynamic environments without fixed conveyors.
3. Sustainable and Eco-Friendly Technologies
Waterless Cleaning: Innovations like dry ice blasting or plasma cleaning may reduce water usage in preservation processes, appealing to industries operating in water-scarce regions.
Bio-Based Coatings: Development of plant-based or recycled coatings with anti-corrosive properties will align with global sustainability goals, reducing reliance on petroleum-based paints.
4. Portable and Modular Designs
Modular Systems: Machines will be designed in modular units that can be easily reconfigured or expanded, allowing companies to adapt their preservation lines to changing needs (e.g., processing different plate sizes or adding new coating technologies).
Mobile Solutions: Compact, trailer-mounted preservation units with integrated power sources will enable on-site treatment of large structures, reducing the need to transport heavy steel plates to fixed facilities.
5. Advanced Coatings and Nanotechnology
Nanocomposite Coatings: Coatings embedded with nanoparticles (e.g., graphene, zinc oxide) will offer superior corrosion resistance, self-healing properties, and longer lifespans, reducing the frequency of recoating.
Smart Coatings: pH-sensitive or temperature-responsive coatings will change color or release inhibitors when damage or corrosion is detected, enabling early intervention and predictive maintenance.
