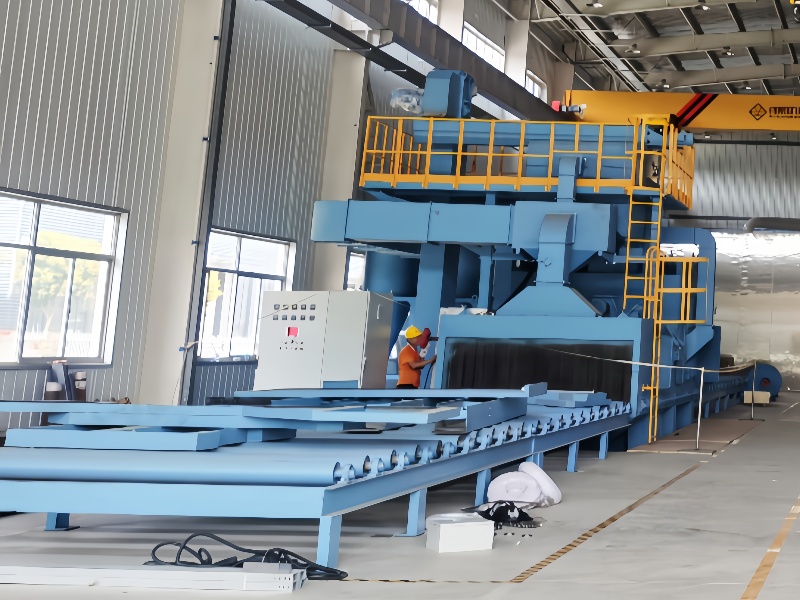

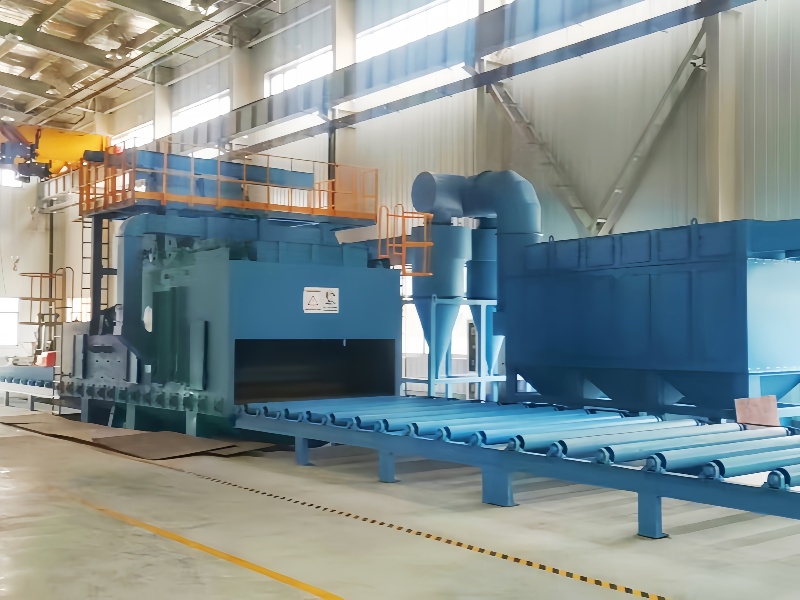

Steel Plate Shot Blasting Machine

Steel plate shot blasting machines are critical equipment in the metal processing industry, designed to clean, descale, and surface-treat steel plates efficiently. These machines use high-velocity abrasive media, typically steel shots or grit, to remove rust, welding slag, paint, and other contaminants from the metal surface. By enhancing surface roughness and cleanliness, shot blasting prepares steel plates for subsequent processes such as painting, coating, welding, or forming. This article explores the working principles, key components, applications, technological advancements, and maintenance considerations of steel plate shot blasting machines, highlighting their significance in modern manufacturing.

technical consultation

Video

Working Principles of Steel Plate Shot Blasting Machines

Basic Mechanism

The core principle of shot blasting relies on the kinetic energy of abrasive particles propelled at high speeds onto the steel plate surface. The process involves:

1. Abrasive Projection: High-speed rotating wheels (turbines) or air-driven nozzles accelerate abrasive media (e.g., steel shots, cast iron grit, or ceramic beads) toward the workpiece.

2. Impact Cleaning: The abrasive particles strike the steel plate, removing surface contaminants through mechanical impact. This action also creates a uniform surface profile, improving the adhesion of coatings or paints.

3. Abrasive Recovery and Recycling: After impacting the steel plate, the abrasive media falls into a recovery system, where it is separated from dust and debris via sieves or air classifiers. Cleaned abrasives are then recycled back into the blasting process, ensuring minimal waste.

Key Parameters Influencing Performance

Abrasive Type and Size: Harder abrasives (e.g., steel grit) are suitable for heavy-duty descaling, while softer media (e.g., glass beads) are used for delicate surface finishing.

Wheel Speed and Trajectory: Faster wheel speeds (up to 3,000 RPM) generate higher impact energy, ideal for removing thick rust or scale. The angle of abrasive projection affects coverage and uniformity.

Throughput Speed: The conveyor belt speed determines the dwell time of the steel plate in the blasting chamber, balancing production efficiency with surface treatment quality.

Applications of Steel Plate Shot Blasting Machines

1. Metal Fabrication and Construction

Shipbuilding: Prepares steel plates for hull construction by removing marine corrosion and ensuring paint adhesion.

Structural Steel: Cleans beams, columns, and plates used in bridges and buildings, enhancing weld quality and preventing premature rust.

Heavy Machinery: Processes components for excavators, cranes, and agricultural equipment, improving durability in harsh environments.

2. Automotive and Aerospace Industries

Component Manufacturing: Cleans castings, forgings, and stamped parts, removing scale from heat treatment processes.

Surface Preparation for Coating: Ensures uniform electrophoretic coating or powder painting by creating an optimal surface profile.

3. Oil and Gas Sector

Pipeline Fabrication: Treats steel pipes to meet anti-corrosion standards (e.g., API specifications) before coating with fusion-bonded epoxy.

Offshore Equipment: Maintains the integrity of offshore platforms by removing salt-induced corrosion.

4. Recycling and Maintenance

Steel Plate Reclamation: Restores used or salvaged steel plates to reusable condition by removing rust, paint, and old coatings.

Industrial Maintenance: Cleans large machinery components during overhauls, extending their service life.

Components of a Steel Plate Shot Blasting Machine

1. Blasting Chamber

Structure: Enclosed steel chamber lined with wear-resistant materials (e.g., manganese steel or rubber) to withstand abrasive impact.

Access Points: Equipped with inlet and outlet conveyors for continuous material flow, as well as inspection doors for maintenance.

2. Abrasive Blasting System

Turbine Wheels: High-efficiency centrifugal wheels with replaceable wear parts (impellers, control cages, and blast blades). Multiple wheels are often arranged to cover the entire width of the steel plate.

Air Blast Nozzles (Optional): Used in precision applications or for hard-to-reach areas, driven by compressed air systems.

3. Conveyor System

Continuous Belt: A robust conveyor belt transports steel plates through the blasting chamber at a controlled speed, ensuring uniform treatment.

Hold-Down Devices: Prevent plate movement during blasting, especially for thin or flexible sheets.

4. Abrasive Recovery and Cleaning System

Screw Conveyors and Elevators: Transport spent abrasives from the chamber floor to a separation unit.

Cyclone Separators or Vibrating Screens: Separate dust, debris, and broken abrasives from reusable media. Fine dust is extracted via a dust collector system.

5. Dust Collection System

Filtration Units: Capture airborne dust and fines, ensuring compliance with environmental and safety standards (e.g., OSHA regulations for silica exposure).

Technological Advancements in Shot Blasting Technology

1. Automation and Robotics

PLC Control Systems: Programmable logic controllers (PLCs) enable precise adjustment of blasting parameters (e.g., wheel speed, conveyor velocity) for different plate thicknesses and materials.

Robotic Blasting Arms: Advanced systems use robotic arms with adaptive nozzles to target complex geometries, improving accuracy and reducing manual labor.

2. Energy and Resource Efficiency

Regenerative Turbine Designs: High-efficiency wheels with improved aerodynamics reduce energy consumption by up to 30%.

Closed-Loop Abrasive Recycling: Advanced separation systems minimize abrasive loss, with some machines achieving a recycling efficiency of over 99%.

Energy Recovery Systems: Capture heat from dust collectors for reuse in other processes, lowering overall energy costs.

3. Eco-Friendly Innovations

Low-Dust Blasting Media: Bio-based abrasives (e.g., crushed nut shells) or recycled materials reduce environmental impact.

Water-Assisted Blasting: Hybrid systems combine water and abrasives to suppress dust, suitable for indoor or environmentally sensitive areas.

Noise Reduction Technologies: Sound-insulated chambers and vibration-dampening mounts comply with strict workplace noise regulations.

4. Smart Monitoring and Predictive Maintenance

IoT Sensors: Real-time monitoring of wheel performance, abrasive flow, and conveyor speed via IoT-connected sensors.

Predictive Analytics: Machine learning algorithms analyze data to predict wear and tear on components (e.g., blast blades), enabling proactive maintenance and reducing downtime.

Remote Diagnostics: Allow technicians to troubleshoot issues and adjust parameters via cloud-based platforms.

Design Considerations for Steel Plate Shot Blasting Machines

1. Plate Size and Throughput

Width and Thickness Range: Machines are customized to handle steel plates from thin sheets (e.g., 2 mm) to heavy-duty plates (e.g., 100 mm thick).

Throughput Capacity: Continuous systems can process up to hundreds of meters of steel per hour, depending on the complexity of the treatment.

2. Abrasive Selection

Material Compatibility: Hard abrasives (e.g., steel grit, hardness 40-60 HRC) for heavy descaling; softer media (e.g., aluminum oxide) for surface finishing.

Recyclability: Stainless steel shots are preferred for applications requiring minimal contamination, while cast iron grit is more cost-effective for heavy-duty use.

3. Safety and Environmental Compliance

Dust Emission Standards: Equipped with high-efficiency particulate air (HEPA) filters to meet regulatory limits (e.g., <1 mg/m³ for total dust).

Noise Levels: Engineered to operate below 85 dB(A) with soundproofing measures, protecting operators from hearing damage.

Waste Management: Separated dust and debris are disposed of or recycled according to environmental regulations.

Maintenance and Operational Best Practices

1. Routine Inspections

Wear Part Replacement: Regularly check blast blades, impellers, and chamber liners for wear, replacing them when erosion exceeds 20-30% of their original thickness.

Bearing Lubrication: Maintain proper lubrication of turbine wheels and conveyor motors to prevent overheating and mechanical failure.

2. Abrasive Quality Control

Sieve Analysis: Periodically test abrasive particle size distribution to ensure consistent blasting performance.

Contamination Checks: Remove foreign materials (e.g., oil, moisture) that could clump abrasives or cause surface defects.

3. Operator Training

Safety Protocols: Train operators on lockout/tagout (LOTO) procedures, personal protective equipment (PPE), and emergency shutdown protocols.

Process Optimization: Educate staff on adjusting parameters for different steel grades and surface requirements to minimize waste and maximize efficiency.

Challenges and Future Trends

Current Challenges

Energy Consumption: High-power turbines and dust collectors contribute to significant energy use, driving the need for more efficient designs.

Abrasive Waste: Traditional abrasives can generate substantial waste, prompting the adoption of recyclable or biodegradable alternatives.

Labor Shortages: Skilled operators are increasingly scarce, necessitating automated and user-friendly machine interfaces.

Basic Parameter

Future Trends

AI-Driven Optimization: Machine learning algorithms to self-adjust blasting parameters based on real-time surface analysis (e.g., using vision sensors).

Additive Manufacturing Integration: Combined with 3D printing, shot blasting could be used for post-processing complex geometries in hybrid manufacturing systems.

Green Manufacturing: Development of fully electric shot blasting machines powered by renewable energy, along with closed-loop water recycling systems.

Steel plate shot blasting machines are indispensable in modern manufacturing, delivering superior surface preparation for a wide range of industries. From shipbuilding to aerospace, their ability to enhance durability, reduce corrosion, and improve coating adhesion makes them vital to ensuring product quality and longevity. As technology evolves, advancements in automation, energy efficiency, and eco-friendliness will further solidify their role in sustainable and high-performance manufacturing. By embracing innovation and adhering to best practices in maintenance and operation, industries can leverage these machines to meet evolving demands while minimizing environmental impact and operational costs.
