Working Principles of Pipe Shot Blasting Machines

The core principle of a pipe shot blasting machine revolves around the use of centrifugal force or compressed air to propel abrasive media (such as steel shots, grits, or beads) at high speeds toward the surface of pipes. The impact of these abrasives removes contaminants, rust, welding slag, paint, and other surface imperfections, while also creating a uniform roughness that enhances the adhesion of coatings, paints, or adhesives.

 1. Centrifugal Blasting (Wheel Blast System)

Mechanism: In centrifugal blasting, a turbine wheel or impeller accelerates the abrasive media using rotational energy. The wheel, equipped with blades or vanes, spins at high speeds (typically 1,500–3,000 RPM), generating centrifugal force that hurls the abrasives toward the pipe surface.

Key Components:

  Turbine Wheel: The primary component for accelerating abrasives.

  Abrasive Feeding System: Controls the flow of abrasives into the wheel.

  Directional Control: Guides the trajectory of the abrasives to ensure uniform coverage.

Advantages: High productivity, suitable for large-scale industrial applications; minimal air consumption compared to pneumatic systems.

 2. Pneumatic Blasting (Air Blast System)

Mechanism: Pneumatic systems use compressed air to propel abrasives through a nozzle. The abrasive media is mixed with air in a pressure vessel or hopper and directed at the pipe surface with precise control over pressure and flow rate.

Key Components:

  Compressor: Provides the necessary air pressure (typically 4–10 bar).

  Nozzle: Directs the abrasive stream; available in various materials (e.g., tungsten carbide for durability).

  Abrasive Recovery System: Recycles and cleans used abrasives for reuse.

Advantages: Versatile for intricate or hard-to-reach areas; allows fine-tuning of surface finish.

 Key Components of Pipe Shot Blasting Machines

To understand their functionality, it is essential to examine the main components that enable efficient operation:

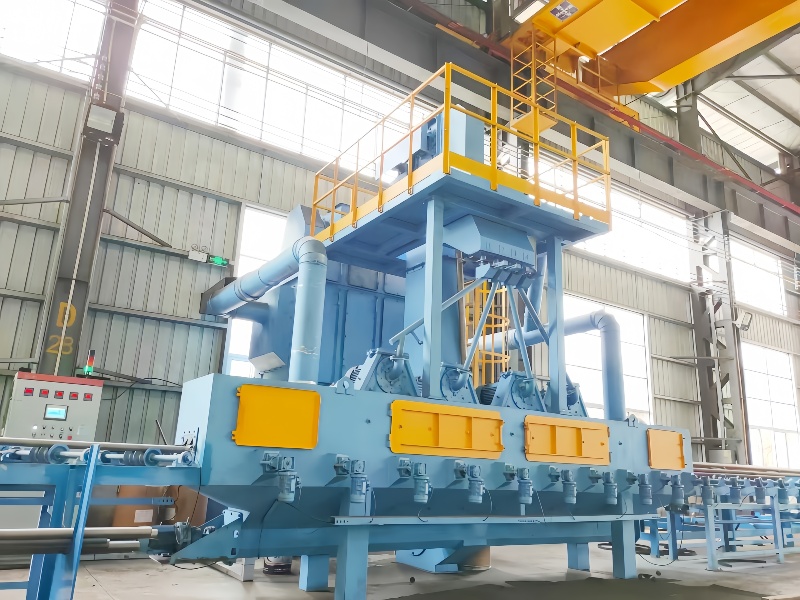

 1. Blast Chamber

Purpose: The enclosed space where the blasting process occurs, designed to contain abrasive particles and prevent environmental contamination.

Construction: Made from wear-resistant materials (e.g., manganese steel or rubber lining) to withstand constant abrasion.

Design Considerations:

  Ventilation systems to manage dust and fumes.

  Access doors for loading/unloading pipes and maintenance.

 2. Abrasive Media

Types:  Steel Shots: Rounded particles for peening and surface strengthening (e.g., S110 to S660 grades).

  Steel Grits: Angular particles for aggressive cleaning and descaling (e.g., G10 to G120 grades).

  Non-Metallic Abrasives: Aluminum oxide, glass beads, or plastic media for delicate surfaces.

Selection Criteria: Depends on pipe material (e.g., carbon steel, stainless steel, aluminum), surface condition, and desired finish.

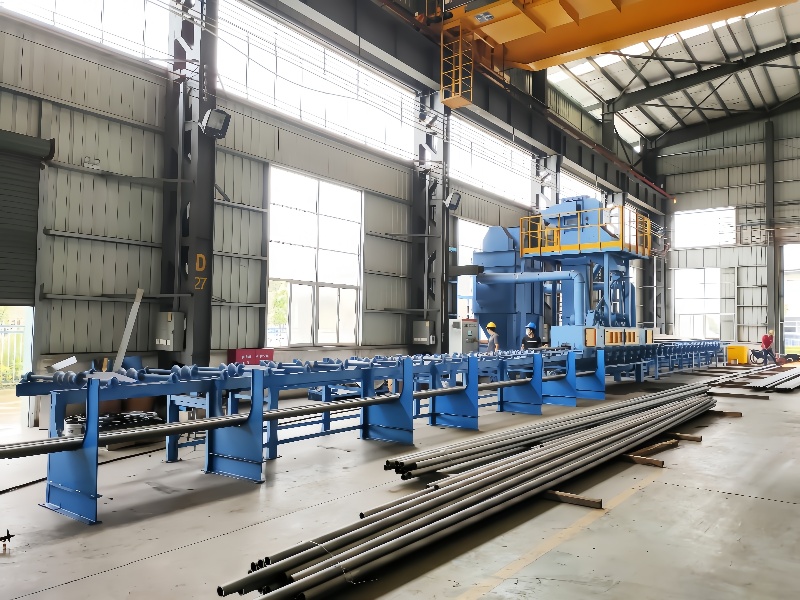

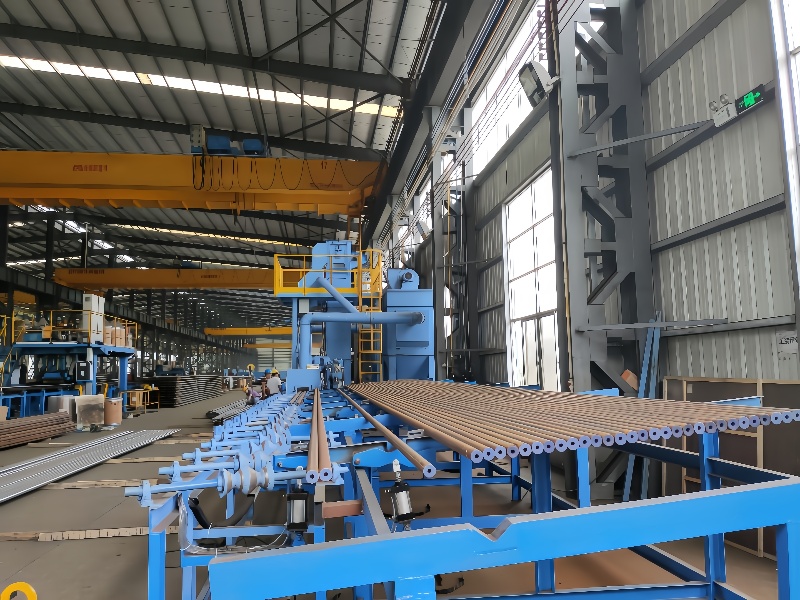

 3. Conveyor System

Function: Transports pipes through the blast chamber continuously or batch-wise.

Types:

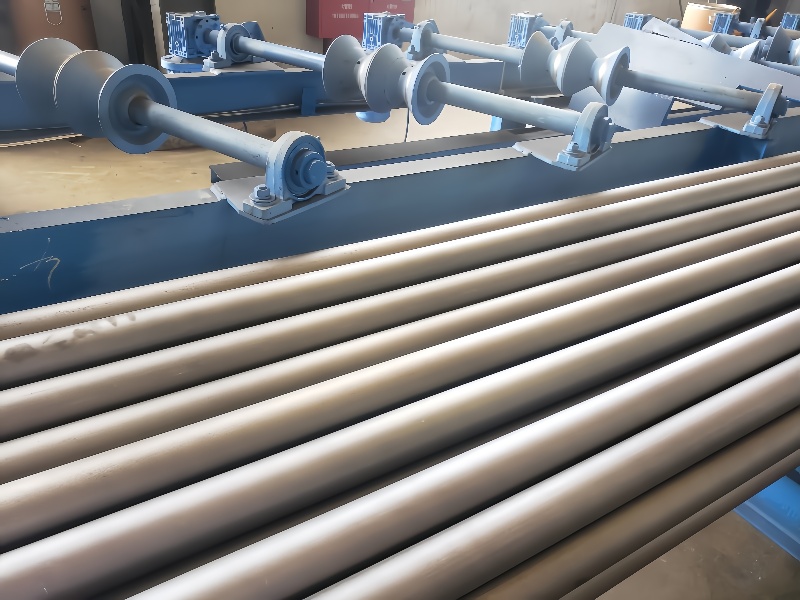

  Roller Conveyors: Ideal for straight pipes, allowing rotation to ensure uniform blasting.

  Hanger Systems: Used for irregularly shaped pipes or small batches.

  Spiral Conveyors: For processing pipes in a helical motion, maximizing surface exposure.

 4. Dust Collection and Filtration System

Importance: Captures and filters dust, debris, and spent abrasives to maintain a clean working environment and comply with safety regulations.

Components:

  Dust cyclones to separate heavy particles.

  Bag filters or cartridge filters for fine dust removal.

  Exhaust fans to maintain negative pressure in the blast chamber.

 5. Abrasive Recovery and Recycling System

Process: Used abrasives are collected, cleaned (via screens or air washers), and recycled to minimize waste and operational costs.

Key Components:

  Screw conveyors or vibratory screens to separate contaminants.

  Elevators to return clean abrasives to the storage hopper.
