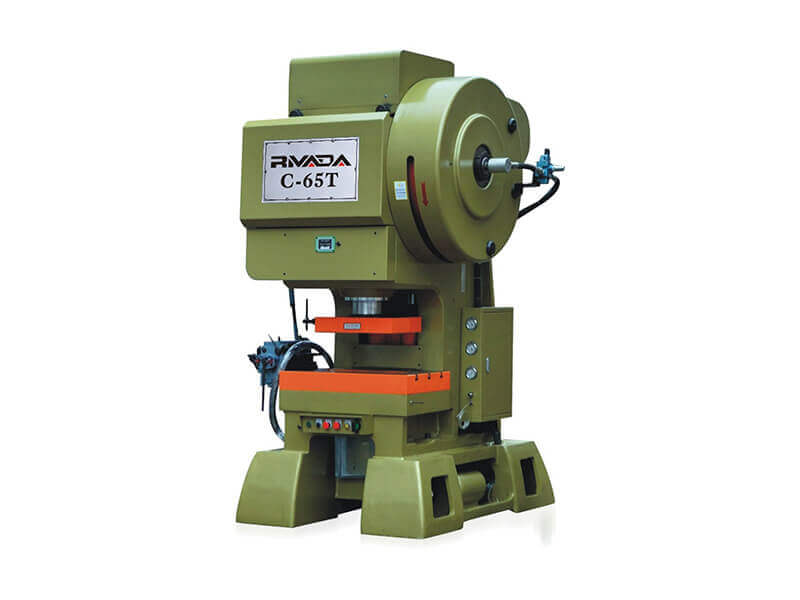

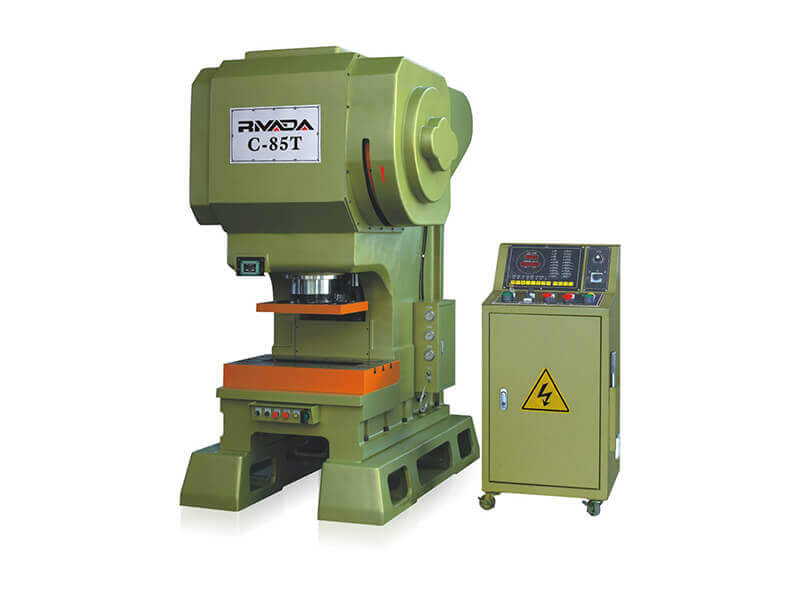

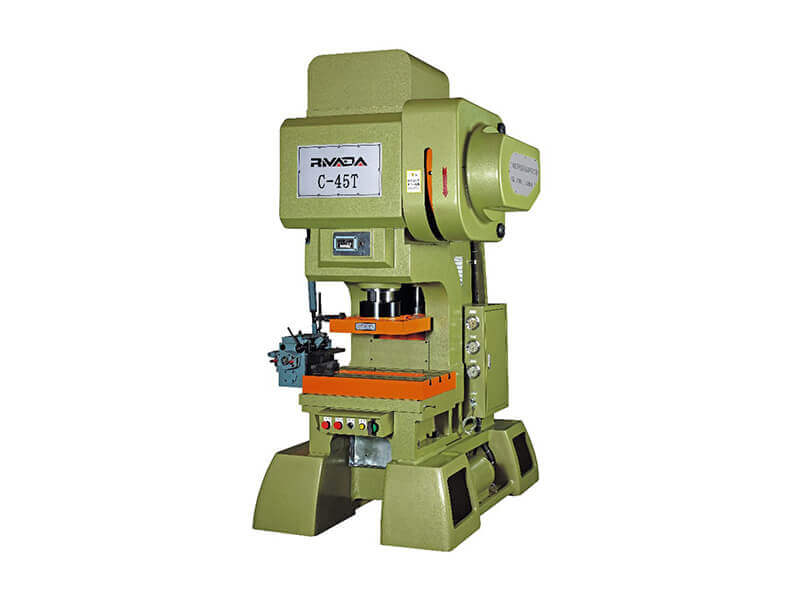

C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine
C Frame High Speed Press Machine

Material Type: Stainless Steel, Copper, Aluminum etc.

Yield Strength: ≤245 N/mm2

Tensile Strength: ≤392 N/mm2

Material Thickness: 0.1-1.0 mm

Coil Width: 20-200mm

Speed: 200-1000SPM

Suitable for metal button and eyelet stamping line



technical consultation

Video

Brief Profile

C frame high speed press machine use integrated special cast iron alloys with high rigidity and shock resistance. The slider is designed with a long guide and equipped with a slider balancing device to ensure precise and stable operation. All anti-wear components are electronically timed automatic lubrication systems, such as the lack of lubricant, the punch will be fully automatic stop. Advanced and simple control system ensures the accuracy of the running and stopping of the slider. It can be used with any automated production requirements to increase production efficiency and reduce costs.

The design principle of the high speed press is to convert the circular motion to linear motion. The main motor is used to drive the flywheel and the clutch drives the gear, crankshaft (or eccentric gear), connecting rod, etc. To achieve the linear movement of the slider from the main motor to the movement of the connecting rod is a circular motion. There must be circular and linear movement between the connecting rod and the slider. There are roughly two types of mechanism in the design, one is a ball type, and the other is a pin type (cylindrical type). Through this mechanism, the circular motion Converts the linear motion of the slider.



Presses apply pressure on the material to plastically deform it to obtain the required shape and precision. Therefore, it is necessary to cooperate with a set of dies (separate upper and lower dies) to place the material between them and apply pressure to the machine to deform it. The reaction force caused by the force exerted on the material during processing is absorbed by the punch machine body.



High speed Metal button stamping press machine accuracy mainly effect by the below factor :

1, parallelism

2, verticality

3, the total gap



The high-precision punch not only produces a good product, but also has less damage to the mold, which not only saves the maintenance time of the mold, but also saves the maintenance cost.

C Frame High Speed Press Machine(图1)

Application

High speed eyelet press machine with Spheroidal graphite casting structure and dynamic balance which speed can reach SPM 900 in Mainland.

Low Vibration, Low Noise, High Speed, Precision.

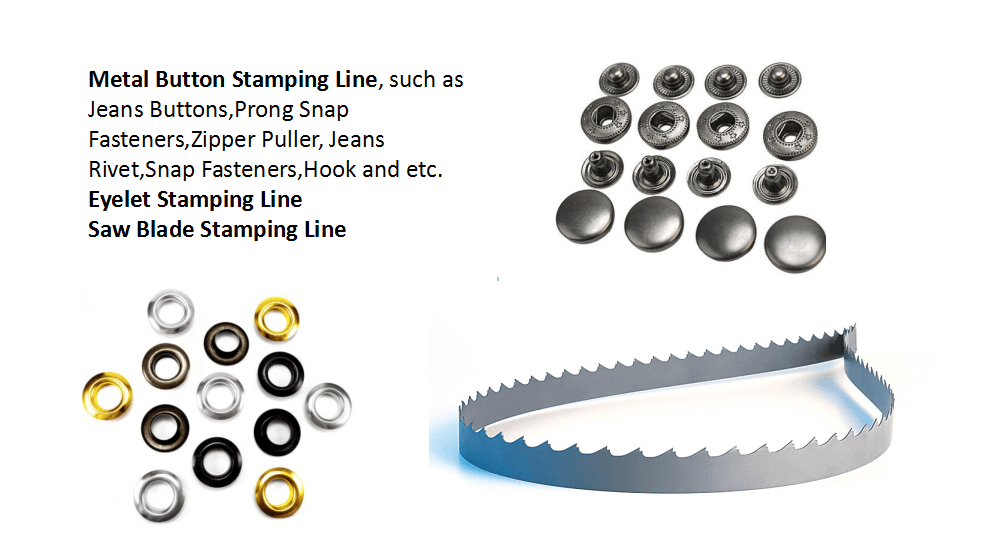

Widely used in Garment accessories and electric connectors Automatic production such as metal button, eyelet, Led stand, terminal, saw blad, precision mobile phone accessories.


C Frame High Speed Press Machine(图1)

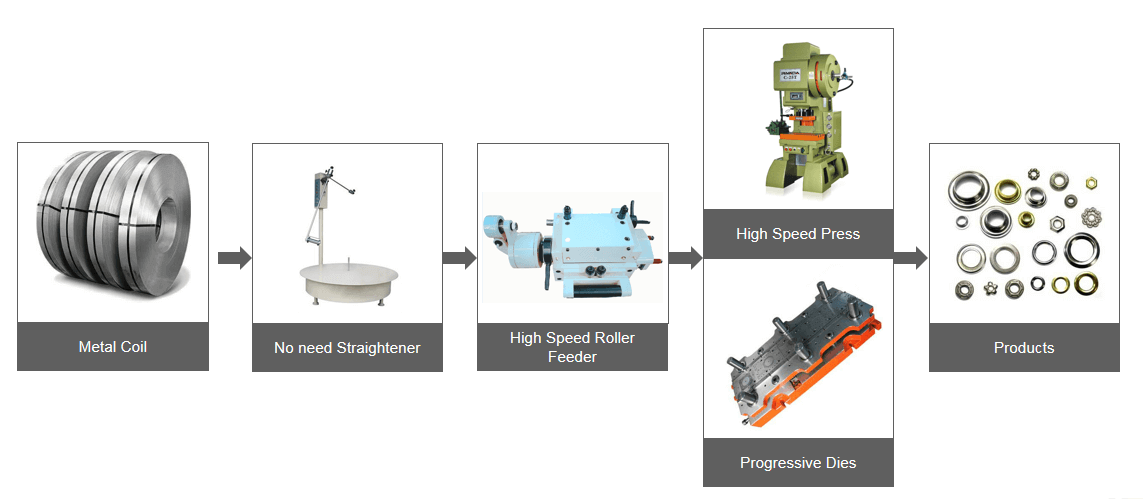

 The configuration of High speed Metal button/eyelet/terminal/Saw blade stamping press machine:

Stept-1: Electrical falt Uncoiler FU-1000, Loading coil and uncoilling coil.

Stept-2: High speed roller feeder machine, Feed coil to press machine.

Stept-3: High speed press machine with tools, pressing to the end product.

What's more, we add the water tank, it can protect the mould . The function of water tank is cooling the mould and reduce the wastage of the mould.

Our high speed press machine equiped the dynamic balancing device, it can make the machine steady when it works and prolong the service life of equipment.


C Frame High Speed Press Machine(图1)

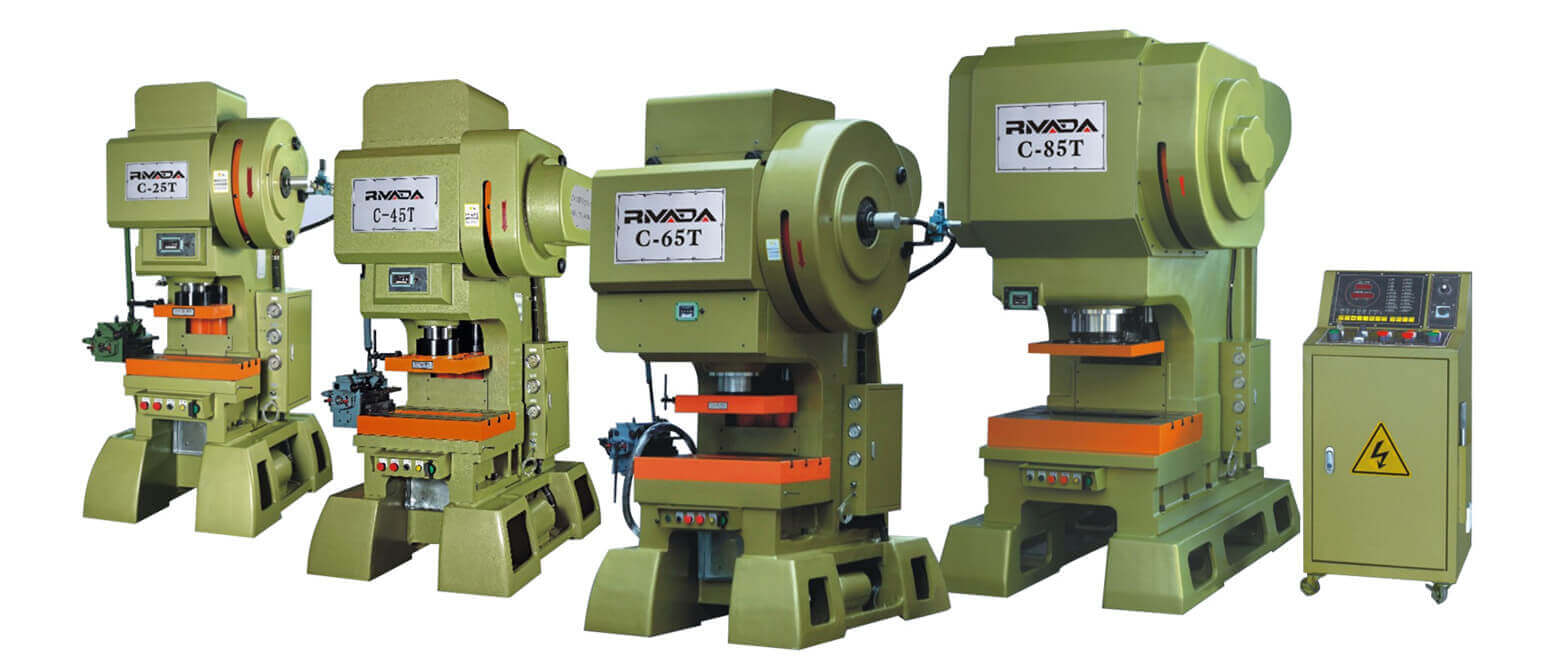

Basic Parameter

Model
C-25
C-45
C-65
C-85
Capacity
25Ton
45Ton
65Ton
85Ton
Stroke of slide
20mm
25mm
30mm
25mm
30mm
40mm
30mm
40mm
50mm
40mm
50mm
60mm
Speed(SPM)
200-1000
200-900
200-800
200-800
200-700
200-600
200-700
200-600
200-500
200-400
200-300
200-300
Die-height(mm)
185-215
183-213
180-210
213-243
210-240
205-235
206-256
200-250
196-246
310-360
305-355
300-350
Bolster(mm)
600 x 300 x 80
680x 420 x 90
890x520x110
1000x600x150
Area of slide(mm)
320mm x 220mm
420mm x 320mm
550mm x 350mm
700mm x 450mm
Slide adjustment(mm)
30
30
50
50
Bed opening(mm)
100x 300(400)
100 x 400 (500)
100x450(550)
170x600(700)
Motor(HP)
5
7.5
15
30
Machine weight(kg)
2919
5080
8016
14500
Lubrication system
Forceful Automation
Variable speed system
Inverter
Clutch and Brake
Air clutch,Friction brake
Vibration reduction
Mechanical Mounting or Pneumatic Mounting
