Concrete Shot Blasting Machine

1.Name:Concrete Shot Blasting Machine

2.Model:MZ

3.It Is Used For Floor & Steel Plate

technical consultation

Video

What Is a Concrete Shot Blasting Machine?

What Is a Concrete Shot Blasting Machine?

A concrete shot blasting machine is a specialized piece of equipment designed to clean, profile, and prepare concrete surfaces using high - velocity steel shots. This process is highly effective for removing contaminants, old coatings, and surface imperfections while creating a uniform surface profile.

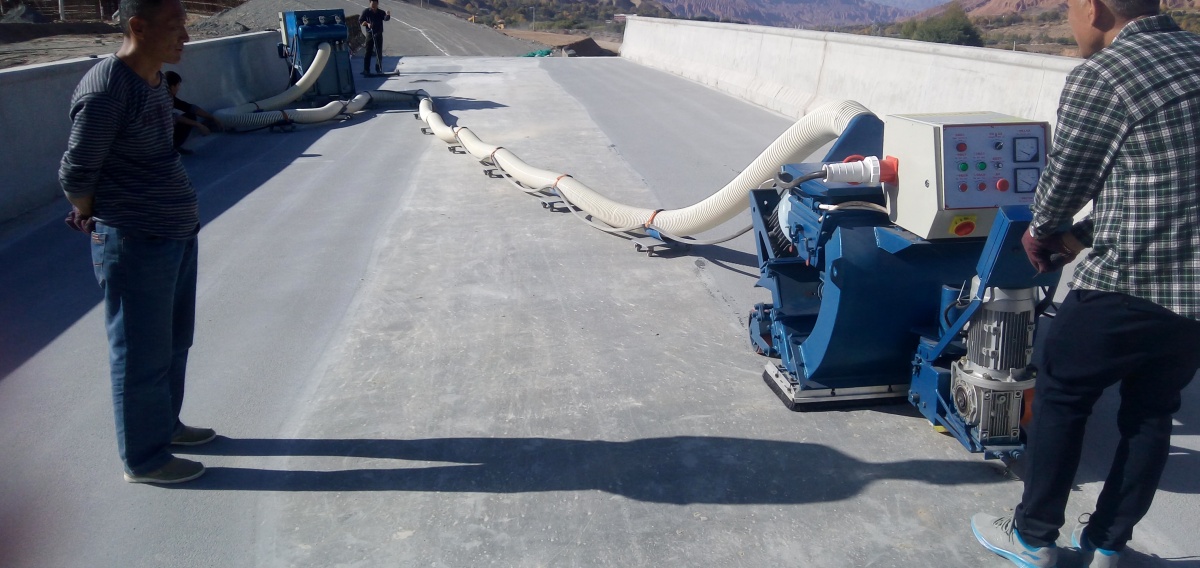

Concrete Shot Blasting Machine(图1)

How Does a Concrete Shot Blasting Machine Work?

How Does a Concrete Shot Blasting Machine Work?

The machine operates by propelling steel shots at high speed onto the concrete surface using a centrifugal blast wheel.

The shots impact the surface, breaking up and removing dirt, old paint, rust, and other contaminants. The used shots and debris are then collected by a dust - collection system, separated, and the steel shots are recycled for reuse.

Key Features and Benefits

1.Efficiency: Shot blasting is a fast and efficient method, capable of covering large areas quickly. For example, some models can treat up to 9,000 square feet per hour.

2.Uniform Surface Profile: Creates a consistent surface profile, which enhances the adhesion of new coatings or overlays.

3.Minimal Dust: The enclosed system generates very little airborne dust, making it suitable for indoor use and environmentally friendly.

4.Versatility: Suitable for various applications, including floor preparation, rust removal, and surface cleaning.

Applications

1.Surface Preparation: Ideal for preparing concrete floors for new coatings, such as epoxy, polyurethane, or self - leveling overlays.

2.Rust and Contaminant Removal: Effective for removing rust, mill scale, and other contaminants from steel surfaces.

3.Cleaning: Removes dirt, grease, and biological growth from concrete surfaces, making it suitable for maintenance of industrial floors, bridges, and other structures.

4.Profiling: Creates a roughened surface to enhance the bond strength of new materials.

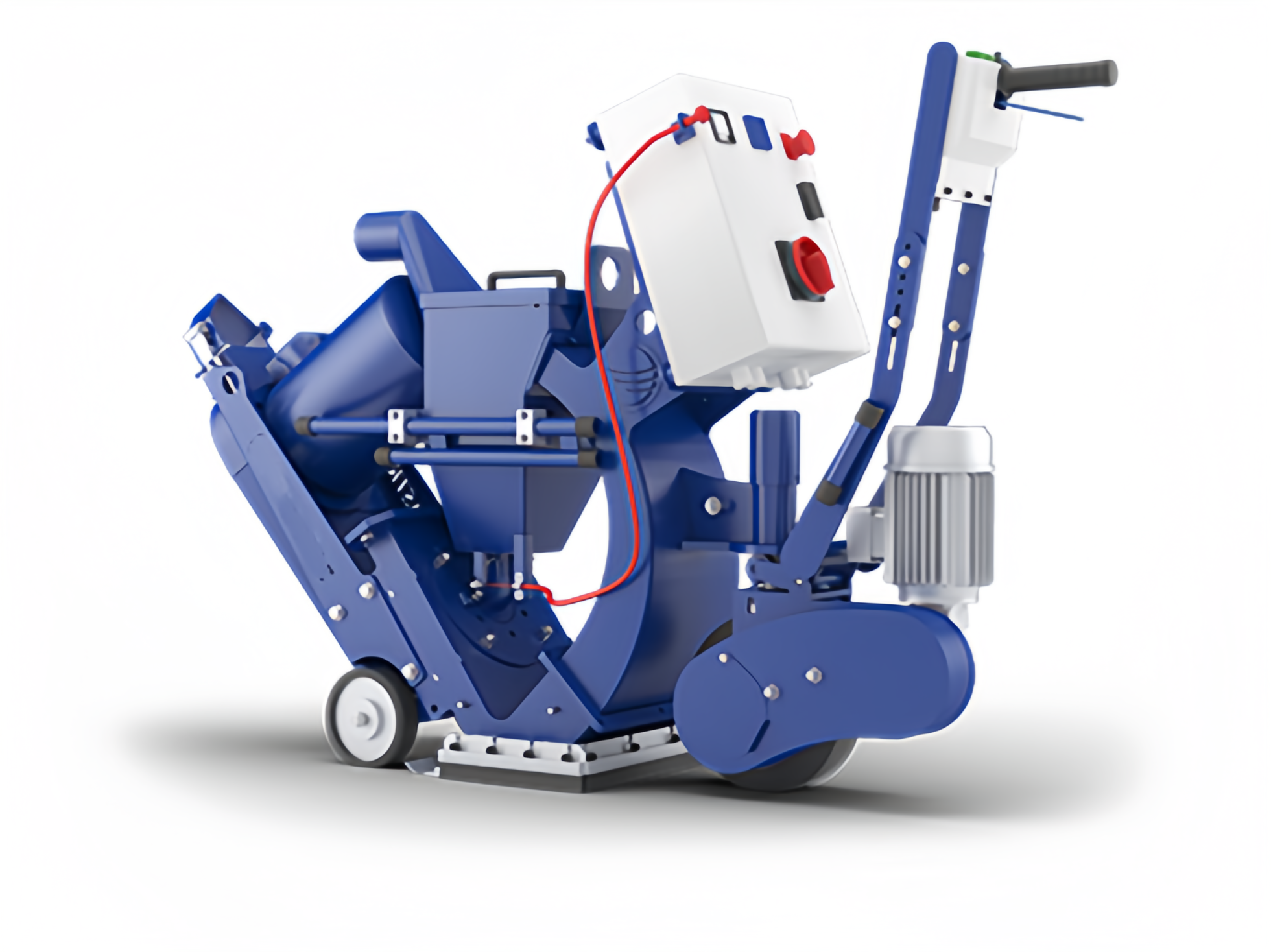

Concrete Shot Blasting Machine(图1)

Types of Concrete Shot Blasting Machines

Types of Concrete Shot Blasting Machines

1.Walk - Behind Units:

Size: Compact and portable.

Blast Pattern Width: Typically 4 - 15 inches.

Usage: Suitable for smaller jobs, tight spaces, and areas with limited access.

Example: Ideal for small - scale commercial floors, garages, and workshops.

2.Ride - On Units:

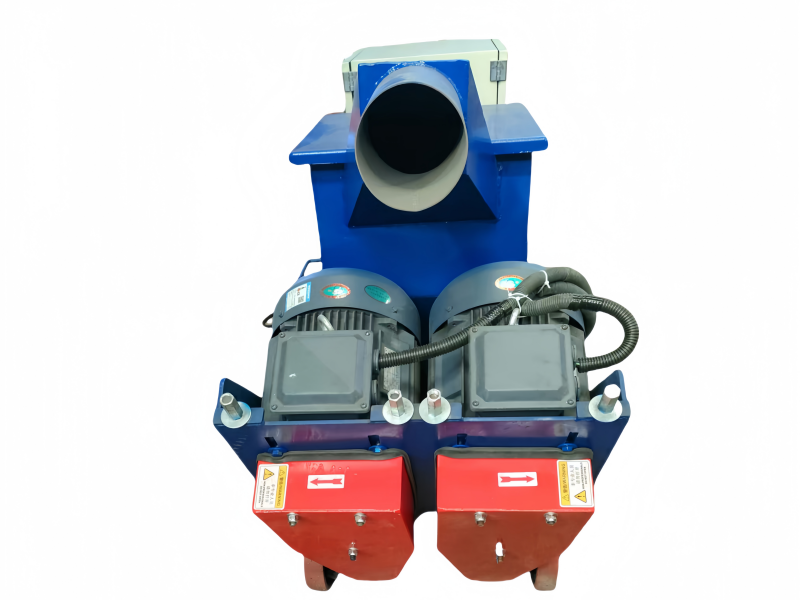

Concrete Shot Blasting Machine(图1)

Size: Larger and more powerful.

Blast Pattern Width: Up to 30 inches or more.

Usage: Designed for large - scale projects, such as industrial floors, parking garages, and warehouses.

Example: Covers large areas quickly and efficiently, reducing labor time and effort.

3.Power Options:

Electric: Suitable for indoor use where power supply is available.

Diesel and Gasoline - Powered: Ideal for outdoor use or areas without access to electricity.

Tips for Effective Use

1.Select the Right Steel Shot Size: The size of the steel shots should be chosen based on the desired surface profile and the type of contaminants to be removed.

2.Adjust Machine Settings: The speed and angle of the blast wheel should be adjusted according to the hardness and condition of the concrete surface.

3.Regular Maintenance: Regularly inspect and maintain the machine to ensure optimal performance and longevity. This includes cleaning the blast chamber, checking the blast wheel, and maintaining the dust - collection system.

4.Safety Precautions: Always wear appropriate personal protective equipment (PPE), such as safety glasses, gloves, and ear protection. Ensure proper ventilation in enclosed spaces.

Conclusion

A concrete shot blasting machine is a highly effective tool for surface preparation and cleaning. Its ability to quickly and uniformly treat large areas of concrete surfaces makes it an essential piece of equipment in construction, maintenance, and restoration projects. By selecting the right machine and following proper operating procedures, users can achieve efficient and high - quality results.

Basic Parameter

1.Seperated Floor Shot Blaster Technology Data

Name/Model	MZRS-270S	MZRS-550S	MZRS-850S	MZRS-1000S
Voltage	Three-phase 380V,50Hz
Blast Wheel Power	11Kw*1	11Kw*2	15Kw*2	18.5Kw*2
Blast Wheel Motor Shell	Performance Index-54
Movement Motor Power	0.75Kw	1.1Kw	1.1Kw	1.1Kw
Movement Motor Motor Shell	Performance Index-44
Blast Wheel Size	220mm
Machine Weight(mm)	19003801100	19507201130	205010501450	205011801450
Shot Blasting Efficiency for Concrete Surface	≥150㎡/h	≥300㎡/h	≥450㎡/h	≥550㎡/h
Shot Blasting Efficiency for Steel Plate Surface	≥40㎡/h	≥80㎡/h	≥120㎡/h	≥150㎡/h
Shot Blasting Width	270mm	550mm	850mm	1000mm
Running Speed	0.5-20m/min
Suction Pipe Diameter	Φ120mm	Φ150mm	Φ200mm	Φ200mm
Consumption Of Steel Shot	≤100g/㎡
Dust Collector	MZ0405	MZ0408	MZ0411	MZ0411
Air Compression Power	2.2Kw
Dust Removal Power	4Kw	4Kw	7.5Kw	7.5Kw
Dust Collector Size(mm)	15508101700	195010301500	223010301500	223010301500
Dust Collector Weight	320kg	540kg	710kg	710kg
Total Power	17.9Kw	29.3Kw	4.08Kw	47.8Kw

2.Integrated Floor Shot Blaster Technology Data

Name/Model	MZRS-550Pro	MZRS-850Pro	MZRS-1000Pro
Voltage	Three-phase 380V,50Hz
Blast Wheel Power	11Kw*2	15Kw*2	18.5Kw*2
Blast Wheel Motor Shell	Performance Index-54
Movement Motor Power	1.5Kw	1.5Kw	1.5Kw
Movement Motor Motor Shell	Performance Index-44
Blast Wheel Size	220mm
Shot Blasting Efficiency For Concrete Surface	≥300㎡/h	≥550㎡/h	≥700㎡/h
Shot Blasting Efficiency For Steel Plate Surface	≥150㎡/h	≥200㎡/h	≥250㎡/h
Shot Blasting Width	550mm	850mm	1000mm
Running Speed	0.5-20m/min
Suction Pipe Diameter	Φ150mm	Φ200mm	Φ200mm
Consumption Of Steel Shot	≤100g/㎡
Dust Collector	MZ0405B	MZ0406B	MZ0408B
Air Compression Power	2.2Kw
Dust Removal Power	4Kw	4Kw	4Kw
Machine Size(mm)	24808101750	270010201950	272011701950
Machine Weight	900kg	1100kg	1300kg
Total Power	29.7Kw	37.7Kw	44.7Kw

3. Driving vehicle type:MZRS-1000D Technology Data

Name	Technology data	Technology data
Model	MZRS-1000D	MZRS-1270D
Blast Wheel Motor Power	2*45Kw	2*45Kw
Blast Wheel Motor Shell	Performance Index-54	Performance Index-54
Shot Blasting Efficiency For Concrete Surface	1300-3200㎡/h	1300-3200㎡/h
Shot Blasting Efficiency For Steel Plate Surface	380㎡/h	380㎡/h
Shot Blasting Width	1000mm	1270mm
Running Speed	0-110m/min	0-110m/min
Consumption Of Steel Shot	≤100g/㎡	≤100g/㎡
Hydraulic Power	15Kw	22Kw
Reducer	1.1Kw
Dust Collector	MZ0410D (10 pcs fillter)	MZ0428D (28 pcs fillter)
Air Compression Power	3Kw	5.5Kw
Dust Removal Power	4Kw*2	7.5Kw*2
Machine Size(mm)	530022502500mm	650022502750mm
Machine Weight	5200kg	11000kg

4.Vertical type:MZRS-270V Technology Data

Name	Technology data
Model	MZRS-270V
Power	Three-phase 380V,50Hz
Blast Wheel Motor Power	11Kw
Blast Wheel Motor Shell	Performance Index-54
Blast Wheel Size	220mm
Shot Blasting Efficiency For Steel Plate Surface	≥40㎡/h
Shot Blasting Width	270mm
Running Speed	0.5-20m/min
Consumption Of Steel Shot	≤100g/㎡
Dust Collector	MZ0405
Air Compression Power	2.2Kw
Dust Removal Power	4Kw
Dust Collector Size	15508101700mm
Dust Collector Weight	320kg
Machine Size(mm)	130085001550mm
Machine Weight	360kg
Total Power	17.2Kw
