Concrete Floor Bead Blaster

1.Name:Concrete Floor Bead Blaster

2.Model:MZ

3.It Is Used For Floor & Steel Plate

technical consultation

Video

What Is a Concrete Floor Bead Blaster?

What Is a Concrete Floor Bead Blaster?

A concrete floor bead blaster is a specialized machine designed to clean, profile, and prepare concrete surfaces using small abrasive beads. These beads are propelled at high velocities to remove contaminants, old coatings, and surface imperfections, leaving a clean and textured surface.

How Does It Work?

How Does It Work?

The machine uses a centrifugal blast wheel to project the abrasive beads onto the concrete surface. The beads impact the surface at high speed, breaking up dirt, rust, and other contaminants while creating a uniform profile. The debris and used beads are then collected and separated by a dust collection system, with the beads being recycled for reuse.

Key Features and Benefits

1.Efficient Surface Preparation: Quickly removes old coatings, dirt, and contaminants, preparing the surface for new applications.

2.Uniform Profile: Creates a consistent surface profile, enhancing the adhesion of new coatings or overlays.

3.Environmentally Friendly: The enclosed system minimizes dust and airborne particles, making it suitable for indoor use.

4.Versatile Applications: Ideal for concrete floors, steel decks, and other surfaces.

Concrete Floor Bead Blaster(图1)

Applications

Applications

Concrete Floor Bead Blaster(图1)

1.Concrete Floor Preparation: Removes laitance, dirt, and old coatings to prepare floors for epoxy coatings, paint, or overlays.

2.Rust Removal: Effective for removing rust and mill scale from steel surfaces.

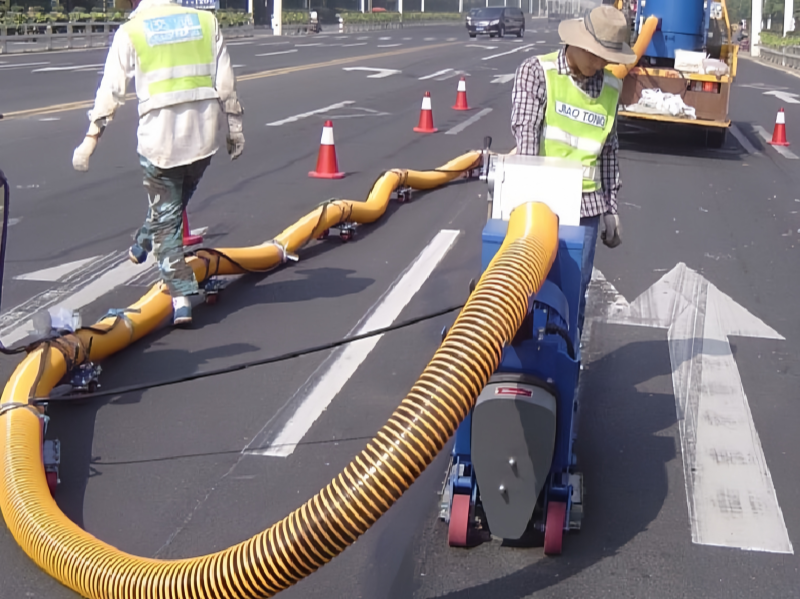

3.Marking Line Cleaning: Cleans road markings and other surface lines.

Types and Specifications

1.Blast Pattern Width: Available in various widths (e.g., 10 inches to 30 inches), depending on the model.

2.Production Capacity: Some models can cover up to 9,000 square feet per hour.

3.Power Options: Electric, diesel, and gasoline-powered models are available.

Advantages

1.Time-Saving: Reduces the time required for surface preparation compared to manual methods.

2.Cost-Effective: The recycling of abrasive beads minimizes waste and operating costs.

3.Safety: Creates non-slip surfaces, enhancing safety in areas like parking garages and industrial floors.

Conclusion

A concrete floor bead blaster is an essential tool for efficient and effective surface preparation. Its ability to quickly clean and profile surfaces makes it a valuable asset in construction, maintenance, and restoration projects

Basic Parameter

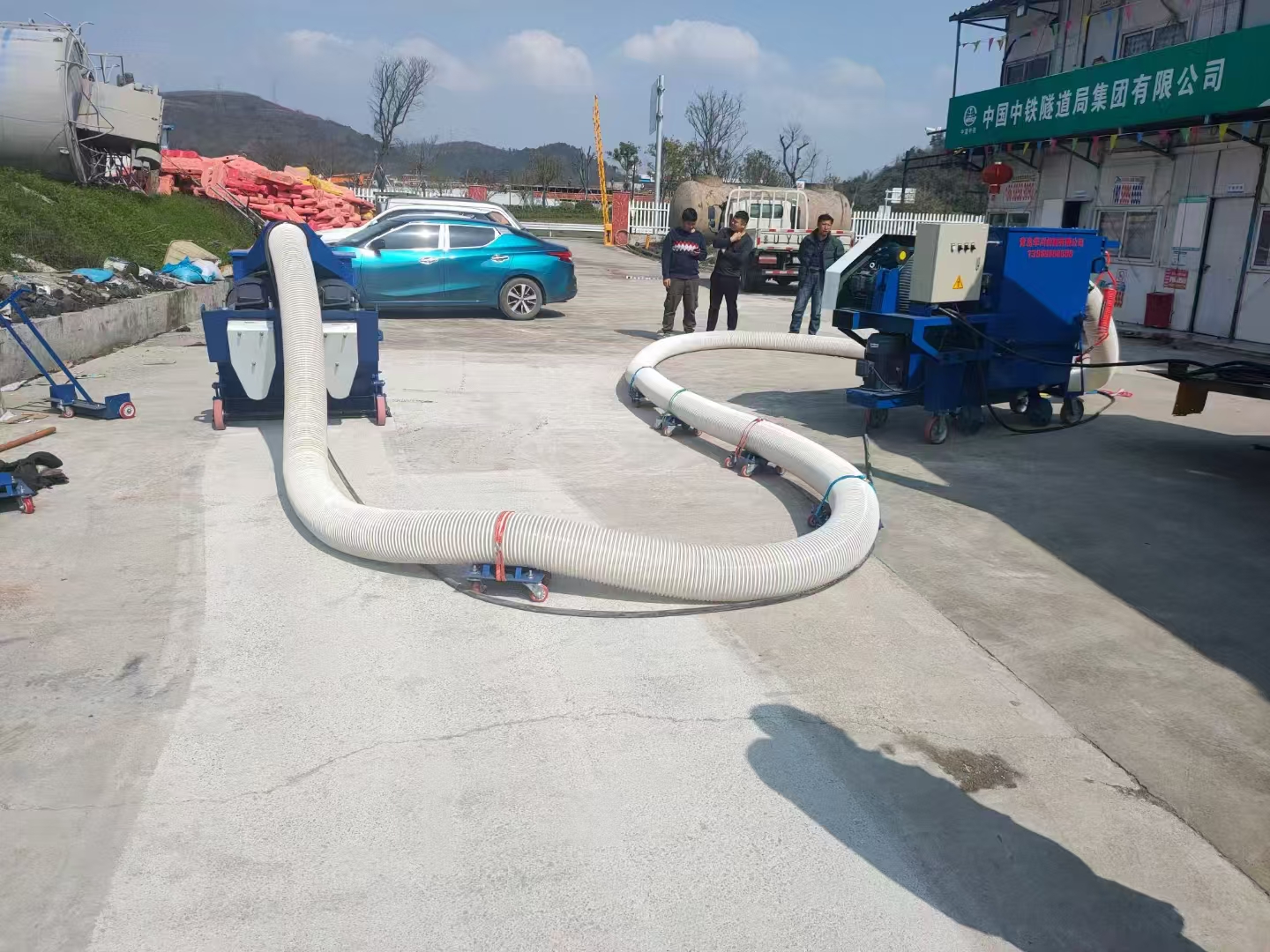

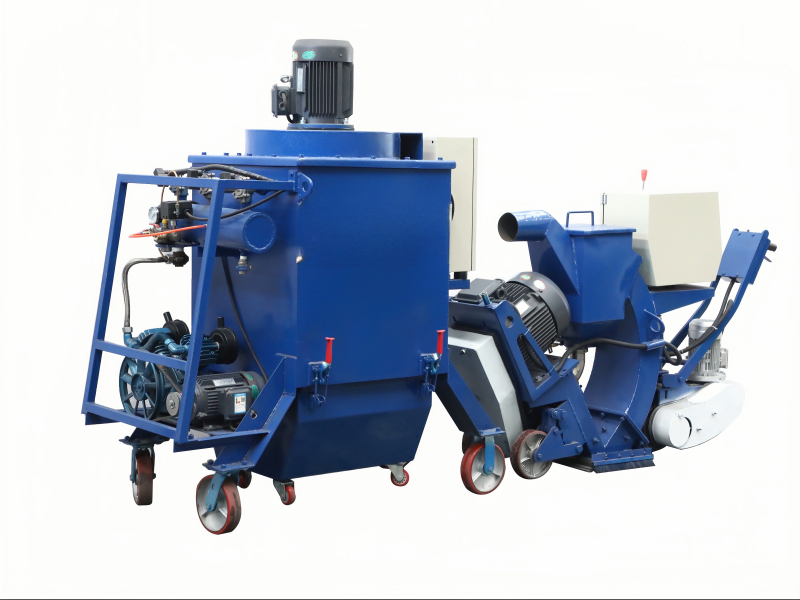

1.Seperated Floor Shot Blaster Technology Data

Name/Model	MZRS-270S	MZRS-550S	MZRS-850S	MZRS-1000S
Voltage	Three-phase 380V,50Hz
Blast Wheel Power	11Kw*1	11Kw*2	15Kw*2	18.5Kw*2
Blast Wheel Motor Shell	Performance Index-54
Movement Motor Power	0.75Kw	1.1Kw	1.1Kw	1.1Kw
Movement Motor Motor Shell	Performance Index-44
Blast Wheel Size	220mm
Machine Weight(mm)	19003801100	19507201130	205010501450	205011801450
Shot Blasting Efficiency for Concrete Surface	≥150㎡/h	≥300㎡/h	≥450㎡/h	≥550㎡/h
Shot Blasting Efficiency for Steel Plate Surface	≥40㎡/h	≥80㎡/h	≥120㎡/h	≥150㎡/h
Shot Blasting Width	270mm	550mm	850mm	1000mm
Running Speed	0.5-20m/min
Suction Pipe Diameter	Φ120mm	Φ150mm	Φ200mm	Φ200mm
Consumption Of Steel Shot	≤100g/㎡
Dust Collector	MZ0405	MZ0408	MZ0411	MZ0411
Air Compression Power	2.2Kw
Dust Removal Power	4Kw	4Kw	7.5Kw	7.5Kw
Dust Collector Size(mm)	15508101700	195010301500	223010301500	223010301500
Dust Collector Weight	320kg	540kg	710kg	710kg
Total Power	17.9Kw	29.3Kw	4.08Kw	47.8Kw

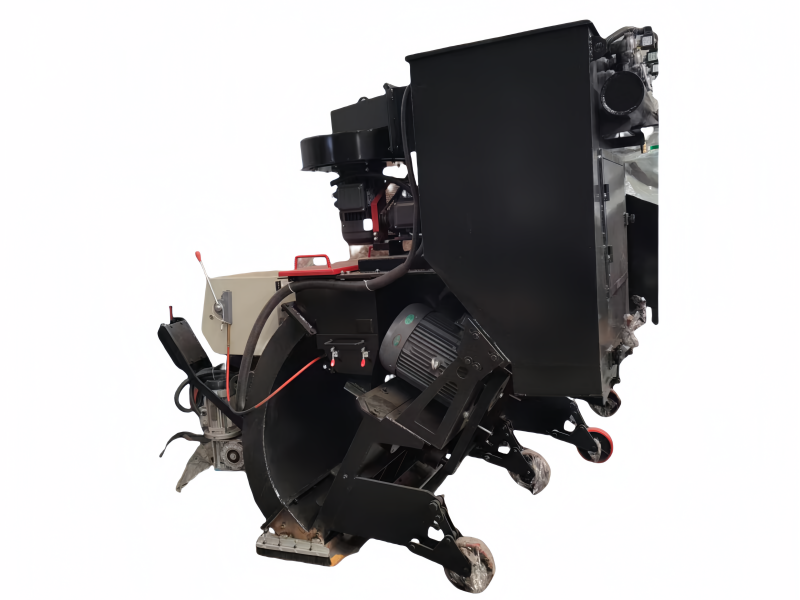

2.Integrated Floor Shot Blaster Technology Data

Name/Model	MZRS-550Pro	MZRS-850Pro	MZRS-1000Pro
Voltage	Three-phase 380V,50Hz
Blast Wheel Power	11Kw*2	15Kw*2	18.5Kw*2
Blast Wheel Motor Shell	Performance Index-54
Movement Motor Power	1.5Kw	1.5Kw	1.5Kw
Movement Motor Motor Shell	Performance Index-44
Blast Wheel Size	220mm
Shot Blasting Efficiency For Concrete Surface	≥300㎡/h	≥550㎡/h	≥700㎡/h
Shot Blasting Efficiency For Steel Plate Surface	≥150㎡/h	≥200㎡/h	≥250㎡/h
Shot Blasting Width	550mm	850mm	1000mm
Running Speed	0.5-20m/min
Suction Pipe Diameter	Φ150mm	Φ200mm	Φ200mm
Consumption Of Steel Shot	≤100g/㎡
Dust Collector	MZ0405B	MZ0406B	MZ0408B
Air Compression Power	2.2Kw
Dust Removal Power	4Kw	4Kw	4Kw
Machine Size(mm)	24808101750	270010201950	272011701950
Machine Weight	900kg	1100kg	1300kg
Total Power	29.7Kw	37.7Kw	44.7Kw

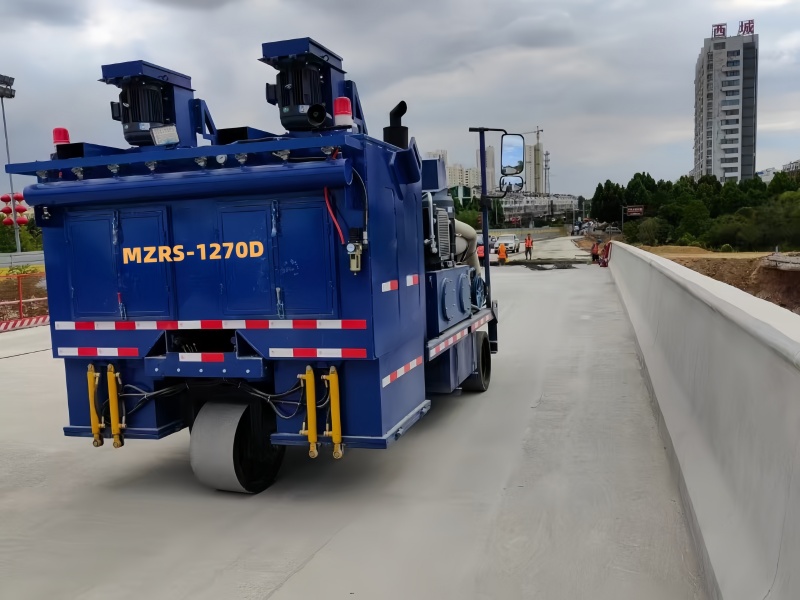

3. Driving vehicle type:MZRS-1000D Technology Data

Name	Technology data	Technology data
Model	MZRS-1000D	MZRS-1270D
Blast Wheel Motor Power	2*45Kw	2*45Kw
Blast Wheel Motor Shell	Performance Index-54	Performance Index-54
Shot Blasting Efficiency For Concrete Surface	1300-3200㎡/h	1300-3200㎡/h
Shot Blasting Efficiency For Steel Plate Surface	380㎡/h	380㎡/h
Shot Blasting Width	1000mm	1270mm
Running Speed	0-110m/min	0-110m/min
Consumption Of Steel Shot	≤100g/㎡	≤100g/㎡
Hydraulic Power	15Kw	22Kw
Reducer	1.1Kw
Dust Collector	MZ0410D (10 pcs fillter)	MZ0428D (28 pcs fillter)
Air Compression Power	3Kw	5.5Kw
Dust Removal Power	4Kw*2	7.5Kw*2
Machine Size(mm)	530022502500mm	650022502750mm
Machine Weight	5200kg	11000kg

4.Vertical type:MZRS-270V Technology Data

Name	Technology data
Model	MZRS-270V
Power	Three-phase 380V,50Hz
Blast Wheel Motor Power	11Kw
Blast Wheel Motor Shell	Performance Index-54
Blast Wheel Size	220mm
Shot Blasting Efficiency For Steel Plate Surface	≥40㎡/h
Shot Blasting Width	270mm
Running Speed	0.5-20m/min
Consumption Of Steel Shot	≤100g/㎡
Dust Collector	MZ0405
Air Compression Power	2.2Kw
Dust Removal Power	4Kw
Dust Collector Size	15508101700mm
Dust Collector Weight	320kg
Machine Size(mm)	130085001550mm
Machine Weight	360kg
Total Power	17.2Kw
