Bar Shot Blasting Machine

1.Name:Bar Shot Blasting Machine

2.Model:MTR

3.It Is Used For Bar+Pipe Shot Blasting

technical consultation

Video

Introduction

A Steel Bar Shot Blasting Machine is a specialized industrial equipment designed to clean, descale, and remove rust from steel bars, rods, and other cylindrical metal components. It is widely used in industries such as steel manufacturing, construction, and metal processing to improve surface quality and prepare steel bars for further processing or coating.

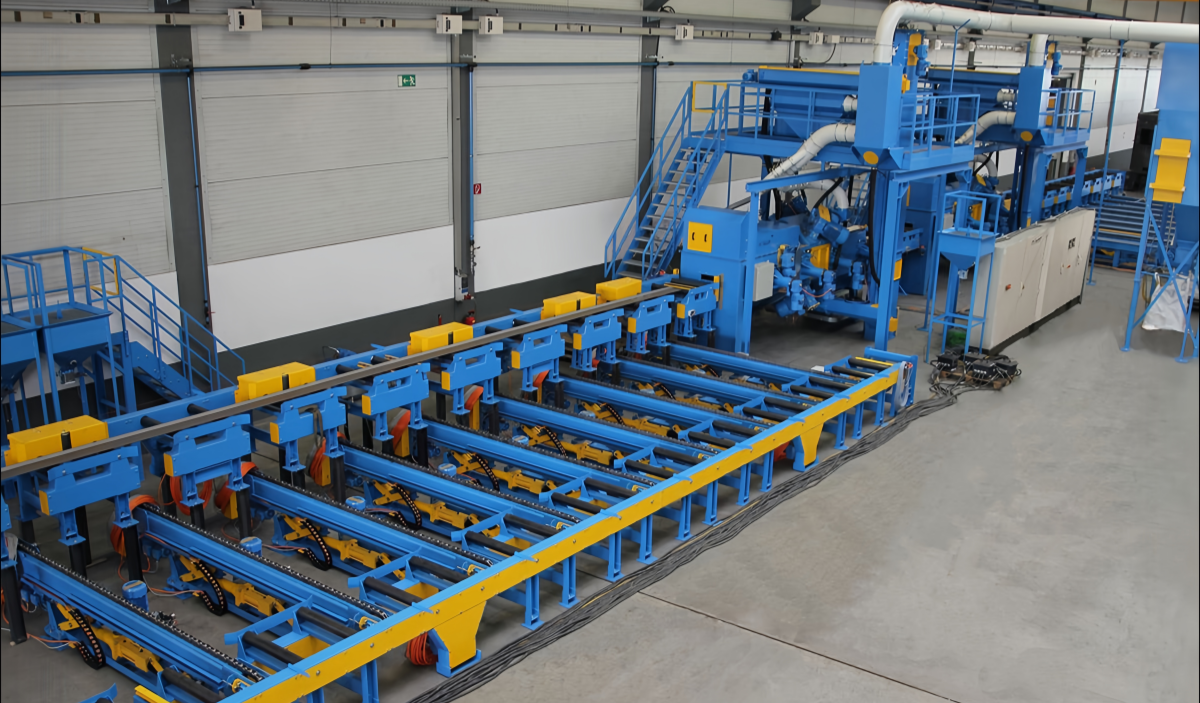

Bar Shot Blasting Machine(图1)

Applications

Key Features

1. High-Efficiency Cleaning: The machine uses high-speed blast wheels to remove rust, scale, and other impurities from steel surfaces.

2. Automated Operation: Fully automated systems ensure continuous production with minimal manual intervention.

3. Customizable Options: Available in various models and configurations to accommodate different steel bar sizes and production volumes.

4. Durable Construction: Built with wear-resistant materials like manganese steel to ensure long service life.

5. Integrated Systems: Equipped with abrasive recycling, dust collection, and PLC control systems for efficient operation.

Functions

1.Surface Cleaning: Eliminates rust, oxide scales, and contaminants from the surface of steel bars. This prepares the steel bars for processes like coating or galvanizing.

2.Surface Strengthening: The shot blasting process creates compressive stresses on the surface of steel bars, enhancing their fatigue strength and resistance to stress corrosion cracking.

3.Surface Texturing: Produces a uniform and controlled surface roughness on steel bars. This improves the adhesion of coatings or other materials applied afterward.

Applications

1.Construction Industry: Used to process steel bars used in building construction, such as reinforcing bars. This ensures the longevity and reliability of the structures.

2.Bridge Construction: Applied to steel bars used in bridge construction to ensure their durability and resistance to environmental factors.

3.Railway Sector: Used for processing steel bars used in railway tracks. This ensures the safety and reliability of railway systems.

4.Automotive Manufacturing: Applied to steel bars used in automotive components. This ensures the quality and durability of automotive parts.

5. Rust Removal: Effectively removes rust and oxide layers from steel surfaces.

6. Surface Preparation: Prepares steel bars for coating, welding, or further processing by creating a uniform surface finish.

7. Stress Relief: Helps eliminate internal stresses generated during the wire drawing process.

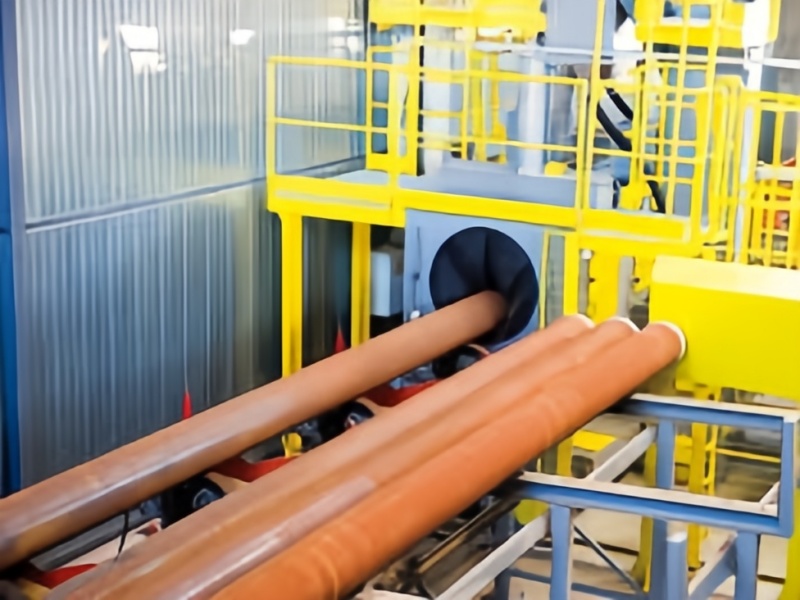

Bar Shot Blasting Machine(图1)

Operating Procedure

Operating Procedure

1.Pre - operation Preparation: Check the machine to ensure it is in good working condition. Load the steel bars onto the machine's support system and secure them properly.

2.Start the Machine: Turn on the power and initiate the shot blasting process. The abrasive media will be propelled onto the steel bar surface by the spinning blast wheels.

3.Adjustment: Depending on the steel bar's size, material, and required surface finish, adjust parameters such as the blasting time, abrasive flow rate, and blast wheel speed.

4.Completion and Cleaning: Once the shot blasting is completed, turn off the machine and unload the steel bars. Clean off any residual abrasive from the steel bars and the machine.

Advantages

1.High - Efficiency Cleaning: Can quickly and thoroughly remove contaminants from steel bars, significantly improving cleaning efficiency compared to manual methods.

2.Uniform Processing: The mechanical operation ensures consistent shot blasting results along the entire length of the steel bar, achieving a uniform surface quality.

3.Enhanced Cleaning Quality: The high - speed bombardment of abrasive media effectively removes even the most stubborn contaminants, providing a high - quality surface finish.

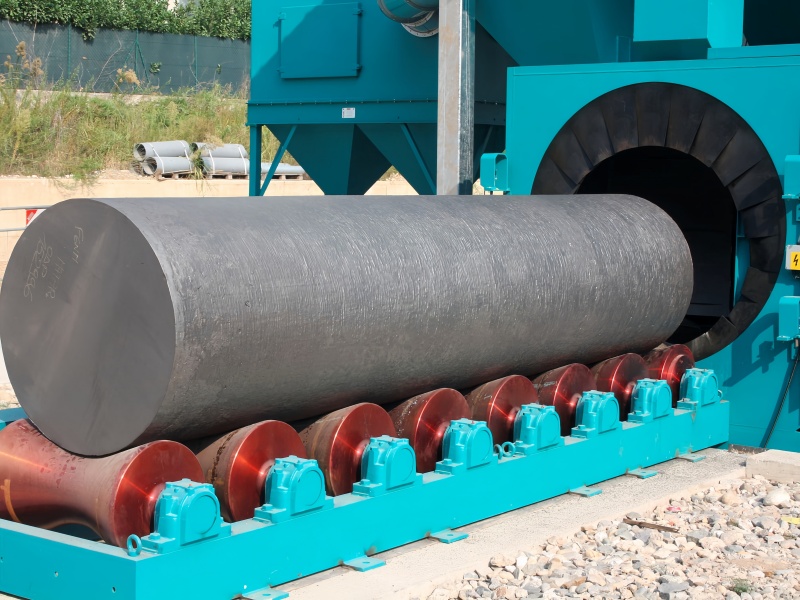

Bar Shot Blasting Machine(图1)

4.Customizable Process: Parameters can be adjusted according to different steel bar specifications and requirements, offering flexibility in processing various types of steel bars.

Disadvantages

1.High Equipment Cost: The initial investment for purchasing and installing a steel bar shot blasting machine is relatively high, which may be a barrier for some small - scale enterprises.

2.Complex Operation and Maintenance: The machine has a relatively complex structure and operating principles. Operators need specialized training to master its operation and maintenance. Additionally, regular maintenance and timely replacement of worn - out parts are required to ensure its proper functioning.

3.Noise and Dust Generation: The shot blasting process may produce noise and dust, necessitating effective soundproofing and dust - collection measures in the operating environment.

4.Limited Applicability: Mainly suitable for straight steel bars with regular shapes. For steel bars with complex geometries or special structures, its application may be limited.

Maintenance and Care

1.Daily Cleaning: Clean the machine's exterior and interior after each use to remove residual abrasive and contaminants. Clean the filters of the dust - collection system to ensure effective dust removal.

2.Regular Inspection: Periodically check the wear and tear of blast wheels, abrasive valves, and conveyor belts. Replace worn - out parts promptly to prevent equipment failures.

3.Lubrication: Apply lubricants to the machine's bearings, gears, and other moving parts as per the manufacturer's recommendations. This reduces friction and extends the service life of components.

4.Storage: When the machine is not in use for an extended period, store it in a dry and well - ventilated area. Cover it with a protective cover to prevent dust and moisture from affecting its performance.

In summary, the Steel Bar Shot Blasting Machine is a highly efficient and versatile solution for steel bar surface treatment. By understanding its definition, functions, applications, operating procedures, advantages, disadvantages, and maintenance requirements, businesses can make informed decisions about its use and maintenance. This helps maximize the machine's benefits in industrial steel bar processing applications and improve the quality and efficiency of production processes.

Basic Parameter

Model	Work Piece Size (mm)	Shot Capacity (kg)	Elevating Capacity (kg)	Separating Capacity (kg)	Air Volume (m³/h)	Power (kW)
MZ10	30×100	2×250	30000	30000	5000	50
MZ15	50×150	2×250	30000	30000	5000	50
MZ20	50×200	2×250	30000	30000	5000	50
MZ25	50×250	2×250	30000	30000	6000	50
MZ30	50×300	2×1000	30000	30000	6000	50
MZ140	150×1400	2×1000	1200000	1200000	10000	115
