Vertical Mobile Shot Blaster For Oil Tank Outer Wall
Vertical Mobile Shot Blaster For Oil Tank Outer Wall
Vertical Mobile Shot Blaster For Oil Tank Outer Wall

1.Name:Vertical Mobile Shot Blaster For Oil Tank Outer Wall

2.Model:MZ

3.It Is Used For Floor & Steel Plate



technical consultation

Video

Introduction

The Vertical Mobile Shot Blaster for Oil Tank Outer Wall is a specialized machine designed to efficiently clean the exterior surfaces of large oil storage tanks.

 Here is a detailed introduction to this equipment:

Design and Functionality

1.Vertical and Horizontal Blasting Capability

This machine is capable of blasting both vertical and horizontal surfaces. It can move up and down the tank walls, as well as clean the tank roofs and floors. This versatility eliminates the need to reposition hoses and electric cables, significantly increasing productivity.

2.Remote-Controlled Operation

The Vertical Mobile Shot Blaster is typically operated via a wireless handheld remote control. This allows for precise control over the machine’s movements and blasting operations, enhancing both efficiency and safety.

3.Adaptability to Various Tank Types

The machine is designed to fit a wide range of tank shapes and sizes, including cone, dome, knuckle, floating, and geodesic tanks. It can also be equipped with special fixtures for cleaning below stairways or other hard-to-reach areas.


Technical Features

Technical Features

1.Powerful Blasting Wheels

Equipped with centrifugal blast wheels driven by high-power electric motors (ranging from 11 kW to 22 kW), the machine can throw steel shot or sand at high speeds to effectively remove rust, old coatings, and other contaminants from the tank surface.

2.High-Vacuum Sealing System

The machine uses a high-vacuum dust collector to create a tight seal against the tank surface. This ensures that there are no emissions around the suction cup seal, making the operation environmentally friendly and safe.

3.Variable Frequency Drive

The dust collector fan is equipped with a variable frequency drive, allowing for adjustable suction power to match different cleaning requirements.

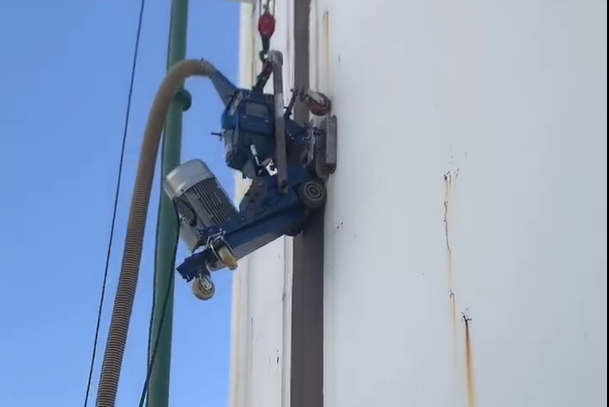

Vertical Mobile Shot Blaster For Oil Tank Outer Wall (图1)


Application Advantages

Application Advantages

1.Increased Efficiency

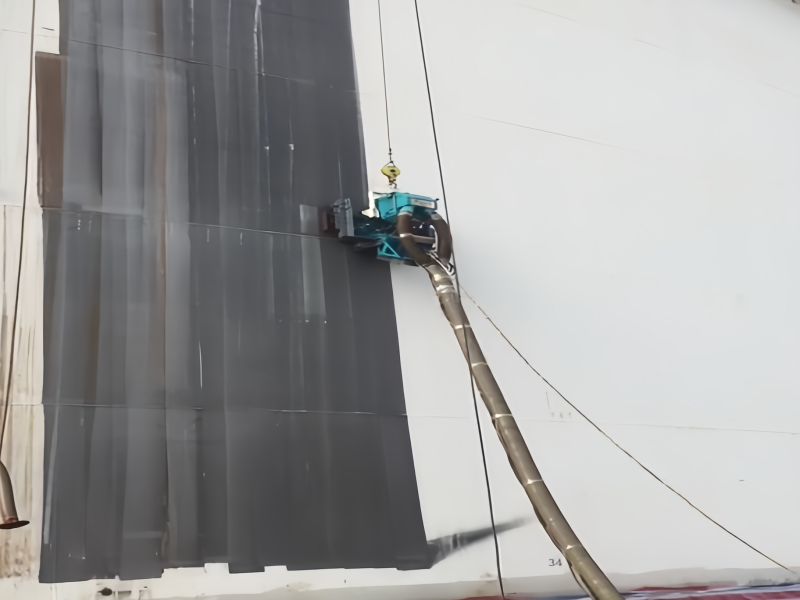

Vertical Mobile Shot Blaster For Oil Tank Outer Wall (图1)


The Vertical Mobile Shot Blaster can clean large areas quickly, reducing the time and labor required for tank maintenance.

2.Reduced Maintenance and Labor Costs

The machine is designed to minimize maintenance needs and lower labor costs. Its robust construction and reliable components ensure long-term durability.

3.Versatile Use

Besides oil tank cleaning, this machine can also be used for cleaning ship hulls, wind towers, and other large industrial structures.

Environmental and Safety Considerations

1.Zero Emission

The machine’s sealing system ensures that no abrasive material or dust is released into the environment, making it a clean and safe option for industrial cleaning.

2.Compliance with Standards

Many models of Vertical Mobile Shot Blasters are designed to meet international safety and environmental standards, ensuring safe operation in various industrial settings.

In summary, the Vertical Mobile Shot Blaster for Oil Tank Outer Wall is a highly efficient and versatile machine that significantly enhances the cleaning and maintenance processes of large industrial tanks. Its advanced features and operational benefits make it a valuable tool in the oil and gas industry.


Basic Parameter

1.Seperated Floor Shot Blaster Technology Data

Name/Model

MZRS-270S

MZRS-550S

MZRS-850S

MZRS-1000S

Voltage

Three-phase 380V,50Hz

Blast Wheel Power

11Kw*1

11Kw*2

15Kw*2

18.5Kw*2

Blast Wheel Motor Shell

Performance Index-54

Movement Motor Power

0.75Kw

1.1Kw

1.1Kw

1.1Kw

Movement Motor Motor Shell

Performance Index-44

Blast Wheel Size

220mm

Machine Weight(mm)

1900*380*1100

1950*720*1130

2050*1050*1450

2050*1180*1450

Shot Blasting Efficiency for Concrete Surface

≥150/h

≥300/h

≥450/h

≥550/h

Shot Blasting Efficiency for Steel Plate Surface

≥40/h

≥80/h

≥120/h

≥150/h

Shot Blasting Width

270mm

550mm

850mm

1000mm

Running Speed

0.5-20m/min

Suction Pipe Diameter

Φ120mm

Φ150mm

Φ200mm

Φ200mm

Consumption Of Steel Shot

≤100g/

Dust Collector

MZ0405

MZ0408

MZ0411

MZ0411

Air Compression Power

2.2Kw

Dust Removal Power

4Kw

4Kw

7.5Kw

7.5Kw

Dust Collector Size(mm)

1550*810*1700

1950*1030*1500

2230*1030*1500

2230*1030*1500

Dust Collector Weight

320kg

540kg

710kg

710kg

Total Power

17.9Kw

29.3Kw

4.08Kw

47.8Kw


2.Integrated Floor Shot Blaster Technology Data

Name/Model

MZRS-550Pro

MZRS-850Pro

MZRS-1000Pro

Voltage

Three-phase 380V,50Hz

Blast Wheel Power

11Kw*2

15Kw*2

18.5Kw*2

Blast Wheel Motor Shell

Performance Index-54

Movement Motor Power

1.5Kw

1.5Kw

1.5Kw

Movement Motor Motor Shell

Performance Index-44

Blast Wheel Size

220mm

Shot Blasting Efficiency For Concrete Surface

≥300/h

≥550/h

≥700/h

Shot Blasting Efficiency For Steel Plate Surface

≥150/h

≥200/h

≥250/h

Shot Blasting Width

550mm

850mm

1000mm

Running Speed

0.5-20m/min

Suction Pipe Diameter

Φ150mm

Φ200mm

Φ200mm

Consumption Of Steel Shot

≤100g/

Dust Collector

MZ0405B

MZ0406B

MZ0408B

Air Compression Power

2.2Kw

Dust Removal Power

4Kw

4Kw

4Kw

Machine Size(mm)

2480*810*1750

2700*1020*1950

2720*1170*1950

Machine Weight

900kg

1100kg

1300kg

Total Power

29.7Kw

37.7Kw

44.7Kw


3. Driving vehicle type:MZRS-1000D Technology Data


Name

Technology data

Technology data

Model

MZRS-1000D

MZRS-1270D

Blast Wheel Motor Power

2*45Kw

2*45Kw

Blast Wheel Motor Shell

Performance Index-54

Performance Index-54

Shot Blasting Efficiency For Concrete Surface

1300-3200/h

1300-3200/h

Shot Blasting Efficiency For Steel Plate Surface

380/h

380/h

Shot Blasting Width

1000mm

1270mm

Running Speed

0-110m/min

0-110m/min

Consumption Of Steel Shot

100g/

100g/

Hydraulic Power

15Kw

22Kw

Reducer

1.1Kw


Dust Collector

MZ0410D (10 pcs fillter)

MZ0428D (28 pcs fillter)

Air Compression Power

3Kw

5.5Kw

Dust Removal Power

4Kw*2

7.5Kw*2

Machine Size(mm)

5300*2250*2500mm

6500*2250*2750mm

Machine Weight

5200kg

11000kg


4.Vertical type:MZRS-270V Technology Data


Name

Technology data

Model

MZRS-270V

Power

Three-phase 380V,50Hz

Blast Wheel Motor Power

11Kw

Blast Wheel Motor Shell

Performance Index-54

Blast Wheel Size

220mm

Shot Blasting Efficiency For Steel Plate Surface

40/h

Shot Blasting Width

270mm

Running Speed

0.5-20m/min

Consumption Of Steel Shot

100g/

Dust Collector

MZ0405

Air Compression Power

2.2Kw

Dust Removal Power

4Kw

Dust Collector Size

1550*810*1700mm

Dust Collector Weight

320kg

Machine Size(mm)

1300*8500*1550mm

Machine Weight

360kg

Total Power

17.2Kw
