What is Tumble Shot Blast Machine?

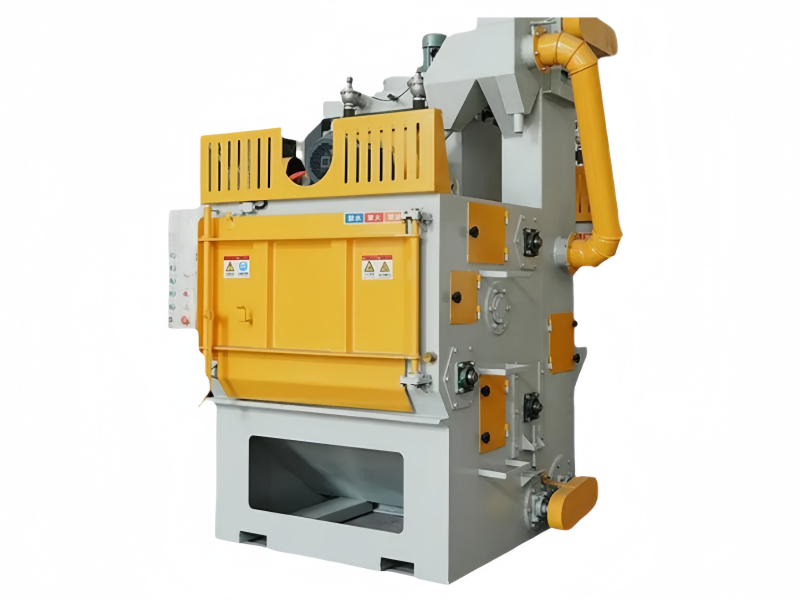

A Tumble Shot Blast Machine is an industrial device designed to clean, descale, and prepare the surfaces of various components through a tumbling and shot blasting process. It is particularly effective for batch processing of small to medium-sized castings, forgings, and other parts that can be gently tumbled.

Here are the key features, applications, and benefits of tumble shot blast machines:

Key Features

1.Tumbling Conveyor Belt:

Equipped with a rubber or steel belt that gently tumbles the workpieces, ensuring uniform exposure to the shot blasting process.

The tumbling belt is adjustable in speed, allowing for optimization based on the specific requirements of the workpieces.

2.High-Efficiency Blast Wheels:

Multiple high-speed blast wheels propel abrasive media (such as steel shot or grit) at the workpieces, effectively removing rust, scale, and other contaminants.

3.Abrasive Recycling System:

Features an automated system for recycling and cleaning the abrasive media, reducing waste and operational costs.

4.Dust Collection System:

Integrated dust collection systems capture and filter dust generated during the blasting process, ensuring environmental compliance.

5.Compact Design:

The machine is designed to be compact and self-contained, requiring no special foundations or additional ducting.

Applications

l Surface Cleaning: Removing rust, scale, and other contaminants from castings and forgings.

l Deburring: Removing burrs from metallic and non-metallic parts.

l Shot Peening: Improving surface hardness and fatigue resistance.

l Surface Preparation: Preparing surfaces for painting or coating.

Technical Specifications

1.Workpiece Capacity:

Rubber Belt Models: Up to 800 kg.

Steel Belt Models: Up to 1000 kg.

2.Blast Wheels:

Number of Wheels: 1-4.

Power: 7.5 kW to 15 kW per wheel.

3.Drum Diameter: 650 mm to 1000 mm.

4.Productivity: 0.6-5 t/h.

Benefits

l Efficiency: High production rates and consistent surface treatment.

l Versatility: Suitable for a wide range of small to medium-sized components.

l Cost-Effectiveness: Reduces labor costs and minimizes waste through the recycling of abrasive media.

l Environmental Protection: Integrated dust collection systems ensure compliance with environmental regulations.

Customization

Tumble shot blast machines can be customized to meet specific requirements, such as workpiece size, production capacity, and workshop layout. This flexibility makes them ideal for various manufacturing needs.

In summary, a Tumble Shot Blast Machine is an essential tool for industries requiring high-quality surface treatment of small to medium-sized components. Its efficiency, versatility, and environmental protection features make it a valuable investment for any production facility.
